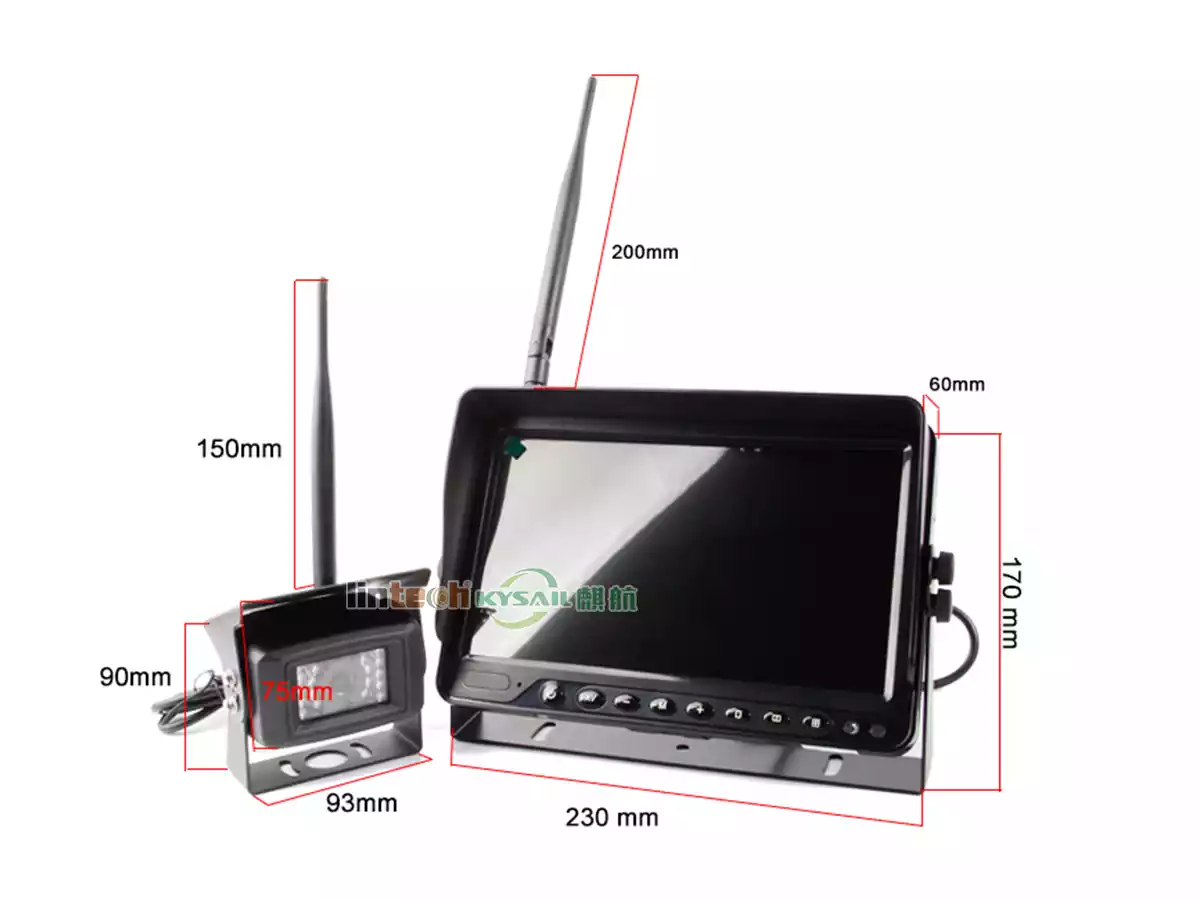

| 9 inches AHD Monitor Specifications: |
| (1)Screen size:9 inches |
| (2)Display Type: monitor (16: 9) display |
| (3)Monitor built in speaker |
| (4)With video record function Max support 1pc 128G SD card input |
| (5)Resolution: 1024 x R.G.B x 600 dots AHD |
| (6)Power supply: DC 12V~32V |
| (7)Power consumption: less than 7W |
| (8)Operating temperature: -10 to +65 C-degree |
| (9)Storage temperature: -20 to +65 C-degree |
| (10) OSD Menu for Setting up the camera image normal or mirror |
| (11) OSD Menu for Setting 4 Camera Views set up the priority of reverse camera |

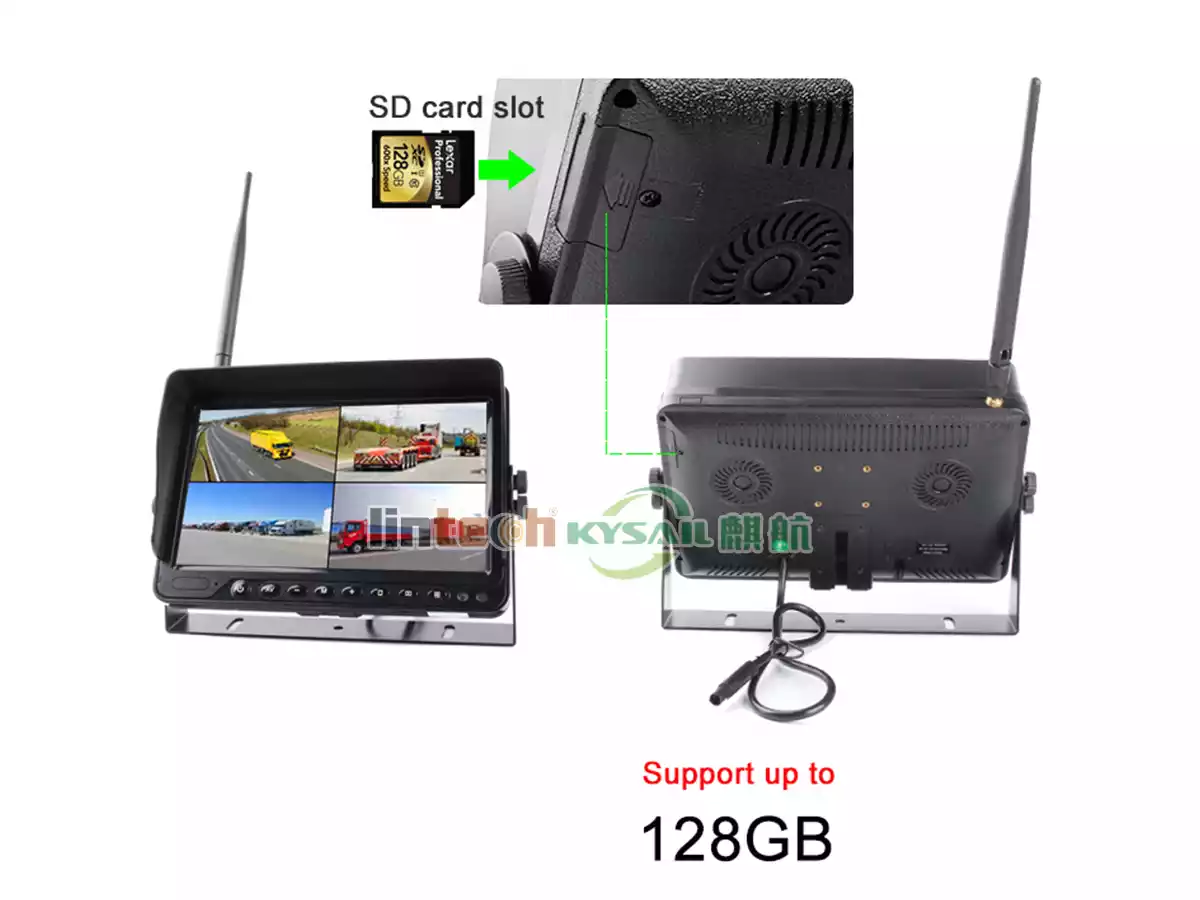

| (12)Can support up to 128GB SD card so you can record your footages from all camera. (SD card not included, available to be purchased separately) |
| (13)Suitable for Trucks, Buses, Forklifts, Harvesters, Fire Trucks, Mining Trucks, Crane Trucks, trailers, SUV, Utes, Cars Semi-Trailer/Box, 5th Wheel, Caravan and more |
Camera specification:
| (1)AHD 1080P Camera |
| (2)TV system : PAL/NTSC |
| (3)Resolution:700 TV lines |
| (4)With 18 IR LED light ,night vision distance up to 10-15 meters |
| (5)Self-sensitization control the night vision function by the light sensor |
| (6)120 degree wide range angle view |
| (7)Operating Voltage: 9~12VDC |
| (8)Operating temperature: -20~ +70 degrees , RH95% Max. |
| (9)Storage temperature: -40~ +80 degrees , RH95% Max. |
| (10)Alloy shell, Waterproof, silver/black color selectable |
| (11)IP Rating: IP68 |

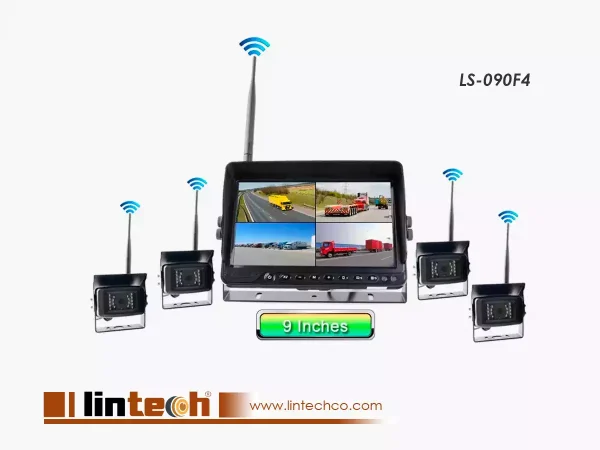

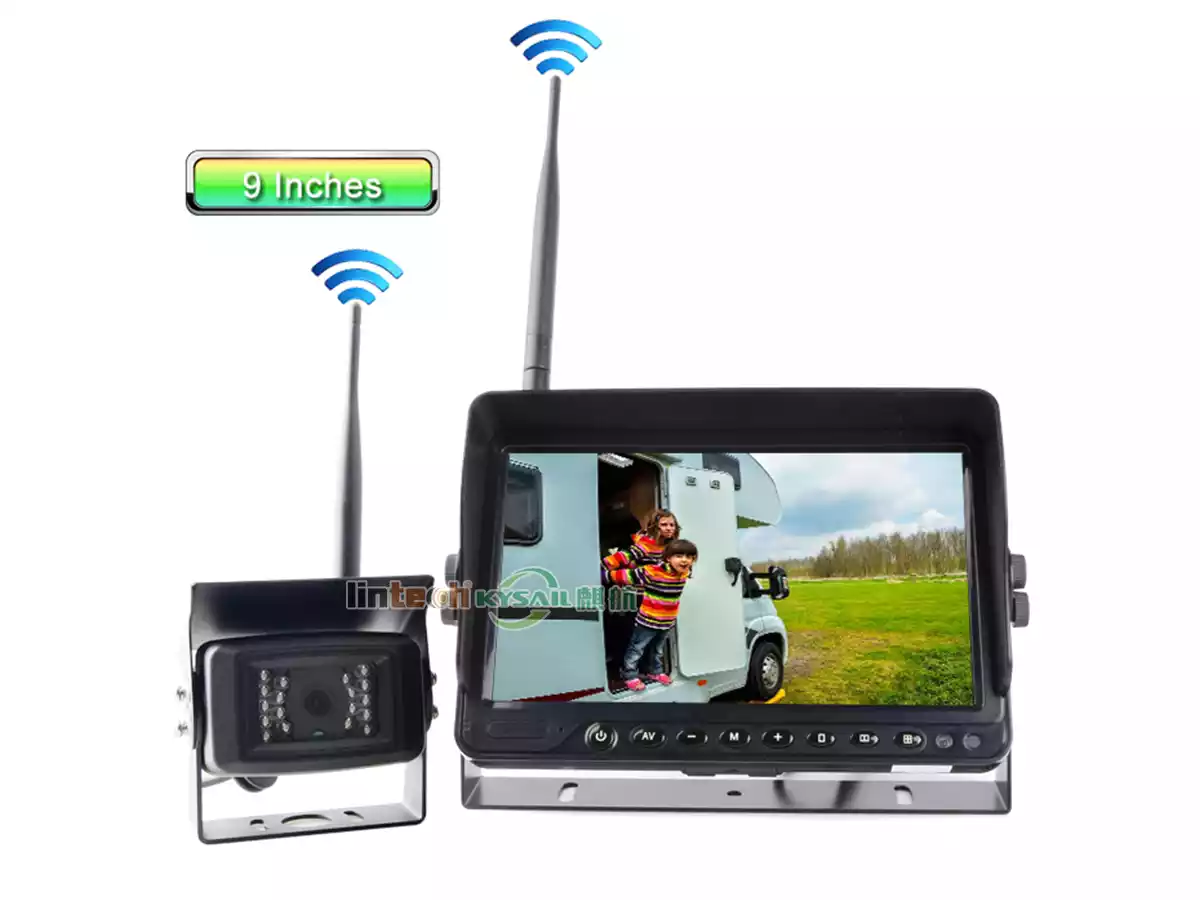

Our 9-inch Quadscreen Wireless Monitor Camera kit is also made for a long-range digital signal monitor with no interference and cameras communications for about 30 to 200 metres. Another guaranteed bestseller, this monitor for reversing camera kit can support up to 4 wireless channels, and camera view can show into different splits on screen. Suitable for 12V and 24V vehicles, our camera has a wide view angle of 120 degrees and 18 built-in IR LEDs for night vision. Featuring an impressive wireless connection, this monitor is so easy to install.
