Monitor Features:

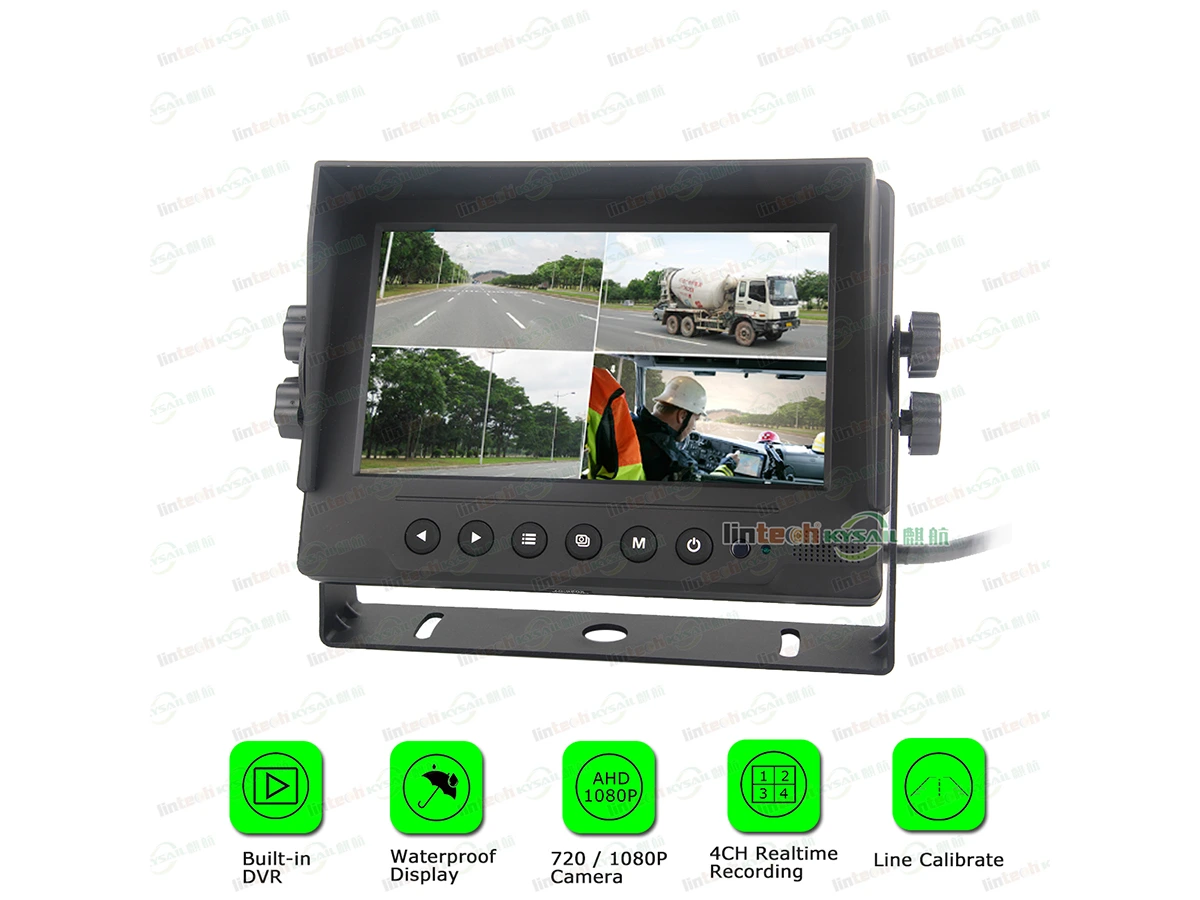

1. High-definition screen: full-color high-definition AHD screen;
2. Various functions: support car monitoring and video playback, and support multiple languages;
3. Intelligent CPU: support 12-36V wide voltage;
4. Wide range of uses: suitable for various largevehicles, forklifts, harvesters, excavators, etc.

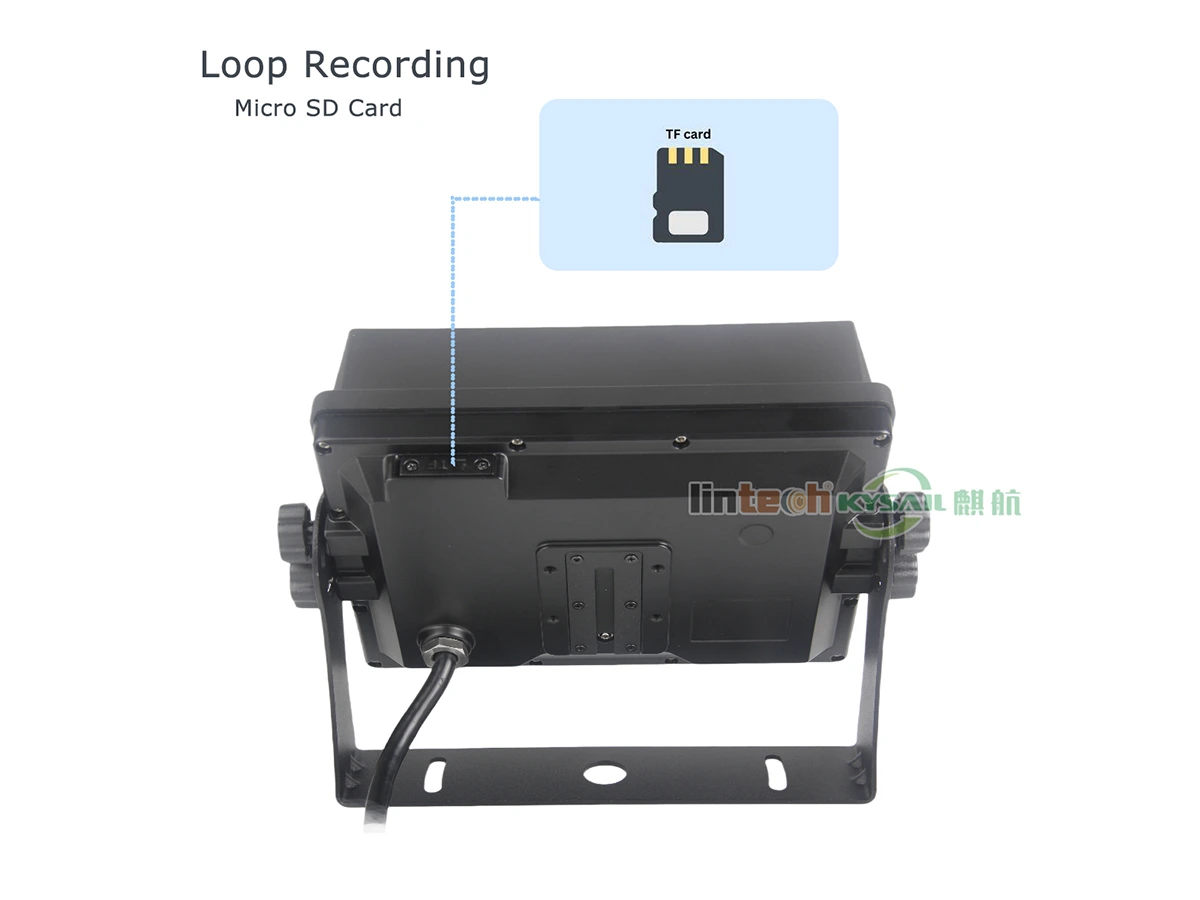

5. DVR video record function Max support 512Gb Micro SD Card input

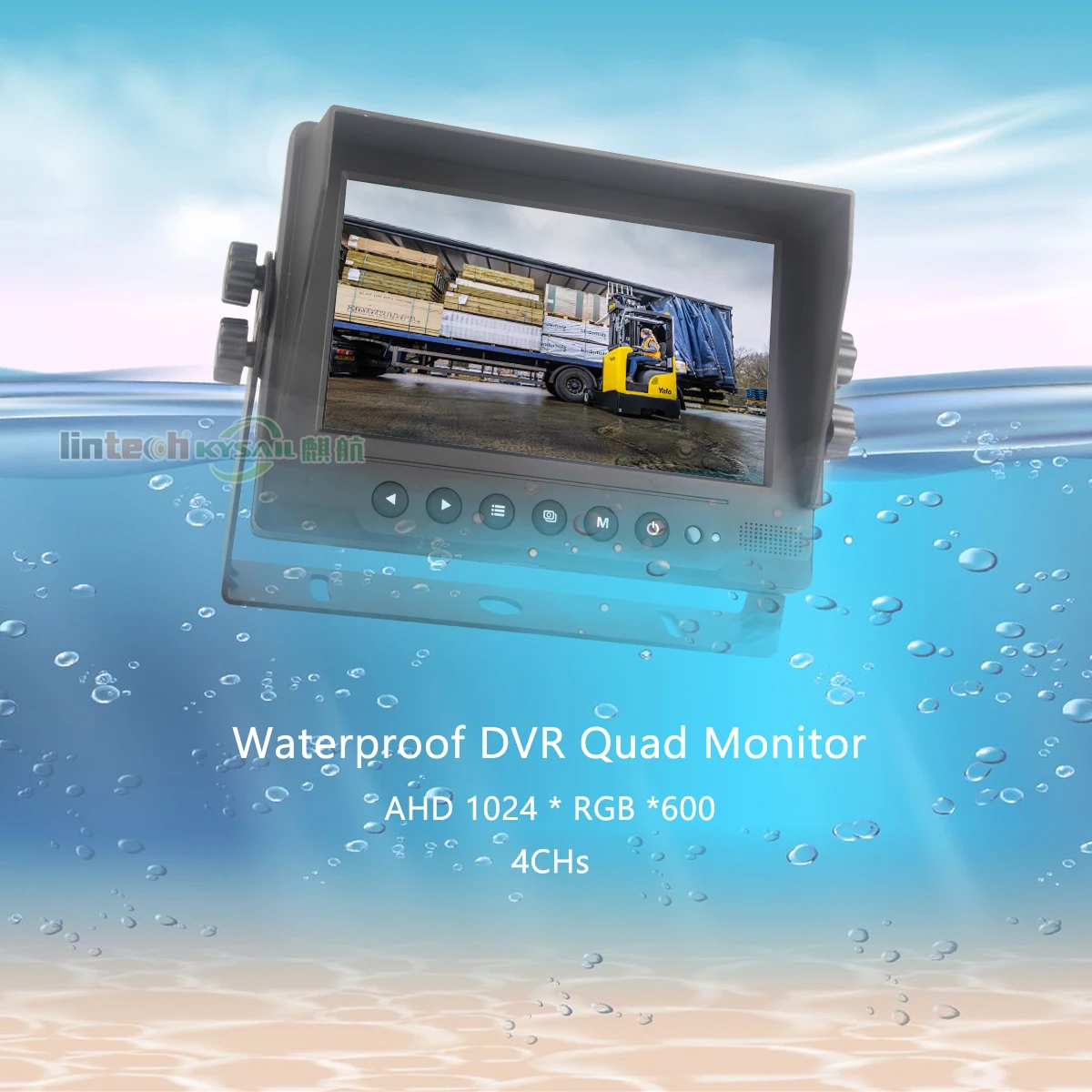

6. Waterproof rate IP69K
7. Aluminium alloy housing on the back dissipates heat quickly
1. High-definition screen: full-color high-definition AHD screen;
2. Various functions: support car monitoring and video playback, and support multiple languages;
3. Intelligent CPU: support 12-36V wide voltage;
4. Wide range of uses: suitable for various largevehicles, forklifts, harvesters, excavators, etc.
5. DVR video record function Max support 512Gb Micro SD Card input
6. Waterproof rate IP69K
7. Aluminium alloy housing on the back dissipates heat quickly
Monitor Specification:
|
Product Name
|

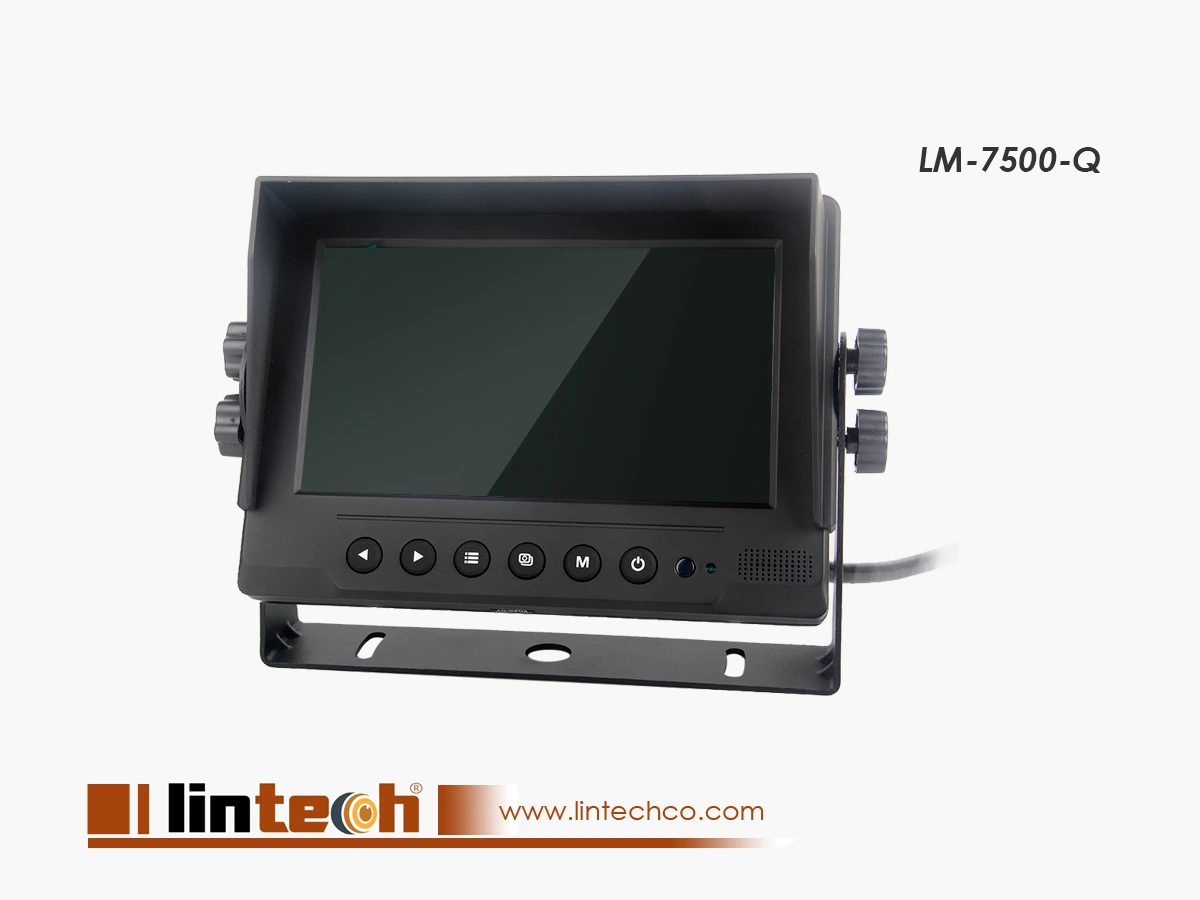

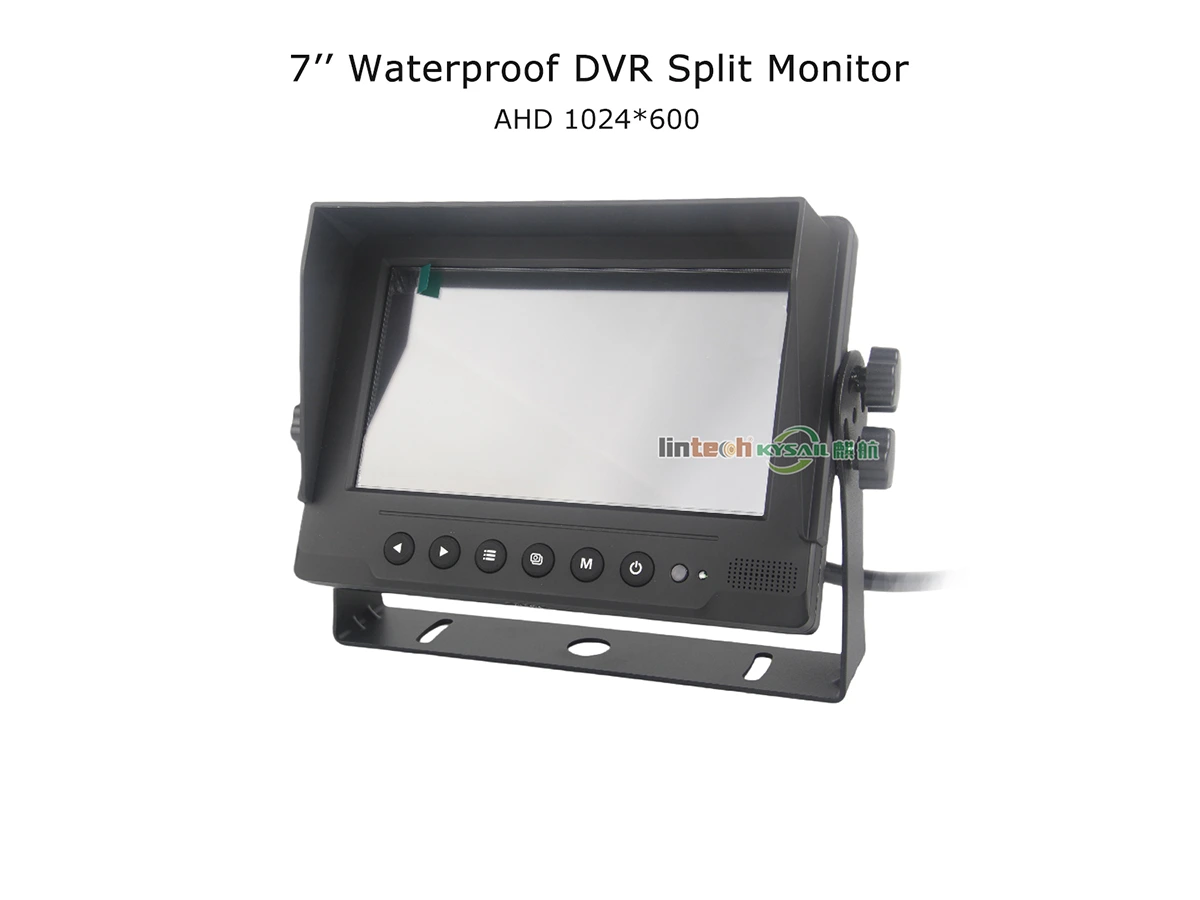

7″ AHD Monitor
|
|
Sun visor
|
Detachable
|
|
Resolution
|
1024*600px [IPS]
|
|
Backlight brightness
|
LED, 400cd/m2
|
|
Viewing angle range
|
Up and down—180°, left and right—180°
|
|
Connector
|
4PIN aviation head/RCA head [optional]
|
|
Video input format
|
CVBS / AHD720P/960P/ HD 25/30fps PAL/NTSC |
|
Signal type
|
Support 720P/960P/1080P [compatible: CVBS/AHD/TVI]
|
|
Sound
|
Built-in speakers [optional], one audio input [V2]
|
|
4 way trigger sequence
|
V2>V1>V3>V4
|
|
Reversing setting
|
Automatically switch to V2 when reversing, comes with reversing scale line, reversing delay can be set
|
|
System
|
Compatible with PAL&NTSC system, automatic conversion
|
|
Adapt to the car
|
12V-36V power supply, power output DC12V
|
|
Protection function
|
high and low voltage protection and reverse phase protection, anti-shock pulse 60V 3A
|
|
Working temperature
|
`-20℃ to 70℃
|
|
Storage temperature
|
`-30℃ to 80℃
|
|
Waterproof rate
|
IP69K Monitor
|
|
Bracket
|
Metal U-shaped bracket[standard configuration], detachable sun visor Other optional brackets: Butterfly/fan type/suction cup/universal/special bracket for some special vehicles [optional]
|
Packing List:
- 7 inches DVR monitor * 1pcs
- Remote Control * 1pcs
- Power Cable * 1pcs
- SunShade * 1pcs
- Screw * 4pcs
- U-bracket * 1pcs
