Monitor Specification:
|

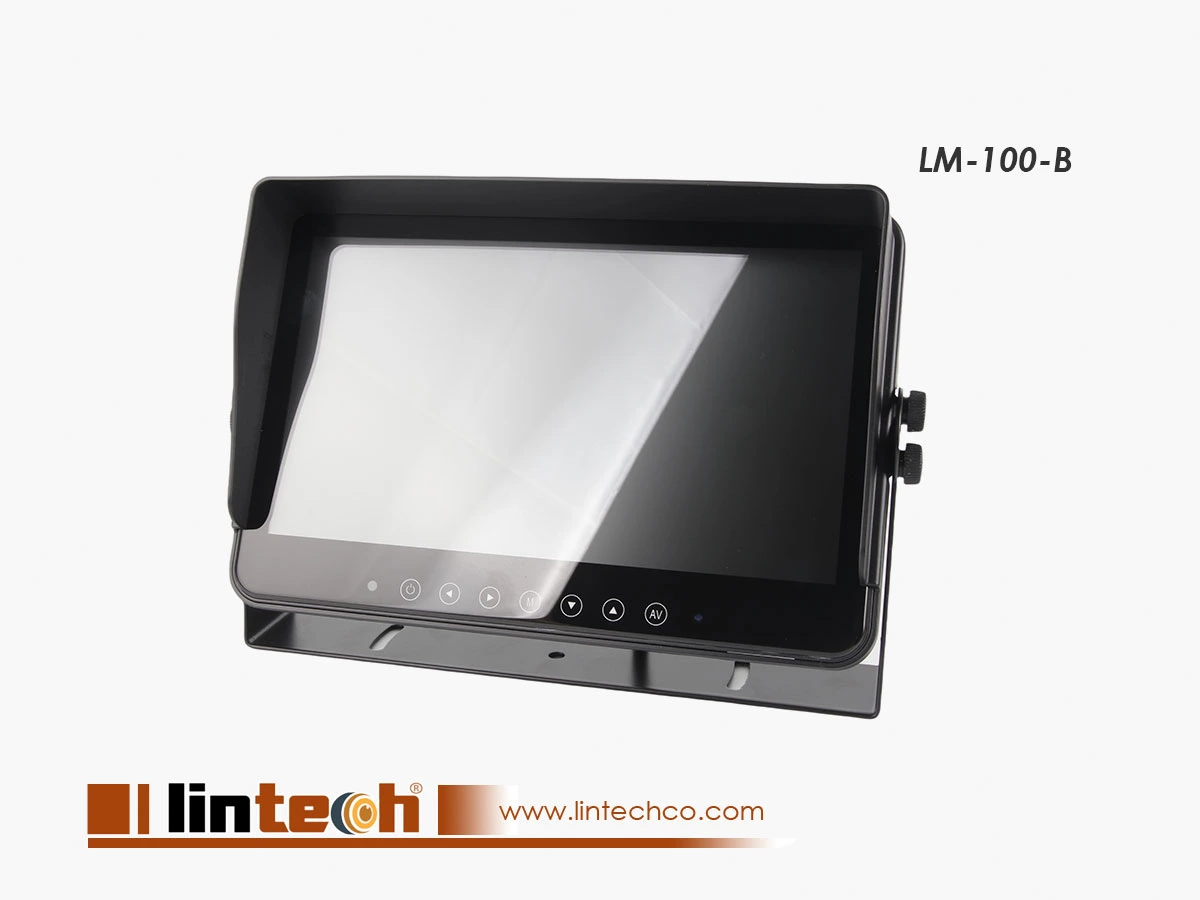

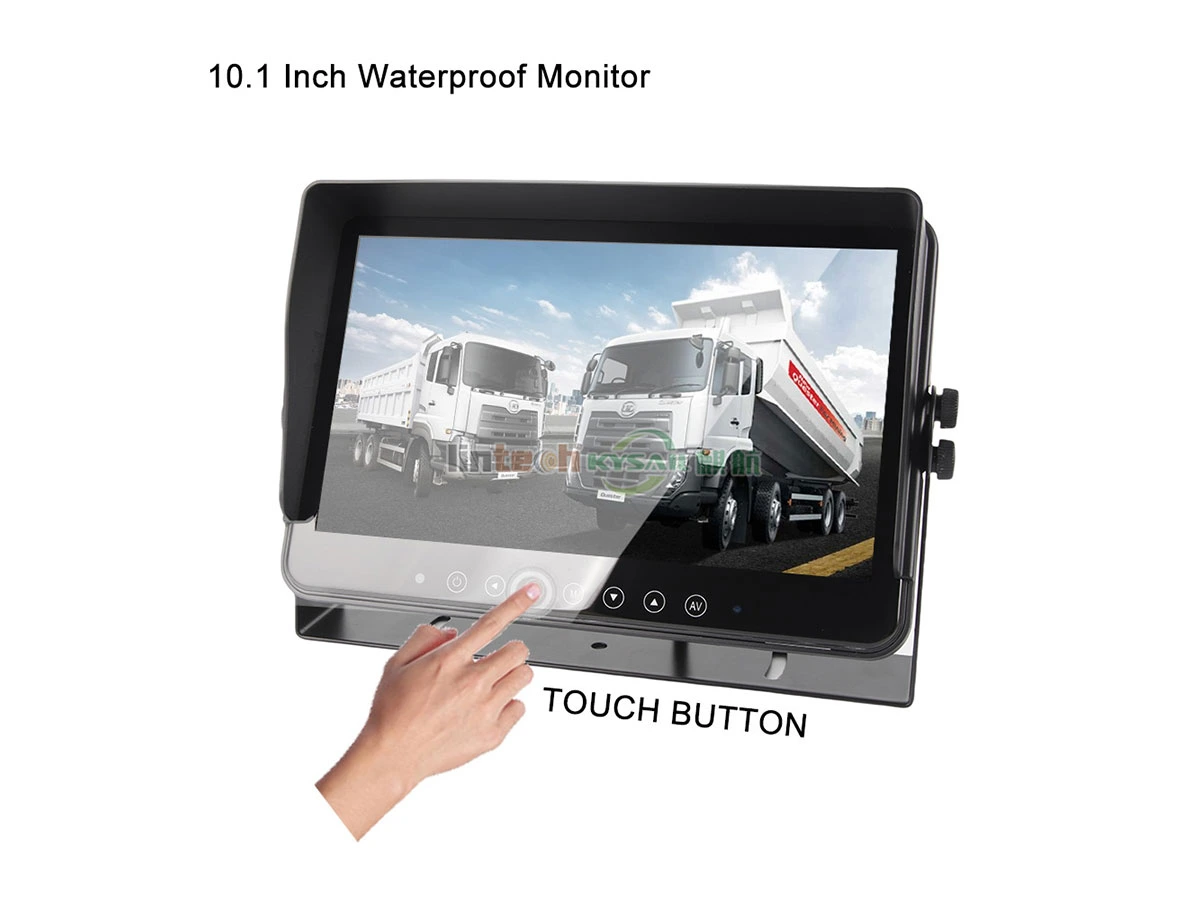

Product Name
|
10.1″ AHD HD Monitor
|
|

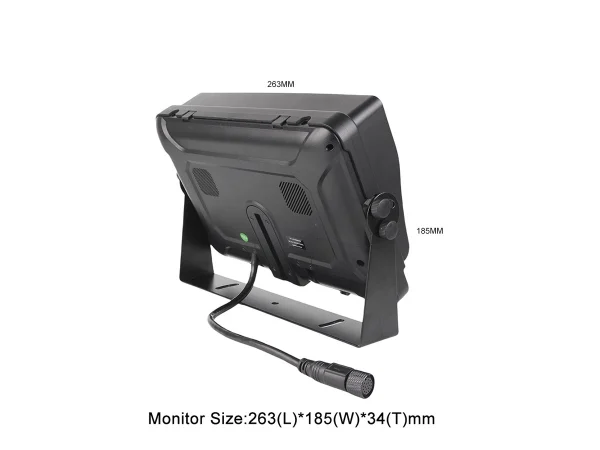

Body size
|
263*185*34mm (L*W*T)
|
|
Sun visor
|
Detachable
|
|
Resolution
|
1024*600px [IPS]
|
|
Backlight brightness
|
LED, 400cd/m2
|
|
Viewing angle range
|
Up and down—180°, left and right—180°
|
|
Connector
|
4PIN aviation head/RCA head [optional]
|
|
Video input format
|
CVBS / AHD720P/960P/ HD 25/30fps PAL/NTSC |
|
Signal type
|
Support 720P/960P/1080P [compatible: CVBS/AHD/TVI]
|
|
Sound
|

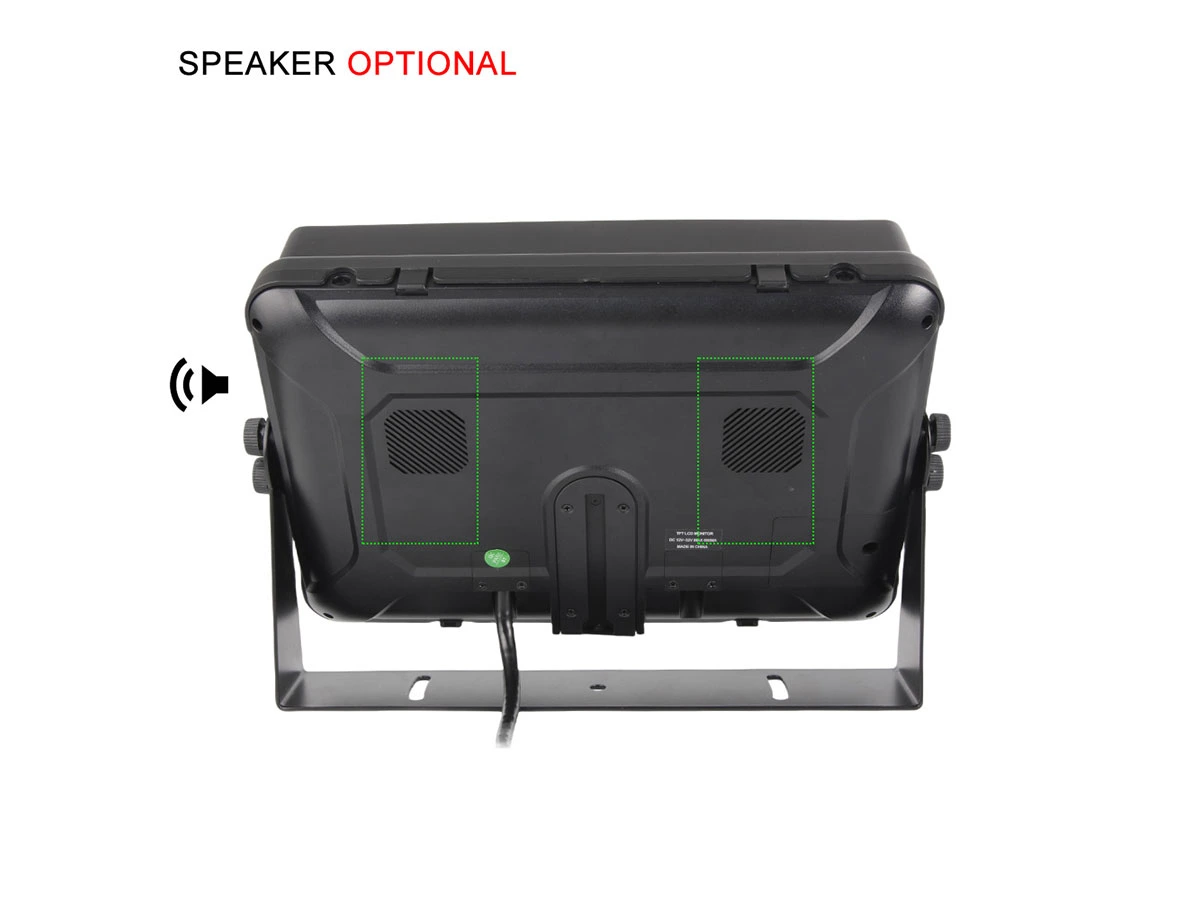

Built-in speakers [optional], one audio input [V2]
|
|

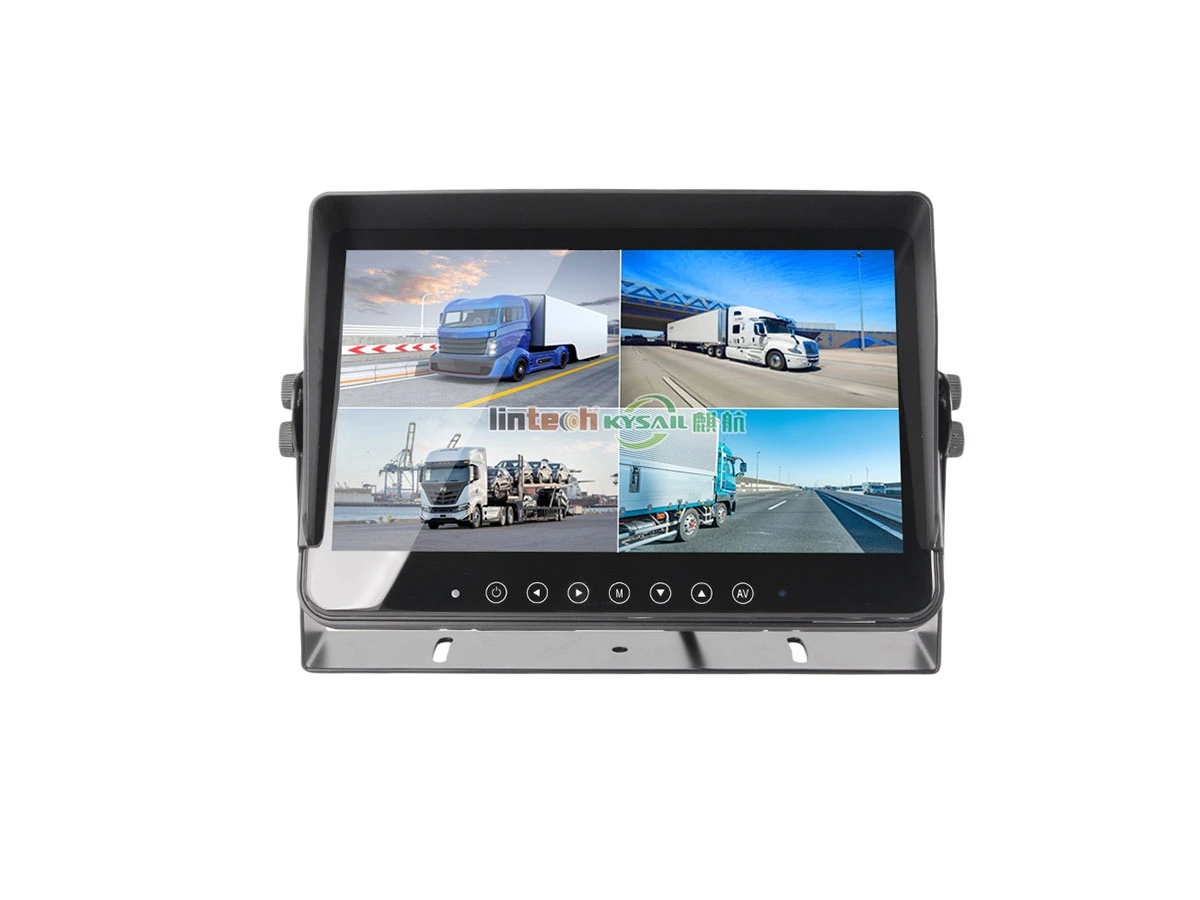

4 way trigger sequence
|
V2>V1>V3>V4
|
|
Reversing setting
|
Automatically switch to V2 when reversing, comes with reversing scale line, reversing delay can be set
|
|
System
|
Compatible with PAL&NTSC system, automatic conversion
|
|
Adapt to the car
|
12V-36V power supply, power output DC12V
|
|
Protection function
|
high and low voltage protection and reverse phase protection, anti-shock pulse 60V 3A
|
|
Working temperature
|
`-20℃ to 70℃
|
|
Storage temperature
|
`-30℃ to 80℃
|
|
Appearance color
|
Black rubber paint, button blue light
|
|

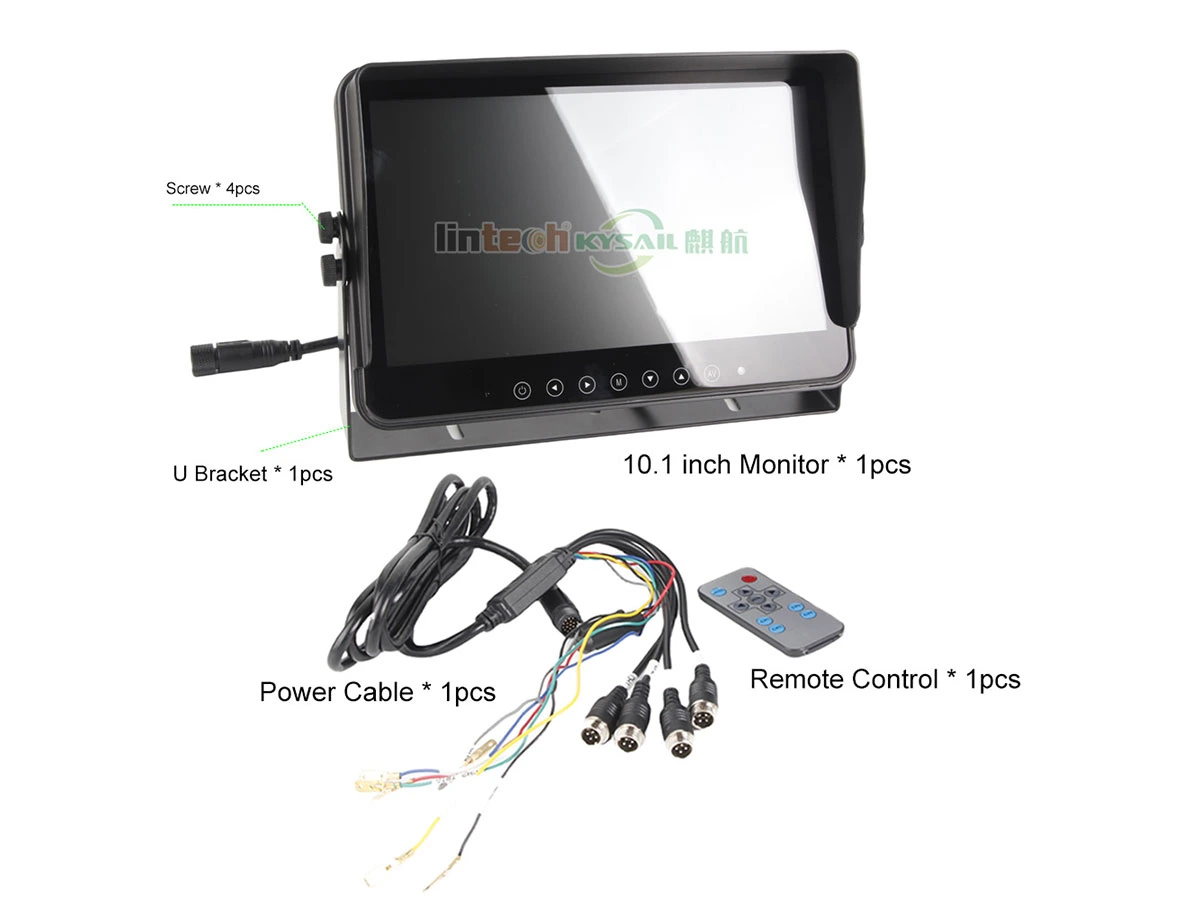

Bracket
|
Metal U-shaped bracket[standard configuration], detachable sun visor Other optional brackets: Butterfly/fan type/suction cup/universal/special bracket for some special vehicles [optional]
|
