LC-012A-Wide-View-Angle-Car-Rear-View-Camera

Wide View Angle Car Rear View Camera

Wide View Angle Car Rear View Camera

Wide View Angle Car Rear View Camera

Wide View Angle Car Rear View Camera

LC-012A-Wide-View-Angle-Car-Rear-View-Camera

Wide View Angle Car Rear View Camera

Wide View Angle Car Rear View Camera

Wide View Angle Car Rear View Camera

Wide View Angle Car Rear View Camera

Model No: LC-012A

Lens Angle: 170 Degree (diagonal)/105 Degree (horizontal)
Lens: f=2.75mm
Waterproof Rating: IP69K
IR Led: 12pcs
Night Vision distance: 7 M
Power Supply: DC12V
E-Mark/CE/FCC Certificates
Warranty: 1-3 Years
AHD/CVBS Optional

Descriptions

LintechCo: Leading Chinese B2B Wider View Angle Backup Camera for Heavy Duty Trucks & Large Vehicles Supplier.

FEATURES:

-Wide view angle up to 170 degree

-Optional built-in Microphone

-12pcs Built-in Infra-red night vision IR LEDs

-Heavy duty and strong full alloy housing

-Optional Mirror/normal view switch

-Optional Heating function for extremely cold condition

Subject	Standard Parameter	Optional Parameter
Image sensor	1/4" SHARP CCD	1/3" SONY CCD
Resolution	N:510×492 pixels P: 500×582 pixels	N:976×494 pixels P: 1020×508 pixels
Horizontal Resolution	420TVL	700TVL
TV System	NTSC/PAL
Lens	1.7mm	2.75mm
View angle	170 degree (105 Horizotal,80 Vertical)
Power supplier	12VDC
Current consumption	150mA
Power consumption	1.8W @ 12VDC	1.8W @ 12VDC
Min illumination	0 Lux (LED ON) Night Vision
IR LED	12 pcs (Night vision distance 5m)	12 pcs (Night vision distance 7m)
Waterproof rating	IP69K
Packing weight	0.6KG

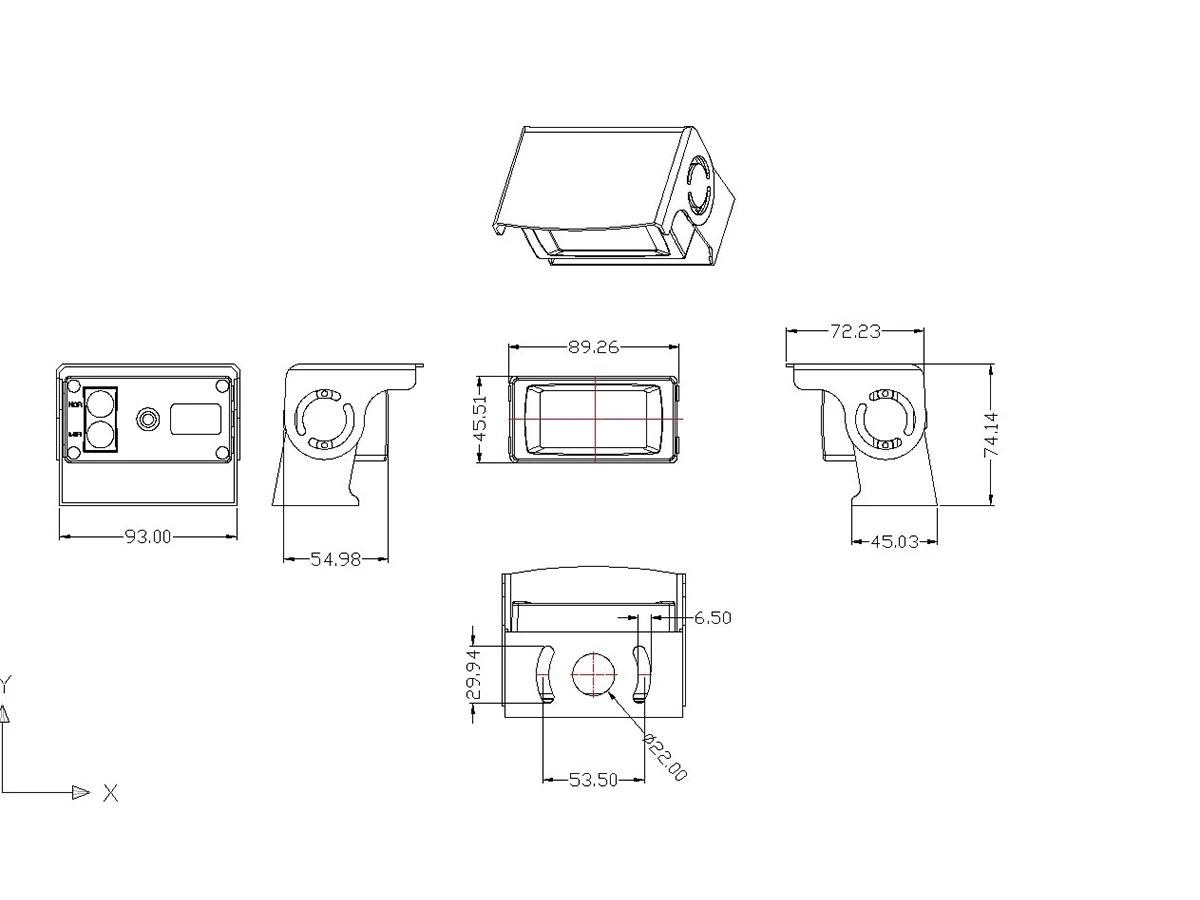

Dimension(WxHxD)	95mm x 74mm x 80mm (MAX)
Operation temperature	-20 ~ +70 C-degress

<iframe width="980" height="660" src="https://www.youtube.com/embed/H0e7zrdHHGg?" frameborder="0" allowfullscreen allow="autoplay; encrypted-media; picture-in-picture" title=""></iframe>

Data Sheet

LC-012A Wide View Angle Night Vision Waterproof Backup Camera .pdf（3.0MB）

1.Wide View Angle Night Vision Waterproof Backup Camera

<img src="https://www.lintechco.com/wp-content/uploads/2017/09/1.Wide-View-Angle-Night-Vision-Waterproof-Backup-Camera-scaled.jpg" alt="1.Wide View Angle Night Vision Waterproof Backup Camera" width="1920" height="2716" />

1.Wide View Angle Night Vision Waterproof Backup Camera

2.Wide View Angle Night Vision Waterproof Backup Camera

<img src="https://www.lintechco.com/wp-content/uploads/2017/09/2.Wide-View-Angle-Night-Vision-Waterproof-Backup-Camera-scaled.jpg" alt="2.Wide View Angle Night Vision Waterproof Backup Camera" width="1920" height="2716" />

2.Wide View Angle Night Vision Waterproof Backup Camera

3.Wide View Angle Night Vision Waterproof Backup Camera

<img src="https://www.lintechco.com/wp-content/uploads/2017/09/3.Wide-View-Angle-Night-Vision-Waterproof-Backup-Camera-scaled.jpg" alt="3.Wide View Angle Night Vision Waterproof Backup Camera" width="1920" height="2716" />

3.Wide View Angle Night Vision Waterproof Backup Camera

4.Wide View Angle Night Vision Waterproof Backup Camera

<img src="https://www.lintechco.com/wp-content/uploads/2017/09/4.Wide-View-Angle-Night-Vision-Waterproof-Backup-Camera-scaled.jpg" alt="4.Wide View Angle Night Vision Waterproof Backup Camera" width="1920" height="2716" />

4.Wide View Angle Night Vision Waterproof Backup Camera

5.Wide View Angle Night Vision Waterproof Backup Camera

<img src="https://www.lintechco.com/wp-content/uploads/2017/09/5.Wide-View-Angle-Night-Vision-Waterproof-Backup-Camera-scaled.jpg" alt="5.Wide View Angle Night Vision Waterproof Backup Camera" width="1920" height="2716" />

5.Wide View Angle Night Vision Waterproof Backup Camera

6.Wide View Angle Night Vision Waterproof Backup Camera

<img src="https://www.lintechco.com/wp-content/uploads/2017/09/6.Wide-View-Angle-Night-Vision-Waterproof-Backup-Camera-scaled.jpg" alt="6.Wide View Angle Night Vision Waterproof Backup Camera" width="1920" height="2716" />

6.Wide View Angle Night Vision Waterproof Backup Camera

7.Wide View Angle Night Vision Waterproof Backup Camera

<img src="https://www.lintechco.com/wp-content/uploads/2017/09/7.Wide-View-Angle-Night-Vision-Waterproof-Backup-Camera-scaled.jpg" alt="7.Wide View Angle Night Vision Waterproof Backup Camera" width="1920" height="2716" />

7.Wide View Angle Night Vision Waterproof Backup Camera

8.Wide View Angle Night Vision Waterproof Backup Camera

<img src="https://www.lintechco.com/wp-content/uploads/2017/09/8.Wide-View-Angle-Night-Vision-Waterproof-Backup-Camera-scaled.jpg" alt="8.Wide View Angle Night Vision Waterproof Backup Camera" width="1920" height="2716" />

8.Wide View Angle Night Vision Waterproof Backup Camera

Photos

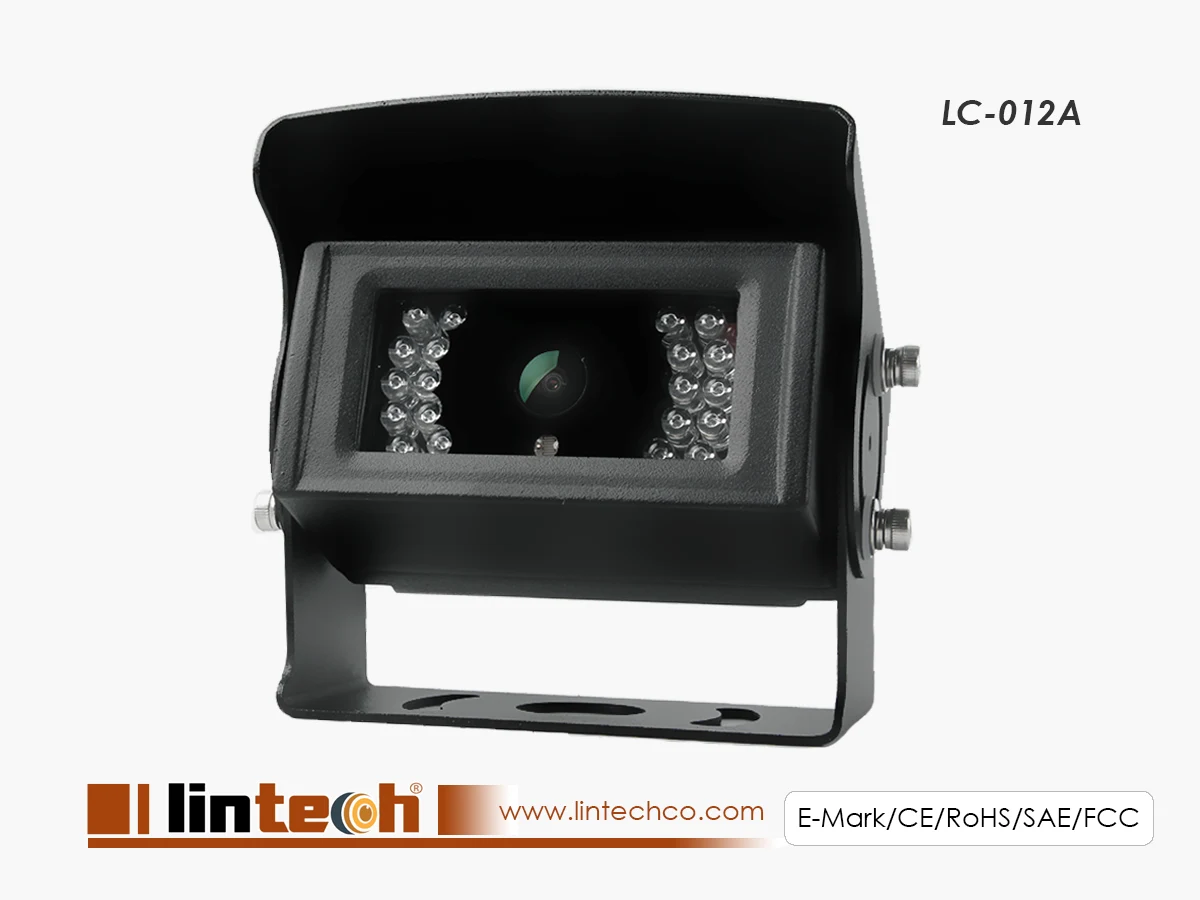

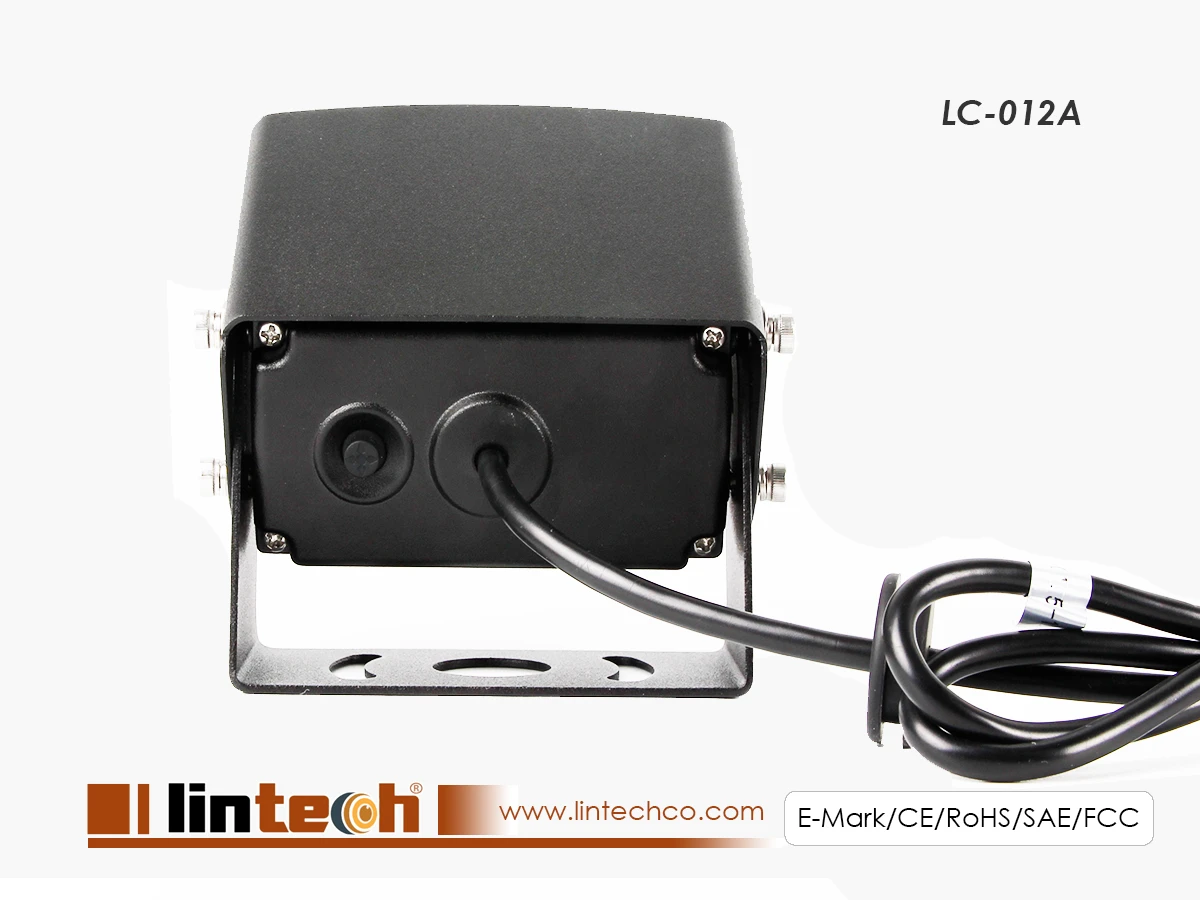

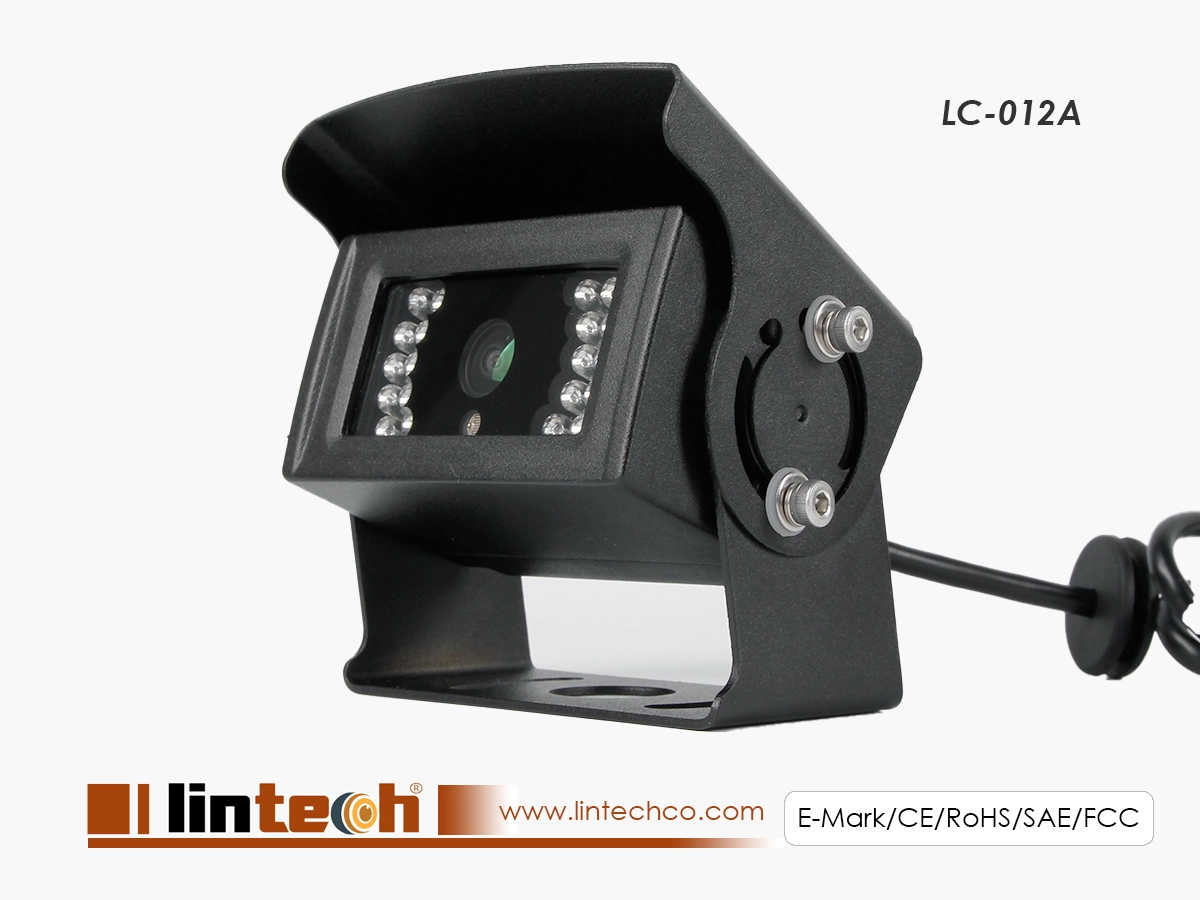

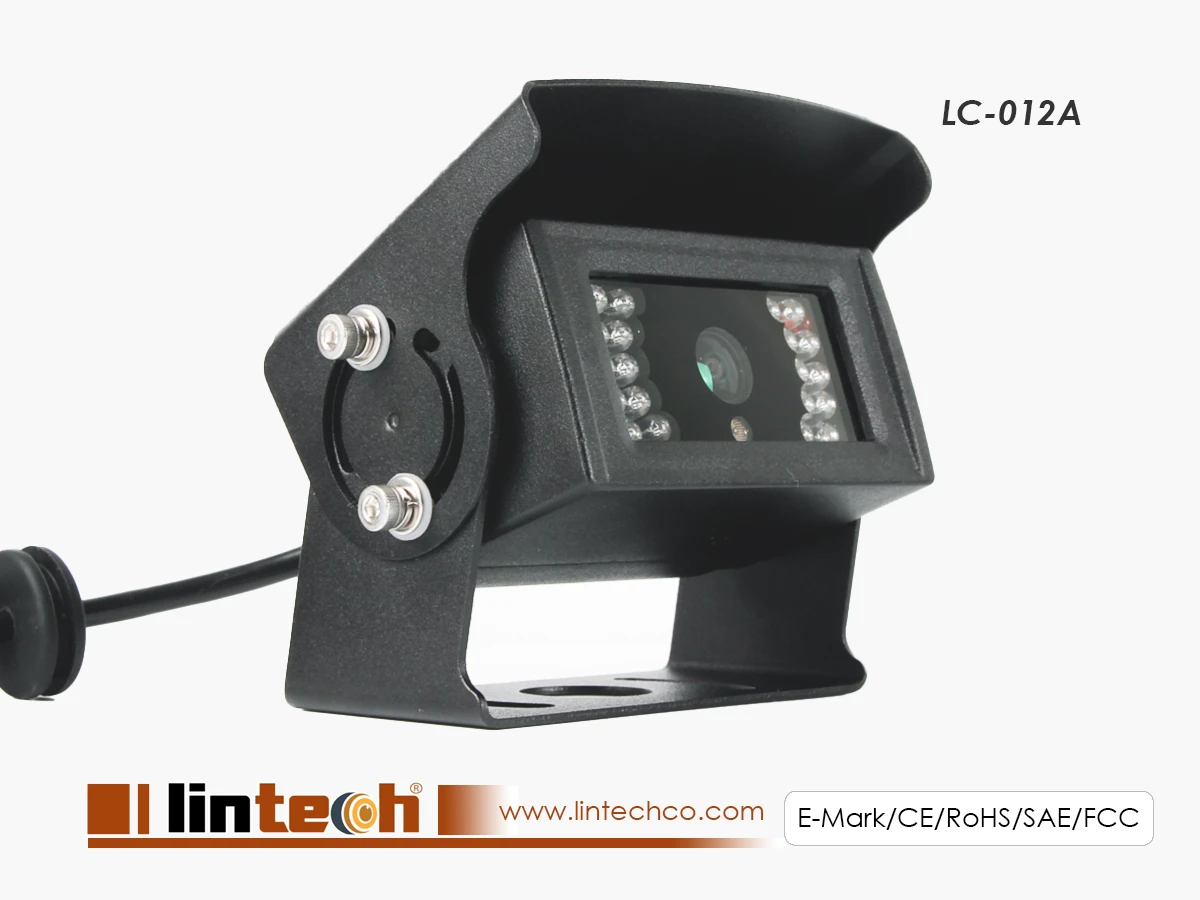

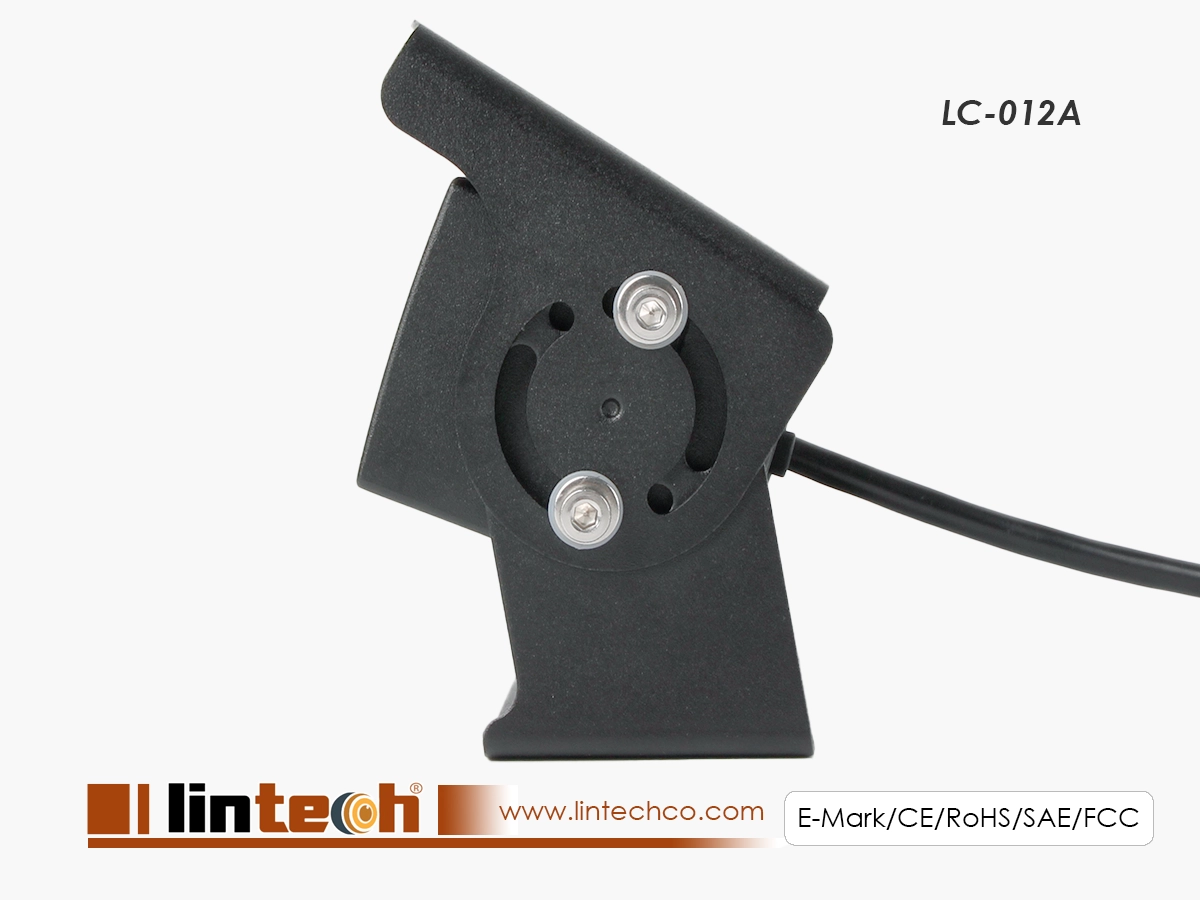

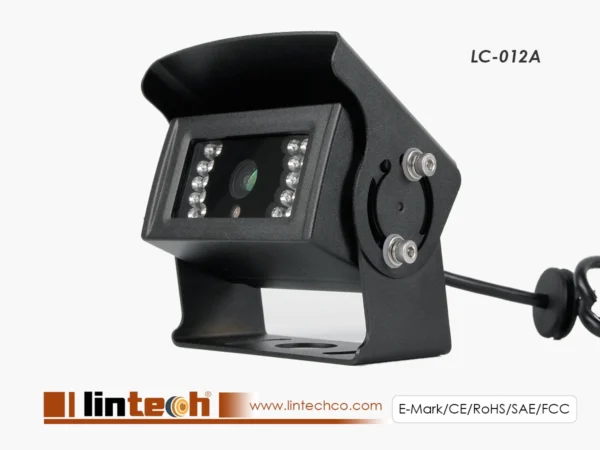

Heavy Duty Wider View Angle Backup Camera for Large Vehicles

Heavy Duty Wider View Angle Backup Camera for Large Vehicles

Heavy Duty Wider View Angle Backup Camera for Large Vehicles

Heavy Duty Wider View Angle Backup Camera for Large Vehicles

Heavy Duty Wider View Angle Backup Camera for Large Vehicles

Heavy Duty Wider View Angle Backup Camera for Large Vehicles

Heavy Duty Wider View Angle Backup Camera for Large Vehicles

Heavy Duty Wider View Angle Backup Camera for Large Vehicles

Heavy Duty Wider View Angle Backup Camera for Large Vehicles

Heavy Duty Wider View Angle Backup Camera for Large Vehicles

Heavy Duty Wider View Angle Backup Camera for Large Vehicles

Heavy Duty Wider View Angle Backup Camera for Large Vehicles
