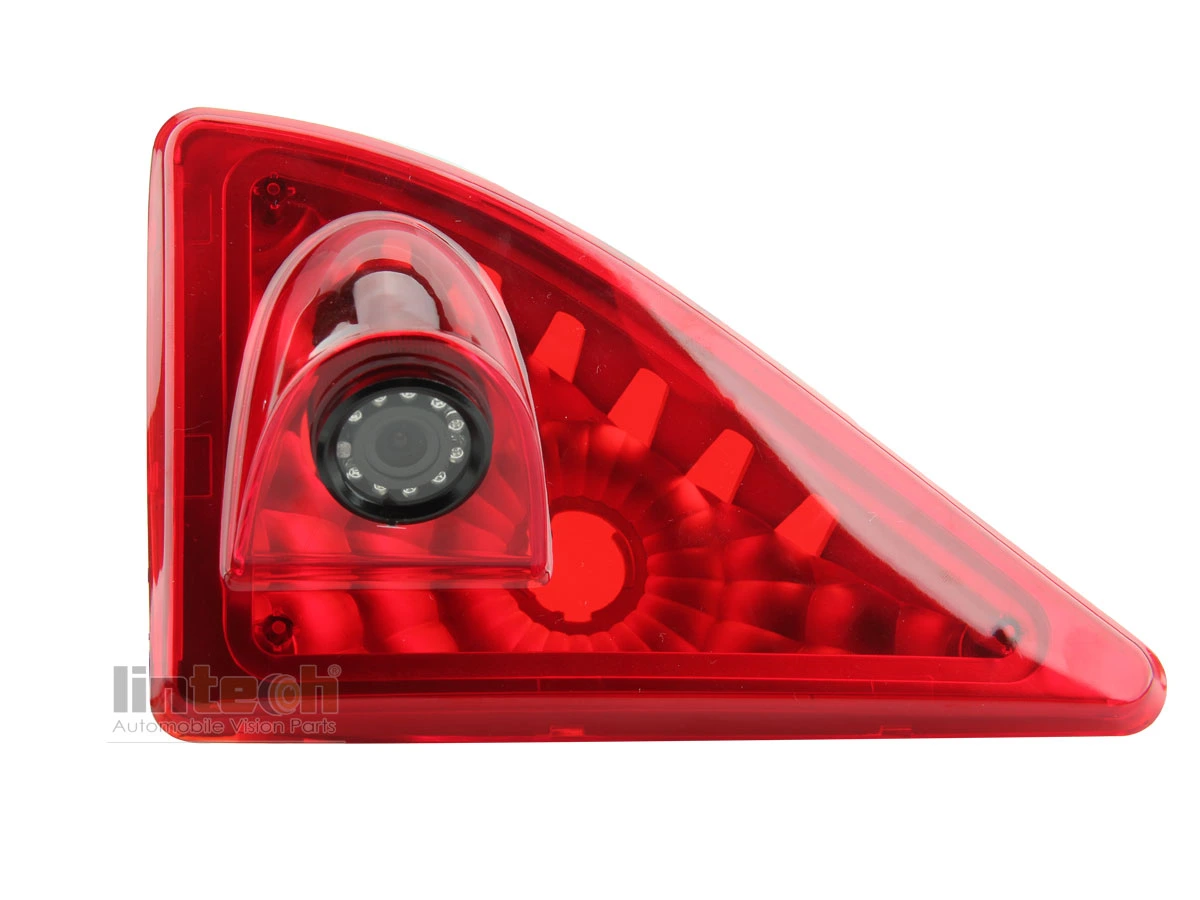

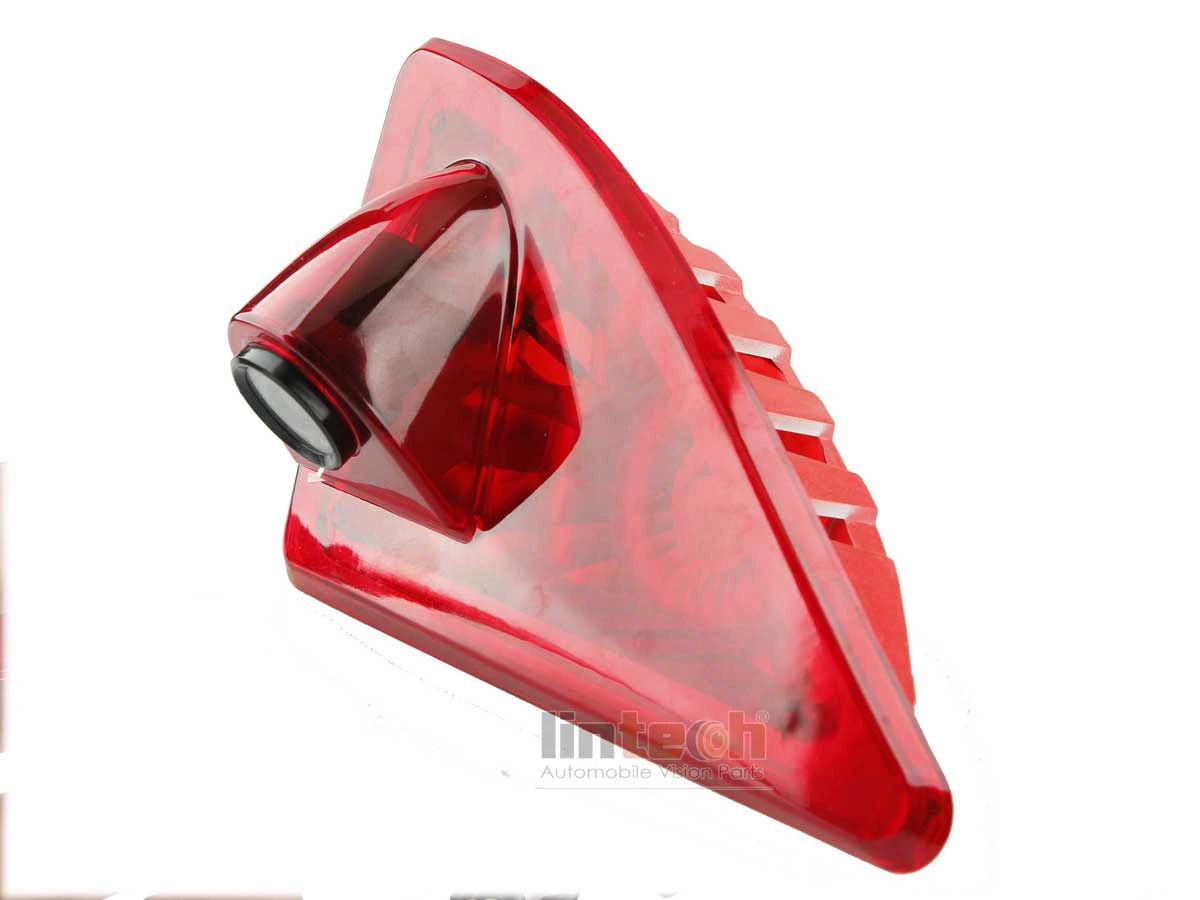

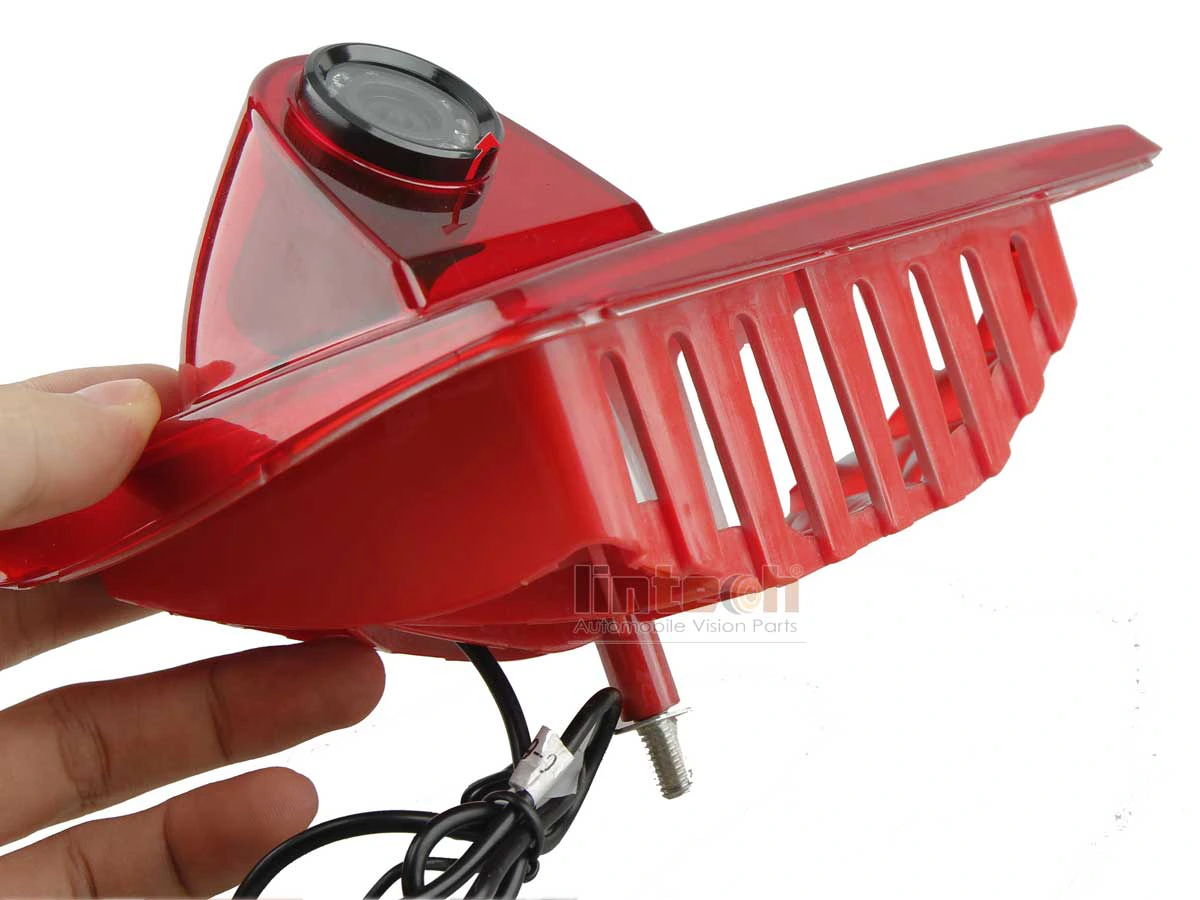

Brake Light Camera for Opel/Master/Nissan Van

Brake Light Camera for Opel/Master/Nissan

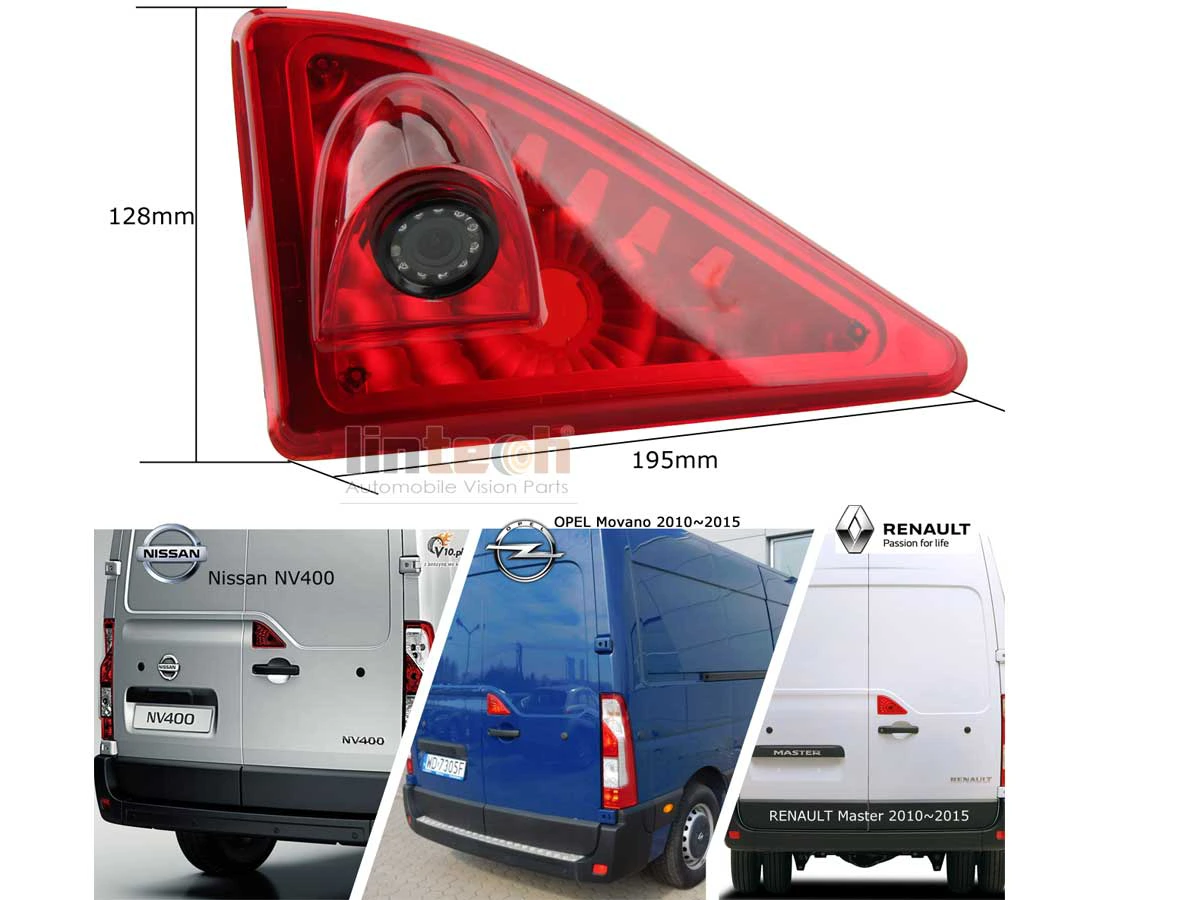

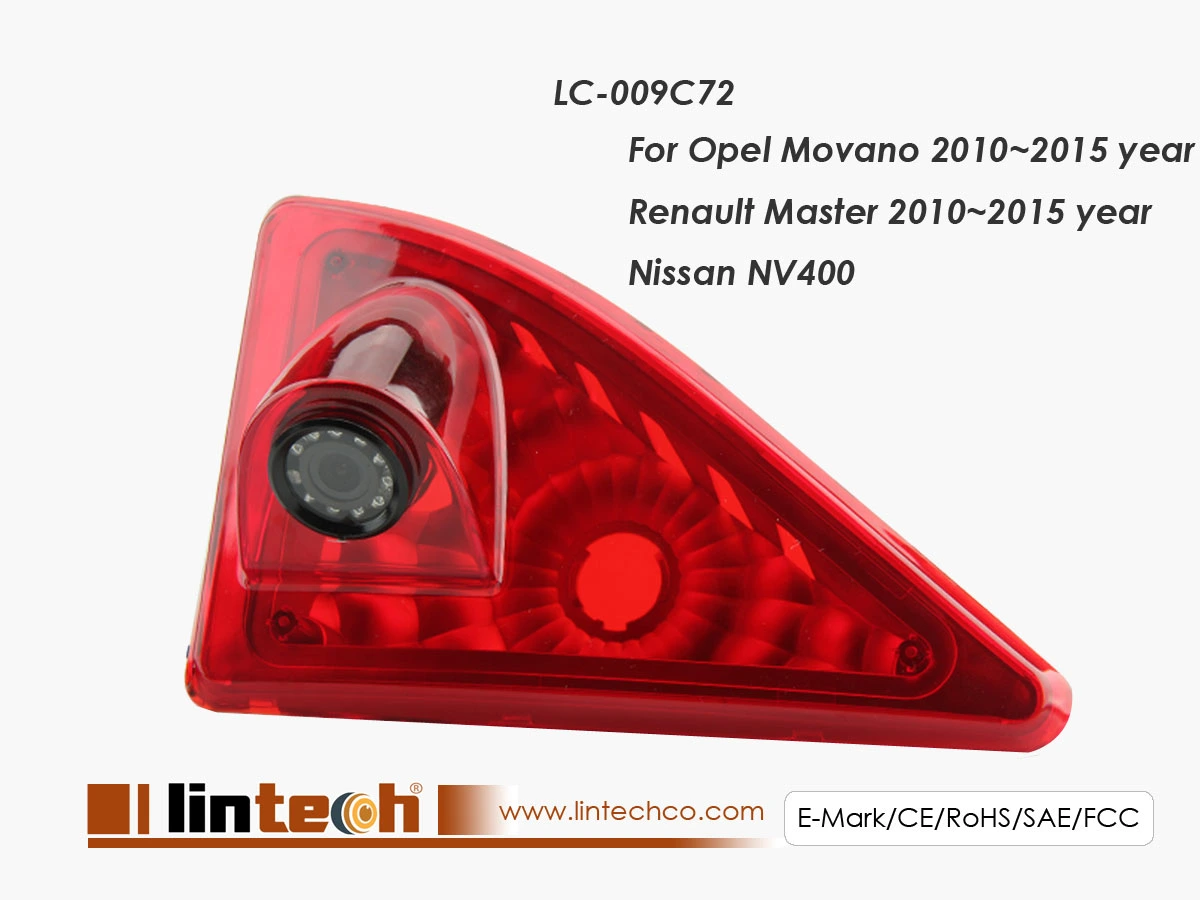

Special for Opel Movano(2010~2015 year)/Renault Master(2010~2015 year)/ Nissan NV400

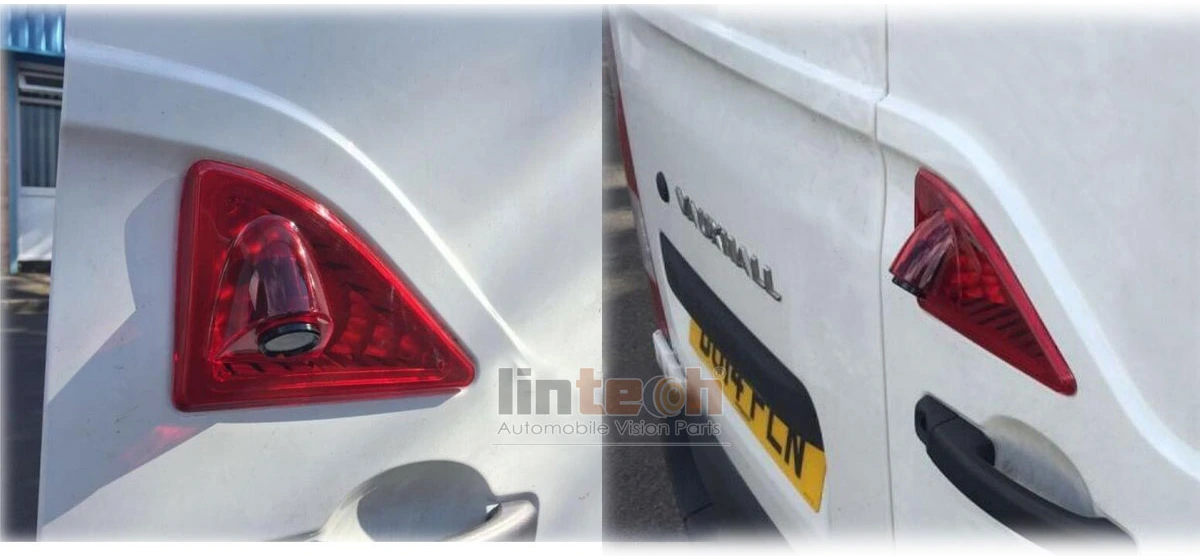

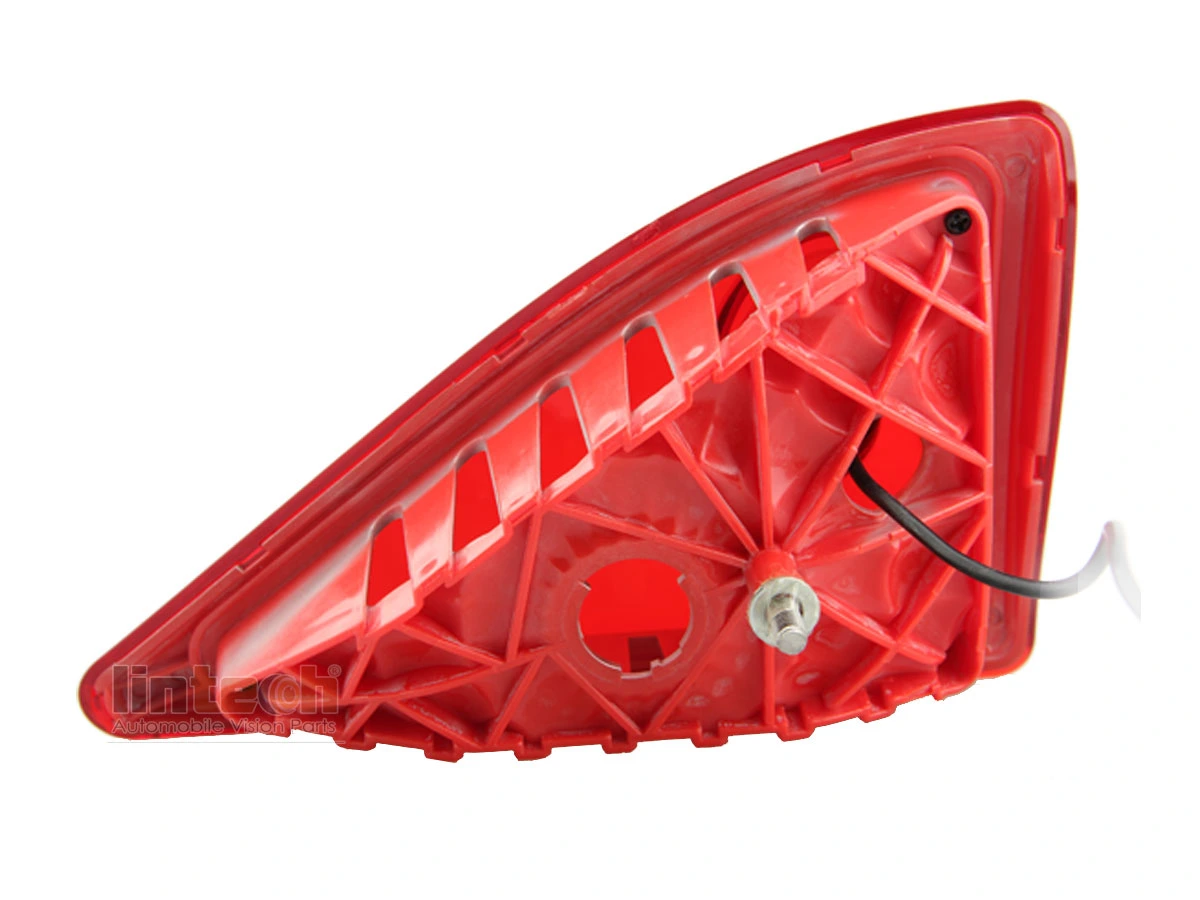

No Holes Drilled, completely replace the original 3rd Brake lights
HD Sony CCD Sensor or COMSOV7959 clear images display

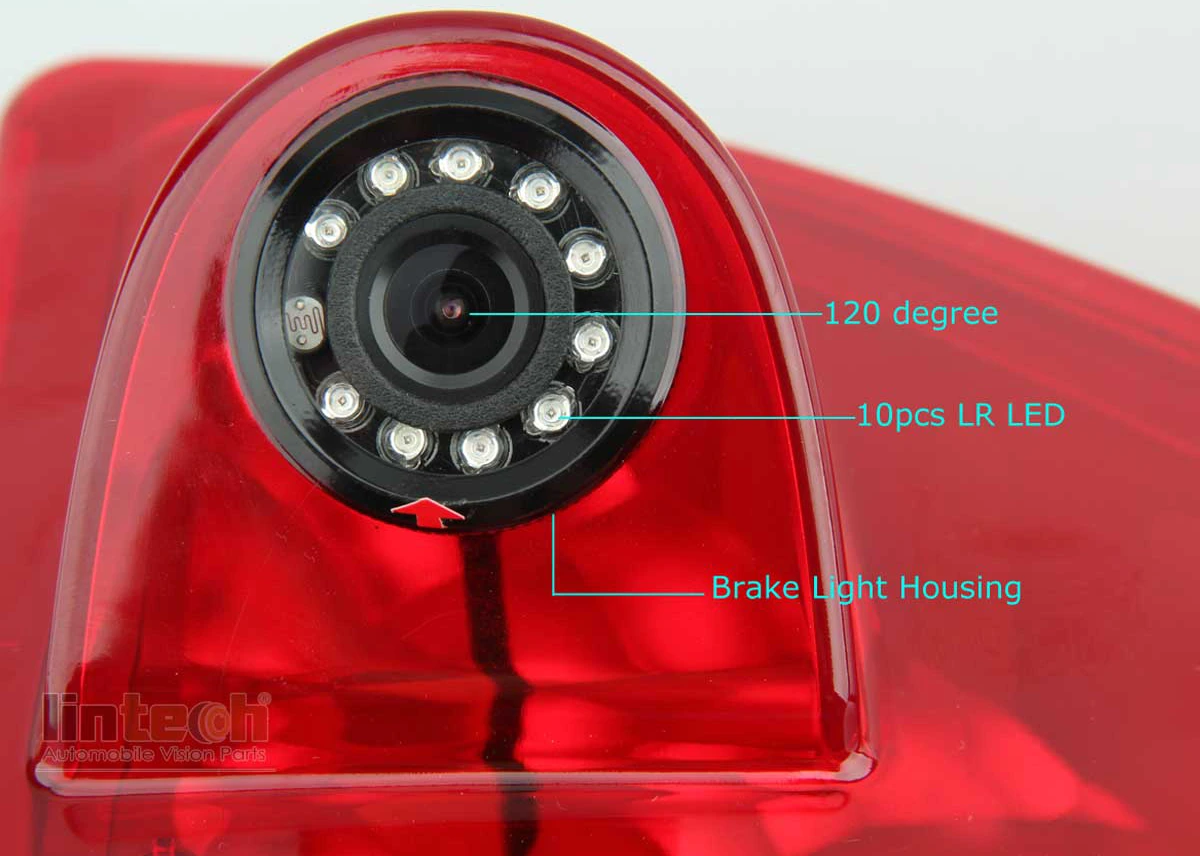

SONY CCD 120 degree vide angle
COMSOV7959 170 degree vide angle



Subject	Standard Parameter	Optional Parameter
Image sensor	1/3.6″ CMOS OV7959	1/3″ SONY CCD
Resolution	N: 648×488 pixels P: 648×574 pixels	N:510×492 pixels P: 500×582 pixels
Horizontal Resolution	420TVL	420TVL
TV System	NTSC/PAL
Lens	1.8mm	2.8mm
View angle	170 degree (105 Horizotal,85 Vertical)	120 degree (90 Horizotal, 75 Vertical)
Power supplier	12VDC
Current consumption	130mA	150mA
Power consumption	1.5W @ 12VDC	1.8W @ 12VDC
Min illumination	0 Lux (LED ON) Night Vision
IR LED	10 pcs (Night vision distance 5-7m)
Waterproof rating	IP68

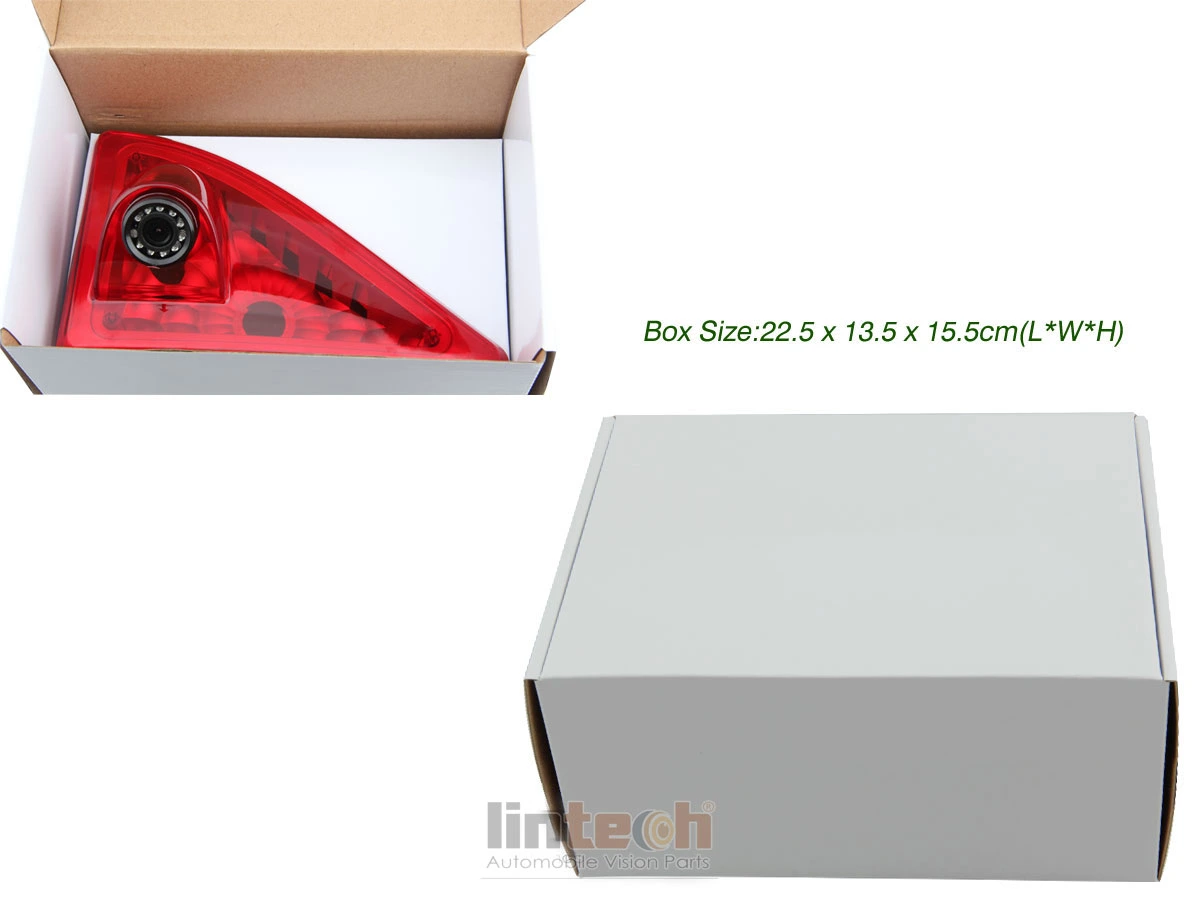

Packing Weight	1.3kg
Dimension(WxHxD)	195mmx130mmx125mm (MAX)
Operation temperature	-20 ~ +70 C-degress
