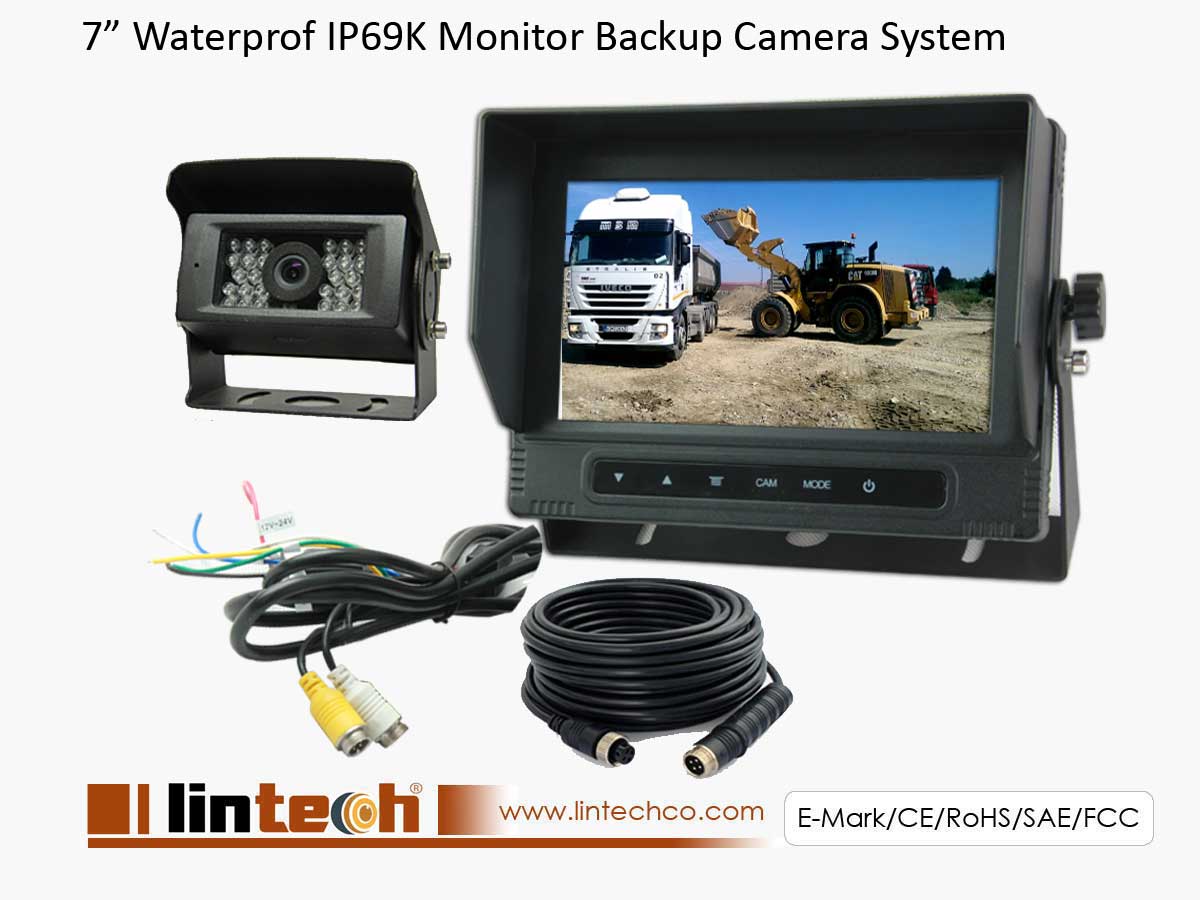

LintechCo: Leading Chinese B2B Backup Camera System Supplier.

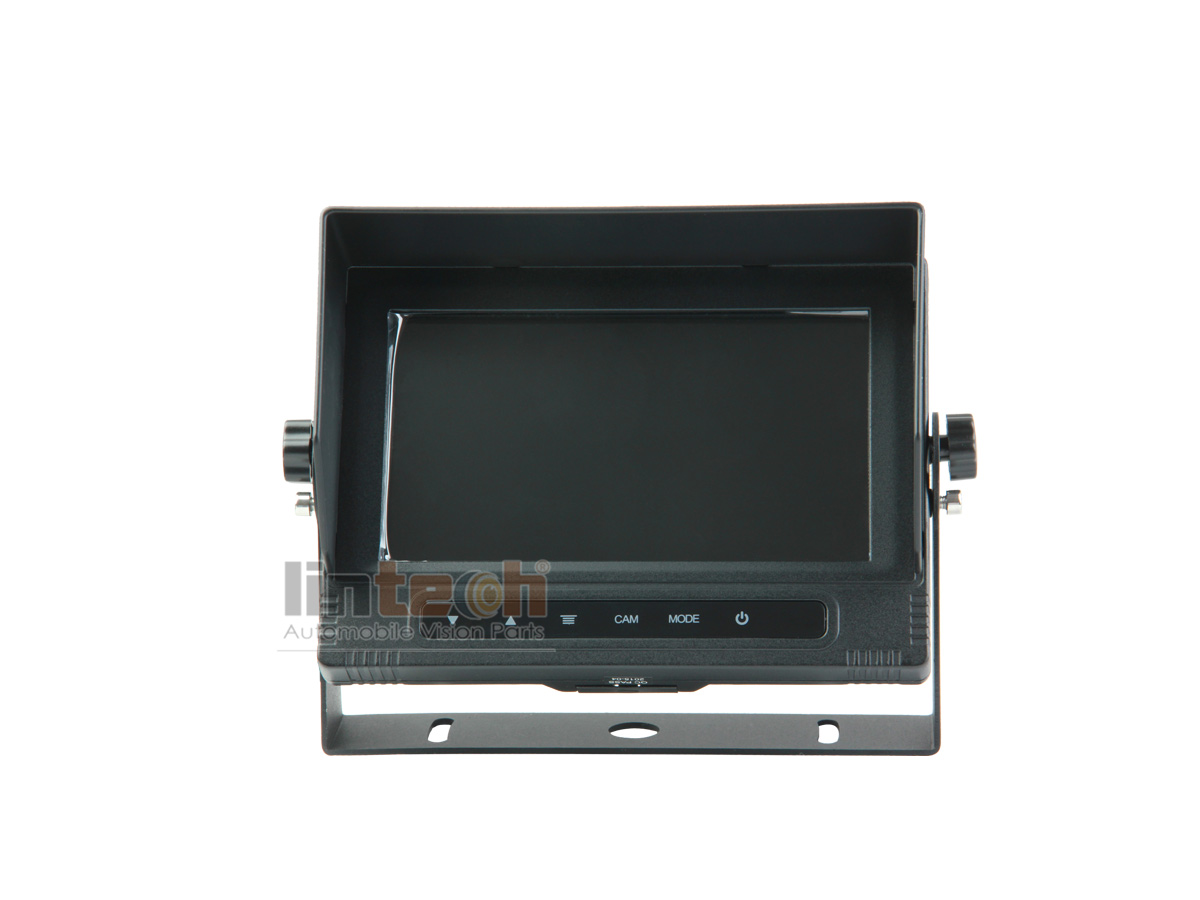

SPECIFICATIONS of Monitor / camera:
–2CHs / 4CHs Resolution 800 x 400 R.G.B digital screen
— Top-rated monitor for trucks buses vehicle
— Full function with remote
— Heavy duty and strong housing / bracket for
— Trucks Quad function 4CHs split version is available
— With sun visor for better view in strong light condition
— Reversing guide lines: Red – Yellow – Green with regerence distance (adjustable according to camera’s installed position).
–Waterproof rate IP67

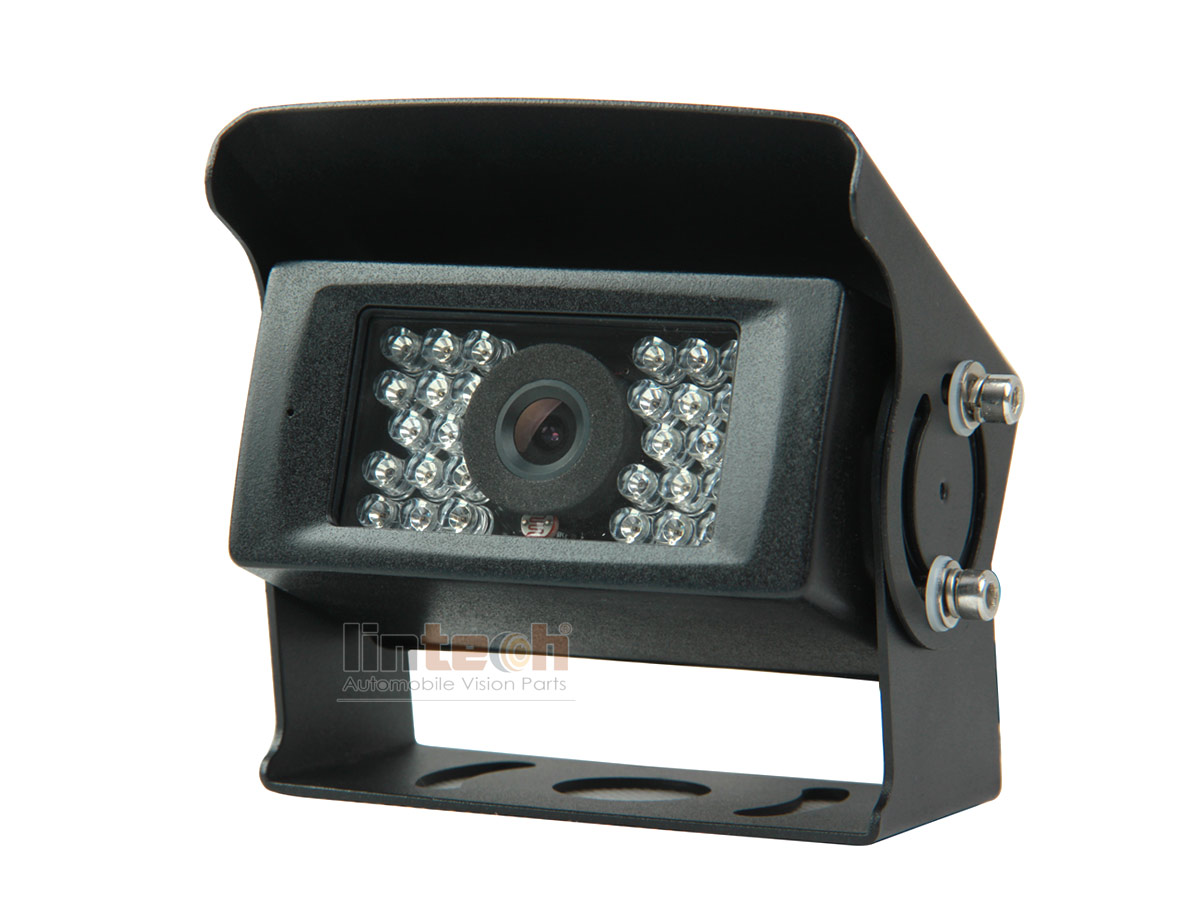

Specification of Cameras :

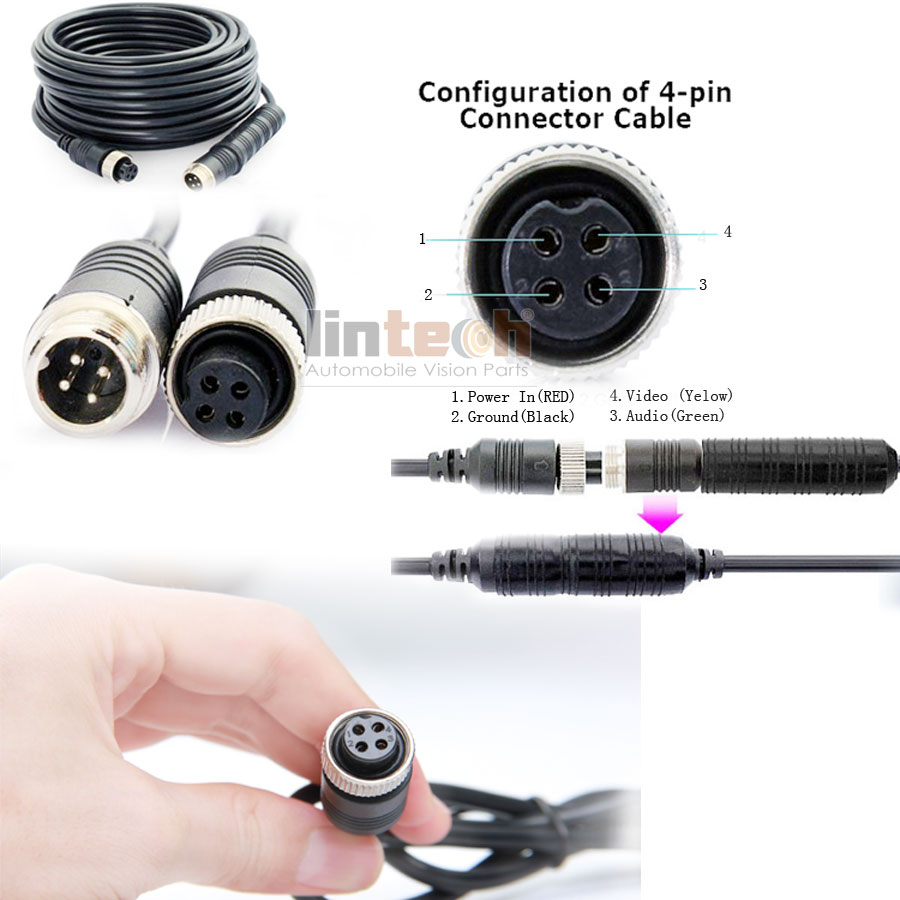

–4Pin DIN waterproof screw on connector
–Standard rear view camera
–The automatic day/night sensor and infrared LEDs to provide clear image in dull condition
(1)1/4″ Sharp/SONY CCD Color CCD sensor
(2)TV system : PAL/NTSC
(3)Resolution: 420 TV lines
(4)With 28 IR LED light ,night vision distance up to 10-15 meters
(5)Self-sensitization control the night vision function by the light sensor
(6)120 degree wide range angle view
(7)Operating Voltage: 9~12VDC
(8)Operating temperature: -20~ +70 degrees , RH95% Max.
(9)Storage temperature: -40~ +80 degrees , RH95% Max.
(10)Alloy shell, Waterproof, silver/black color selectable
(11)IP Rating: IP69K
