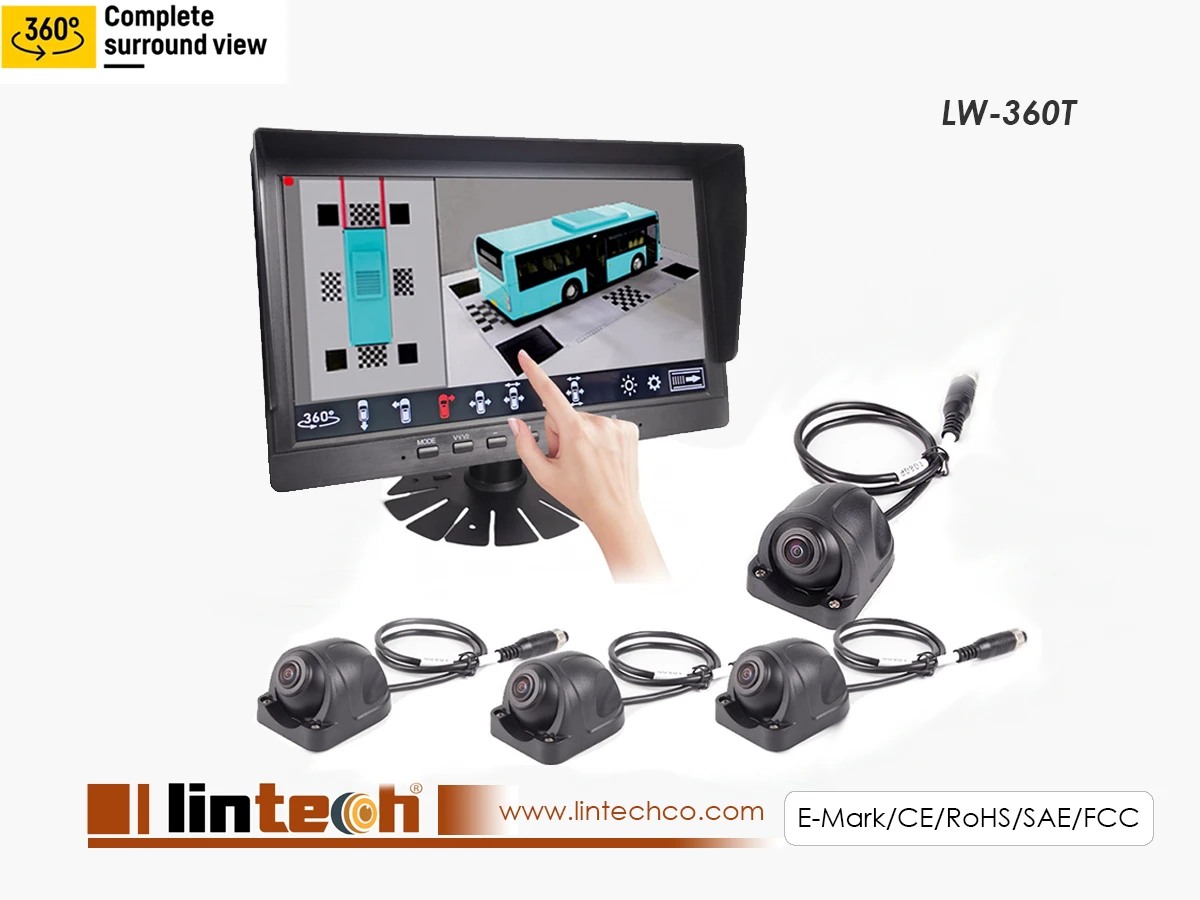

10.1 Inches Touch Screen 3D Panoramic 360 Degree Surround View Camera System for Vehicles

10.1 Inches Touch Screen 3D Panoramic 360 Degree Surround View Camera System for Vehicles



Model No.: LW-360T



Surround-view camera systems typically employ multiple cameras placed around the vehicle—commonly at the front, rear, and sides. These cameras capture individual images that are then stitched together to create a complete view of the vehicle’s environment.

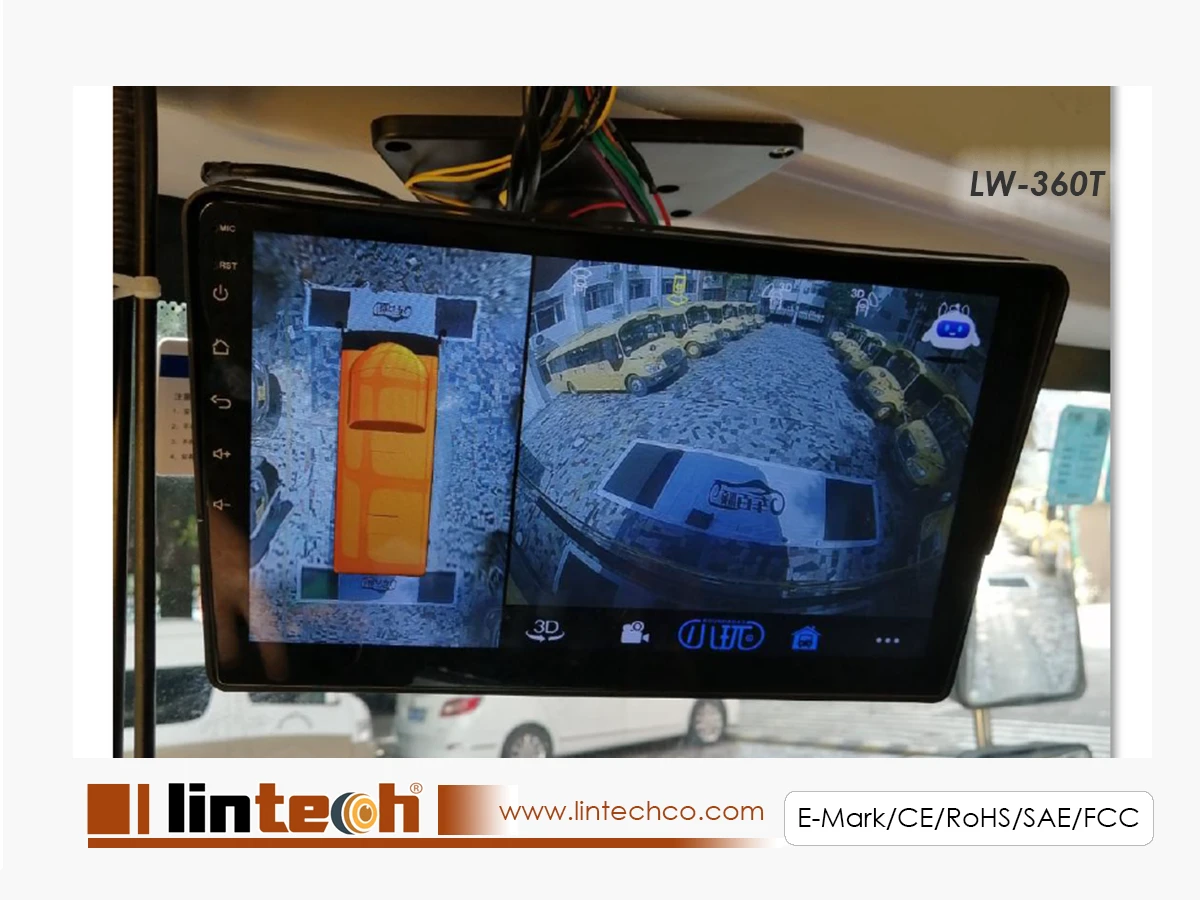

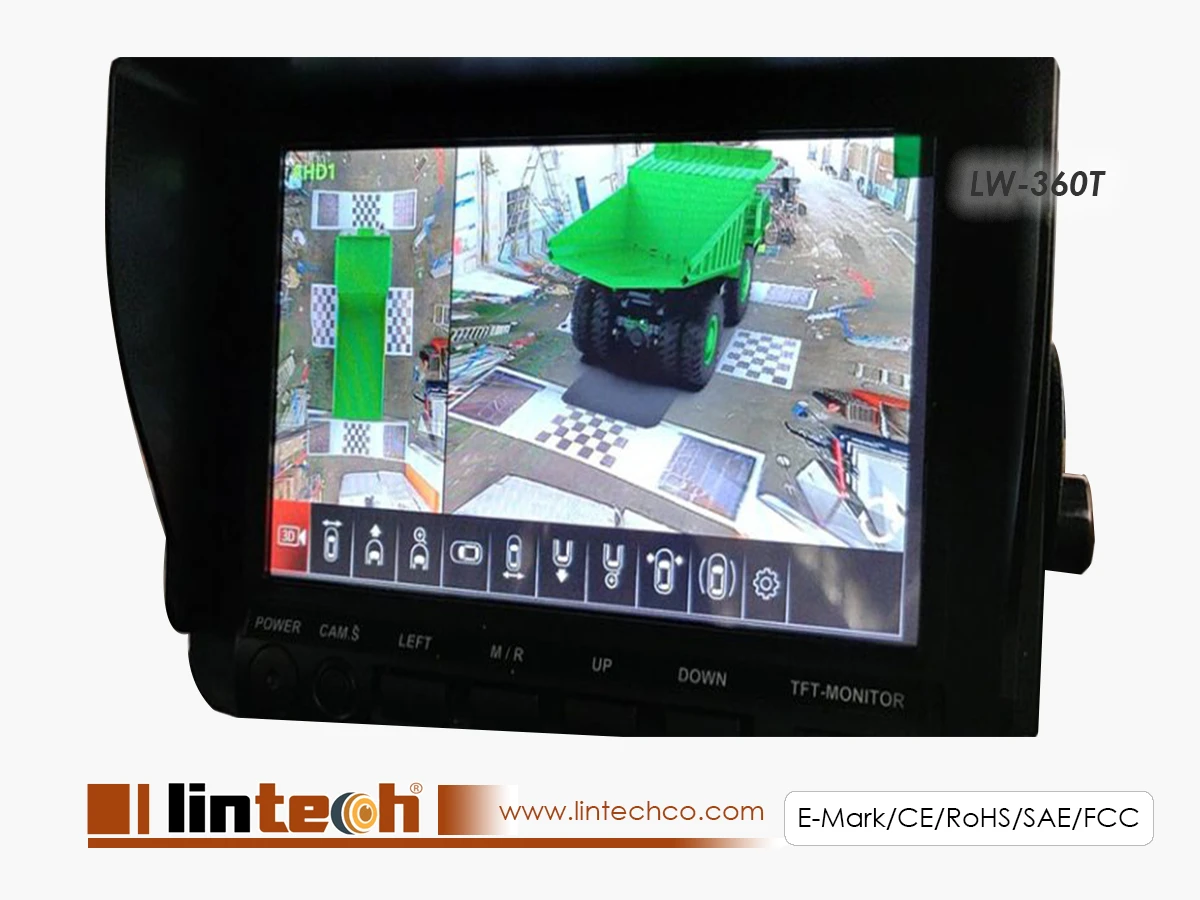

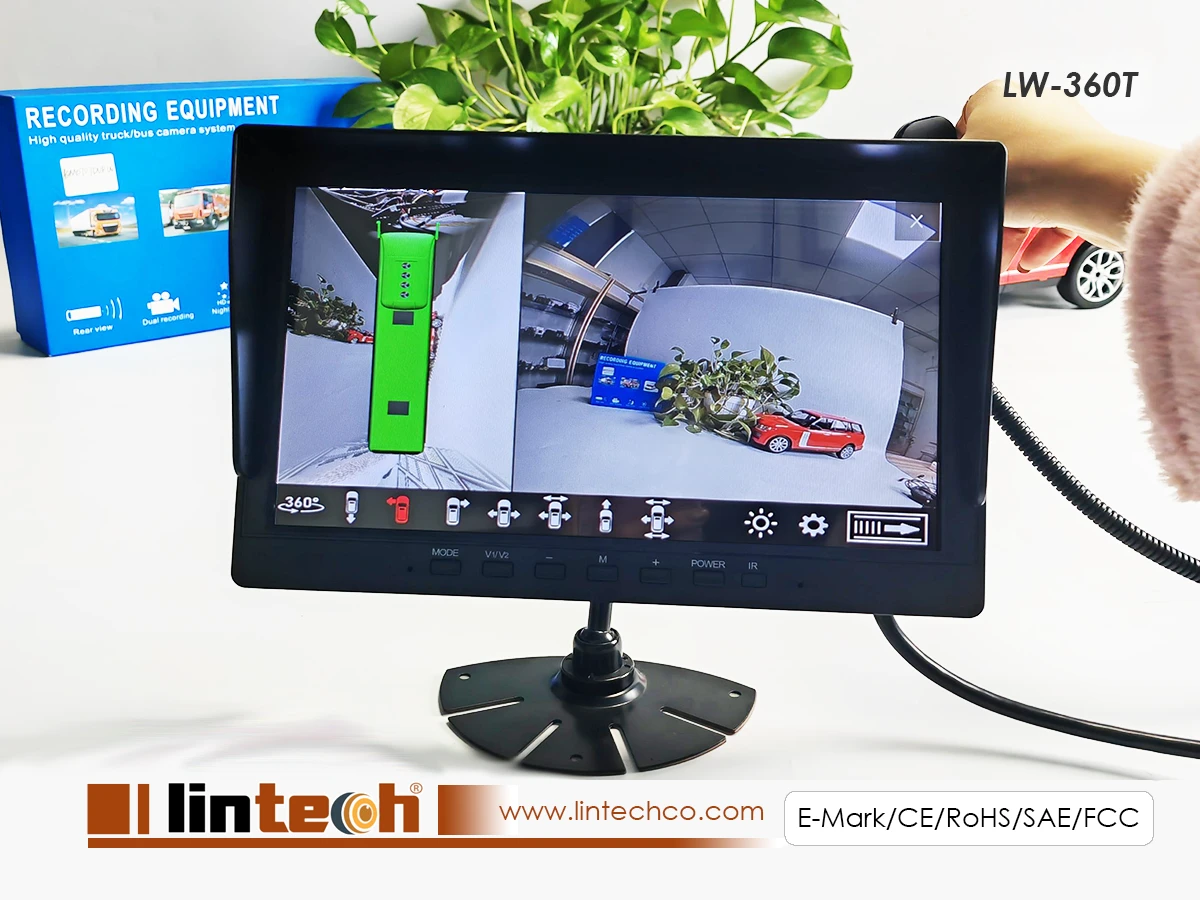

The stitched image is displayed on the vehicle’s dashboard, giving the driver a real-time, bird’s-eye perspective that aids in avoiding obstacles and navigating through confined areas. The integration of these cameras into the vehicle’s systems must be carefully managed to ensure that they function cohesively, providing accurate imaging data.



Model name	LC-360T
Camera	4pcs wide angle AHD camera
Screen	10.1 inch TFT-LCD touch screen
CPU	Quad-core ARM Cortex – [email protected]
Working voltage	DC 8V-35V
RAM	DDR3 1GB
Max memory	Up to 512GB(SD card is not included)
Chipset of video	PMTP9930 TP2815
Working temperature	-30℃～+75℃(Storage -40℃～+85℃)
Operating humidity	≤90% (Storage ≤90%)
Video Encoding	H.264, 30 FPS
Waterproof rating	IP69K(of camera)



Traditional 4CHs CCTV Rear view camera with standard 90°~105° view angle lens, it is not able to cover all the blind spot areas of the vehicle:

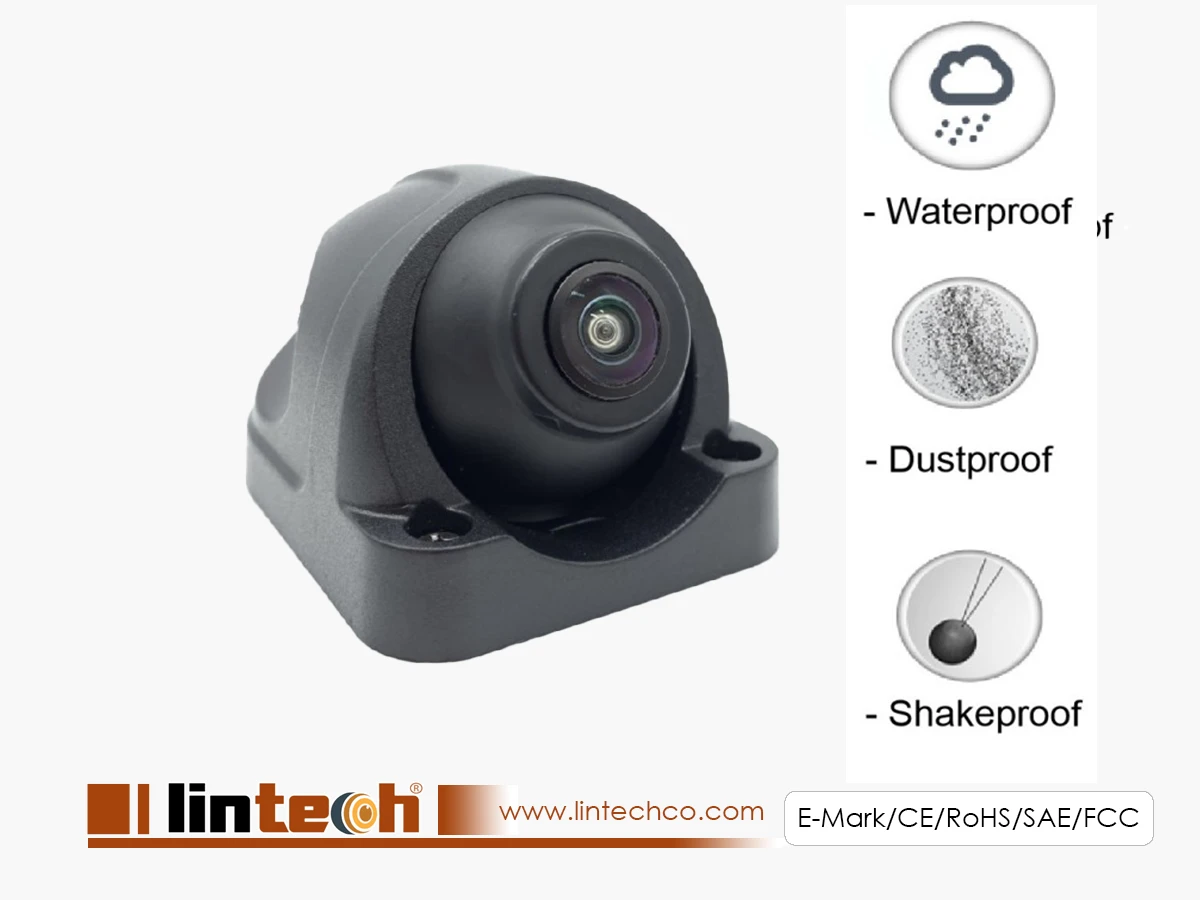

In our advanced 360 surrouding view system, each camera’s view angle can be 180 degree, 4 cameras will be able to cover all blind spot areas.







360 Surround View Camera fast calibration







5mins Easy stitching and calibration:



Active alignment is the exact positioning of camera lenses during assembly to optimize image quality across the entire field of view. Extrinsic calibration involves adjusting the cameras’ placement relative to each other to ensure accurate stitching of images in a surround-view system. These processes are important for achieving accurate image alignment and minimizing optical distortions.









Installations:













Video: How to settting up and calibrating a 3D 360 surround view bird’s eye camera system for a truck?
