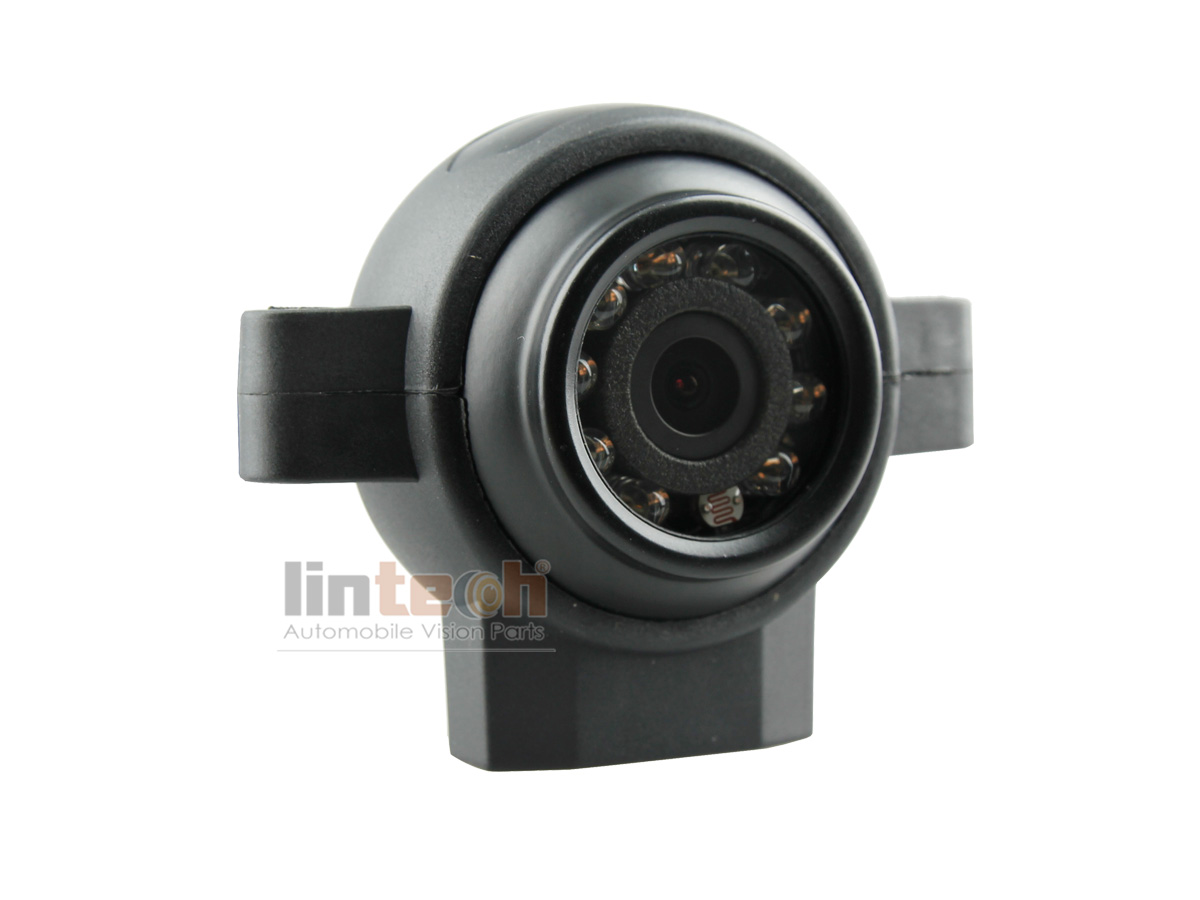

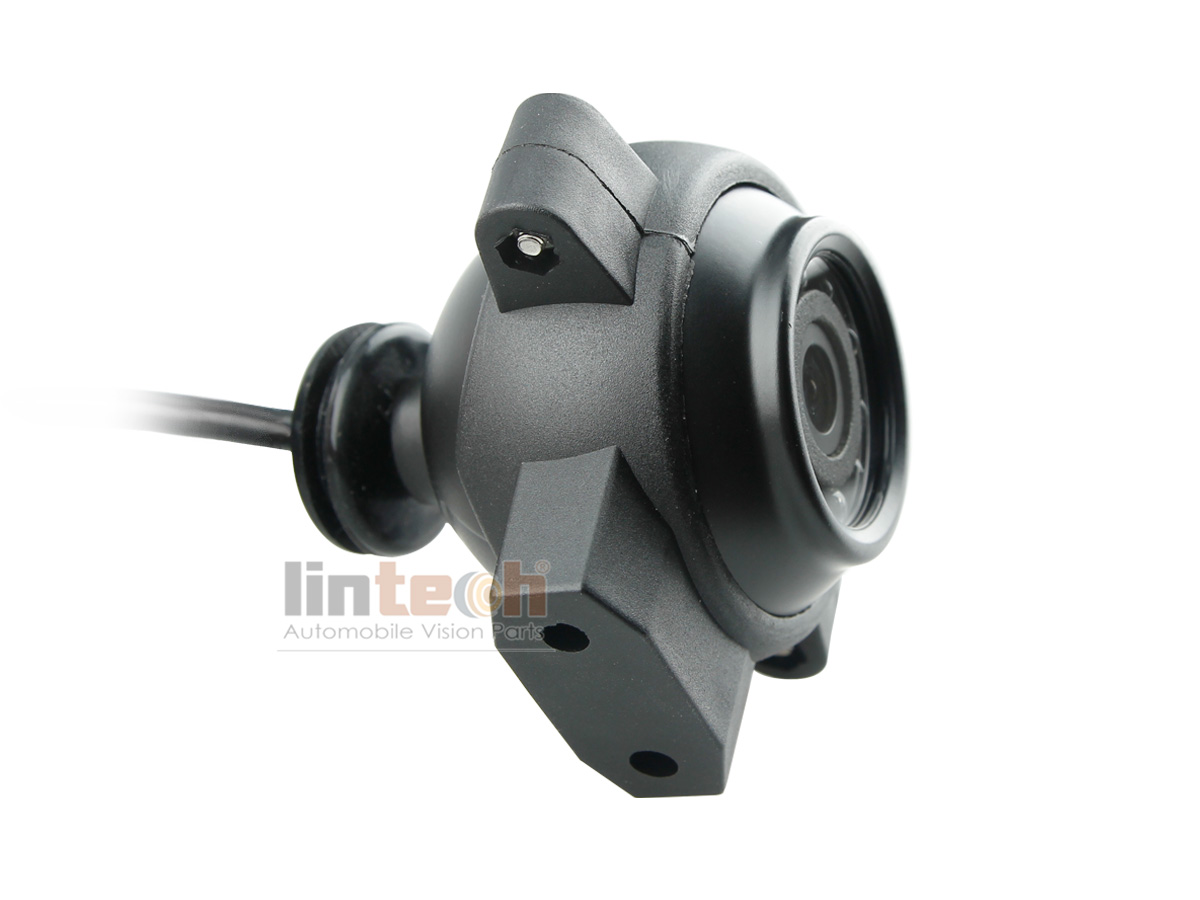

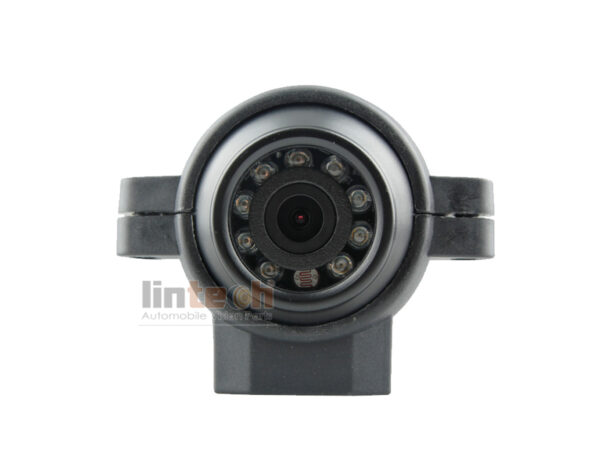

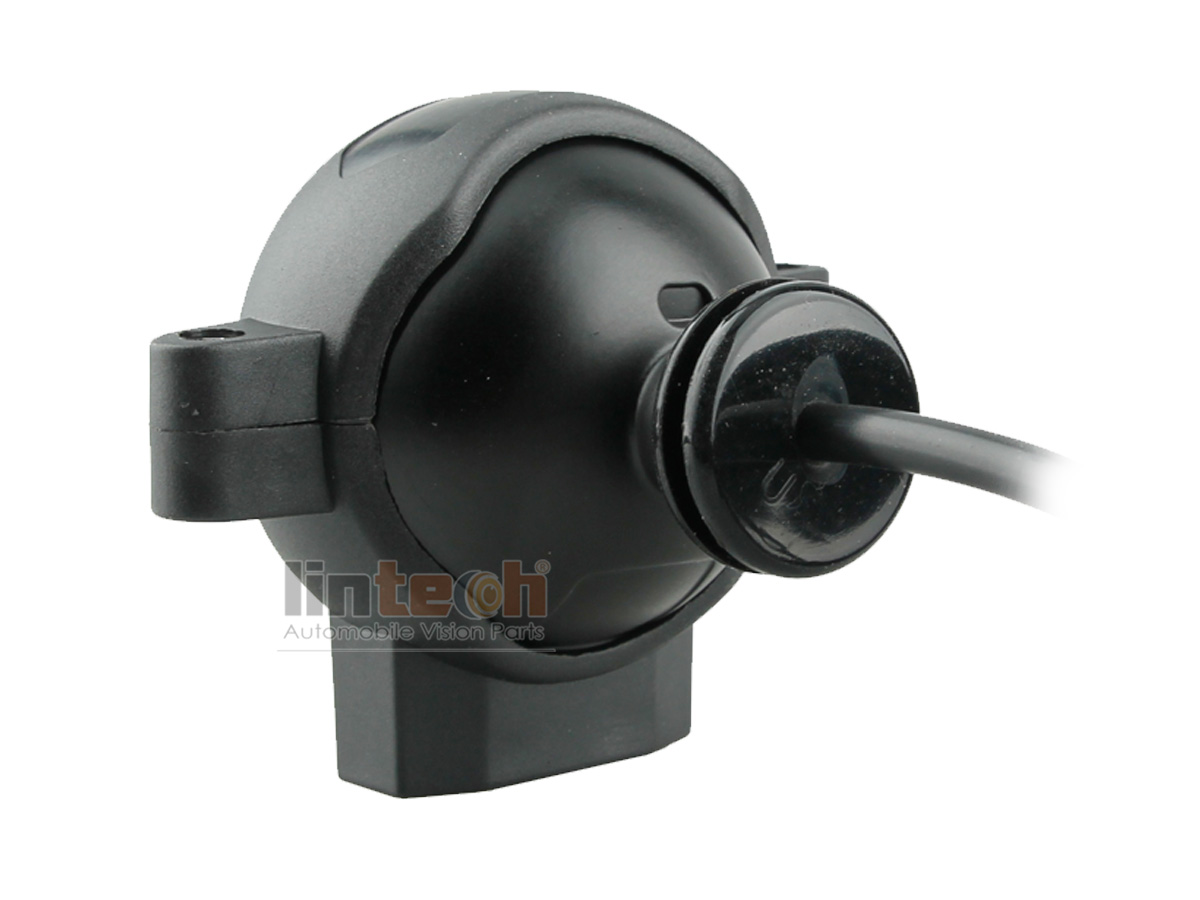

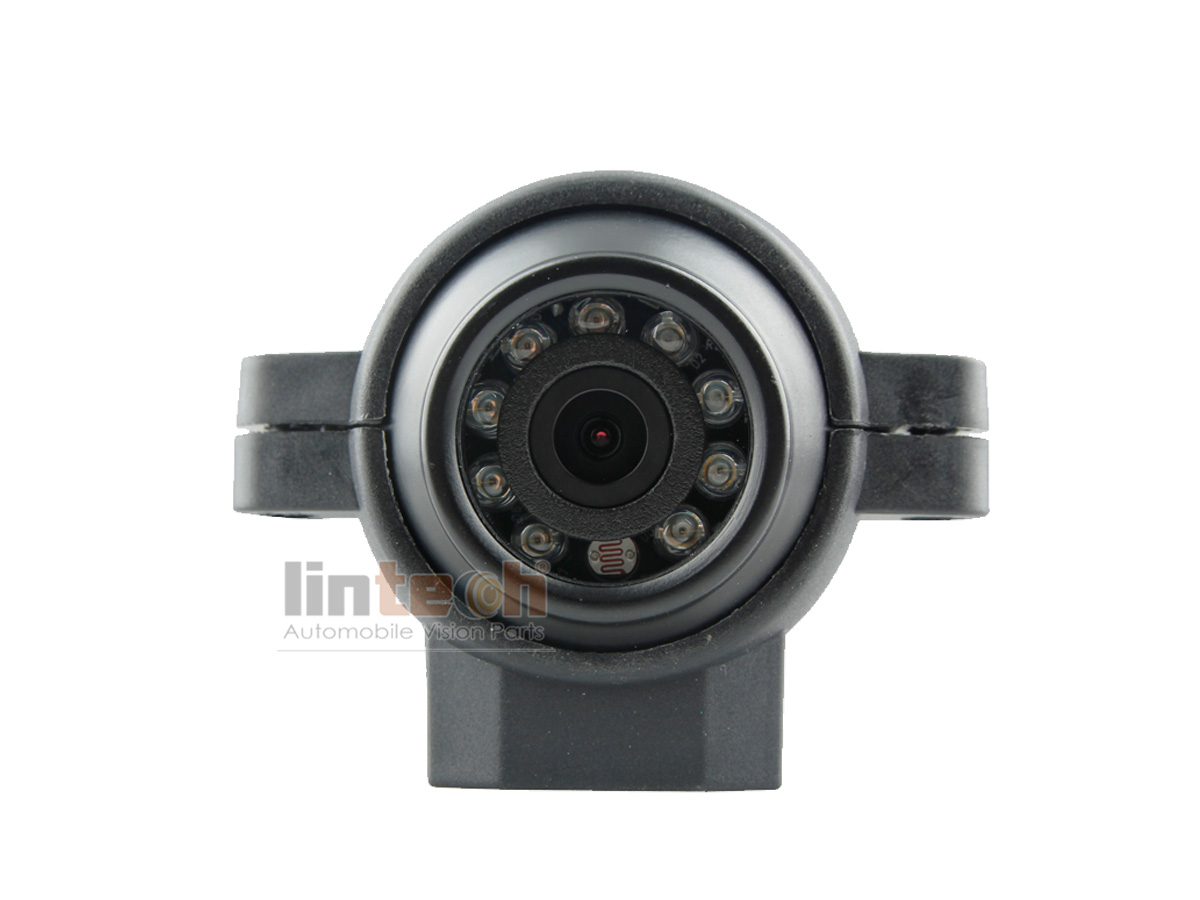

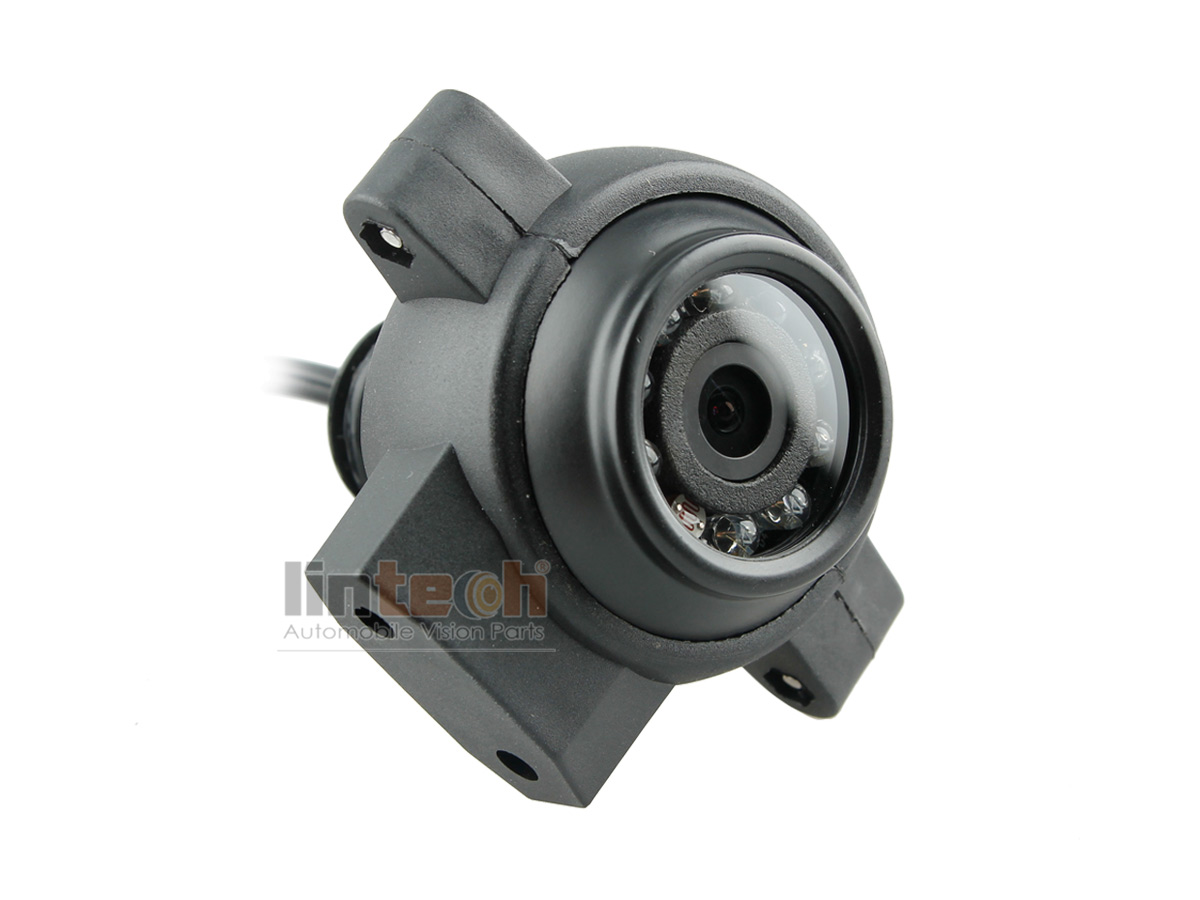

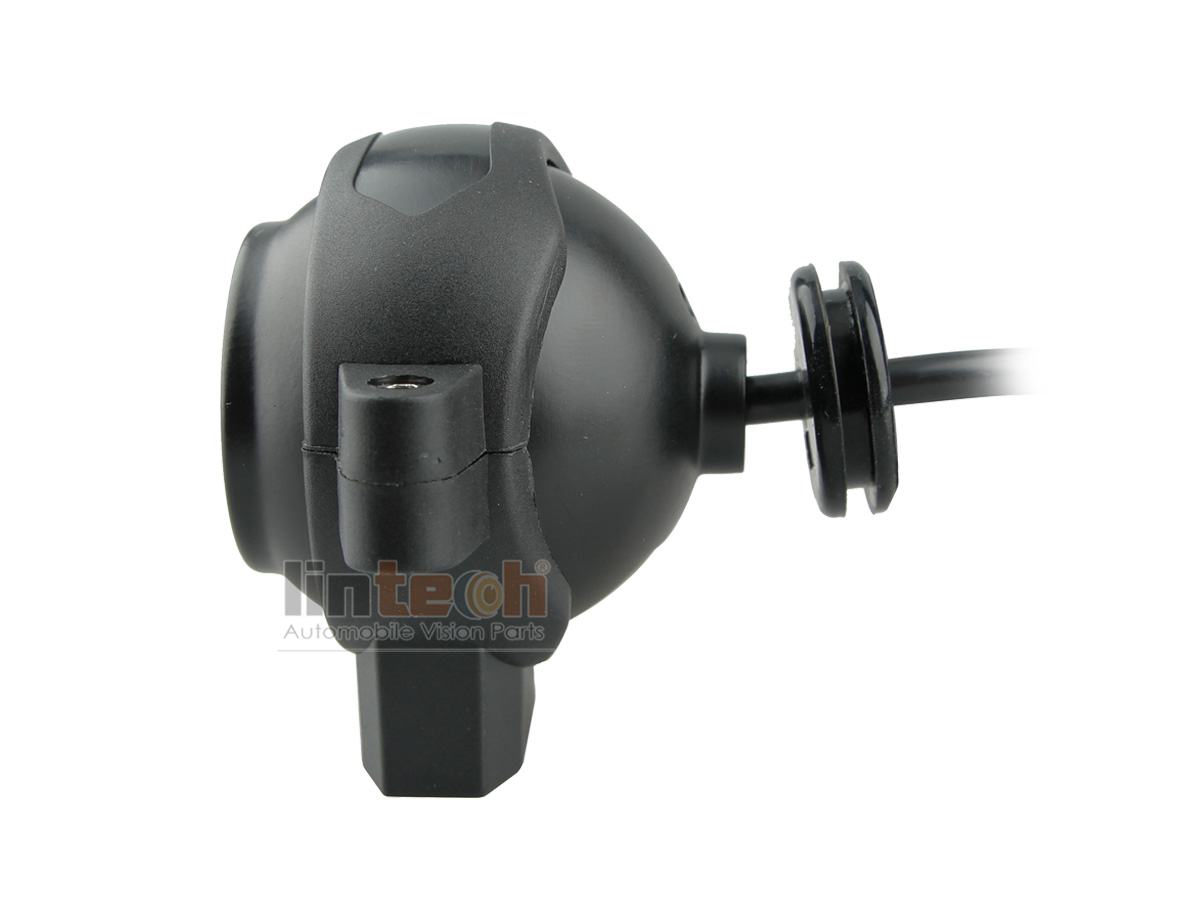

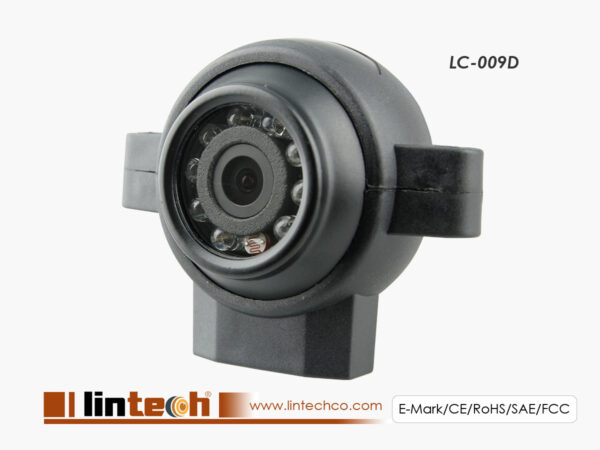

Night Vision Ball Reversing aid backup Camera for Universal Installation

Model No.:LC-009D

  • Sensor: 1/3″ SHARP CCD Sensor  & AHD 720P – 1080P
  • View angle: 120°~160°
  • Night vision:  12pcs IR LED
  • IP rating: IP69K (Waterproof)
  • Voltage: 12V (+/- 10%)/ 1,5 Watt
  • Certificates: CE/FCC/E-mark
  • Warranty: 1-3 Years

Backup Camera Datasheets Download

Category:

Lintech Ball CCD Camera, featuring a photosensor and 12 infrared LEDs, offers a versatile and efficient security solution suitable for various applications. This compact camera, equipped with a high-resolution Sony CCD and a lens ranging from 2.5 to 2.8mm, provides excellent night vision capabilities. Consuming only 0.13 amps at 12 volts, it operates efficiently within 12-24 multi-voltage systems and boasts an impressive IP69K rating for enhanced durability.

Designed for universal compatibility, this camera fits most makes and models, making it the perfect choice for anyone seeking reliable and effective surveillance.

LintechCo: Leading Chinese B2B Car Camera Supplier.



Specification:

Subject Standard Parameter Optional Parameter
Image sensor 1/3″ SHARP CCD  / SONY NVP 1/3″ CMOS AHD 720P 1080P
Resolution N:510×492 pixels
P: 500×582 pixels
1920×1080 pixels /  1280×720 pixels
Horizontal Resolution 700TVL AHD 720P 1080P
TV System NTSC/PAL NTSC/PAL
Lens 2.5~2.8mm 2.5~2.8mm
View angle 120 degree (100 Horizotal,75 Vertical) 120 degree (100 Horizotal,75 Vertical)
Power supplier 12~24VDC 12~24VDC
Current consumption 150mA 150mA
Power consumption 1.8W @ 12VDC 1.8W @ 12VDC
Min illumination 0 Lux (LED ON) Night Vision 0 Lux (LED ON) Night Vision
IR LED 12 pcs (Night vision distance 5m) 12 pcs (Night vision distance 5m)
Waterproof rating IP69K IP69K
Packing weight 0.3KG 0.3KG
Dimension(WxHxD) 77mmx63mmx51mm (MAX) 77mmx63mmx51mm (MAX)
Operation temperature -30 ~ +70 C-degress -30 ~ +70 C-degress
