Brake Light Camera for Dodge Ram Promaster Van, LC-009C5-4

THIRD BRAKE LIGHT CAMERAS for Dodge Ram Promaster Cargo Van, Replacing your third brake light without changes to the vehicle – such as drilling or assembly / mounting holes.

FacebookTwitterGoogle PlusPinterest

Descriptions

LintechCo: Leading Chinese B2B Brake Light Camera Supplier.

Model No.: LC-009C5-4

THIRD BRAKE LIGHT CAMERAS for Dodge Ram Promaster Cargo Van, Replacing your third brake light without changes to the vehicle – such as drilling or assembly / mounting holes – simply replace the brake light. these will give you a third brake light with a backup camera built-in!

This placement allows you to mount a backup camera discreetly without causing an eyesore on your van. Each of these back up cameras are completely waterproof and come with excellent night vision and a wide viewing angle for the best view at all times.

The camera can be connected to satellite navigation devices and monitors that have a rear view camera input, and being small
adapts perfectly to the vehicle optics and switches itself automatically when reverse gear is engaged.

High sensitivity to light combined with infra red LEDs enable the camera to display an optimal view backwards and is the perfect
reversing aid for your vehicle. In addition, the cameras can be be aligned in the housing to pinpoint the perfect viewing position.
The large horizontal viewing angle of 170 ° ensures an excellent view of the scene behind your vehicle.



FEATURES:

–Sensor: 1/3″ Sony CCD
–Sensor 580TVL
–View angle: 170°
–Night vision: 6pcs IR LED
–Microphone: Yes
–IP rating: IP68 (Waterproof)
–Voltage: 12V (+/- 10%)/ 1,5 Watt
–Certificates: CE/FCC/E-mark
–Warranty: 1-3 Years
–For Dodge RAM ProMaster Cargo



SubjectStandard ParameterOptional Parameter
Image sensor1/3" SONY CCD1/3" CMOS PC1089
ResolutionN:752x494pixels P:752x582pixelsN:752x494pixels P:752x582pixels
Horizontal Resolution580TVL420TVL
TV SystemNTSC/PAL
View angle170 degree (105 Horizotal,85 Vertical)
Power supplier12VDC
Current consumption150mA130mA
Power consumption1.8W @ 12VDC1.5W @ 12VDC
Min illumination0 Lux (LED ON) Night Vision
IR LED 7pcs (Night vision distance 5-7m)
Waterproof ratingIP68
Packing Weight1.3kg
Dimension(WxHxD)265mmx129mmx51mm (MAX)
Operation temperature-20 ~ +70 C-degress
Lens1.7mm





Certificates and Test Report Links:

E-Mark E9 Certificates and Report
E-Mark E9 S3 Certificates and Report
SAE Certificates
CE Certificates and Test Report
FCC Certificates and Test Report
RoHs Certificates and Test Report









Other Brake Light Backup Camera for Different Vans:



Vans List  Part No.
Mercedes Sprinter / VW Crafter brake light camera use for 2007-2015LC-009C3
2017 CRAFTER van brake light cameraLC-009C3-1
VW caddy 2003-2015 LC-009C3-2
VW T5/T6 2010-currentLC-009C3-3
Sprinter 2017-2018 side view cameraLC-009C3-LR
FORD Transit brake light camera use for 2014-2015 MODELLC-009C4
FIAT Ducato brake light camera use for late 2006-2015 3rd generation, Maxi, Peugeot Boxer, Citroen JumperLC-009C5
Universal cargo van brake light cameraLC-009C5-1
FIAT Ducato brake light camera use for late 2006-2015 3rd generation, Peugeot Boxer, Citroen JumperLC-009C5-2
NV Passenger and Cargo Van 2009-2014LC-009C5-3
RAM PROMASTER cargos vanLC-009C5-4
GM Express & Chevy Savana cargo VAN Camera LC-009C5-5
GMC Savana Van (2003-2016)/Chevy Express (2003-2016)LC-009C5-5B
IVECO Daily brake light camera use for 2011-2014 4th generation(brake lights/bulbs are not integrated)LC-009C6
IVECO Daily brake light camera use for 2015 (brake lights/bulbs are not integrated)LC-009C6-2
2014 Opel Vivaro / 2014 Renault Trafic (brake lights/bulbs are not integrated)LC-009C7
2010-2016 Renault_Master/Nissan-NV400/Opel_MovanoLC-009C7-2
2010-2017 Nissan NV200LC-009C8
2008-2016 Dodge PromasterLC-009C9

Data Sheet

Photos

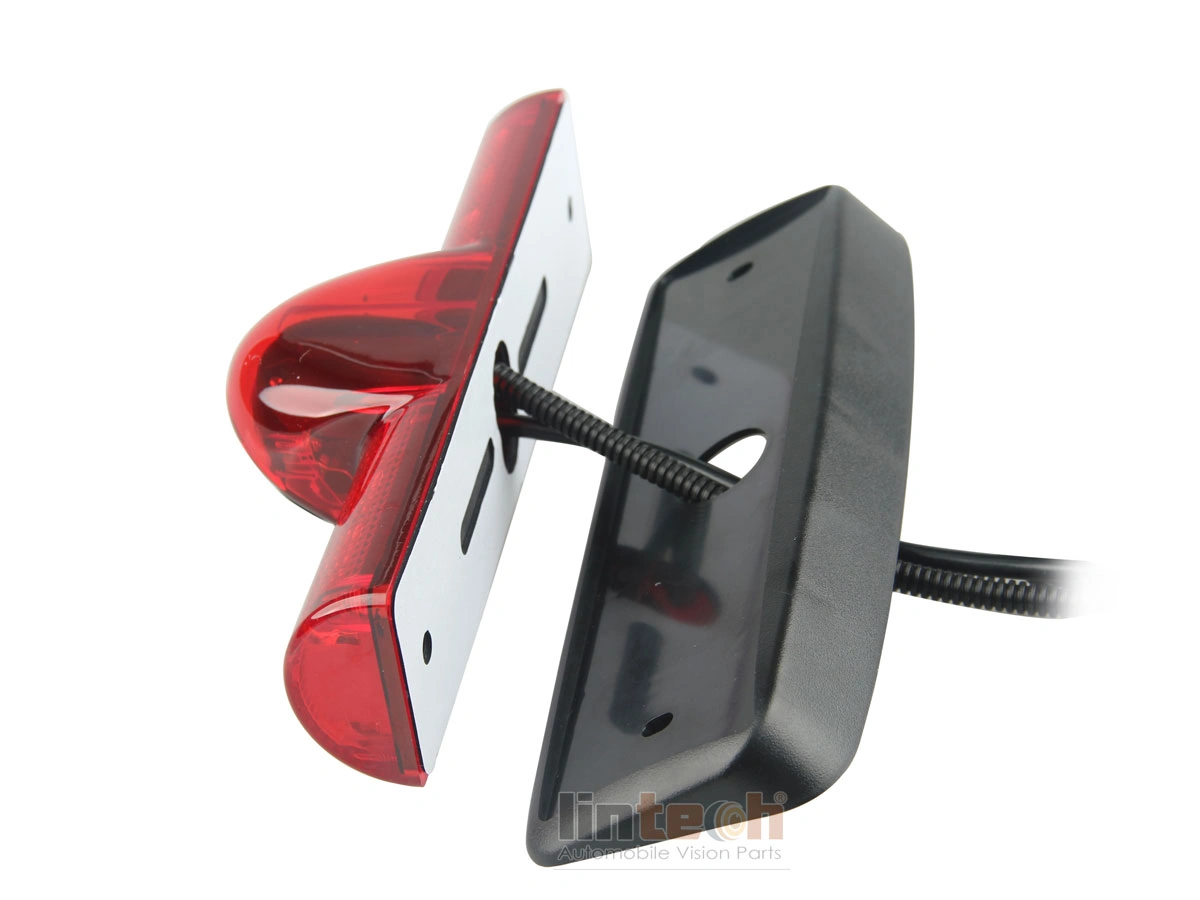

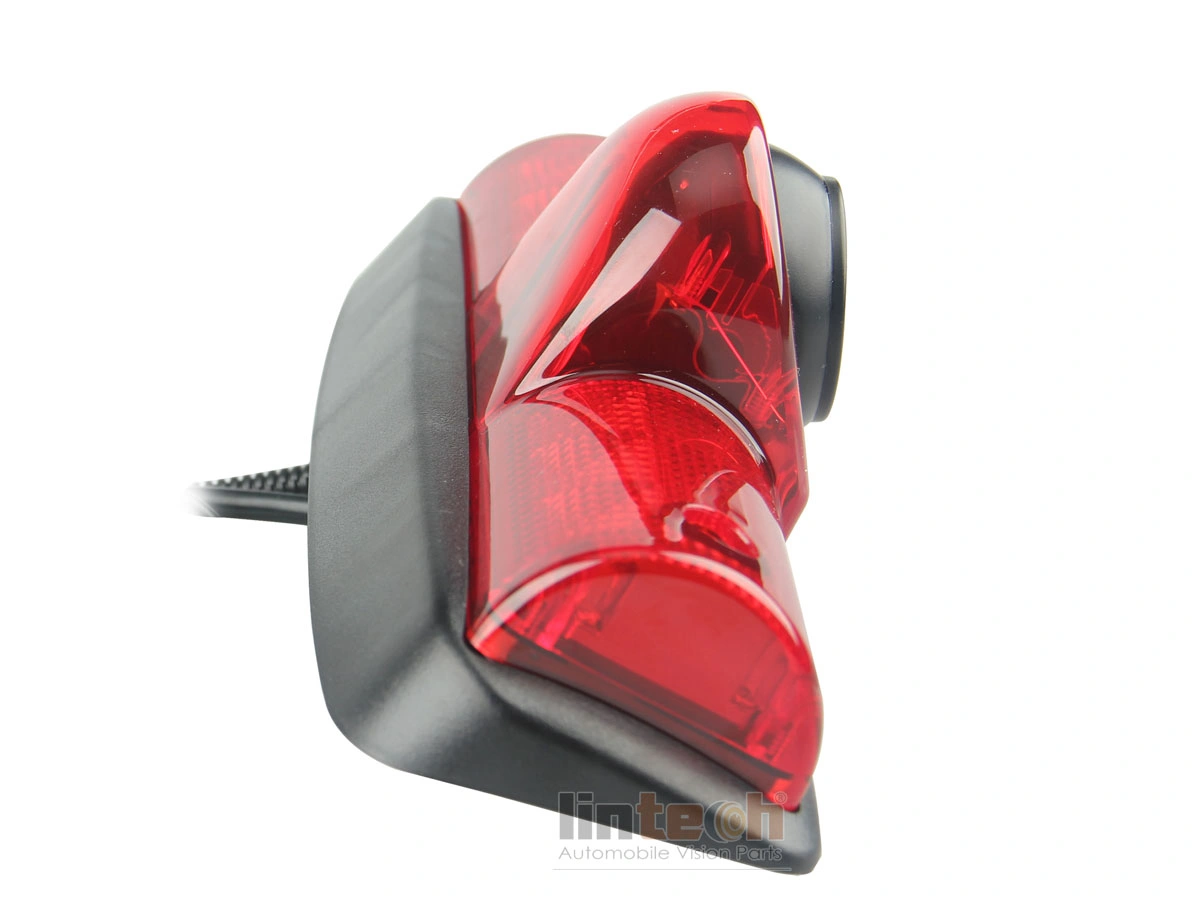

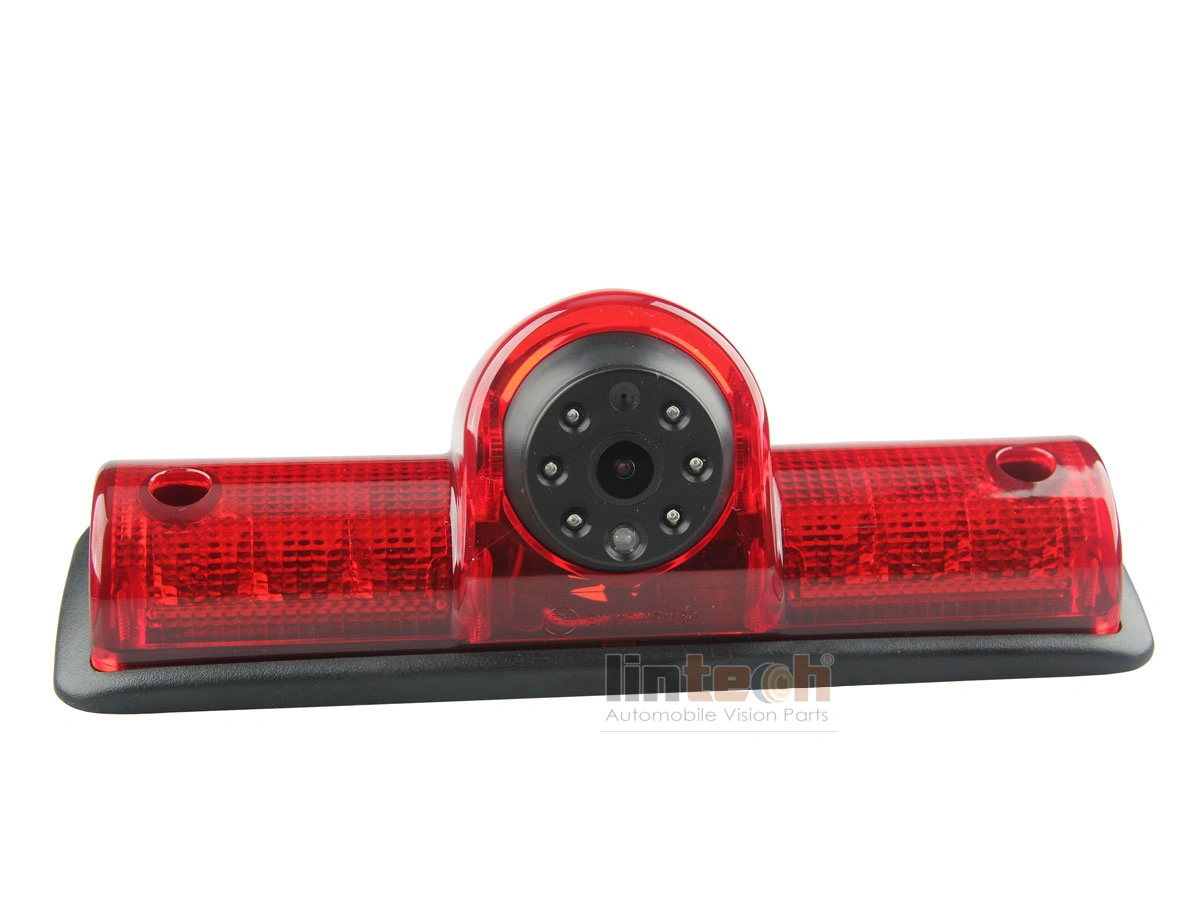

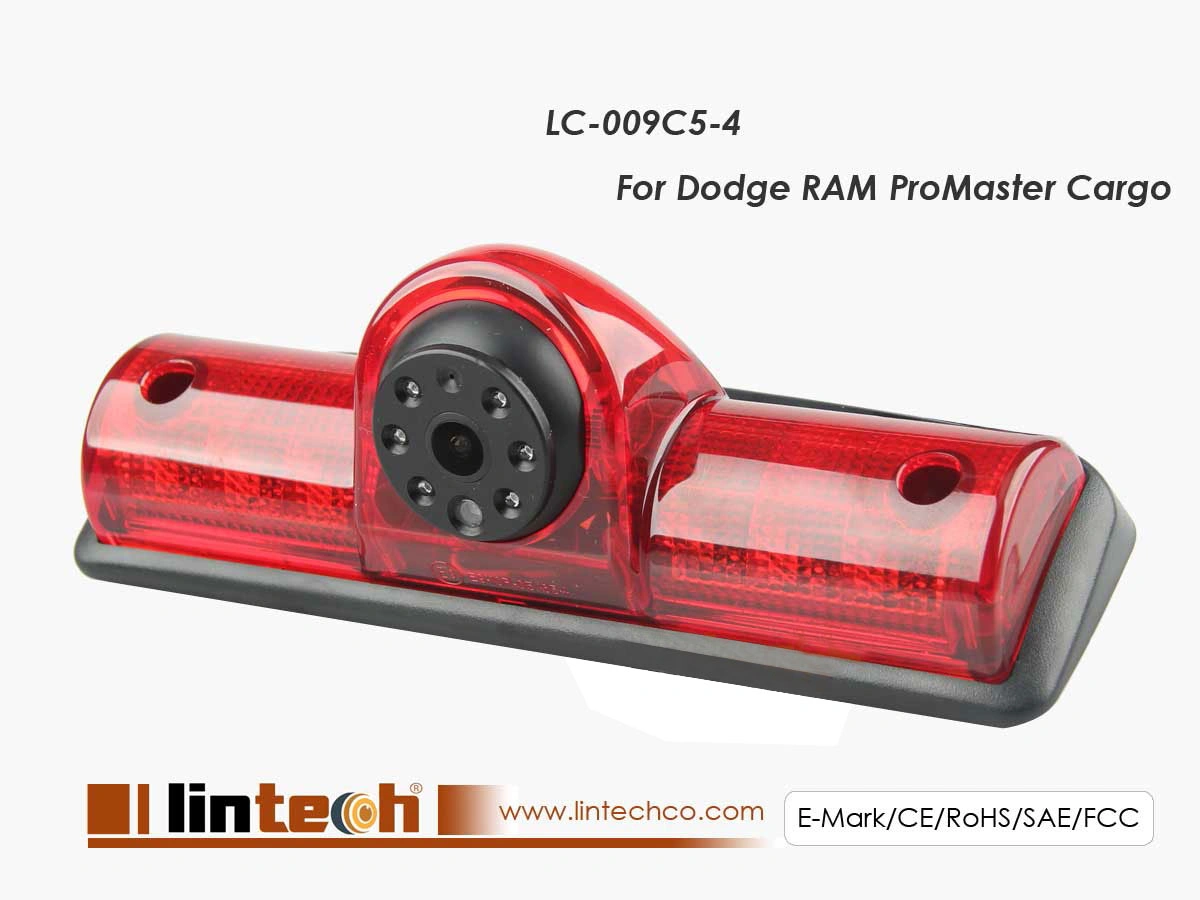

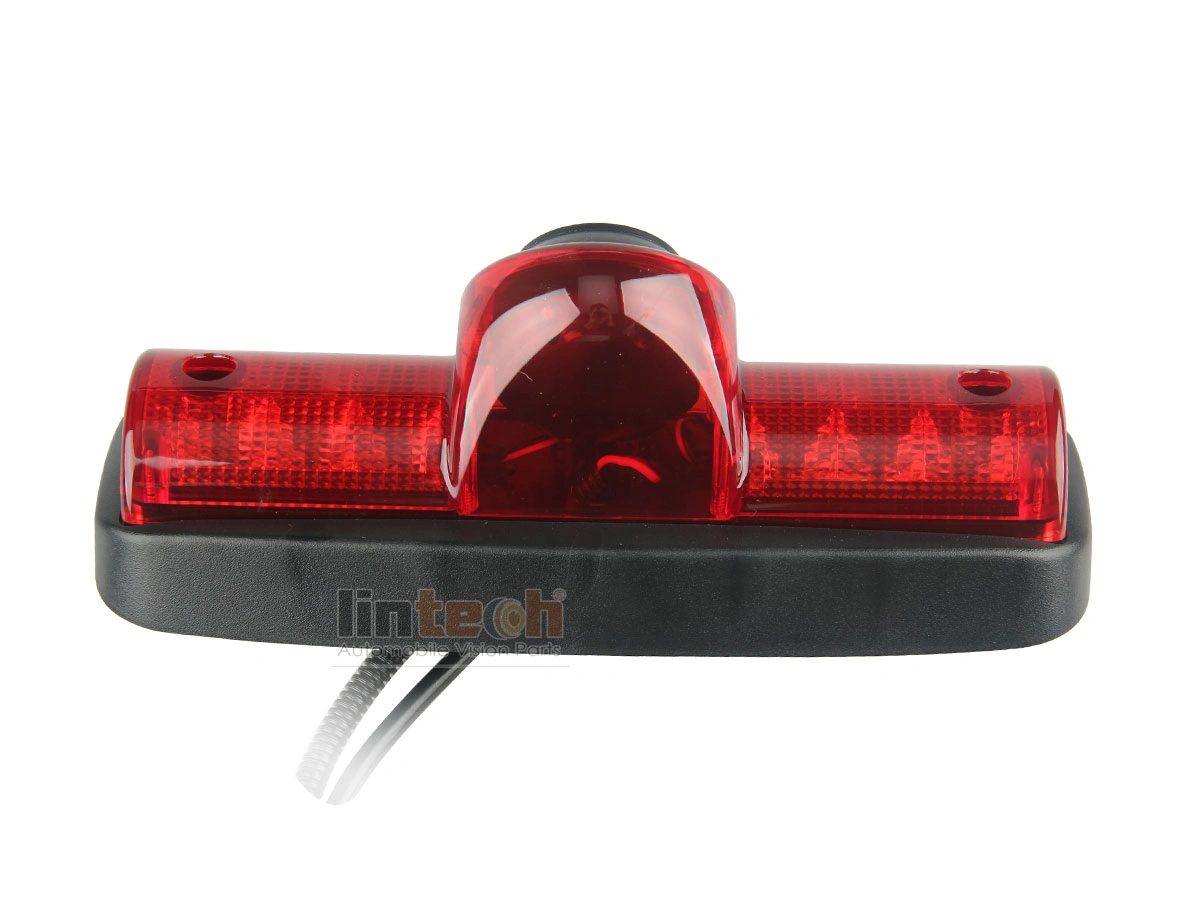

Brake Light Camera for Dodge Ram Promaster Van, LC-009C5-4
Brake Light Camera for Dodge Ram Promaster Van, LC-009C5-4
Brake Light Camera for Dodge Ram Promaster Van, LC-009C5-4
Brake Light Camera for Dodge Ram Promaster Van, LC-009C5-4
Brake Light Camera for Dodge Ram Promaster Van, LC-009C5-4
Brake Light Camera for Dodge Ram Promaster Van, LC-009C5-4
Brake Light Camera for Dodge Ram Promaster Van, LC-009C5-4
Brake Light Camera for Dodge Ram Promaster Van, LC-009C5-4
