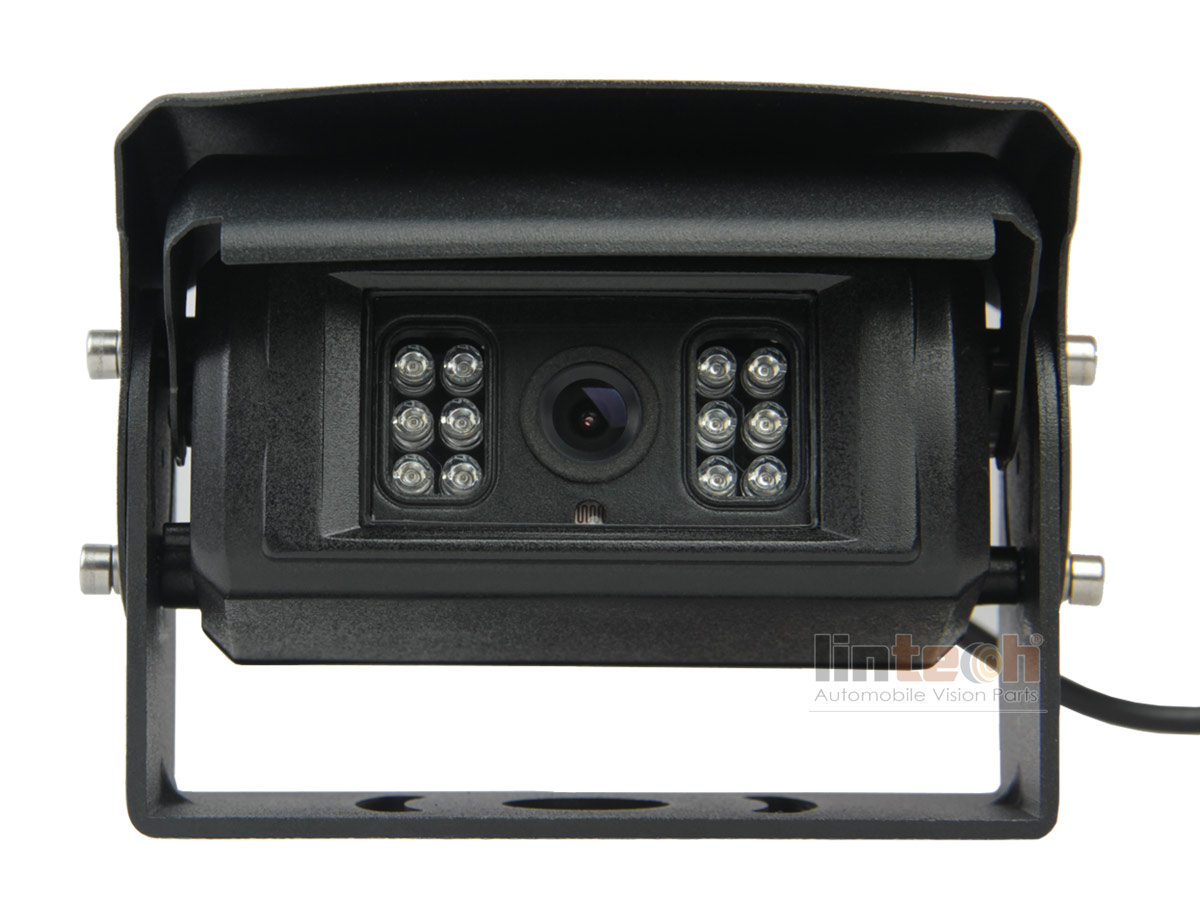

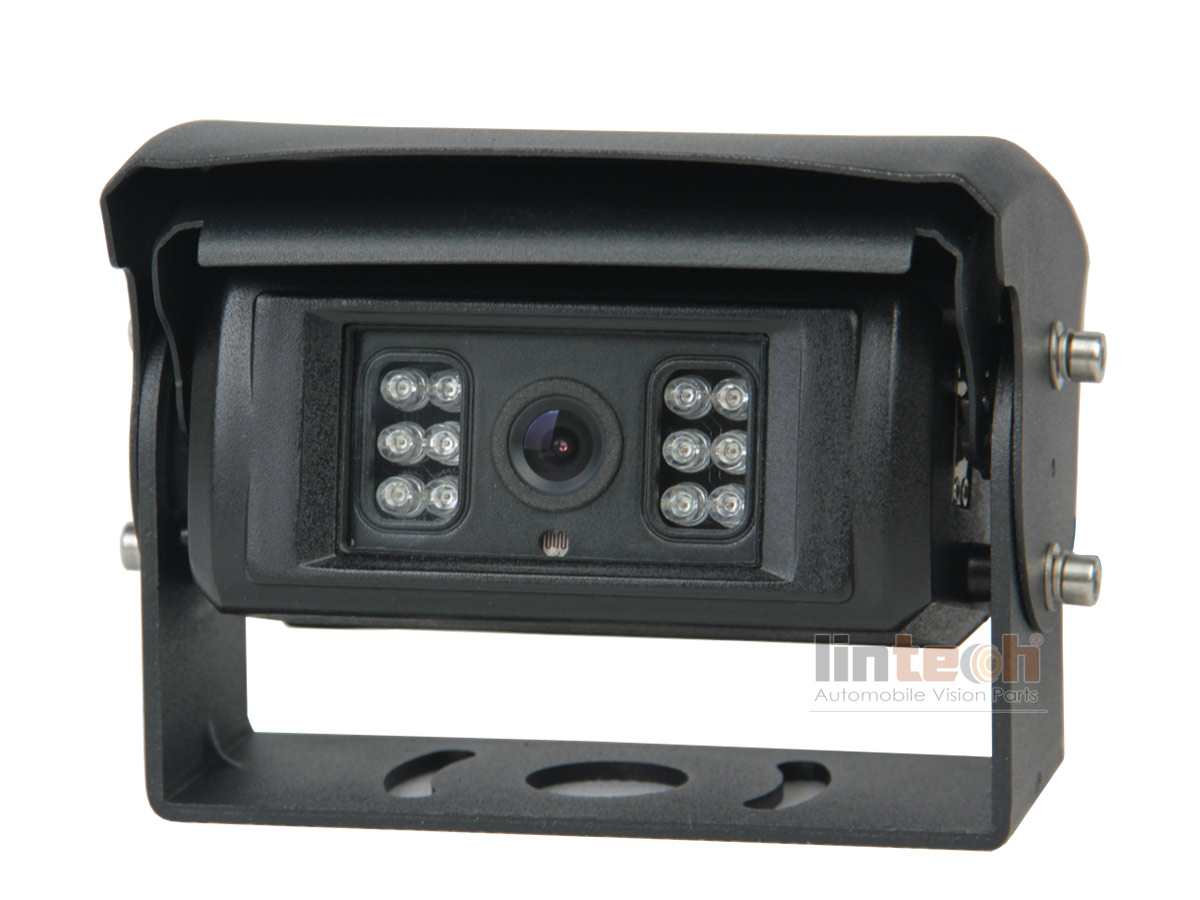

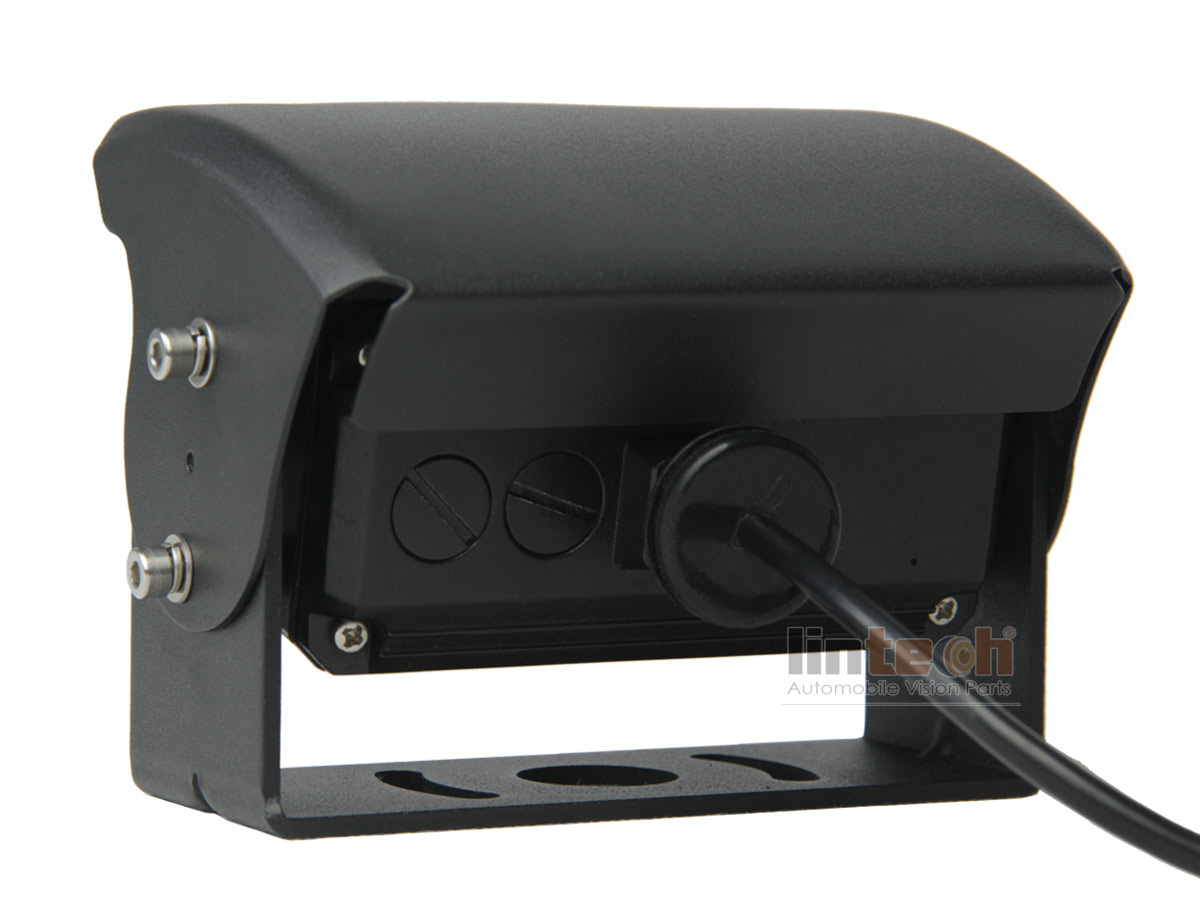

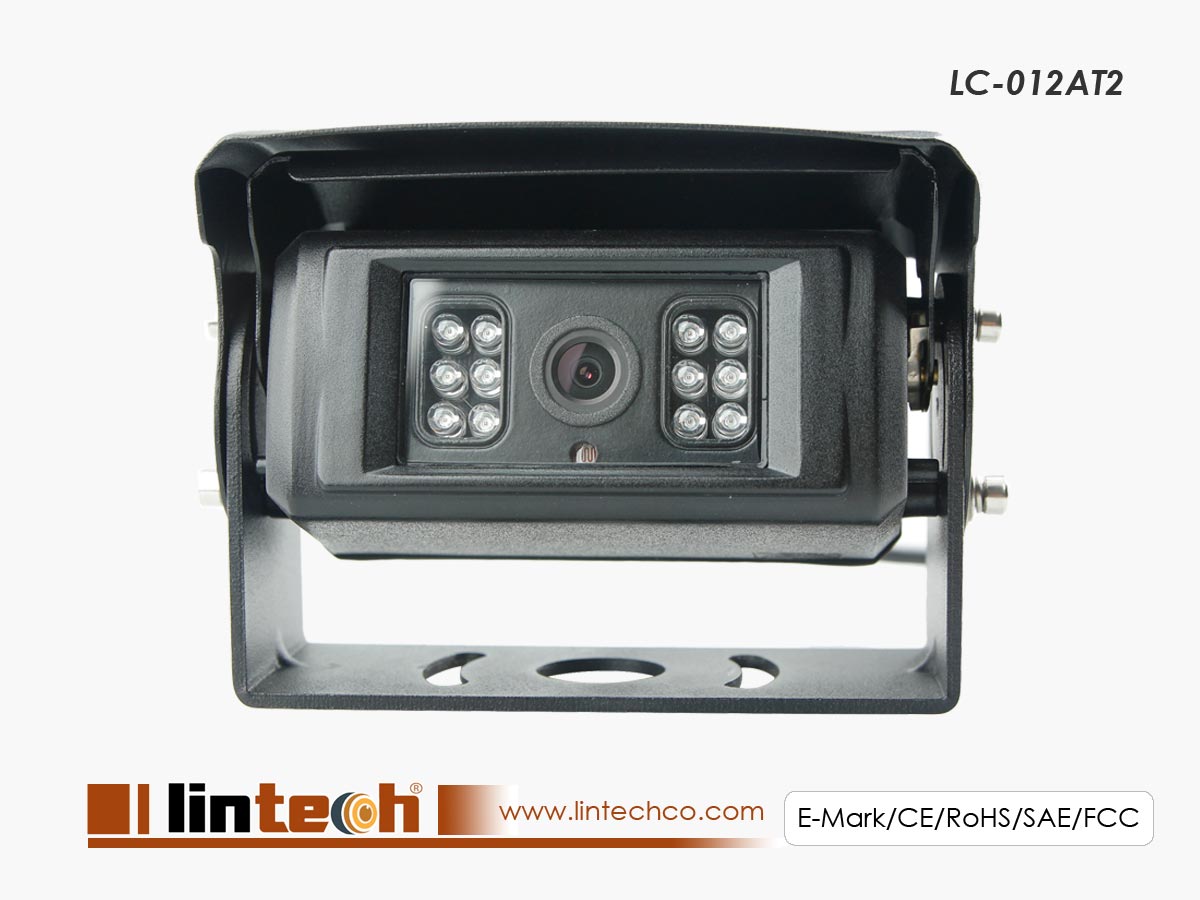

Night Vision Waterproof Auto Shutter Rear View Reverse Camera

Model No.: LC-012AT2

  • Heavy-duty Color Auto shutter backup camera with Infrared LED.

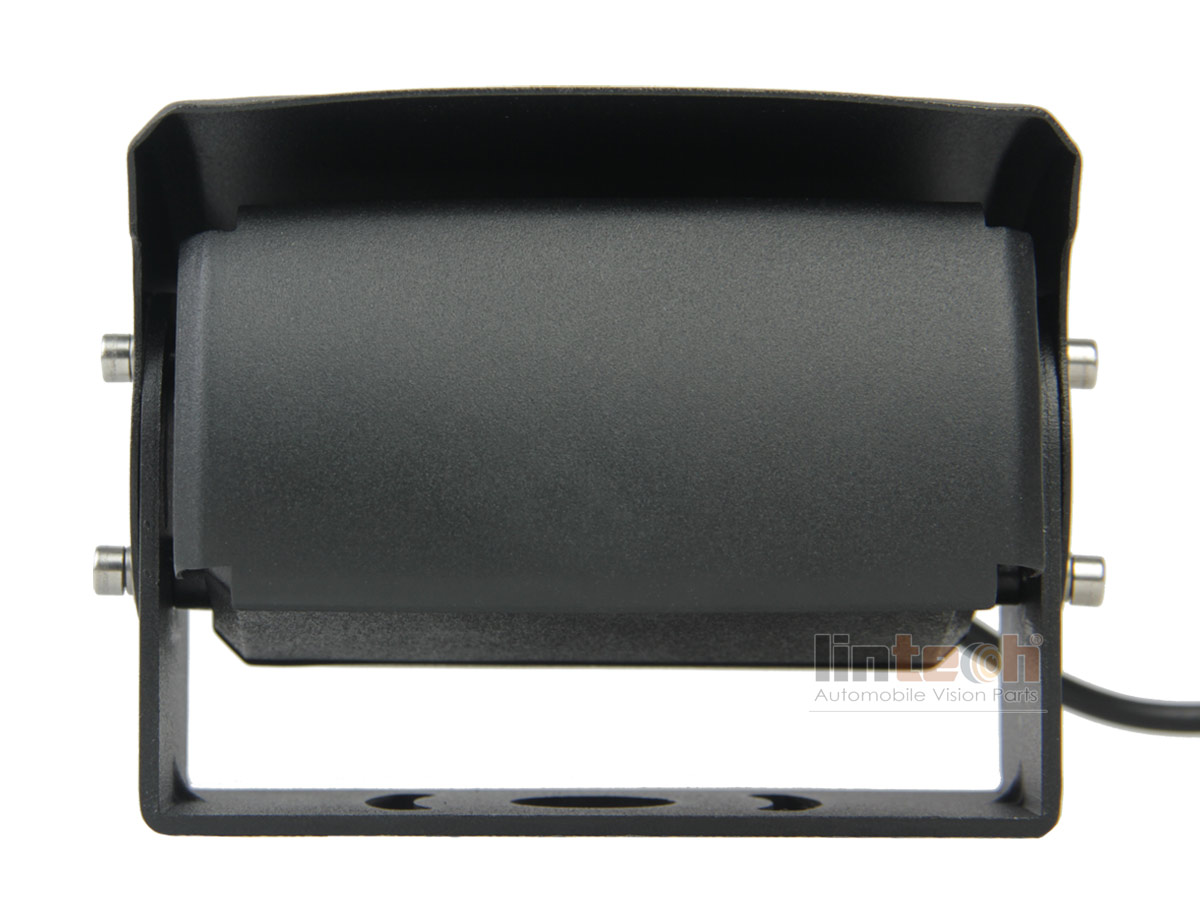

  • Automatic protective shutter closes when not in use
  • Wide field of view 120° lens
  • Waterproof rating IP68
  • Produced specifically to withstand the rigors of use in the transport industry
  • Certificates: CE/FCC/E-mark
  • Warranty: 1-3 Years

Backup Camera Datasheets Download

Category:

The AHD 720p camera for vehicles is designed for optimal performance, featuring automatic infrared capabilities for display on AHD monitors. It is powered directly from the monitor using M12 4PIN screw plugs, with a customizable 5PIN option available. This camera is particularly well-suited for trucks and heavy machinery, whether used at the front or rear, thanks to its robust metal housing, heated lens for enhanced visibility, and vibration resistance, ensuring reliability in even the toughest conditions. Additionally, an automatic metal shield protects the lens when the camera is off, and image orientation adjustments can be easily made directly on the monitor. This model is E-mark certified for quality and compliance.



LintechCo: Leading Chinese B2B AUTO SHUTTER REAR VIEW CAMERA Supplier.

This Auto shutter backup camera is an extremely well made, heavy-duty, full-color Auto shutter backup Camera suited for large commercial transport vehicles, trucks and large plant vehicles. This clever system automatically switches on, and the shutter opens when reverse gear is selected or by direction lights.

The wide camera lens has been designed specifically for the purpose of vehicle reversing, giving a good field of view to make reversing very easy and safe. This extra heavy-duty camera also has built-in Infrared LED’s for picture support in the dark AND automatic heating when below -5°C.

Specification:

Subject Standard Parameter Optional Parameter
Image sensor 1/3″ SHARP CCD  / SONY NVP 1/3″ CMOS AHD 720P 1080P
Resolution N:510×492 pixels
P: 500×582 pixels
1920×1080 pixels /  1280×720 pixels
Horizontal Resolution 700TVL AHD 720P 1080P
TV System NTSC/PAL NTSC/PAL
Lens 2.5~2.8mm 2.5~2.8mm
View angle 120 degree (100 Horizotal,75 Vertical) 120 degree (100 Horizotal,75 Vertical)
Power supplier 12~24VDC 12~24VDC
Current consumption 150mA 150mA
Power consumption 1.8W @ 12VDC 1.8W @ 12VDC
Min illumination 0 Lux (LED ON) Night Vision 0 Lux (LED ON) Night Vision
IR LED 12 pcs (Night vision distance 5m) 12 pcs (Night vision distance 5m)
Waterproof rating IP68 IP68
Packing weight 0.6KG 0.6KG
Dimension(WxHxD) 77mmx63mmx51mm (MAX) 77mmx63mmx51mm (MAX)
Operation temperature -30 ~ +70 C-degress -30 ~ +70 C-degress
