At Lintech Accessories we are pleased to introduce an innovative new way of illuminating and visualizing the area around your vehicle.

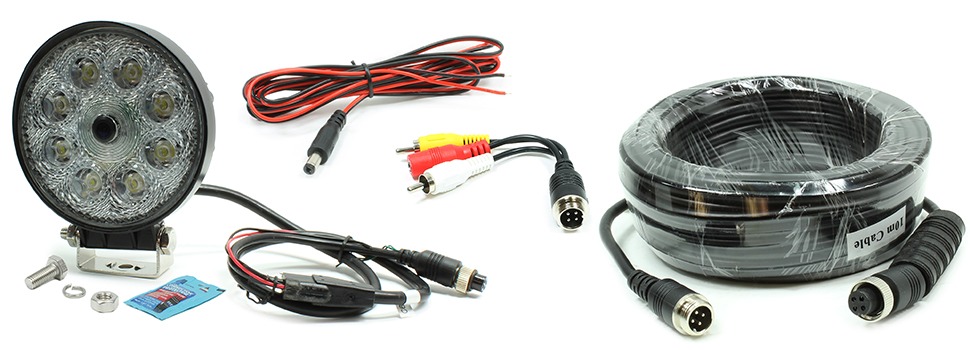

Now available for shipment, our all-new high-power LED flood beam work lamps include a high-resolution CMOS color camera, and an array of 24-watt LEDs to provide clear visibility in the darkest environments.

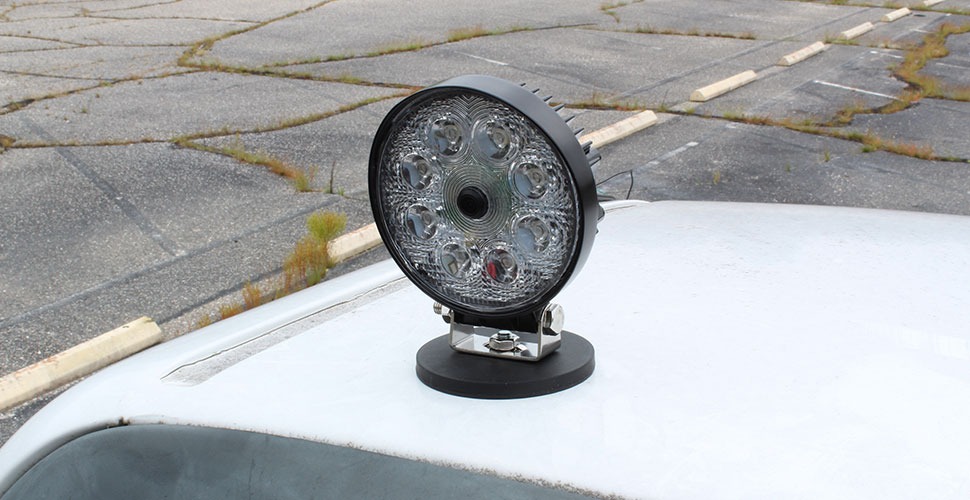

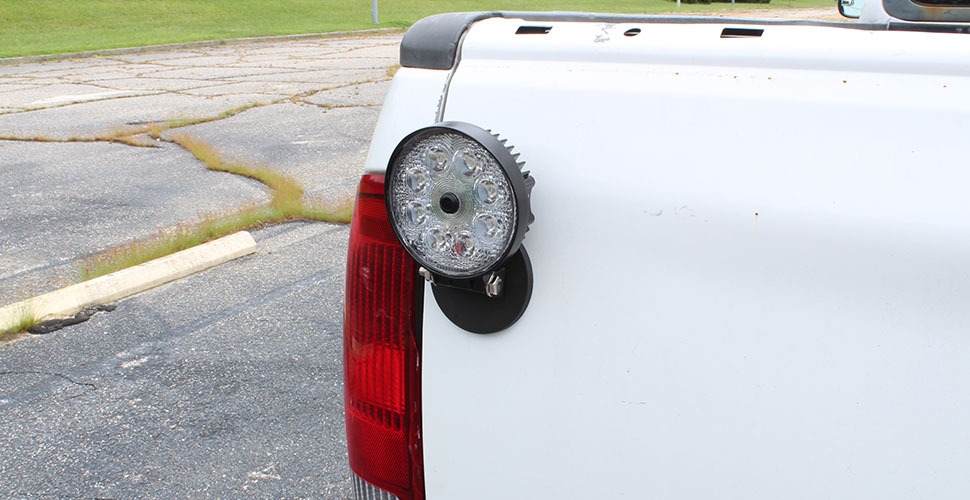

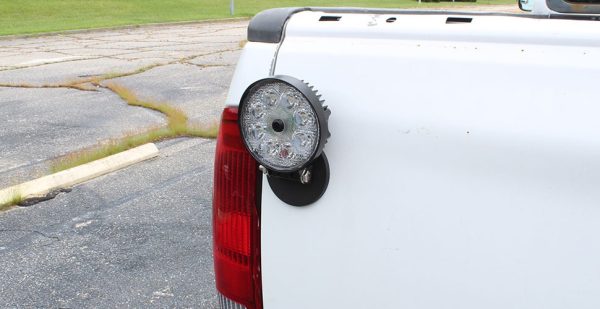

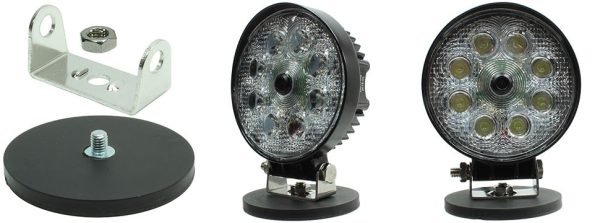

These work lamp/camera combos can be utilized in a number of different positions and orientations. Our LED work lamp/ camera devices work with a wide variety of Lintech’s standalone LCD monitors and LCD-equipped rear view mirrors and these units can serve as a standalone lighting solution, too!
FEATURES:
- A powerful LED work light and backup camera, all in one convenient fixture.
- Produces 1100 lumens of light.
- Durable camera features a 976×592 pixel (700 TV lines) resolution.
- Night vision capabilities and a wide 140 viewing angle to help capture everything going on even in low visibility situations.

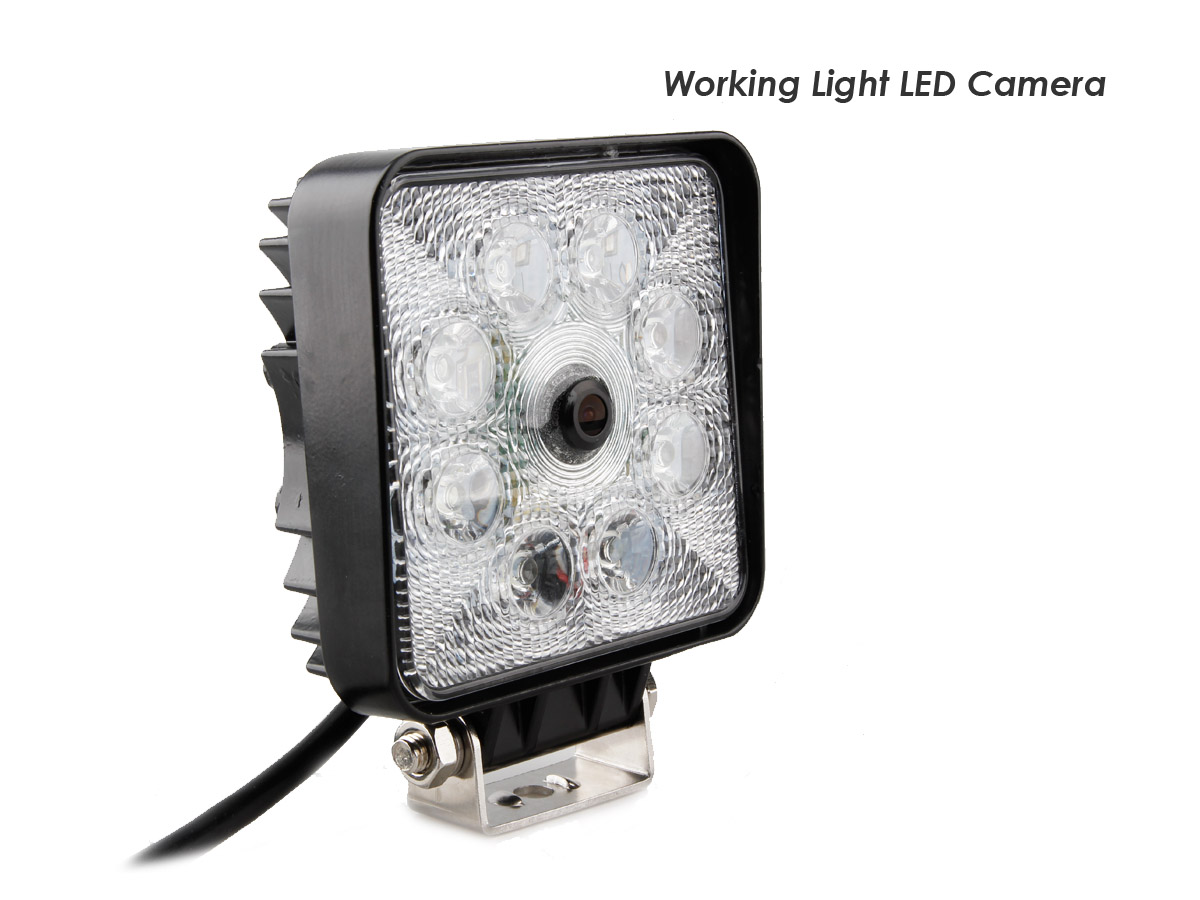

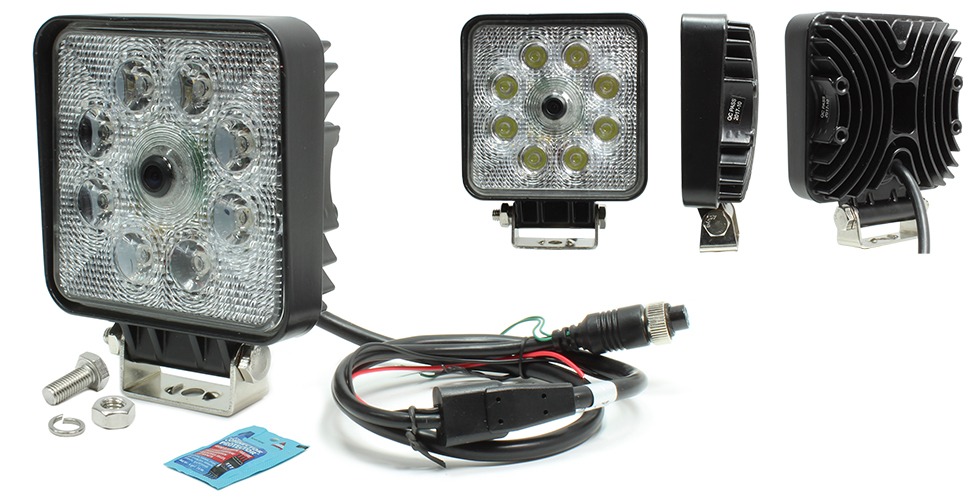

- Available with a round or square lens.
| Subject | Standard Parameter | LED Light Specification |
|---|---|---|
| Image sensor | 1/3″ CMOS 1058 | Total Watt: 18W |

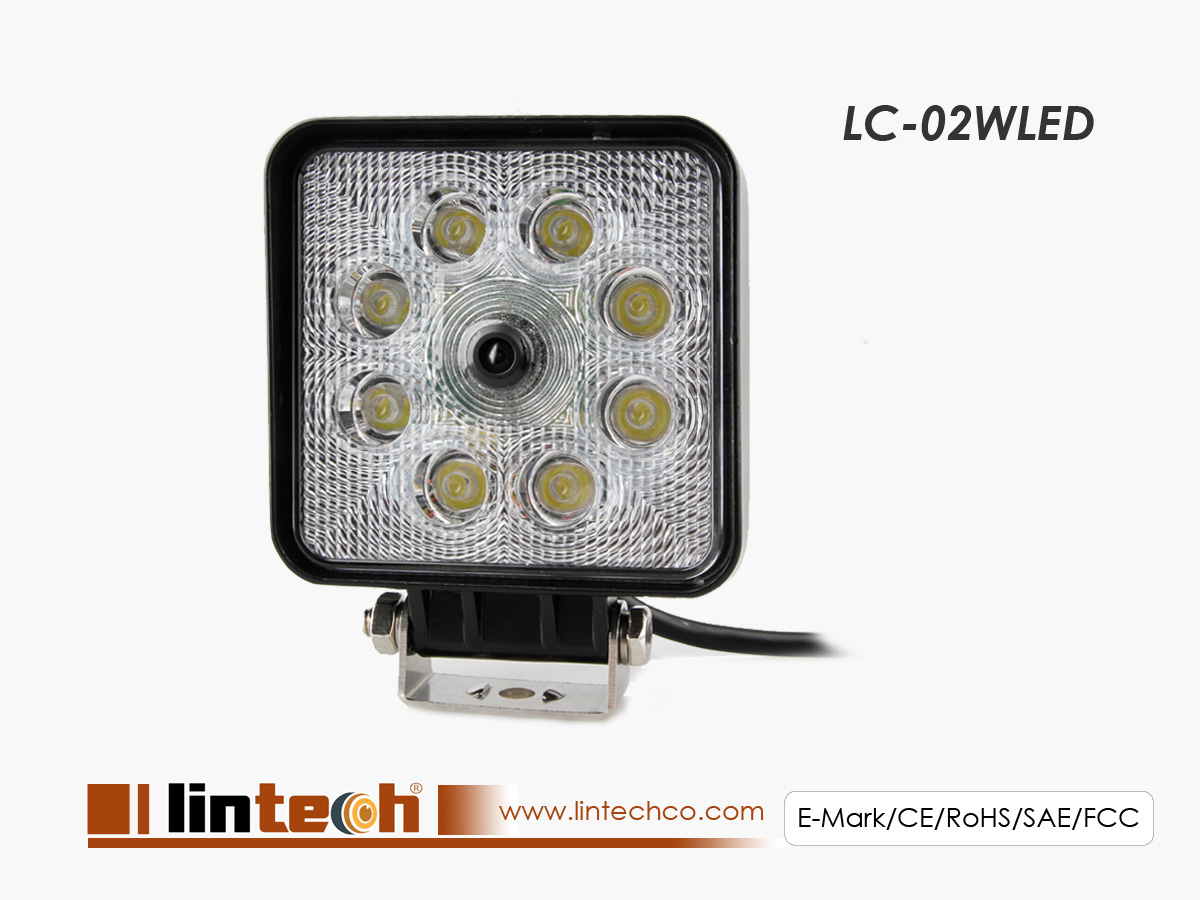

| Resolution | 976(H)×592(V) | LC-01WLED: Diameter = 115mm LC-02WLED: 110mm x 110mm |
| Horizontal Resolution | 700TVL | Vibration: 15Grams |
| TV System | NTSC/PAL | LED lifespan: 20 000 hours |
| Lens | 1.7mm | Weight: 0.6 kg |
| View angle | 140 degree (Horizotal) | Lens: Acrylic |
| Power supplier | 12VDC | Input voltage: 10-24V DC |

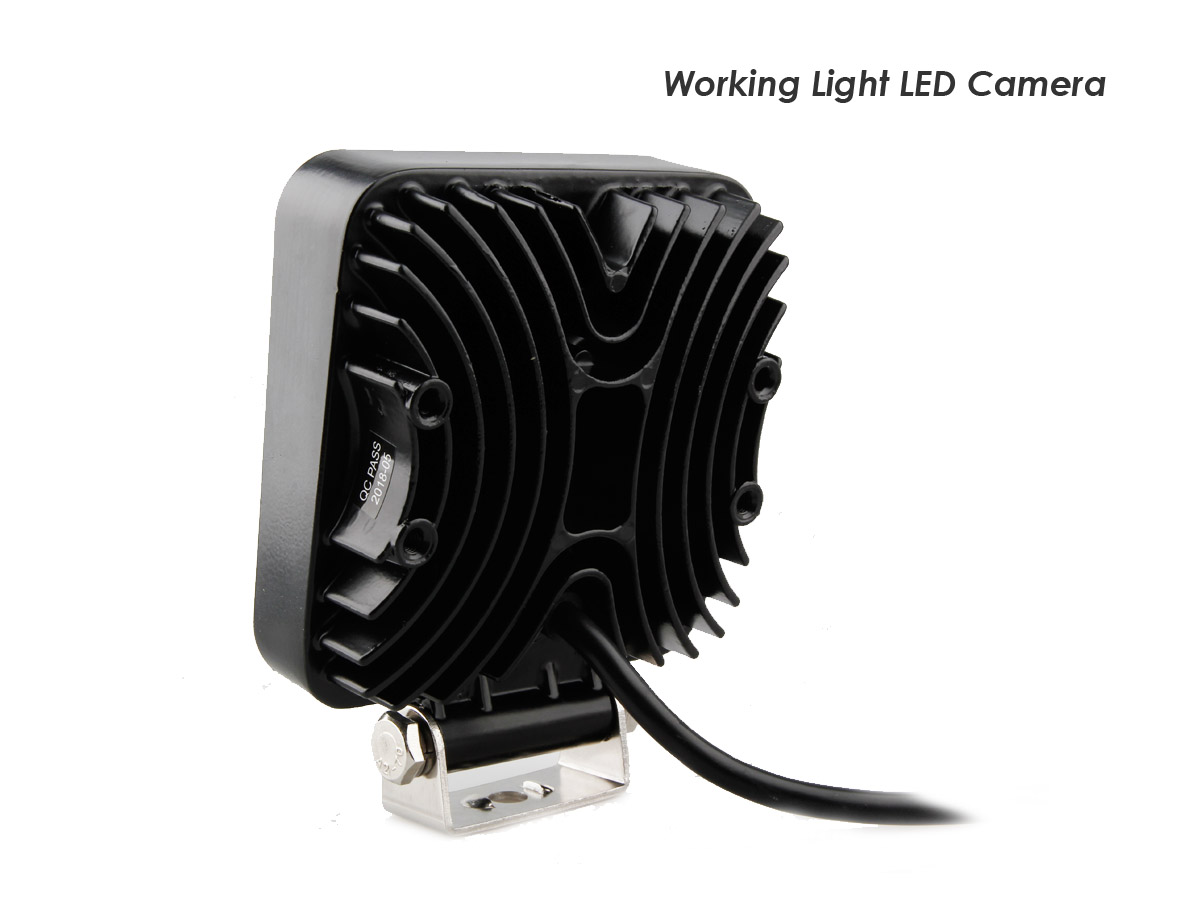

| Current consumption | 150mA | House: Die cast aluminum |
| Power consumption | 1.8W @ 12VDC | 18W @ 12VDC |
| Min illumination | 0 Lux (LED ON) Night Vision | Connector: 4-Pin aviation |
| IR LED | 8 pcs (Night vision distance 30M) | Beam pattern light: 120° |
| Waterproof rating | IP68 | Colour temperature: 6 000K |
| Packing weight | 0.45KG | Effective lumen: 1 154 |
| Dimension(WxHxD) | 110mm x 110mm x 115mm (MAX) | |
| Operation temperature | -20 ~ +70 C-degress | Operating temperature:-40°C-+85°C |
