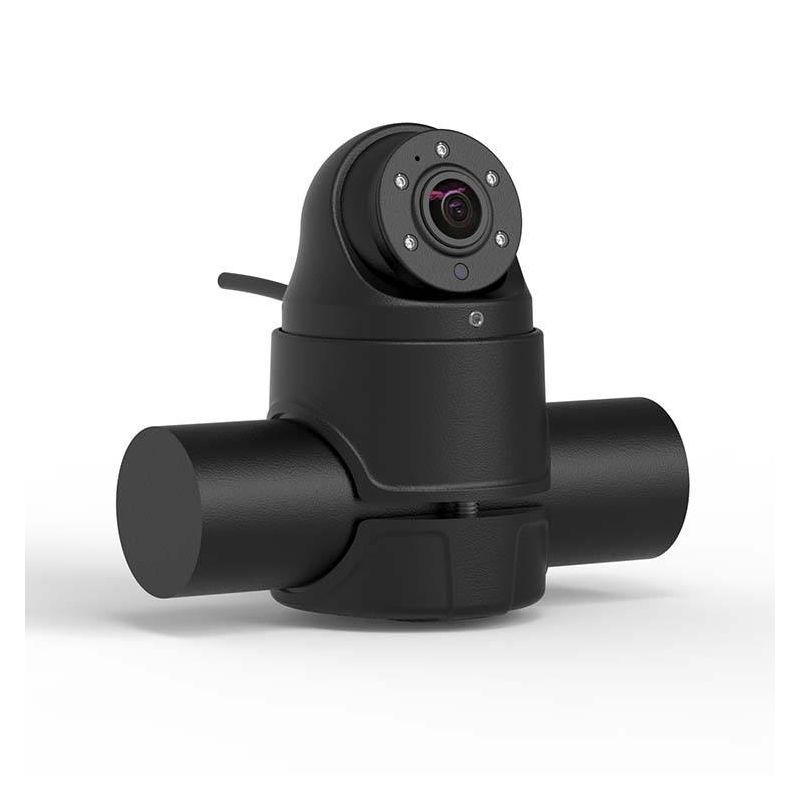

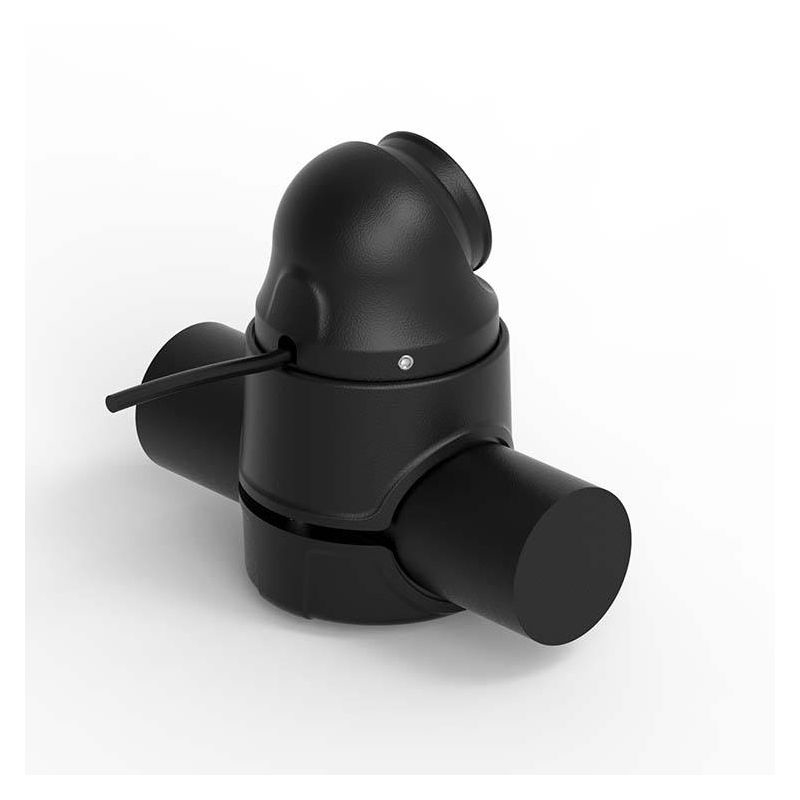

The Kysail AHD Side Mirror Arm Mount Camera is designed to improve side visibility and reduce blind spots for drivers using external camera systems. Mounted directly onto a mirror arm, it provides a stable and elevated viewing angle that is ideal for monitoring vehicle sides during driving, turning, lane changes, or tight manoeuvres.
Product Specification
| Image Device | 1/3″ COLOR CMOS |
| Resolution | 200W |
| Effective Pixels | 1920(H) x 1080(V) |
| TV System | PAL/NTSC |
| Minimum Illumination | 0.01 Lux (LEDS ON) |
| IR | 5PCS LED, IR distance: 3~5m |
| Electronic Shutter | 1/25～1/50,000 Seconds |
| Viewing Angle | 92°, 120° (depending on Lens) |
| Audio | Optional |
| Sync. System | Internal |
| AGC | Auto |
| White Balance | Auto |
| Backlight Compensation | Auto |
| Video Output | 1.0Vp-p, 75Ohm |
| Video Connector | 4-Pin aviation (can be customized) |
| Mirror/Normal | Optional |
| Power Supply | DC12V |
| Waterproof | IP69K |
| Operating Temperature | -20℃～70℃, RH 95% MAX |
| Storage Temperature | -30℃～80℃ , RH 95% MAX |
| Dimensions | 50 x 50 x 85mm |
