720P 1080P Output Side Camera Waterproof IP68 Horizontal Angle 150 Degree

FEATURES:

  • Image Sensor : 1/3″ IMX307 CMOS
  • Mini size side view camera
  • 150 degrees horizontal angle
  • 6pcs Built-in Infra-red night vision IR LEDs
  • Horizontal Definition AHD:720P, 1.0M Pixels / 1080P, 2.0M Pixels
  • Video out: AHD/1.0Vp-p(CVBS optional)
  • Voltage: DC12V(±10%) / 24V Optional



Backup Camera Datasheets Download

Category:

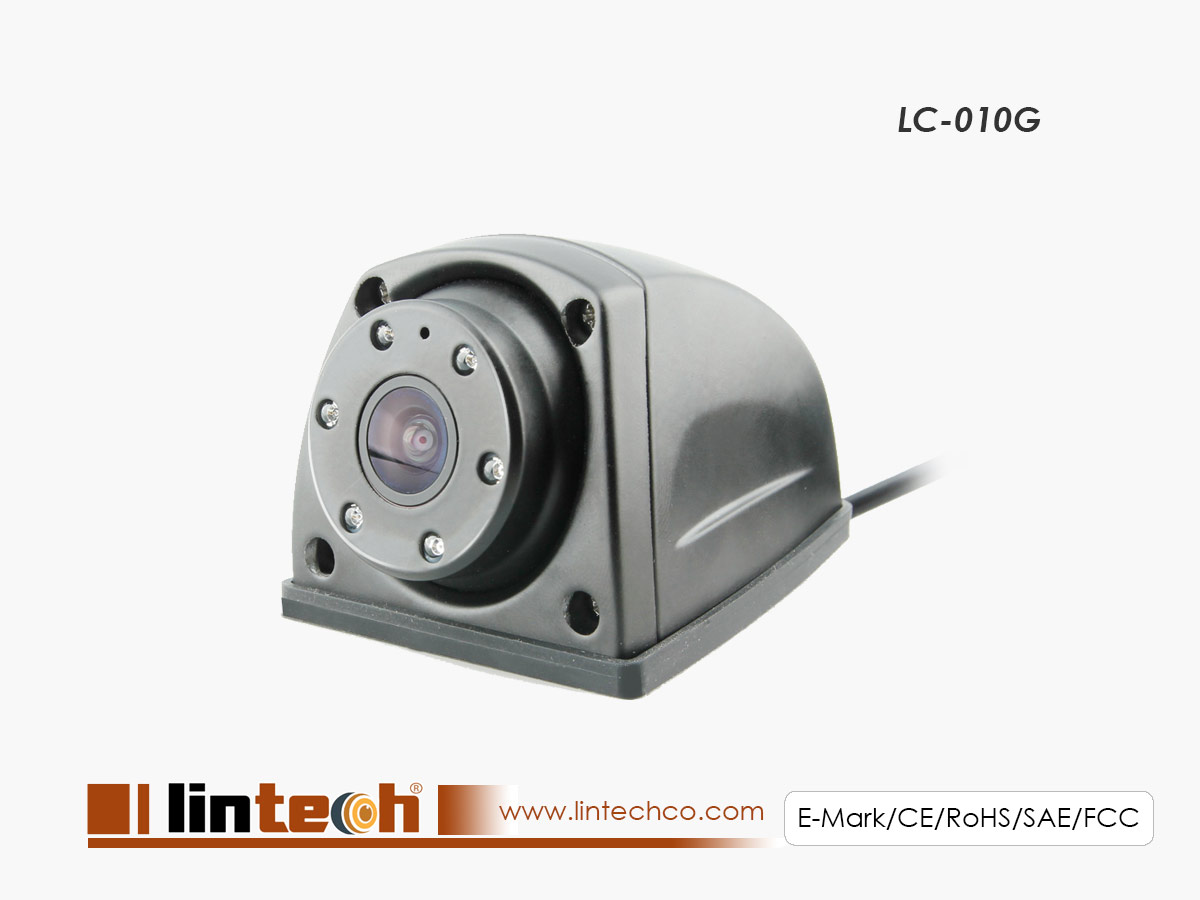

From Lintech Side mounted Series wide range of enhanced vision systems comes the LC-010G, a heavy duty surface mount ball camera ideal for heavy trucks, mining loaders and other industrial or construction vehicles.

LC-010G gives operators all-round vehicle awareness, making it safer for them to operate and the people working around them. This camera is a ideal for mounting on the side of a vehicle or machine. Comes with a 150-degree wide angle lens that eliminates blindspots and a rotating ball head design that can be positioned on various angles.

It’s designed to withstand water, mud or debris impact to the fullest with IP68 rating and also has the option of displaying in standard view or mirrored view which can be selected during installation. LC-010G delivers heavy duty display panels & cameras, the latest digital video encoding technology and installation versatility.

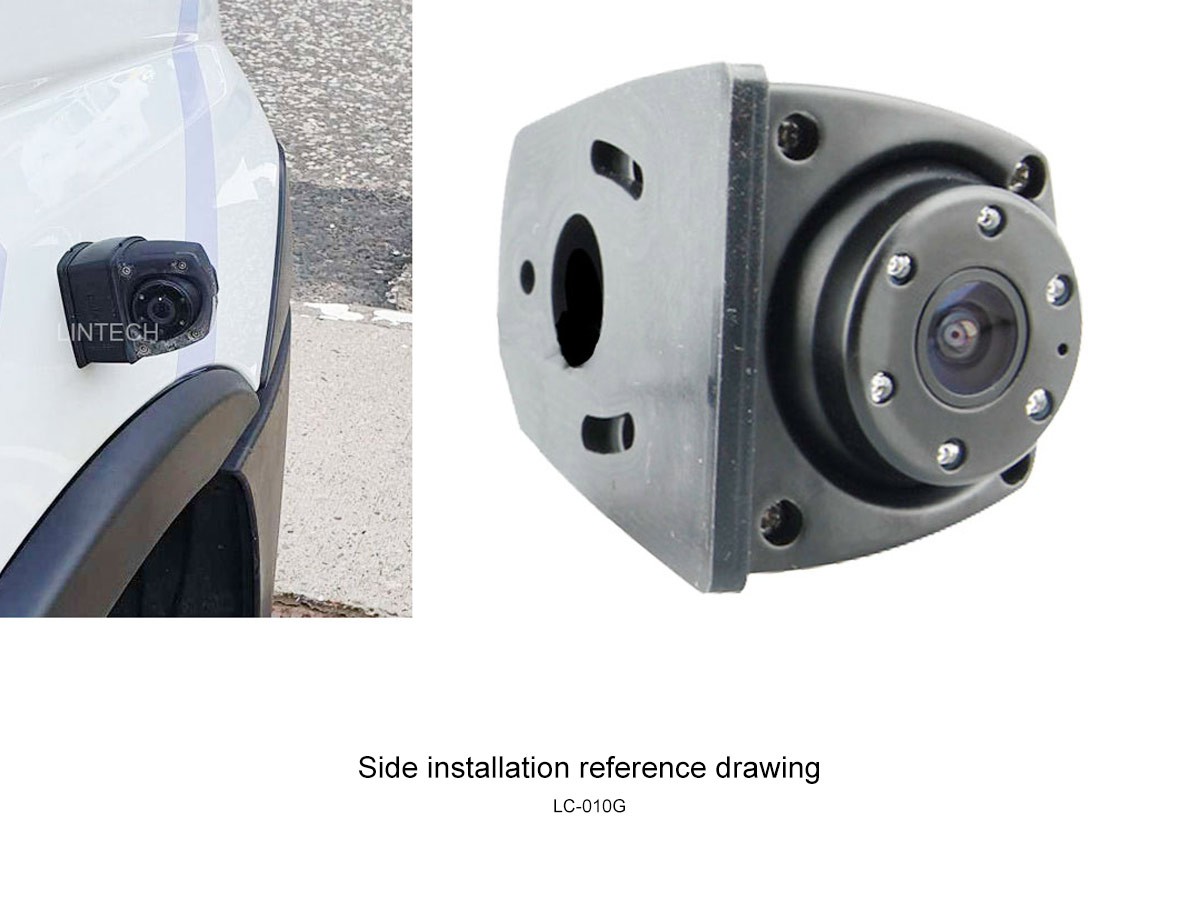

  • Heavy duty surface mount design ideal dor mounting on the side of a vehicle or machine
  • 120 degree wide angle lens with rotating ball head angle adjustment and reduced blindspots
  • Aluminium case and rated IP68 that guarantee the camera will withstand impact of water and debris normally hounding the vehicle’s exterior
  • 6 Infrared LEDs built in for superior night vision
  • Adjustable sunshade and PROLINK II connector included
  • Loop system for switchable standard or mirror view settings during installation
  • 3-Year Warranty for peace of mind

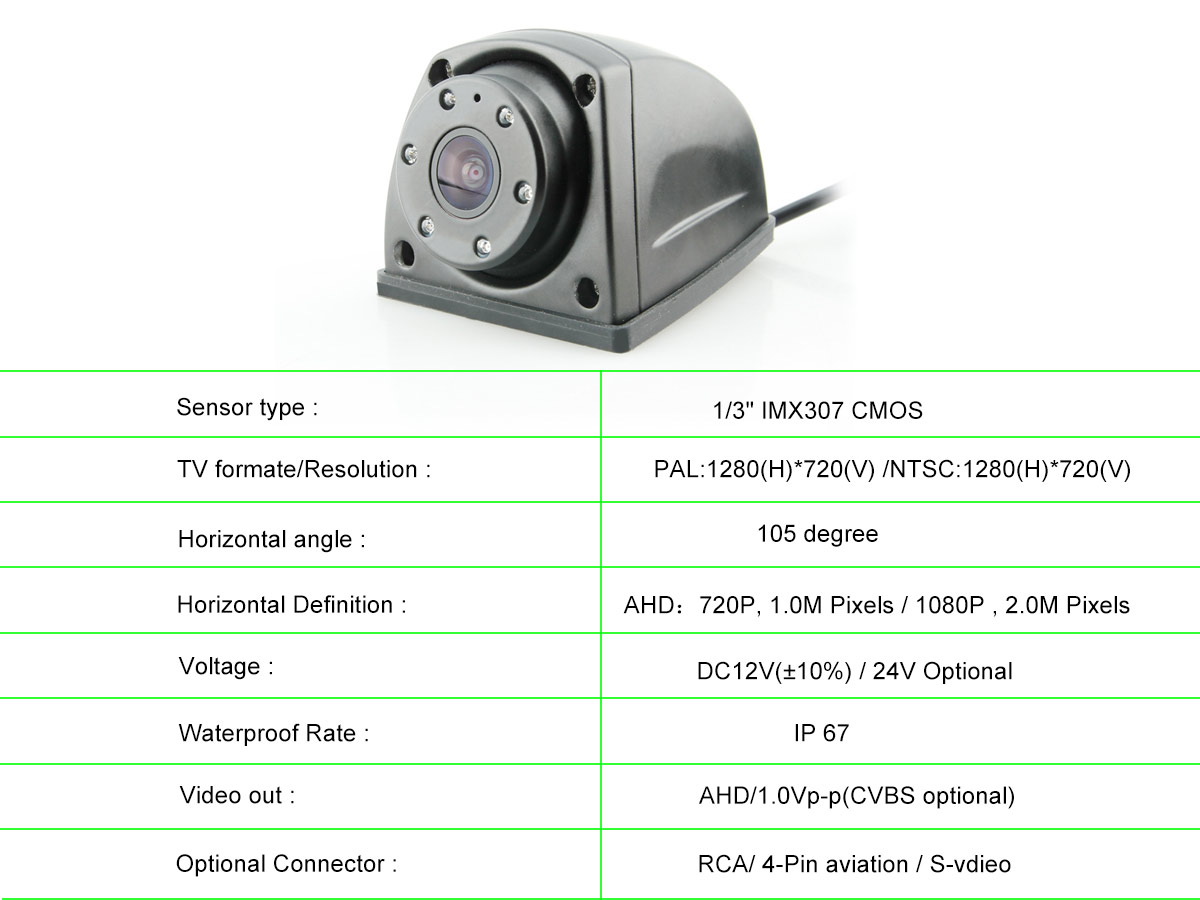

Subject Standard Parameter
Image sensor 1/3″ IMX307 CMOS
Resolution PAL:1280(H)*720(V) NTSC:1280(H)*720(V)
Horizontal Resolution 700TVL
TV System NTSC/PAL
Scan frequency PAL:50Hz NTSC:60Hz
View angle 105 Horizotal
Power supplier 12VDC
Current consumption 130mA
Power consumption 1.5W @ 12VDC
Min illumination 0.001LUX/F1.2 Night Vision
IR LED 6 pcs
(Night vision distance 5-7m)
Waterproof rating IP68
Packing Weight 200g

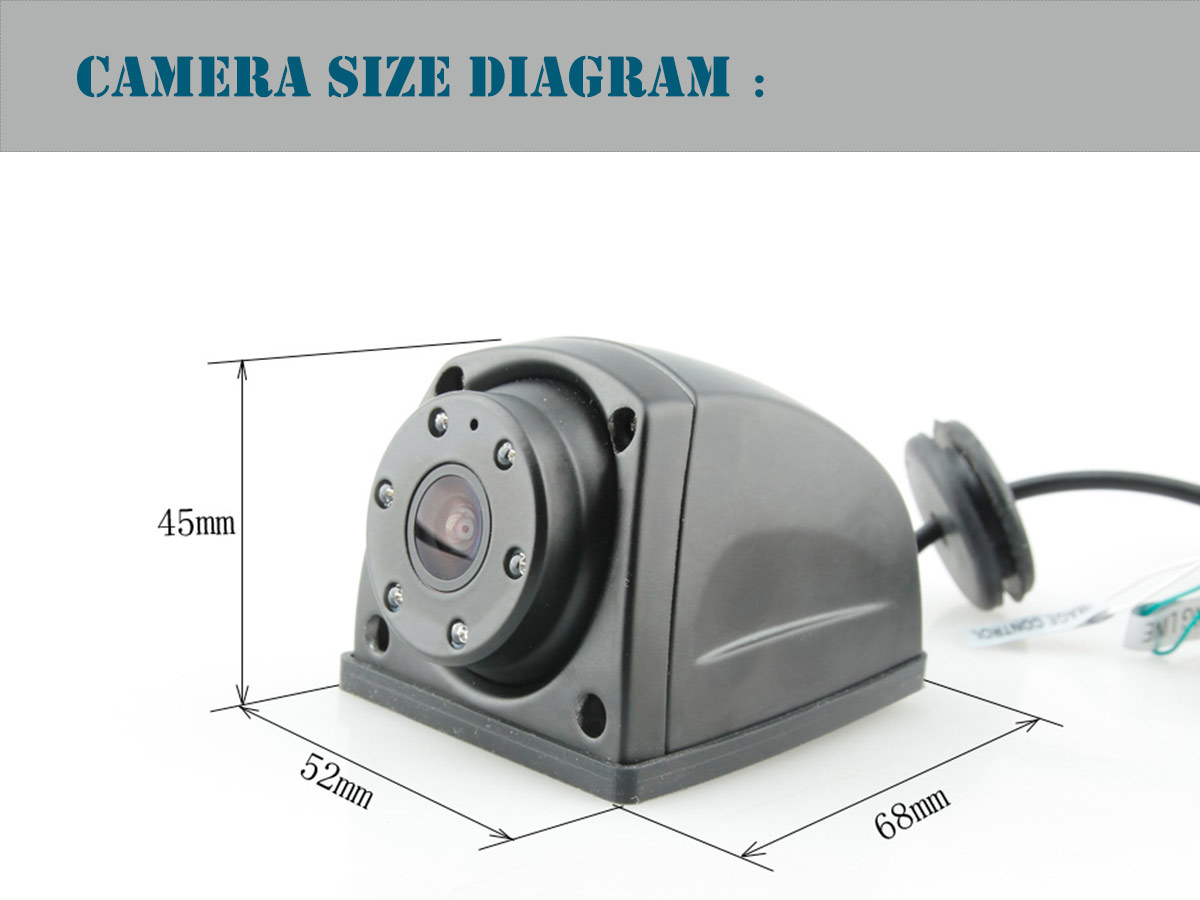

Dimension(WxHxD) 68mmx52mmx45mm
Operation temperature -30 ~ +70 C-degress
DSP chipset NVP2431H
Horizontal Definition AHD:720P, 1.0M Pixels / AHD:1080P, 2.0M Pixels
Video out AHD/1.0Vp-p(CVBS optional)

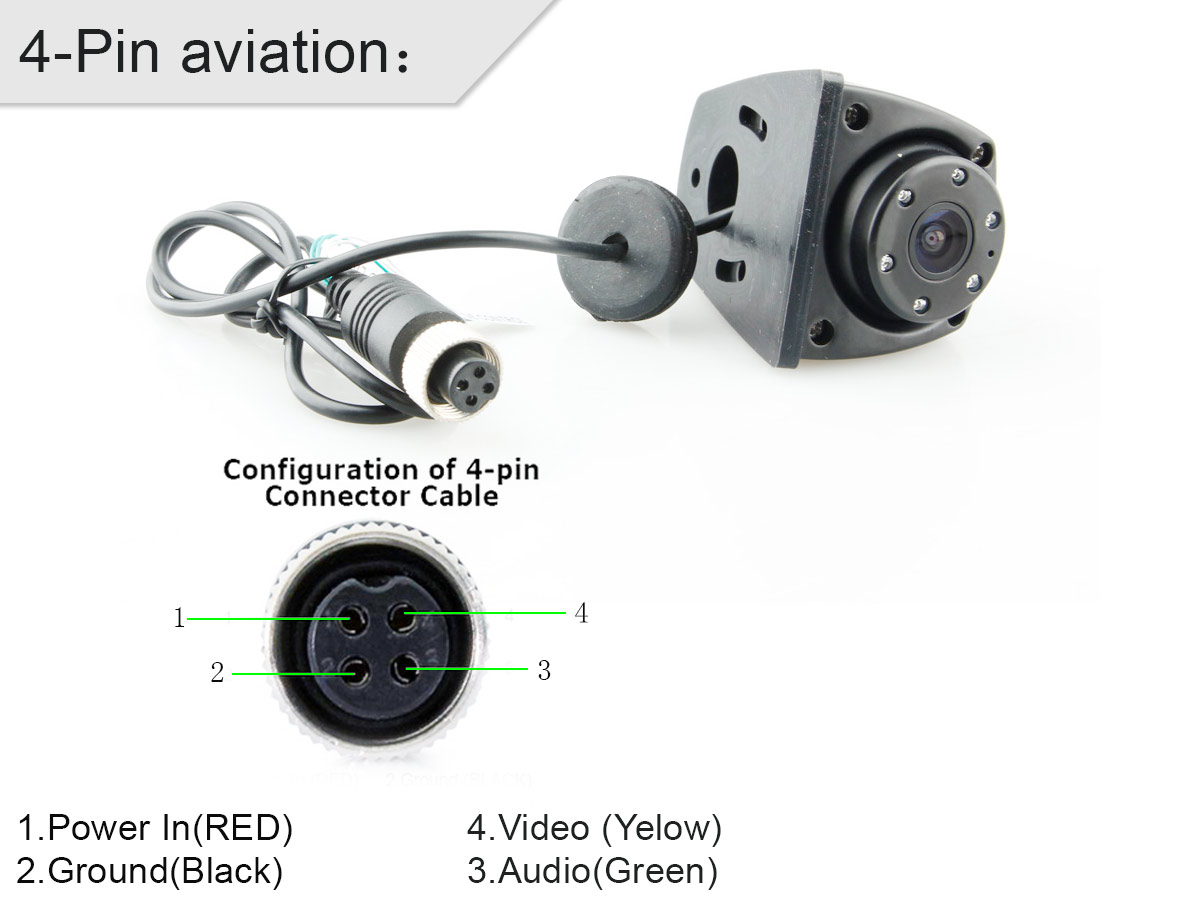

Optional Connector RCA/ 4-Pin aviation / S-vdieo
