Features:

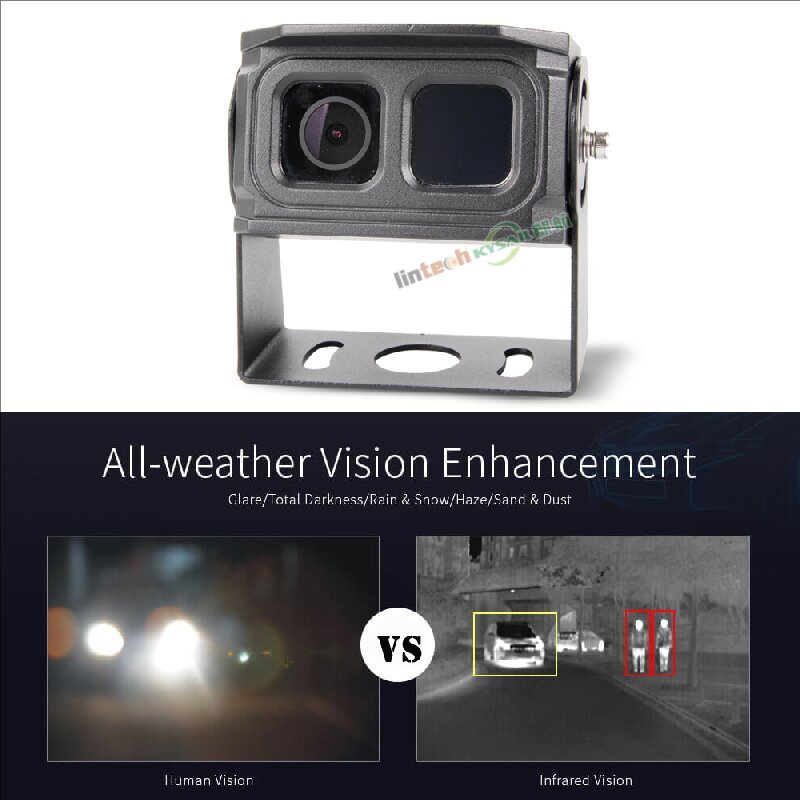

–Infrared Clear Imaging: Infrared light resolution up to 384*288 makes it see farther and clearer in the dark.

–Multiple display modes:With single view, two divisions, picture-in-picture and other display modes, customers can choose the display mode according to different working conditions.

–Waterproof and dustproof

FacebookTwitterGoogle PlusPinterest

Descriptions

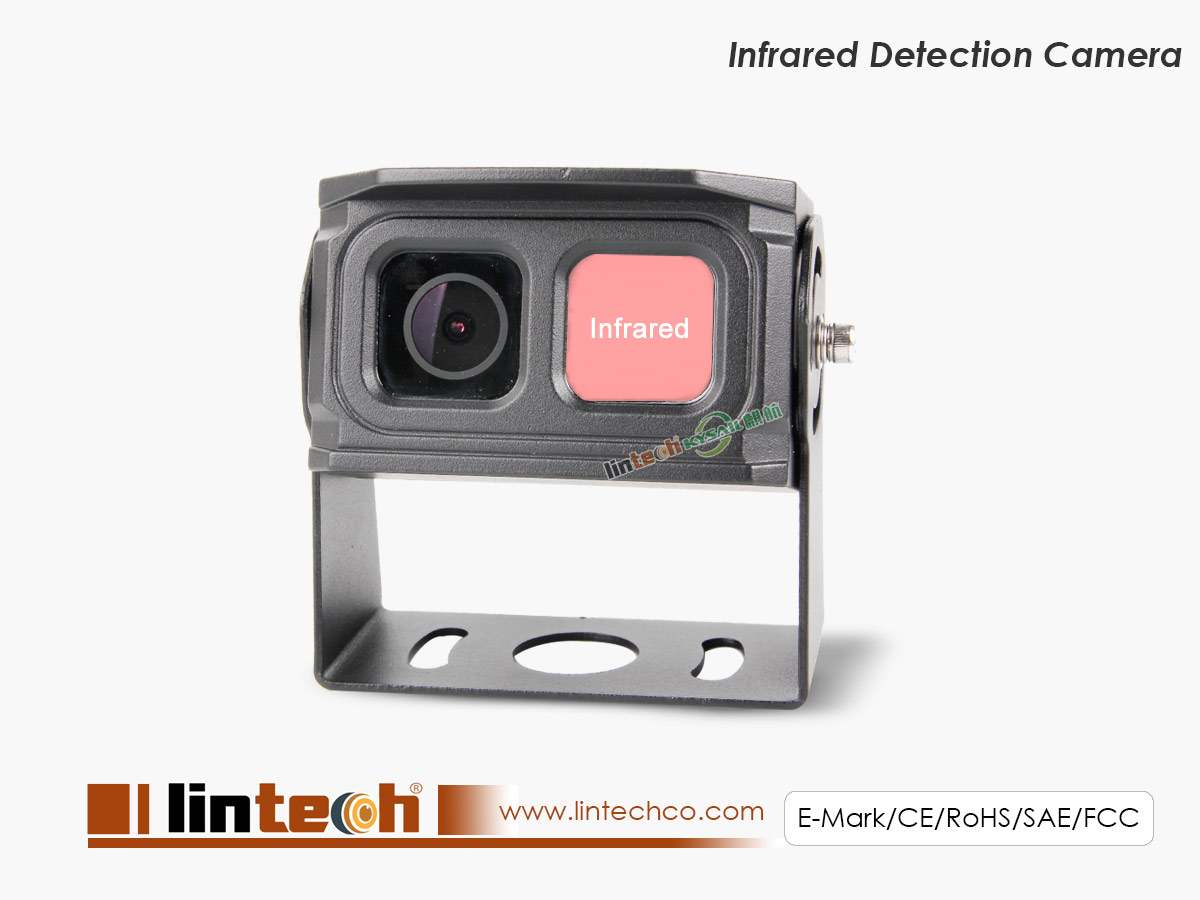

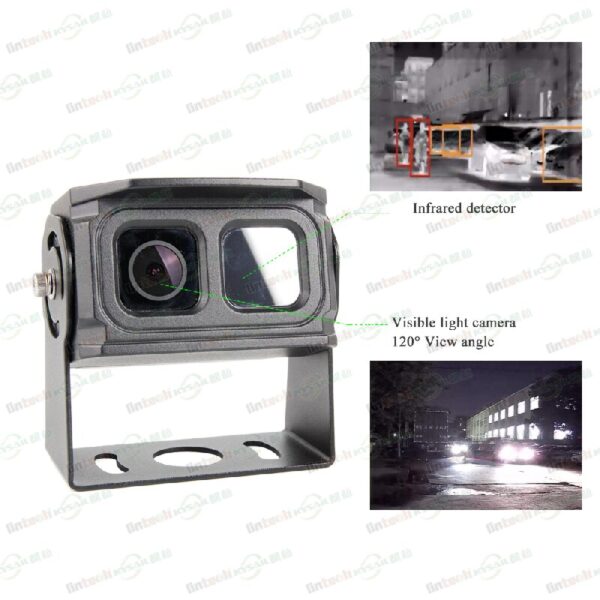

Dual Spectrum Integration:
Integrating infrared light and visible light camera,
it can display visible light and infrared light images at the same time, more suitable for all weather road conditions.

Split two image display mode

With two videos display mode, the driver can see both Infrared image and Visible camera simultaneous.

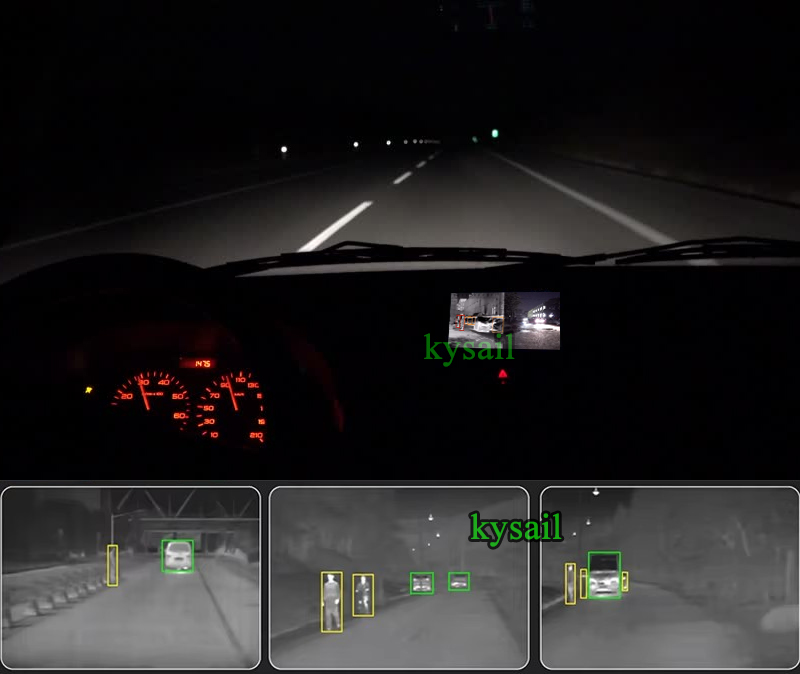

Pedestrian & Vehicle Detection:
Builtin AI algorithm can identify pedestrians and vehicles such as cyclists,
electric bikers, and pedestrians on foot and provide audio warning function;Support customized alarm strategies to meet the needs of customers.

Data Sheet

Built-in Visible Light Camera moduleResolution/Frame RateHD 1920 x 1080 / 25 fps or 1920 x 1080/30 fps
Focus and Viewing Angle2.8mm/100°
Infrared Camera ModuleResolution/Frame Rate384 x 288/ 25 fps
Viewing Angle60° horizontal
Video OutputAHD(1.0Vp-p,75Ohm)
Connector type4Pin aviation connector (2 in 1 cable output)
Power SupplyDC 12V
Power Consumption (12V IN)380±20mA
Cable LengthEquipment out 0.6m
Operating Temperature-20 ~ +70°C
Storage Temperature-30 ~ +80°C
Waterproof RatingIP68 rate
Pixel Size94.5*64*66.5
Weight450g
Housing ColorBlack

Photos

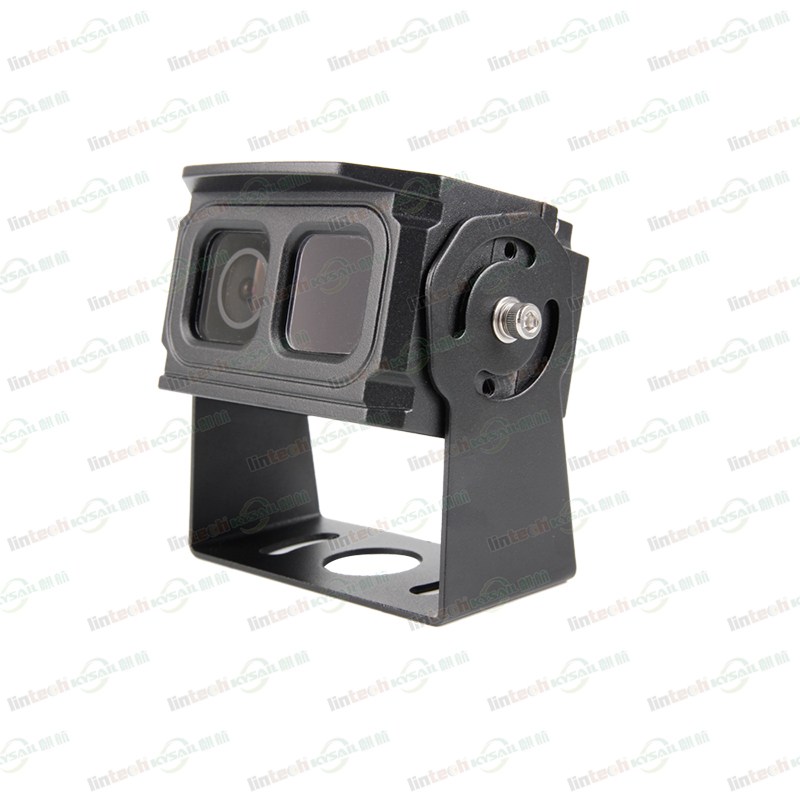

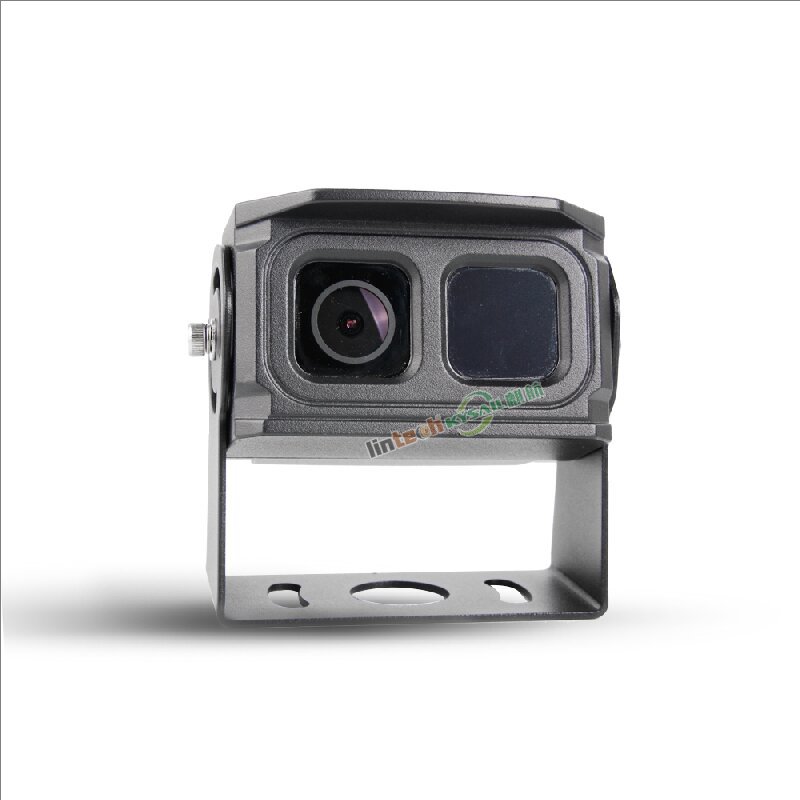

Vehicle Waterproof Intelligent Infrared Detection With Dual Spectrum Camera
