Model No.:LM-755

  • Waterproof rate IP67
  • Touch button control
  • Blue backlight for button
  • Resolution:800*R.G.B*480 Pixels
  • Built in parking guide line
  • Color system: PAL/NTSC (auto switch)
  • Operated power: DC 12V~24V
  • 2  or 4 Videos Input
  • E-Mark/CE/RoHs/FCC
FacebookTwitterGoogle PlusPinterest

Descriptions

LintechCo: Leading Chinese B2B Waterproof Monitor Supplier.

FEATURES:

Compare to model LM-7502 waterproof car lcd monitor, this LM-755 series monitor has more compact size,  thinner body. It’s waterproof IP rating not IP69K but IP67, although it didn’t at such high waterproof rate, when refer to the IP code and in real tested. It is totally enough for most of our application scene.

IP67:

6: No ingress of dust; complete protection against contact (dust tight). A vacuum must be applied. Test duration of up to 8 hours based on air flow.

7: Ingress of water in harmful quantity shall not be possible when the enclosure is immersed in water under defined conditions of pressure and time (up to 1 m of submersion).



SubjectsLM-755LM-755Q
Screen size:7 inches
Waterproof ratingIP67
Screen size ratio16 : 9
Resolution:800 x R.G.B x 480 dots
Brightness:400cd/m2
Contrast:500 : 1
Viewing angle:U: 50/ D: 60, R/L: 70 Degree
TV systemNTSC / PAL
Video input:2CHs video input4CHs video input, split display
Display modeSwitch, intervalSplit, triple, dual, single
Mirroring supportHorizontal/Vertical 180 degree turned
(mirror function)
Parking guide lineAdjust when camera finished install
Reference distance unitFeet/Meter
Video delay display1-20 second (after triggered)
Menu languageEnglish, French, Russian, Spanish, Portuguese, Italian, German
Pannel light sourceLED
Button backlightYes (Touch botton)
Connector typeM12 4pins male connector / RCA Female
Power supply:12~24VDC
Output voltage12VDC
Power consumptionLess than 7W
Bracket:U-type bracket
Outer dimension:223mm x 163mm x 55mm (Max)
Net weight1700g1900g



Data Sheet

Photos

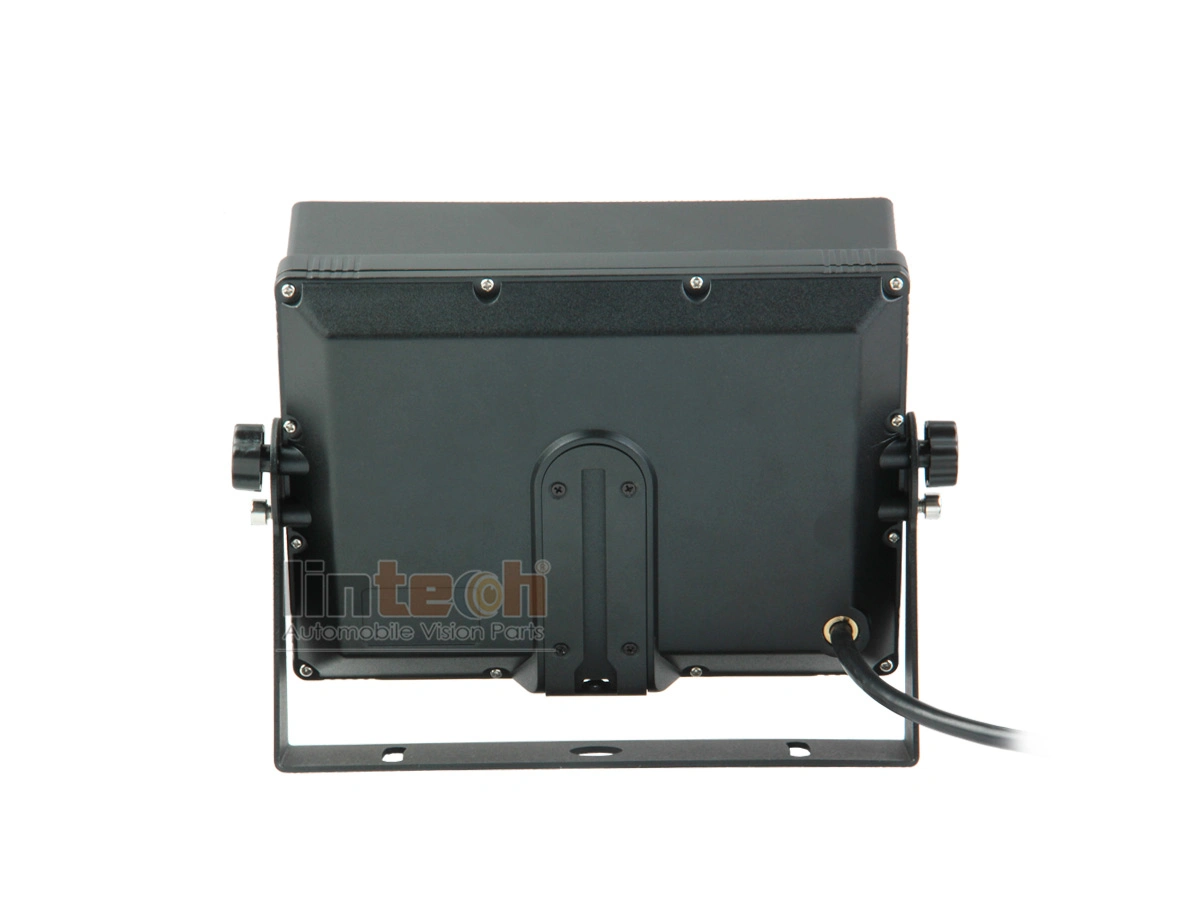

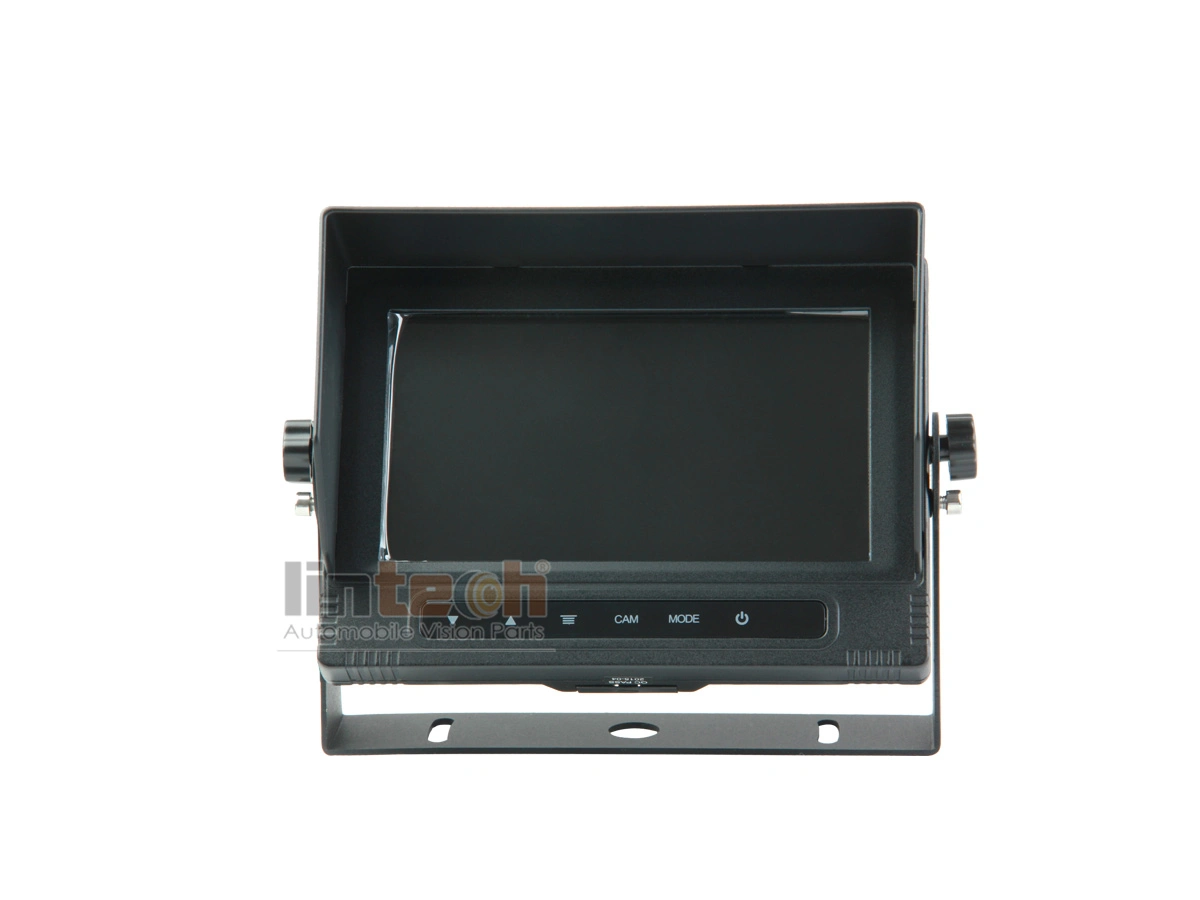

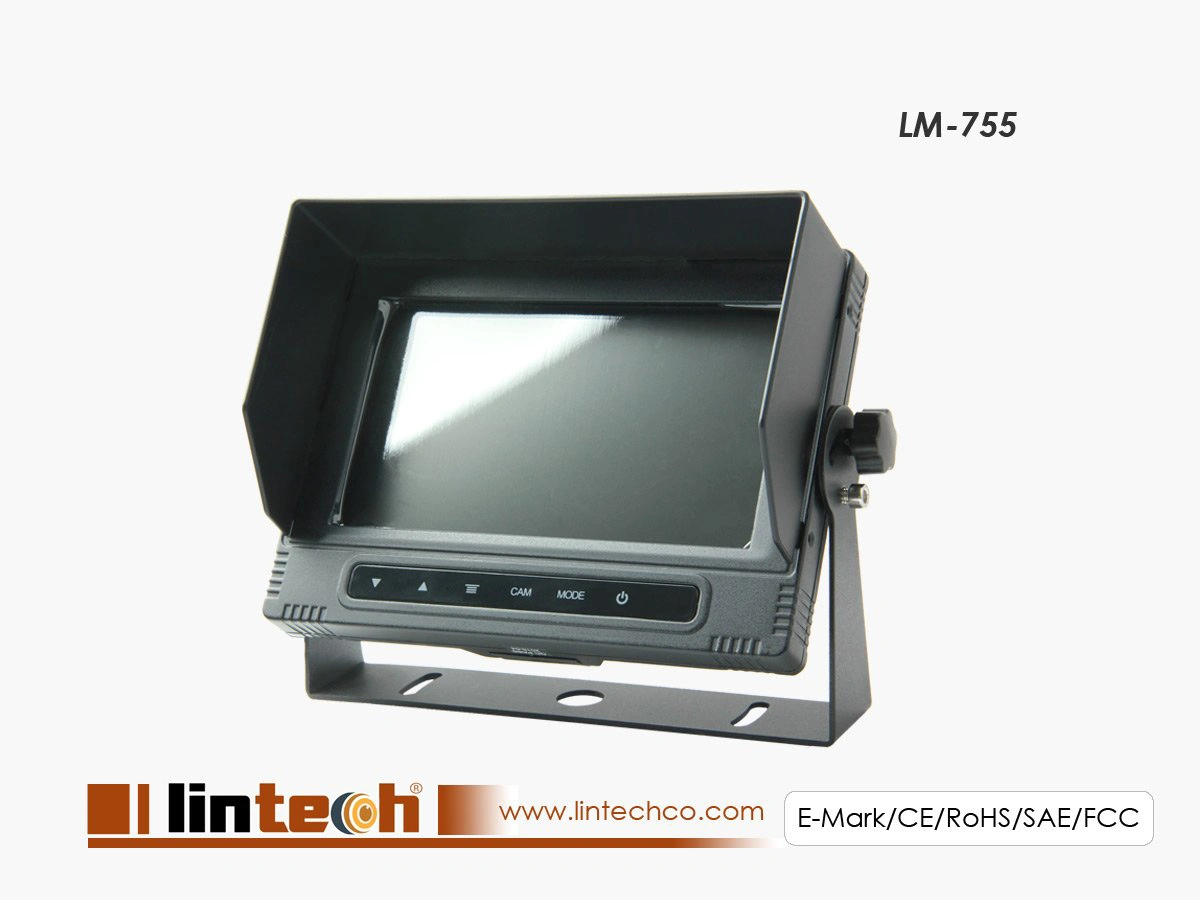

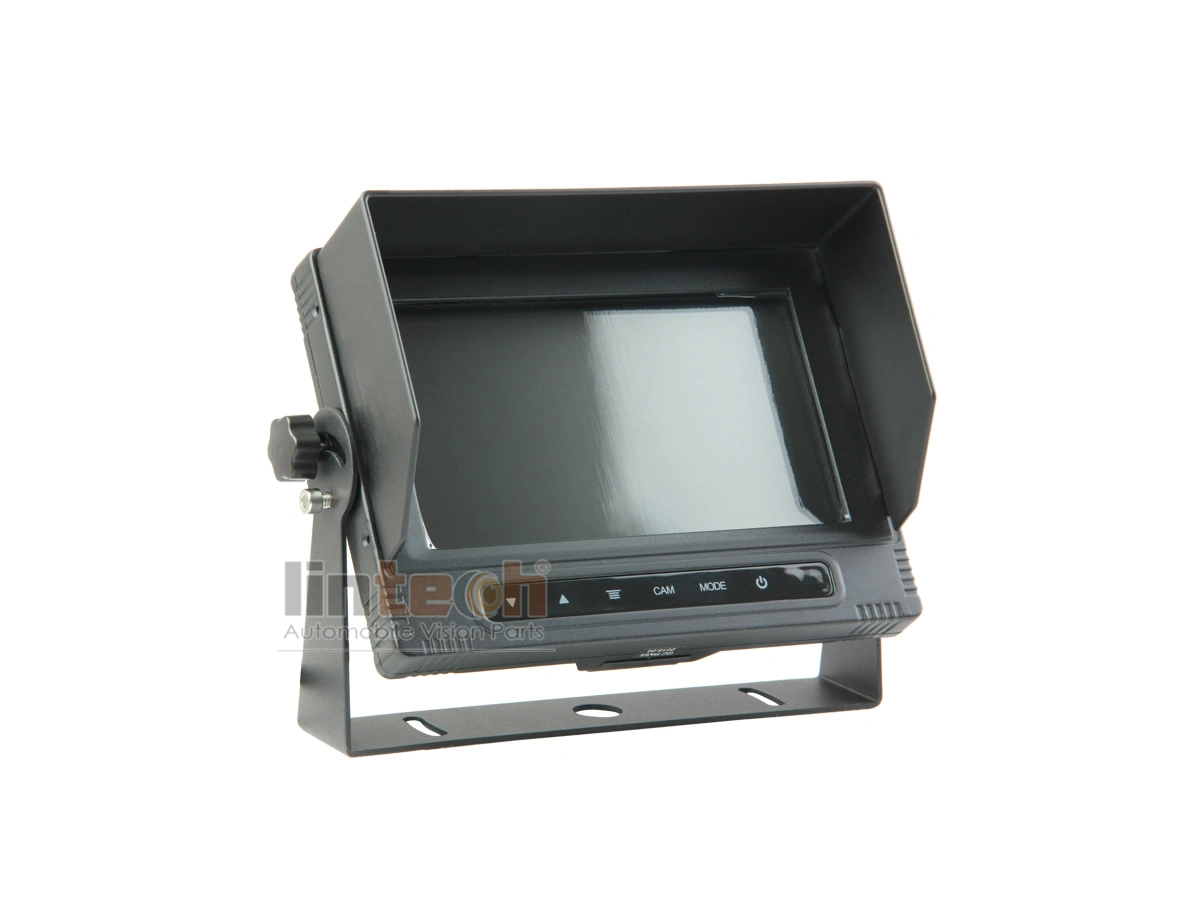

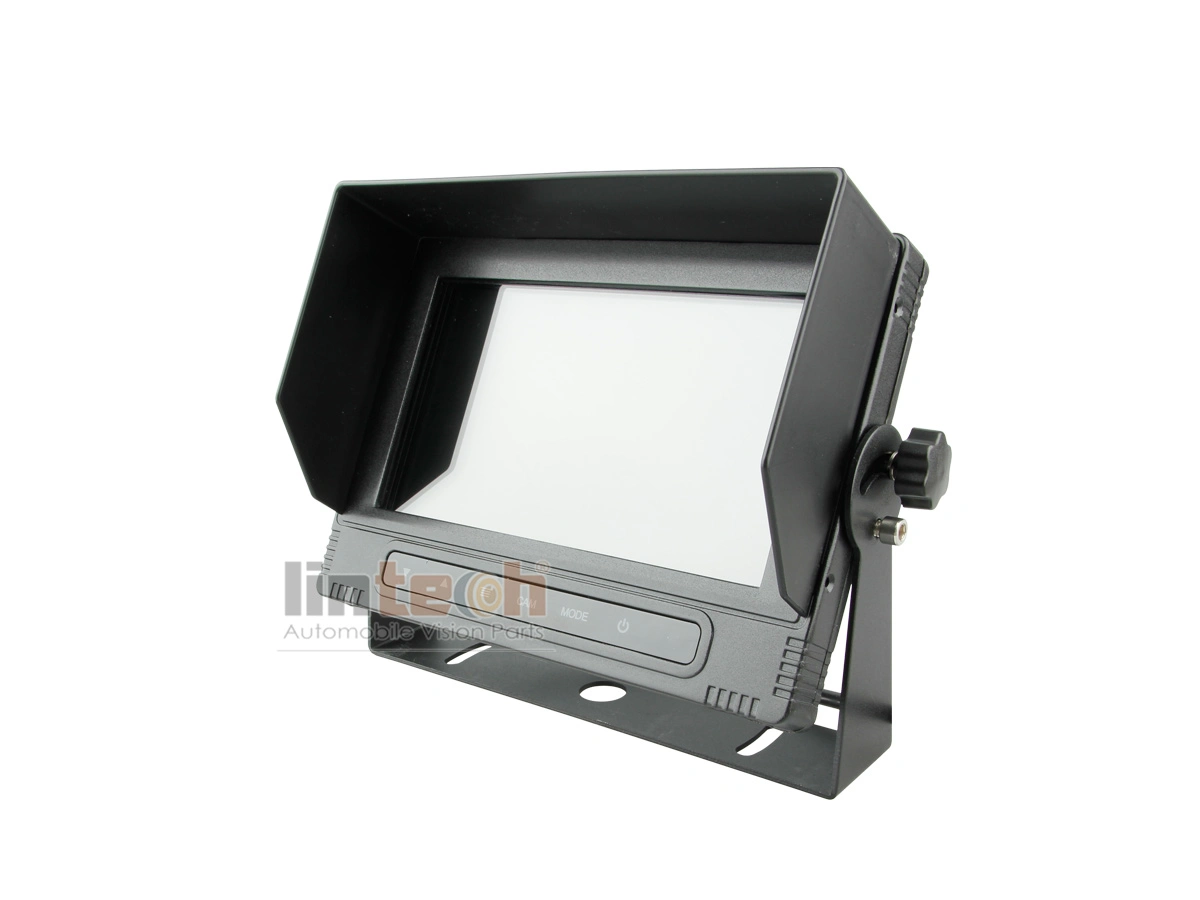

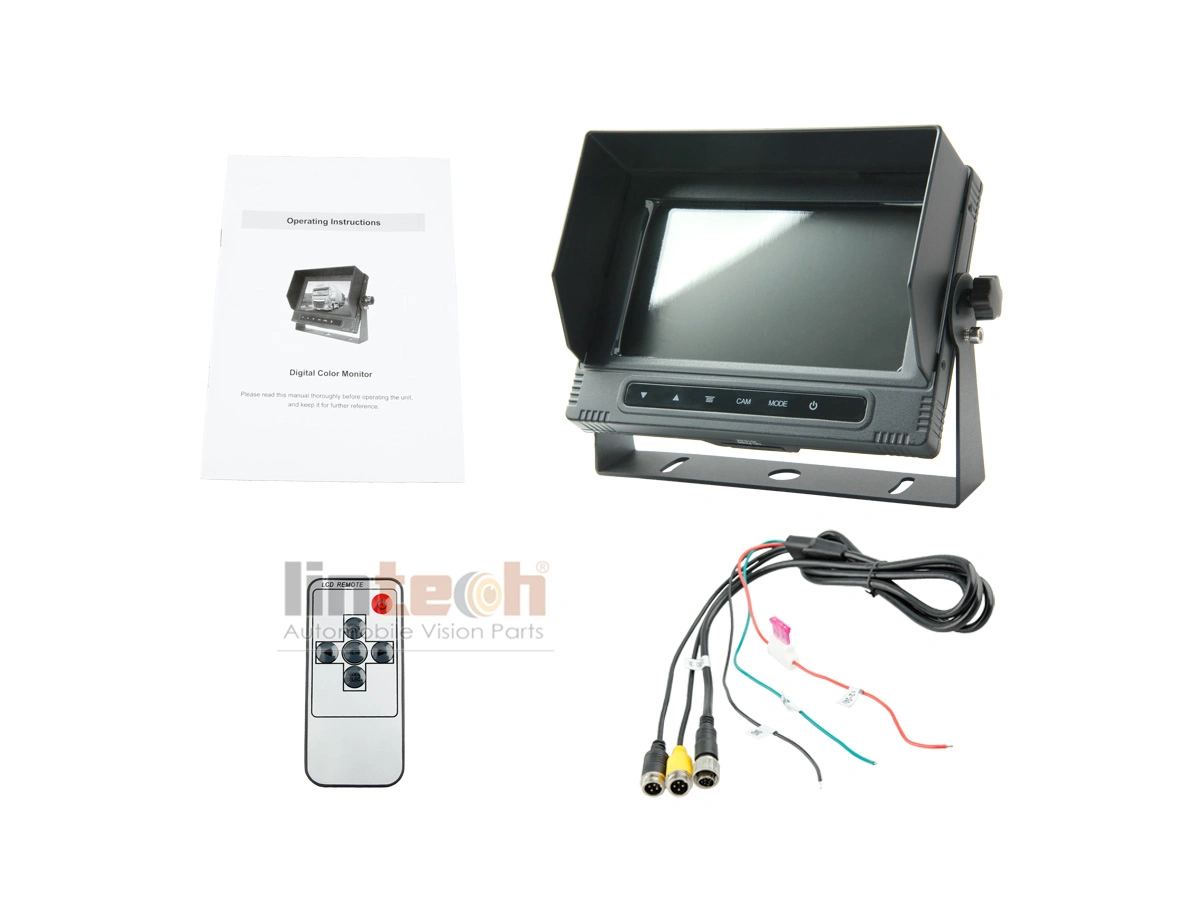

7 inches IP67 Car Waterproof Monitor
7 inches IP67 Car Waterproof Monitor
7 inches IP67 Car Waterproof Monitor
7 inches IP67 Car Waterproof Monitor
7 inches IP67 Car Waterproof Monitor
7 inches IP67 Car Waterproof Monitor
7 inches IP67 Car Waterproof Monitor
7 inches IP67 Car Waterproof Monitor
7 inches IP67 Car Waterproof Monitor
7 inches IP67 Car Waterproof Monitor
7 inches IP67 Car Waterproof Monitor
