The UN R158 regulation enhances vehicle safety by requiring rear-view or detection systems for cars being sent to the EU. Compliance with UN ECE R158 is essential to adhere to these standards. These systems assist drivers in seeing or sensing obstacles while reversing, thereby reducing accidents and ensuring the safety of pedestrians and cyclists.
Key Takeaways
UN R158 makes cars safer by needing rear-view systems.
Cars sold in the EU must follow UN R158 rules.
This includes new cars and older ones with big changes.
Rear cameras must show pictures fast, within 2 seconds.
This helps drivers see quickly and stop accidents while reversing.
Overview of UN R158 and Its Applicability
Scope and Purpose of the Regulation
The UN R158 rule helps make reversing safer for drivers. It requires cars to have systems that spot obstacles or people, like walkers and bikers, behind the car. This rule aims to stop accidents caused by poor rear visibility. Official documents explain the details clearly:
Document Title | Description |
|---|---|
UN R158: Proposal for amendments | Made by experts to avoid confusion in certification. |
UN R158 | Approves devices for reversing and driver awareness. |
00 series of amendments Supplement 1 (2022) | Combines changes to improve the original rule. |
00 series of amendments Supplement 5 | Updates testing methods for detection tools in Annex 10. |
These papers help car makers understand the rules and approval steps.
Effective Date and Applicability to Vehicle Types
The UN ECE R158 started on July 6, 2022. It applies to all cars, trucks, and buses sent to the EU. If you make vehicles for this market, you must follow this rule. It covers new models and older ones with big updates. Meeting these rules lets your vehicles be sold legally in the EU.
Definition of a Backing Event
A backing event happens when a car moves backward. During this, the driver must see or detect the area behind the car. The UN R158 rule says rear-view or detection systems must turn on automatically. This helps drivers avoid crashes or accidents in time.

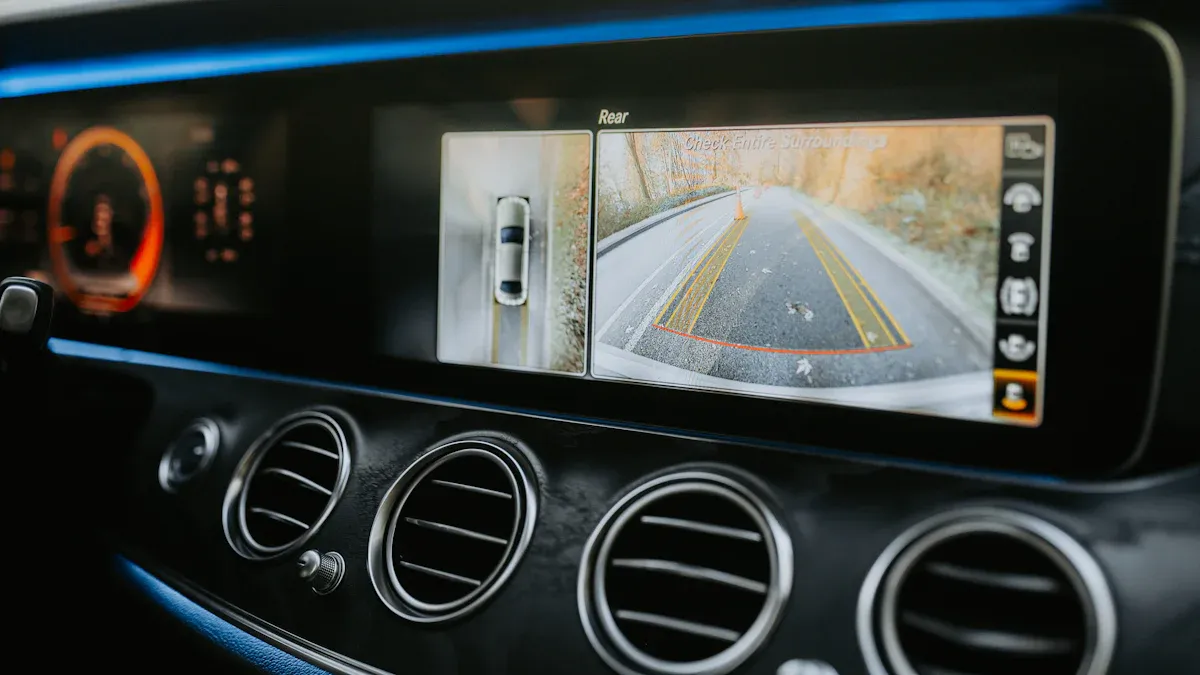

Technical Requirements for Rear-View Camera Systems (RVCS)
The UN R158 rule lists important features for rear-view cameras. These cameras help drivers see behind their cars while reversing. Below are the main rules for these systems to follow.
Default View and Response Time

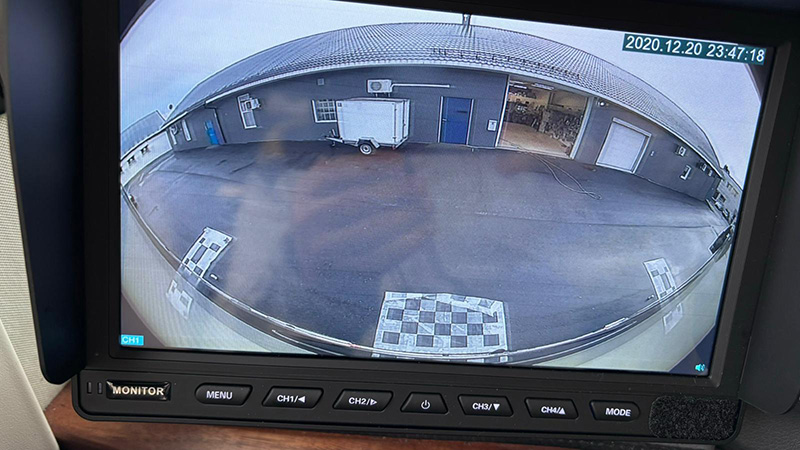

When reversing starts, the camera must show the rear view. This helps drivers quickly spot obstacles or people behind the car. The rule says the image must appear within 2 seconds of shifting to reverse. Fast image display is key to avoiding accidents in tight or busy areas.
Here’s a summary of the default view and response time:
Requirement | Description |
|---|---|
Default View | The camera must show the rear view when reversing begins. |
Response Time | The rear view must appear within 2 seconds of starting reverse gear. |
Field of Vision Specifications

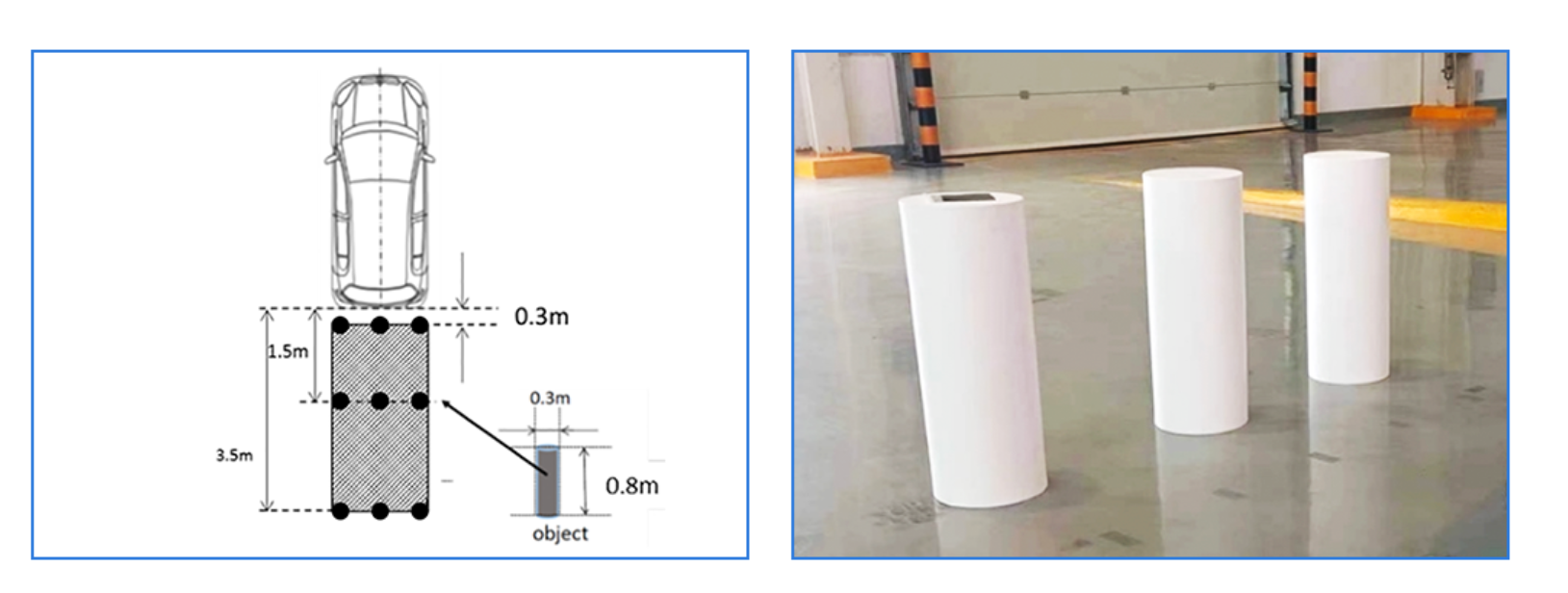

The camera must cover a wide area behind the car. This helps drivers see obstacles, walkers, or bikers clearly. Tests use cylinders to check if the camera shows enough of the area. These tests make sure the camera gives a full and accurate view.
Wide field of vision reduces blind spots and makes reversing safer.
Display Size and Visibility Standards
The screen size for the camera must be big enough to see clearly. A larger screen helps drivers spot objects or people better. This is especially useful in dark or crowded places.
The screen must also be bright and clear. It should work well in sunlight or at night. Following these rules ensures the camera system is safe and reliable.
By meeting these rules, car makers can build safer rear-view systems. This boosts driver confidence and makes roads safer for everyone.
Technical Requirements for Detection Systems
Detection systems are important for keeping people safe when cars reverse. They help drivers find obstacles or people that rear-view cameras might miss. To follow the UN R158 regulation, these systems must meet certain rules. Below are the main points about these requirements.
Signal Types and Response Time
Detection systems use smart signals to spot objects or people behind cars. These signals must work quickly and correctly to keep everyone safe. The UN ECE R158 says detection systems should alert drivers fast enough to avoid accidents.
Here’s a table comparing different signal types and how well they work:
Signal Type | Finds Objects Well | Avoids Mistakes | Score |
|---|---|---|---|
Logistic Regression (LR) | Very Good | Very Good | |
Disproportionality | Okay | Okay | N/A |
EB05 Score (MGPS) | Very Good | Excellent | N/A |
These signal types vary in how well they detect objects and avoid errors. Good detection helps drivers spot most obstacles, while fewer mistakes mean fewer false alarms. Using strong signals makes detection systems better and safer.
Field of Detection and Test Methods
The detection area is the space behind the car that the system watches. To meet the rules, this area must be wide and accurate. This helps drivers get warnings early enough to react.
Testing is key to checking if detection systems work well. There are two main types of tests:
Static Testing:
Checking the system without moving the car.
Reviewing technical details and doing inspections.
Dynamic Testing:
Testing how the system works inside (whitebox testing).
Testing how it works for users (blackbox testing).
Checking how parts work together (functional testing).
Testing speed, reliability, and ease of use (non-functional testing).
These tests make sure detection systems are accurate and reliable. Field checks also confirm they follow the UN R158 regulation.
Material and Size Specifications for Detection
The materials and size of detection devices affect how well they work. These devices must be made from strong materials to last in different conditions. Engineers study special courses to decide what materials to use.
Here are examples of courses that help with material choices:
Course Name | What It Teaches |
|---|---|
How to measure material strength and quality. | |
Computational Materials Design | How materials behave and what makes them strong. |
Materials Project Laboratory | How to test and improve detection device designs. |
Materials Processing | How materials are made and treated for durability. |
Advanced Thermodynamics | How heat affects materials used in devices. |
Nanomechanics of Materials | How tiny parts of materials work in devices. |
These studies help manufacturers pick the best materials for detection systems. By following these rules, they can make systems that meet the UN ECE R158 standards and work well for a long time.
The UN R158 rule gives key rules for rear-view systems. Following these rules is needed to sell cars in the EU.
Tip: Work with experts to make things easier. They help ensure your systems follow safety rules, making compliance faster and simpler.
Learning these rules helps make cars safer and grow your business.
FAQ
What is the purpose of UN R158 regulation?
This rule makes reversing safer for drivers. It requires cars to have rear-view or detection systems. These systems help avoid accidents with walkers, bikers, or objects.
Do all vehicles need to comply with UN R158?
Yes, all vehicles sent to the EU must follow this rule. It includes cars, trucks, and buses, both new and updated older models.
How can you ensure compliance with UN R158?
Add approved rear-view or detection systems to your vehicles. Working with experts makes following the rules easier.
Tip: Check your systems meet the newest rules to avoid delays.
