A few weeks ago, I received a message from a new customer from Poland — Mr. Marcin.
His first sentence was incredibly direct:
“Most important for me is if the camera is really waterproof. I have serious problems with other cameras bought on Alibaba.”
He later sent me the product links of the cameras he previously purchased.
Once I clicked them, I immediately understood the issue:
The supplier mainly produced household security CCTV cameras, not vehicle-grade cameras.
Even though those products looked “waterproof” from the outside, their internal structure, sealing process, and testing methods were never designed for trucks, buses, agricultural machines, or outdoor equipment.
So I decided to write this article to help more customers clearly understand:
-
How should a vehicle camera be designed to be truly waterproof?
-
Why do so many cameras fail (fogging, moisture, water ingress) after months of use?
-
What does Lintech do differently to ensure long-term waterproof reliability?
1. Why Many Vehicle Cameras Fail: Common Water-Ingress Symptoms
In new inquiry customer emails and after-sales cases, these are the problem descriptions we hear most often:
Common customer phrases (SEO keywords)
-
camera water ingress
-

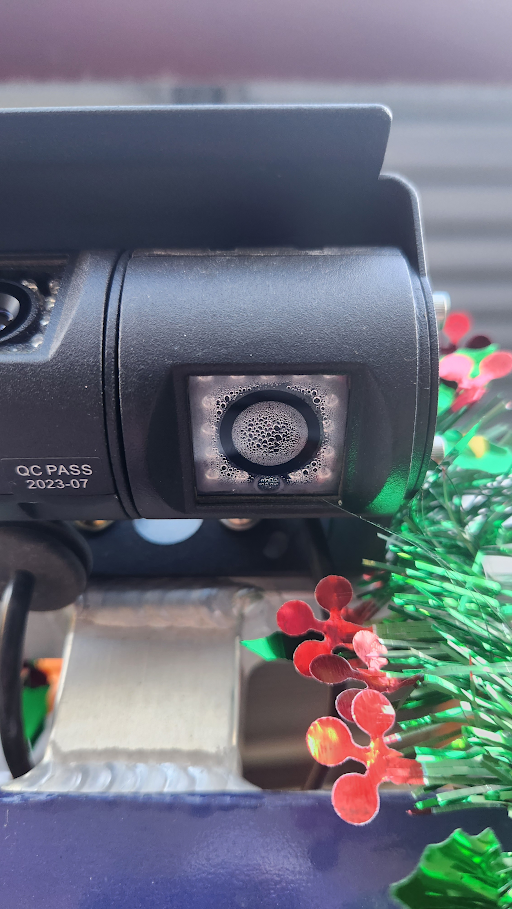

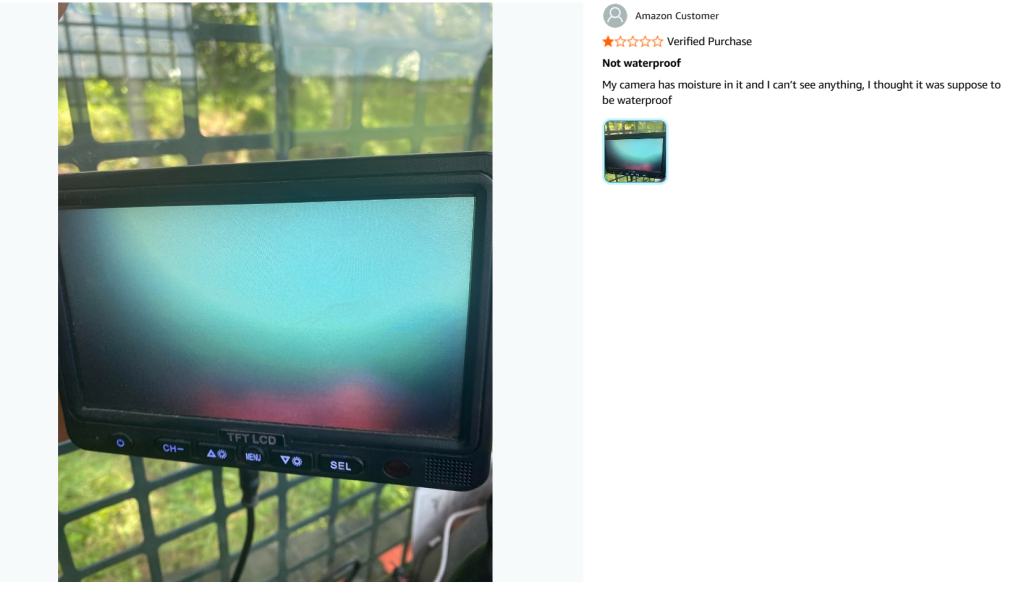

camera is foggy inside
-
camera moisture / humidity inside
-

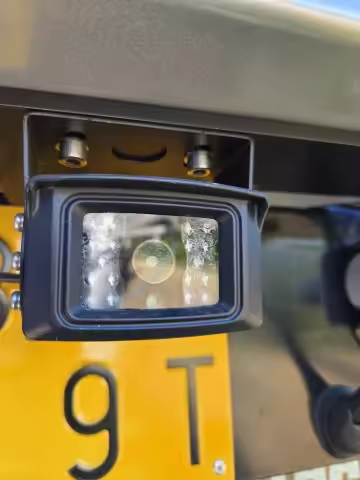

water droplets inside the lens
-
camera becomes blurry after rain
-
condensation inside the camera
-
camera fails after car wash
-
IP rating not reliable
-
camera gets foggy when engine heats up
-
moisture trapped inside camera
Typical reasons for waterproof failure
-
Poor adhesive sealing
-
Cable hole or screw hole not sealed properly
-
Insufficient housing structural sealing
-
No airtightness test
-
Only performing “spray testing” without pressure-simulation testing
These are exactly the places where Lintech invests more engineering effort to prevent failures.
2. Why Vehicle Cameras Need Real Waterproof Engineering
Vehicle cameras operate in extremely harsh conditions compared to home CCTV:
-
High-pressure car washing
-
Continuous rain, snow, mud, fertilizer spray
-
Sudden heating from engine or sunlight (moisture condensation risk)
-
Temperature swings that expand/shrink housing
-
Strong vibrations from trucks, motorcycles, forklifts
Because of these, a camera’s waterproof design must include:
Housing structure + sealing glue + potting process + airtightness test + IP test system
A single label like “IP67” or “IP69K” is not enough.
3. Lintech Waterproof Structure – What We Do Differently
We design our cameras specifically for vehicles, commercial machines, agriculture equipment, and heavy-duty outdoor use.
Our sealing system focuses on three critical areas:
① Housing Structure (Double-Layer Waterproof Design)
-
Metal or weather-resistant plastic shells
-
Waterproof rubber rings at joint areas
-
Precisely controlled assembly tolerances
② Lens Sealing (O-Ring + Waterproof Adhesive)
The lens is the #1 location where most competitor cameras leak.
We use:
-
Dual O-ring structure
-
Deep-groove adhesive filling
-
CNC housing for perfect alignment
③ Cable Exit Potting (The Most Overlooked Area)
The cable tail is where 70% of cheap cameras fail.
Lintech uses:
-
High-viscosity potting glue fully encapsulated
-
Anti-pull reinforcement structure
-
Extra silicone sealing around the cable exit
4. Why Lintech Uses Airtightness Testing Instead of Only IP69K Spray Tests
Many suppliers claim “IP67”, “IP68”, or “IP69K”…
But most of them only perform quick water-immersion test at a depth of 1 meter tests.
This is NOT enough for long-term outdoor use.
Real waterproof reliability requires airtightness testing, which detects structural weaknesses that spray tests will never reveal.
5. Lintech’s Airtightness Test (Simulated 10-Meter Water Pressure)
This test is far more advanced than IP69K spraying.
Below is the simplified explanation for customers — educational, easy to understand, and technically accurate.
🔍 How the Airtightness Test Works (Simple Explanation)
We use a professional airtightness chamber that applies simulated 10-meter underwater pressure to the camera.
Here’s how it works:
Step-by-step process:
-
Place the camera inside a transparent pressure chamber
It sits on a tray → the chamber is sealed with a cover. -
High-pressure air is pumped into the chamber
This simulates 10 meters of underwater pressure for 30 seconds.
If the camera’s sealing is weak,
→ air will be forced into the camera’s interior. -
The tray is immersed underwater as pressure slowly releases
During pressure release, we watch the camera closely. -
If continuous bubbles come out → the camera failed
This means air entered earlier and is now escaping:
❌ Poor sealing, not waterproof -
If NO bubbles appear → the sealing is perfect
This means the pressure change did not affect the internal chamber:
✔ Airtight, waterproof, reliable
Why this test is more important than IP69K
IP69K only checks the outside surface.
Airtightness testing checks the internal pressure resistance.
Only airtightness testing can detect:
-
Micro-cracks in the housing
-
Incomplete adhesive bonding
-
Weak cable potting
-
Lens sealing defects
This is why Lintech cameras last significantly longer than typical low-cost products.
6. The Result: Why Customers Like Marcin Trust Lintech
After I explained our waterproof engineering and sent Marcin photos and test videos, he replied:
“Now I understand why other cameras failed.
This is the first time a supplier explained the waterproof design so clearly.”
He quickly approved the samples and moved forward to project evaluation.
This is exactly the professional experience we want every customer to feel.
7. Final Thoughts – Waterproof Is Not a Sticker, It’s Engineering
For vehicle cameras:
Real waterproof ≠ A printed IP67/IP69K label
Real waterproof means:
-
Structural design
-
Sealing materials
-
Potting process
-
Airtightness verification
-
Consistency in mass production
At Lintech, our goal is simple:
Make vehicle cameras that stay waterproof for years, not months.
If your application requires high-reliability outdoor performance—
trucks, agriculture machines, construction vehicles, motorcycles, forklifts—
we’re always happy to help you find the right solution.
