7” Truck Parking Sensor Vision Backup Camera system

Trucks equipped with the parking sensor vision system will much helpful for driver to Reverse out of the narrow street.
And the parking sensor’s Bi…bi … alarm sound 100DB is helpful to warning people around the truck when it is reversing.

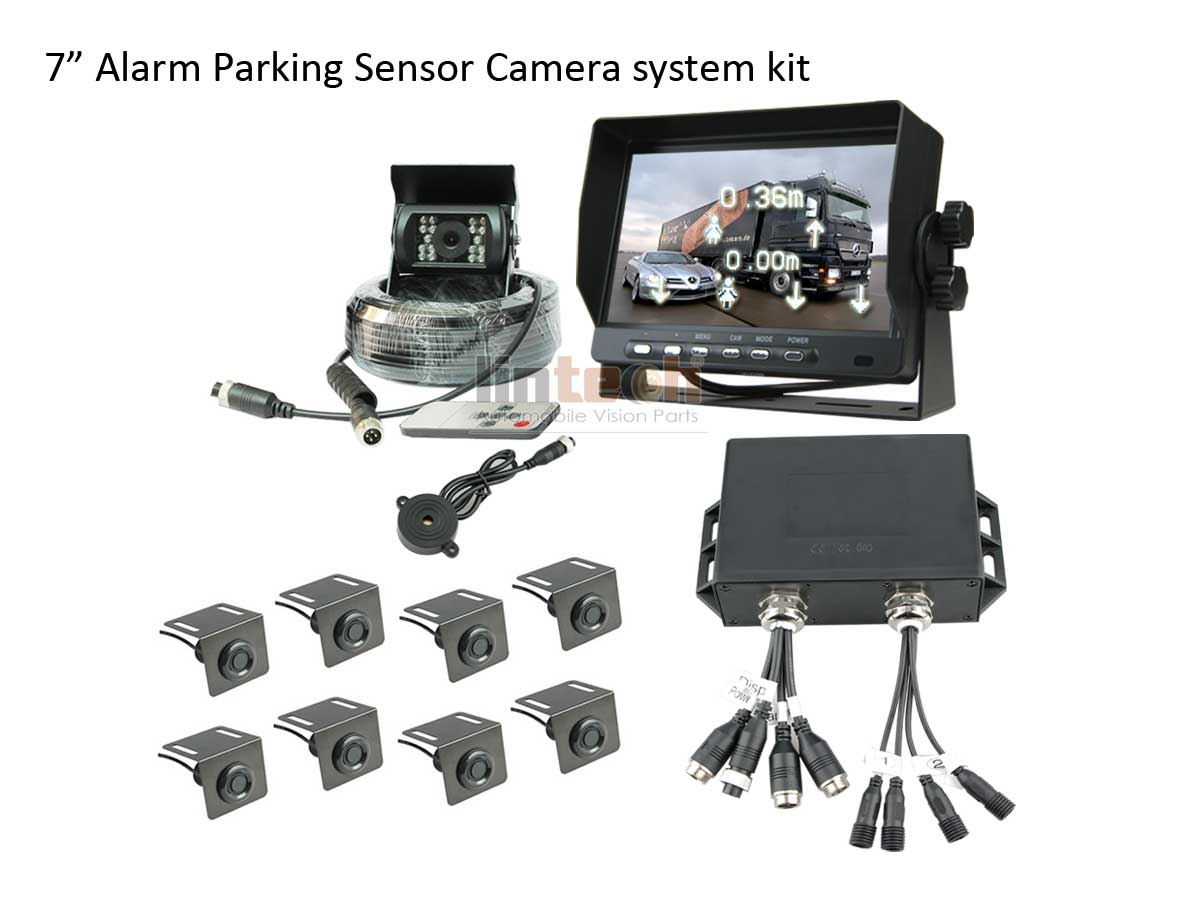

7 inches Parking Sensor Camera System Kit

Video Parking Sensor for Trucks and large heavy duty vehicles:

— Video truck parking sensor with camera and display
— 7” dashboard display, can ensure driver to see obstacles image clearly
— Camera with infrared LED light, with night vision function.
— The radar main unit is 100% waterproof, can be easily mounted on trucks.
— The wire socket between main unit and sensor are waterproof.
— Sensor with rubber fixture, can be fitted to bumpers of different thickness, and can stand fierce vibration of trucks.
— Special sensor fixing mode, can be fixed to truck bumpers of different thickness.
— The principal wires are covered by fireproof corrugated pipes, thus can work in high temperature, and is fireproof and wear – resistant.
— Extension wire length between display and main unit can be customized to suit trucks of different length.
— Product design can eliminate the interference of the engine.
— Adopt aviation plug to ensure the system work safely in high vibration circumstance.
— Working voltage: 12V-30V, can be fitted to any kind of trucks.

Technical Parameters

** Rated voltage: 12-30V DC
** Operating range: 10 to 28V DC
** Rated current: 100 to 800mA
** Detection distance: 0 to 5.0m (0 to 3.0 m for optional)
** Ultrasonic frequency: 40KHz
** Working temperature: -30 to +80 degrees Celsius
** Display size: 172 x 145 x 24mm

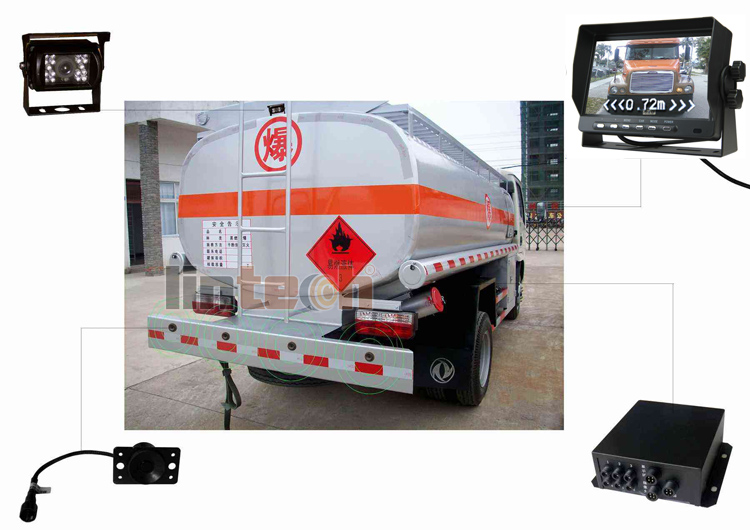

Installation photos:

8 Sensors Parking System For Trucks
Sensors Parking System For Trucks
8 Sensors Parking System For Trucks
8 Sensors Parking System For Trucks
