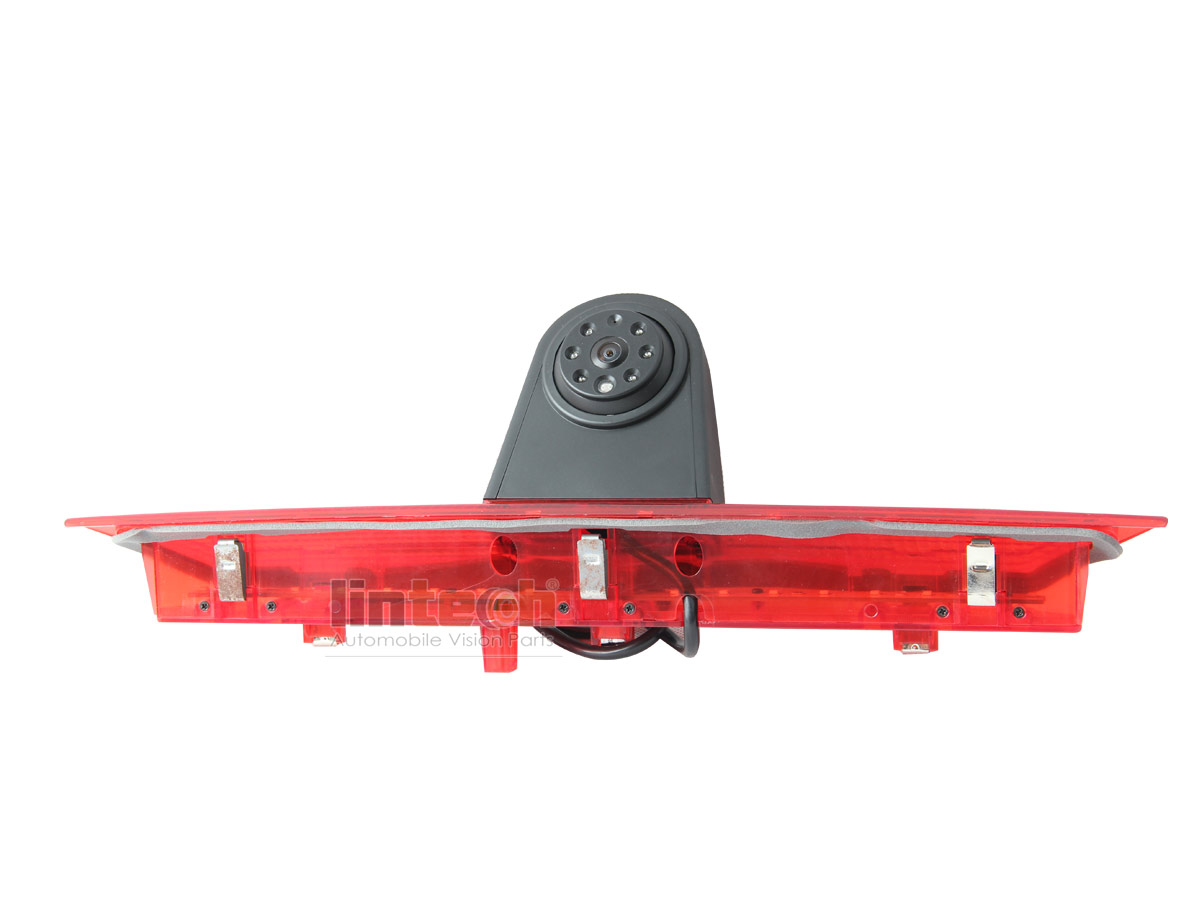

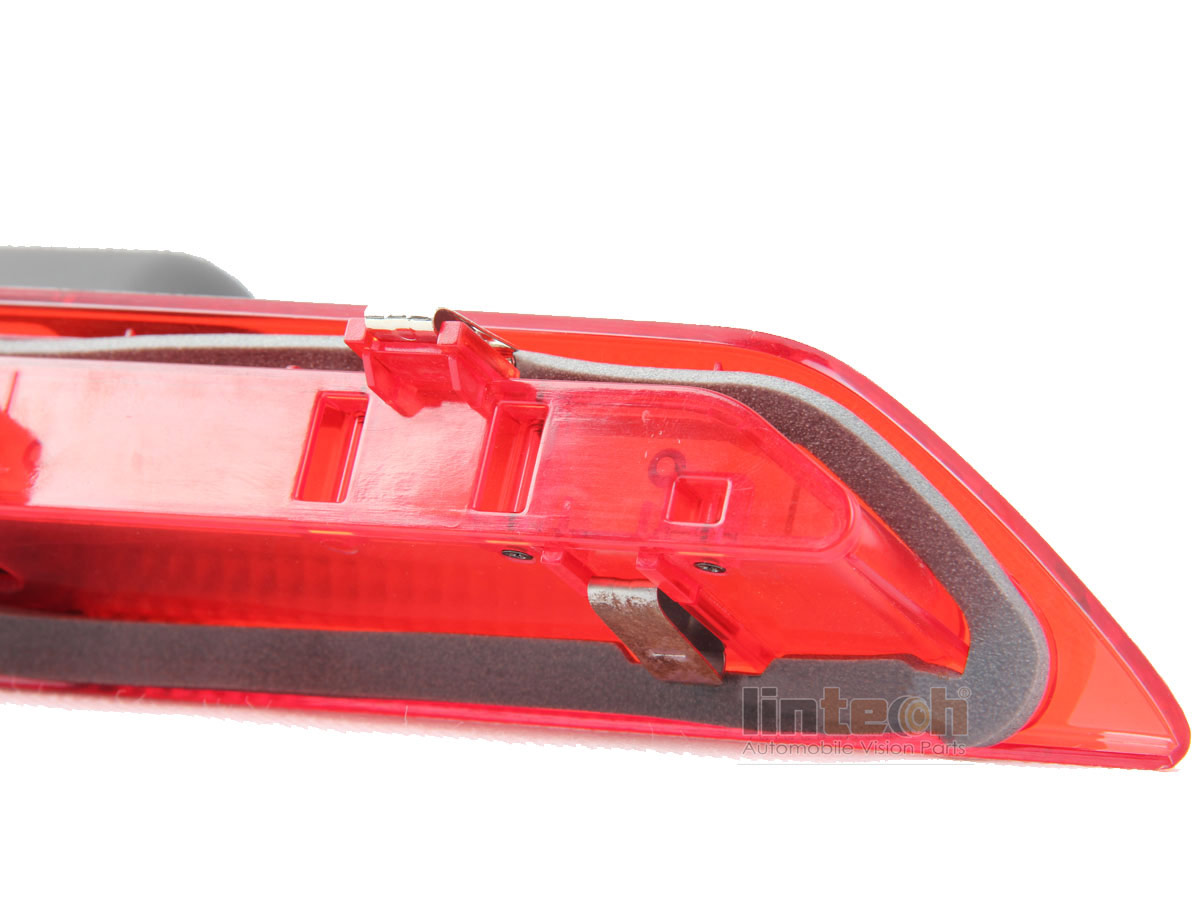

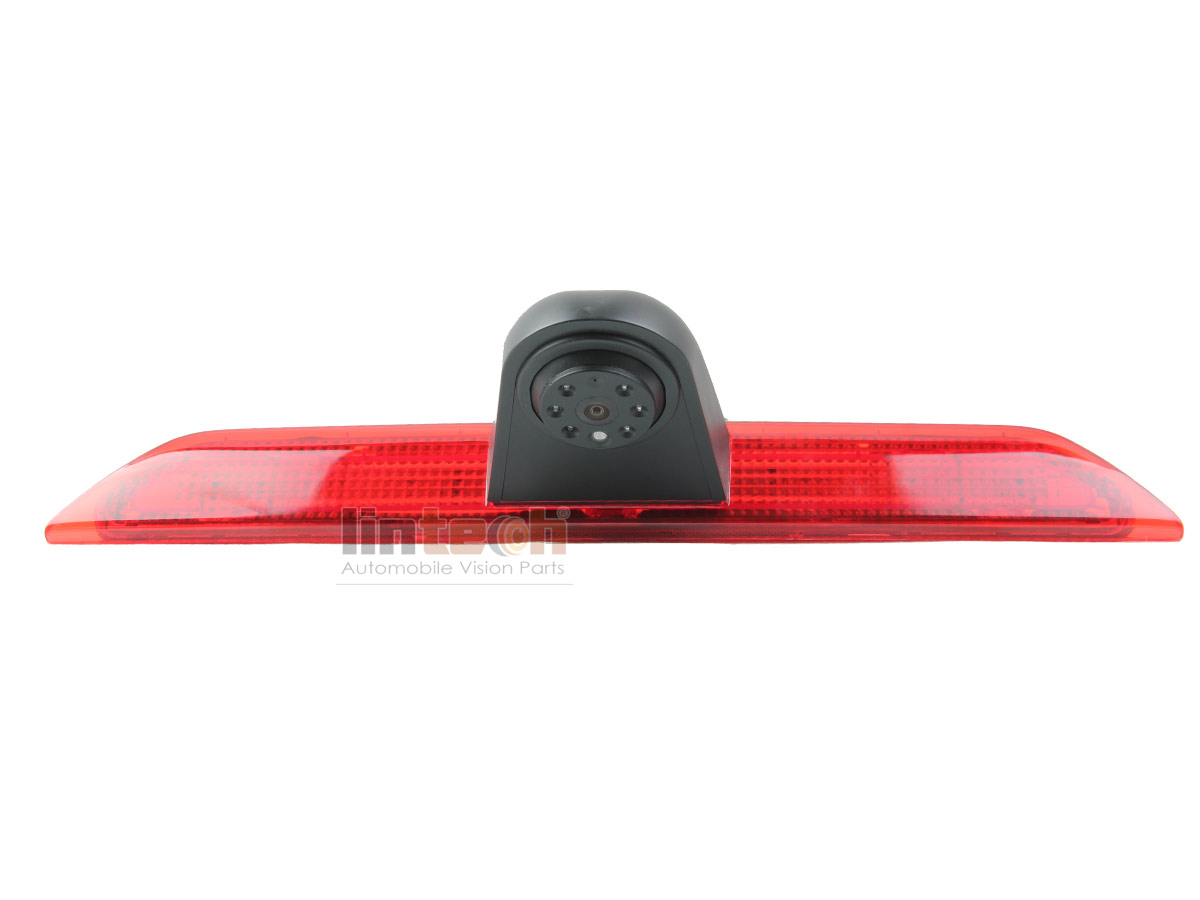

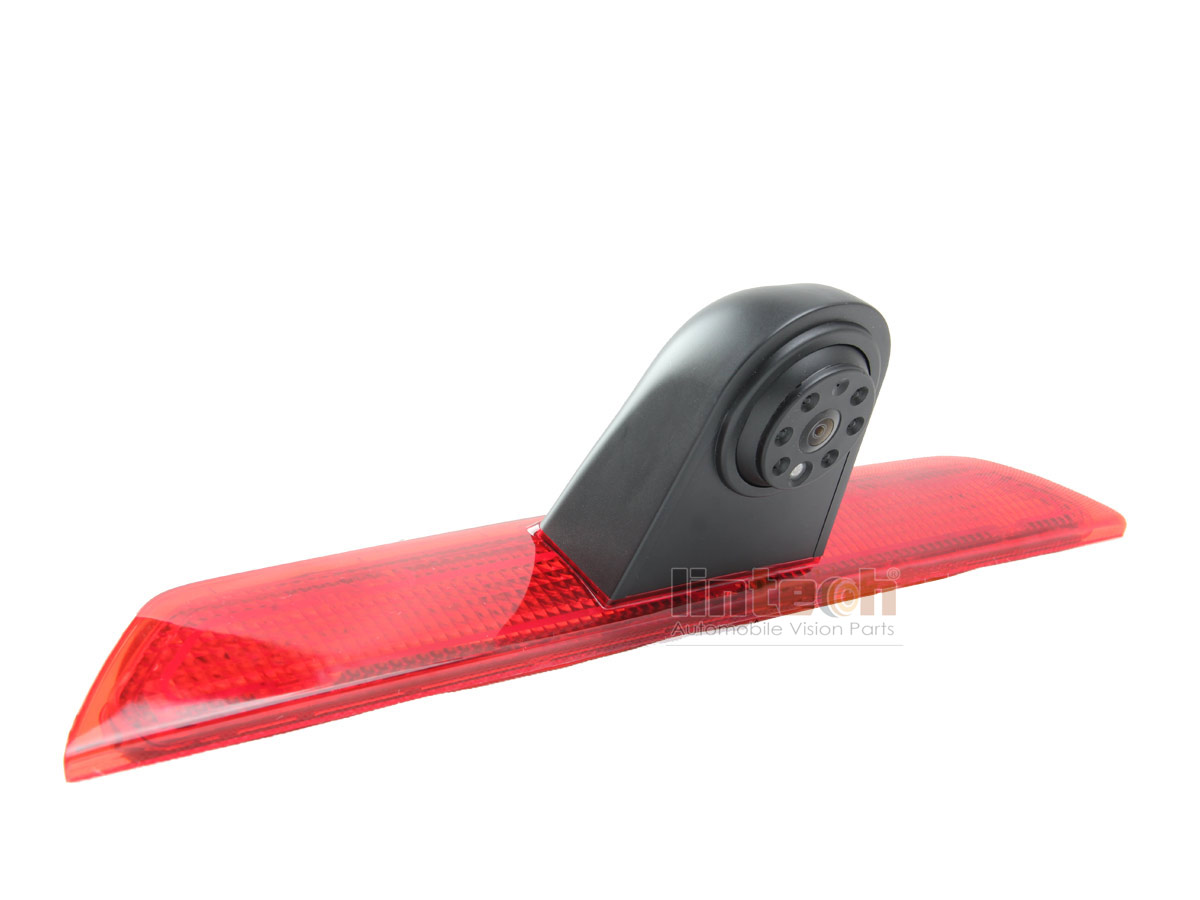

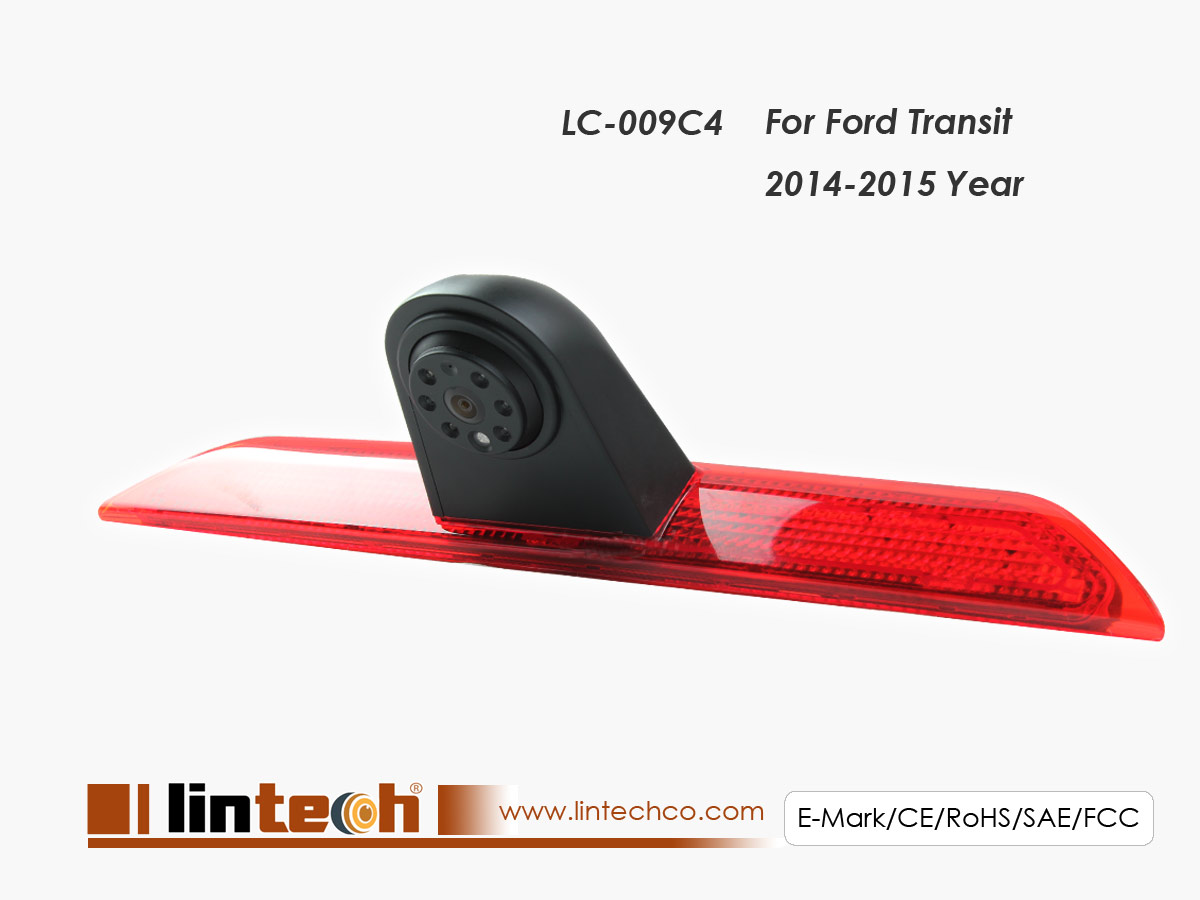

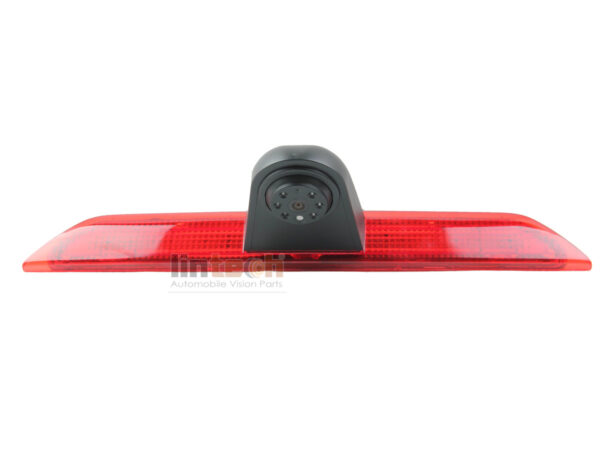

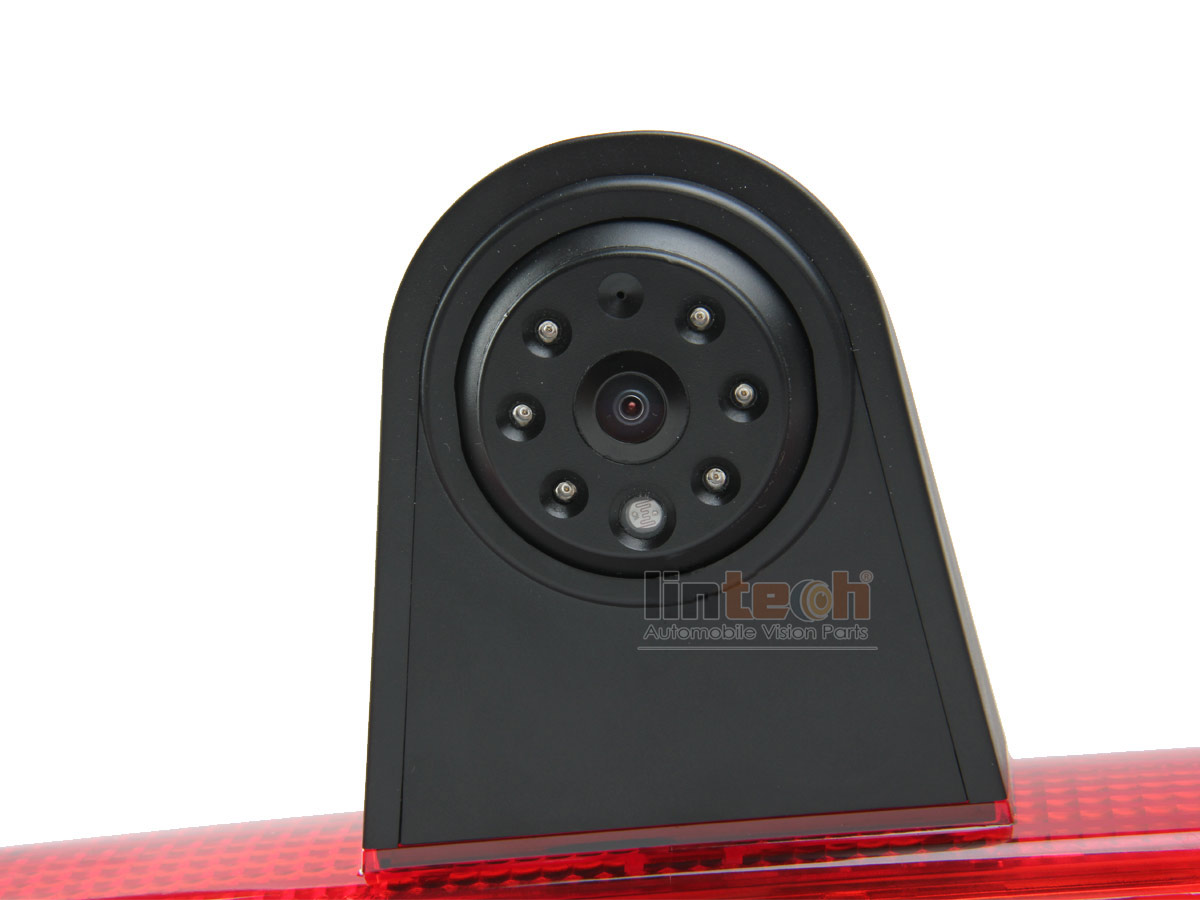

Break light Reversing Camera for Ford Transit 2014-2015 Year

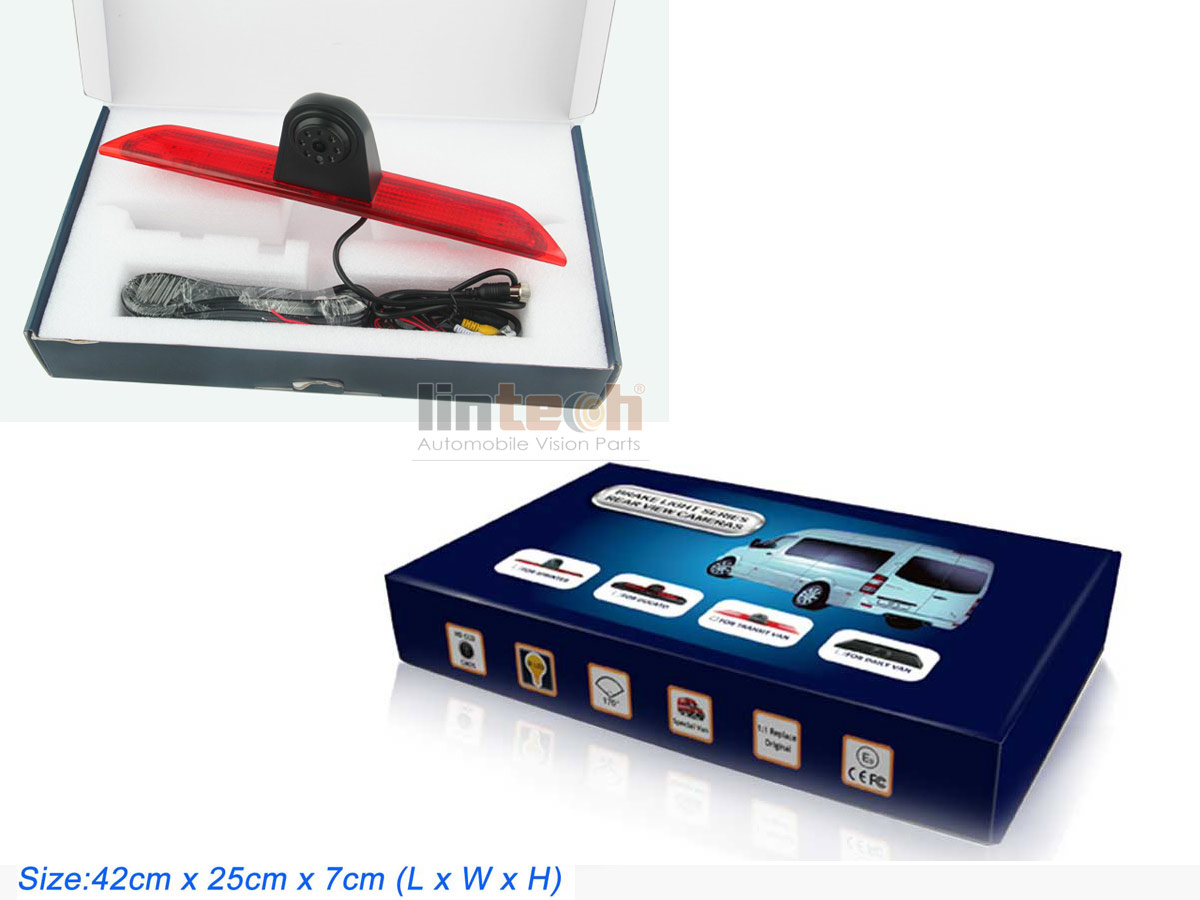

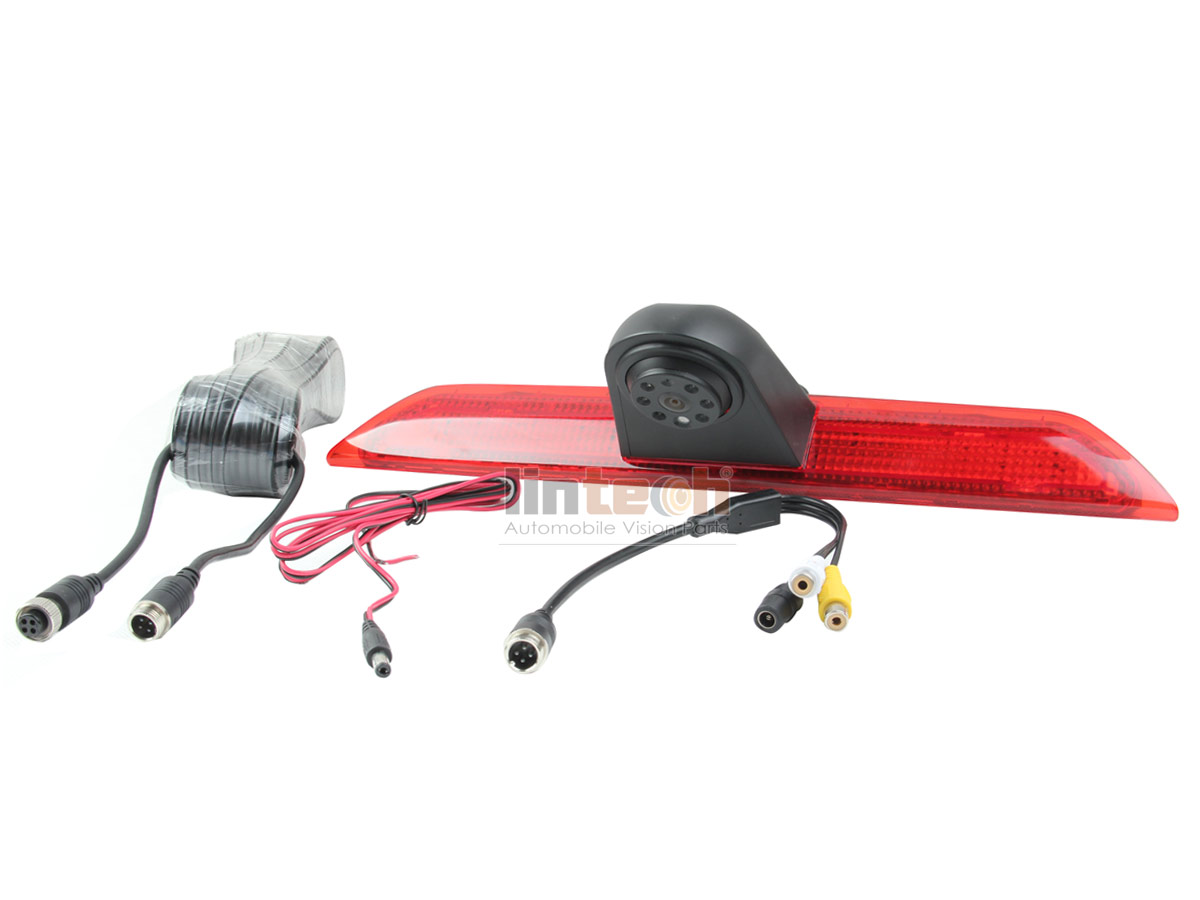

Package Details:
- 1x Brake lights Camera
- 1x Extension cable 10m
- 1x RCA to 4-Pin connector cable
- 1x RCA male to male converter
| Subject | Standard Parameter | Optional Parameter |
|---|---|---|
| Image sensor | 1/3" SONY CCD | 1/3" CMOS PC3089 |
| Resolution | N: 752x494pixels P: 752x582pixels | N: 728x488pixels P: 720x480pixels |
| Horizontal Resolution | 580TVL | 420TVL |
| Lens | 1.7mm | |
| View angle | 170 degree (105 Horizotal,85 Vertical) | |
| Min illumination | 0 Lux (LED ON) Night Vision | |
| IR LED | 7pcs (Night vision distance 5-7m) | |
| TV System | NTSC/PAL | |
| Power supplier | 12VDC | |
| Current consumption | 150mA | 130mA |
| Power consumption | 1.8W @ 12VDC | 1.5W @ 12VDC |
| Waterproof rating | IP68 | |
| Packing Weight | 1.3kg | |

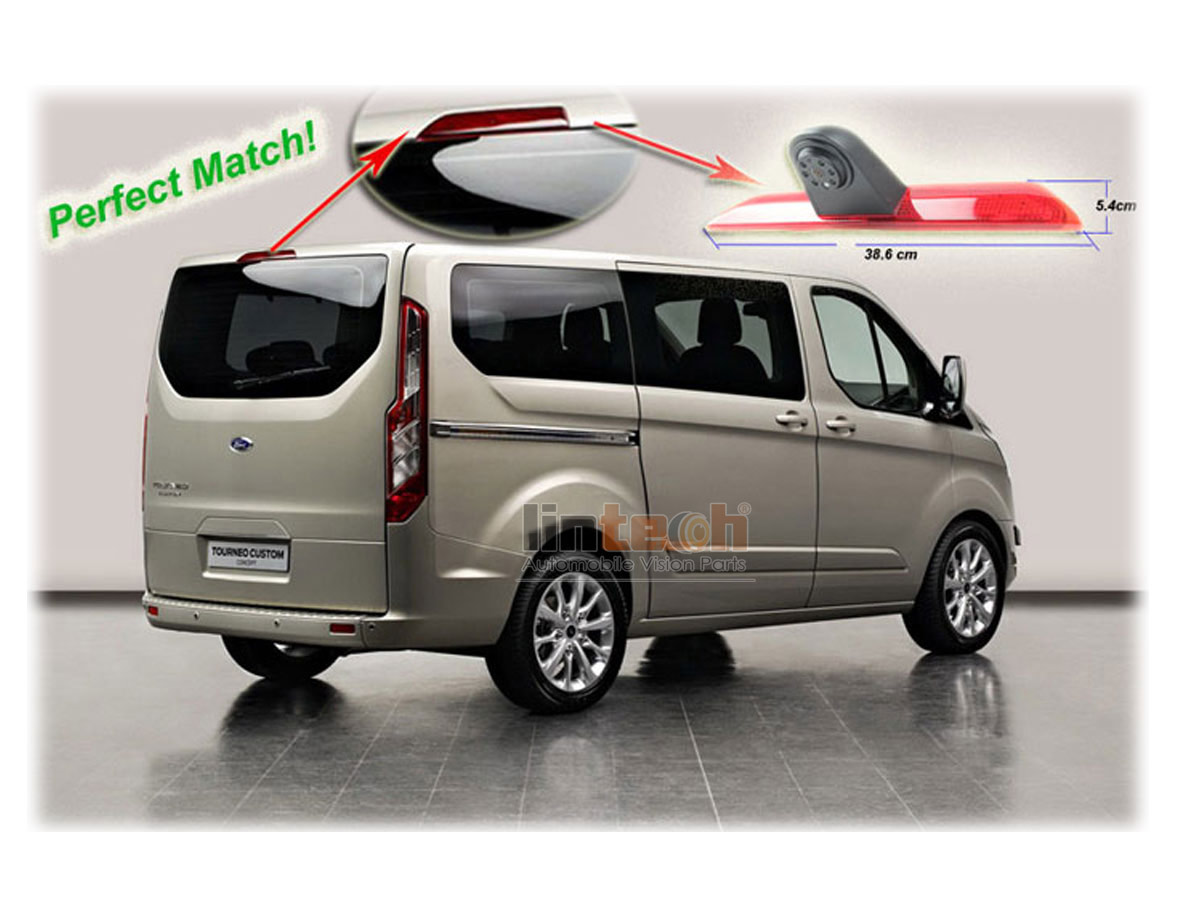

| Dimension(WxHxD) | 387.5mmx136.5mmx59.5mm (MAX) | |
| Operation temperature | -20 ~ +70 C-degress |
