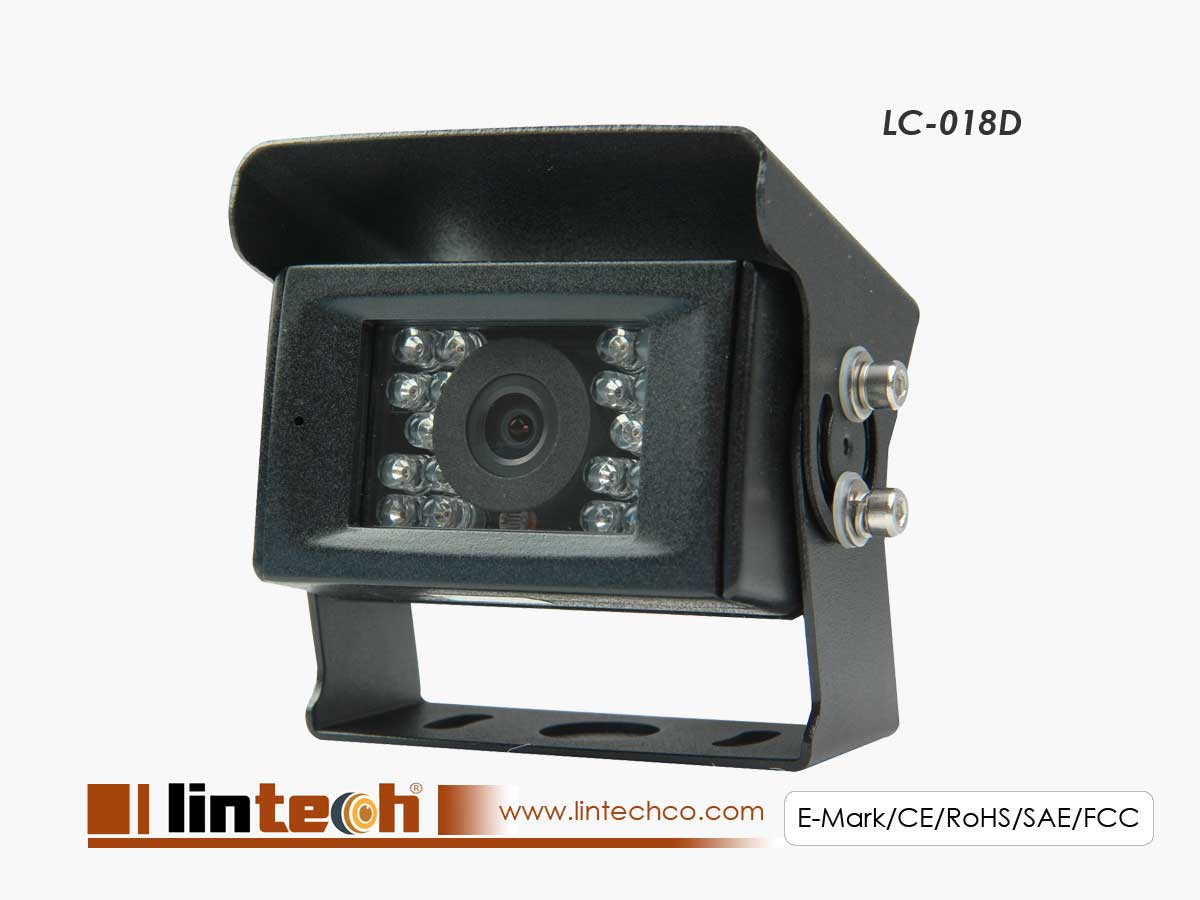

Model No.:LC-018D

  • Sensor: 1/4″ SHARP CCD Sensor 420TVL
  • View angle: 120°
  • Night vision: 18pcs IR LED
  • IP rating: IP69K (Waterproof)
  • Aluminum alloy housing
  • Voltage: 12V (+/- 10%)/ 1,5 Watt
  • Certificates: CE/FCC/E-mark
  • Warranty: 1-3 Years
FacebookTwitterGoogle PlusPinterest

Descriptions

LintechCo: Leading Chinese B2B Heavy Duty LED Night Vision Rear View Camera for Buses & Trucks Supplier.

FEATURES:

-IP69K Military-Grade Waterproof Rating

-Optional built-in Microphone

-18pcs Built-in Infra-red night vision IR LEDs

-Heavy duty and strong full alloy housing

-Optional Hidden Mirror/normal Image Switch

-Optional Heating function for extremely cold condition



SubjectStandard ParameterOptional Parameter
Image sensor1/4" SHARP CCD1/3" SONY CCD
ResolutionN:510×492 pixels
P: 500×582 pixels		N:976×494 pixels
P: 1020×508 pixels
Horizontal Resolution420TVL700TVL
TV SystemNTSC/PAL
Lens2.5mm2.8mm
View angle120 degree (90 Horizotal,75 Vertical)
Power supplier12VDC
Current consumption150mA150mA
Power consumption1.8W @ 12VDC1.8W @ 12VDC
Min illumination0 Lux (LED ON) Night Vision
IR LED18 pcs (Night vision distance 7m)18 pcs (Night vision distance 9m)
Waterproof ratingIP69K
Packing weigth0.5KG
Dimension(WxHxD)92mm x 71mm x 68mm (MAX)
Operation temperature-20 ~ +70 C-degress



Data Sheet

LC-018D_Heavy Duty 18pcs IR LED Night Vision IP69K Waterproof Backup Camera for Buses and Trucks.pdf (3.0MB)
1.Heavy-Duty-18pcs-IR-LED-Night-Vision-IP69K-Waterproof-Backup-Camera1.Heavy-Duty-18pcs-IR-LED-Night-Vision-IP69K-Waterproof-Backup-Camera
2.Heavy-Duty-18pcs-IR-LED-Night-Vision-IP69K-Waterproof-Backup-Camera2.Heavy-Duty-18pcs-IR-LED-Night-Vision-IP69K-Waterproof-Backup-Camera
3.Heavy-Duty-18pcs-IR-LED-Night-Vision-IP69K-Waterproof-Backup-Camera3.Heavy-Duty-18pcs-IR-LED-Night-Vision-IP69K-Waterproof-Backup-Camera
4.Heavy-Duty-18pcs-IR-LED-Night-Vision-IP69K-Waterproof-Backup-Camera4.Heavy-Duty-18pcs-IR-LED-Night-Vision-IP69K-Waterproof-Backup-Camera
5.Heavy-Duty-18pcs-IR-LED-Night-Vision-IP69K-Waterproof-Backup-Camera5.Heavy-Duty-18pcs-IR-LED-Night-Vision-IP69K-Waterproof-Backup-Camera
6.Heavy-Duty-18pcs-IR-LED-Night-Vision-IP69K-Waterproof-Backup-Camera6.Heavy-Duty-18pcs-IR-LED-Night-Vision-IP69K-Waterproof-Backup-Camera
7.Heavy-Duty-18pcs-IR-LED-Night-Vision-IP69K-Waterproof-Backup-Camera7.Heavy-Duty-18pcs-IR-LED-Night-Vision-IP69K-Waterproof-Backup-Camera
8.Heavy-Duty-18pcs-IR-LED-Night-Vision-IP69K-Waterproof-Backup-Camera8.Heavy-Duty-18pcs-IR-LED-Night-Vision-IP69K-Waterproof-Backup-Camera

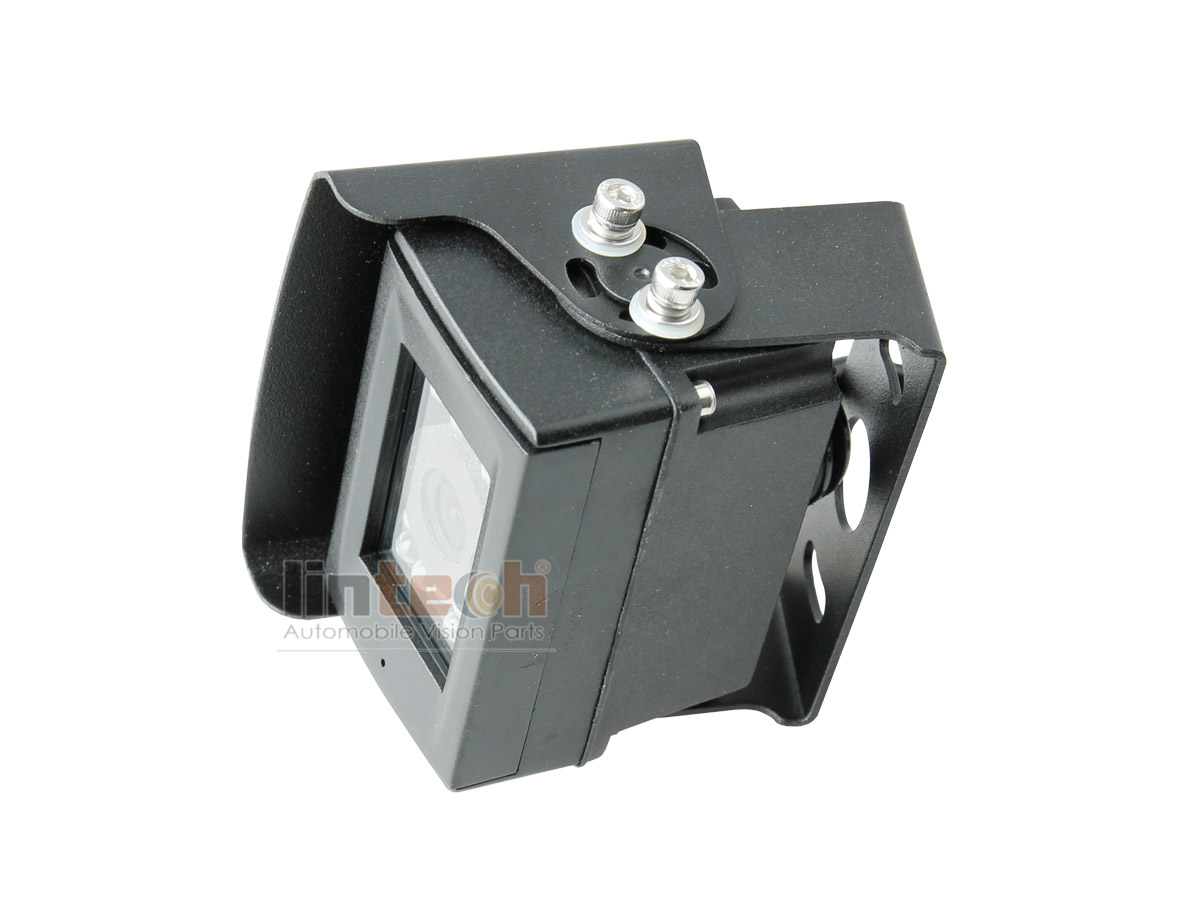

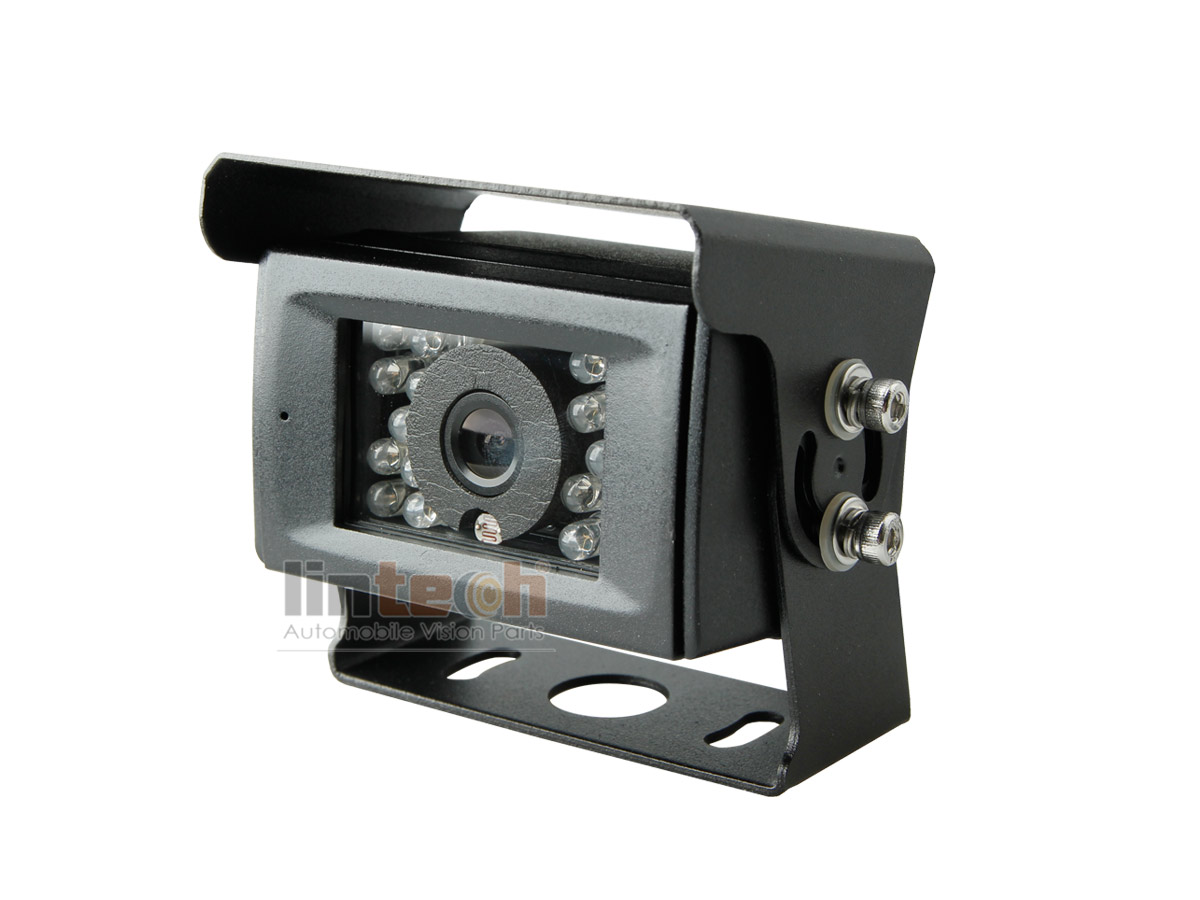

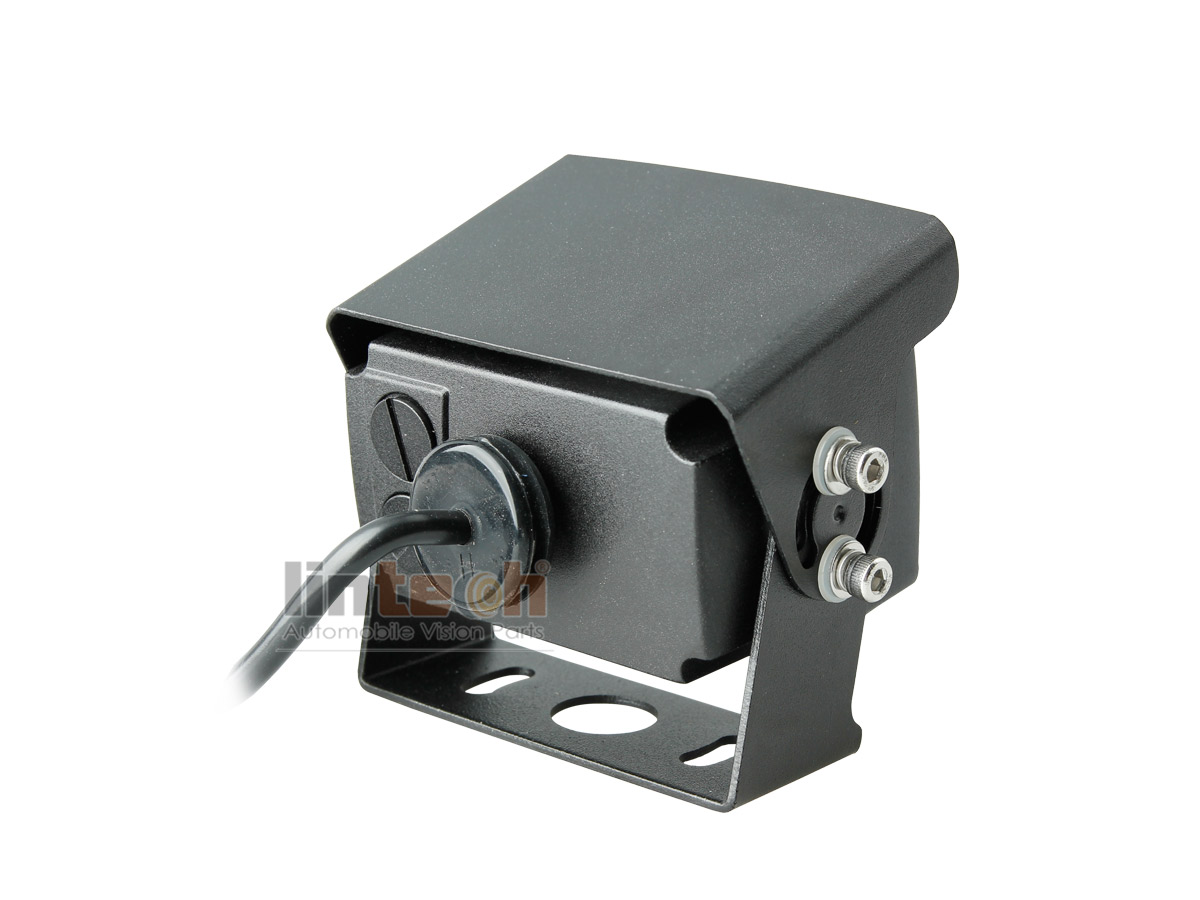

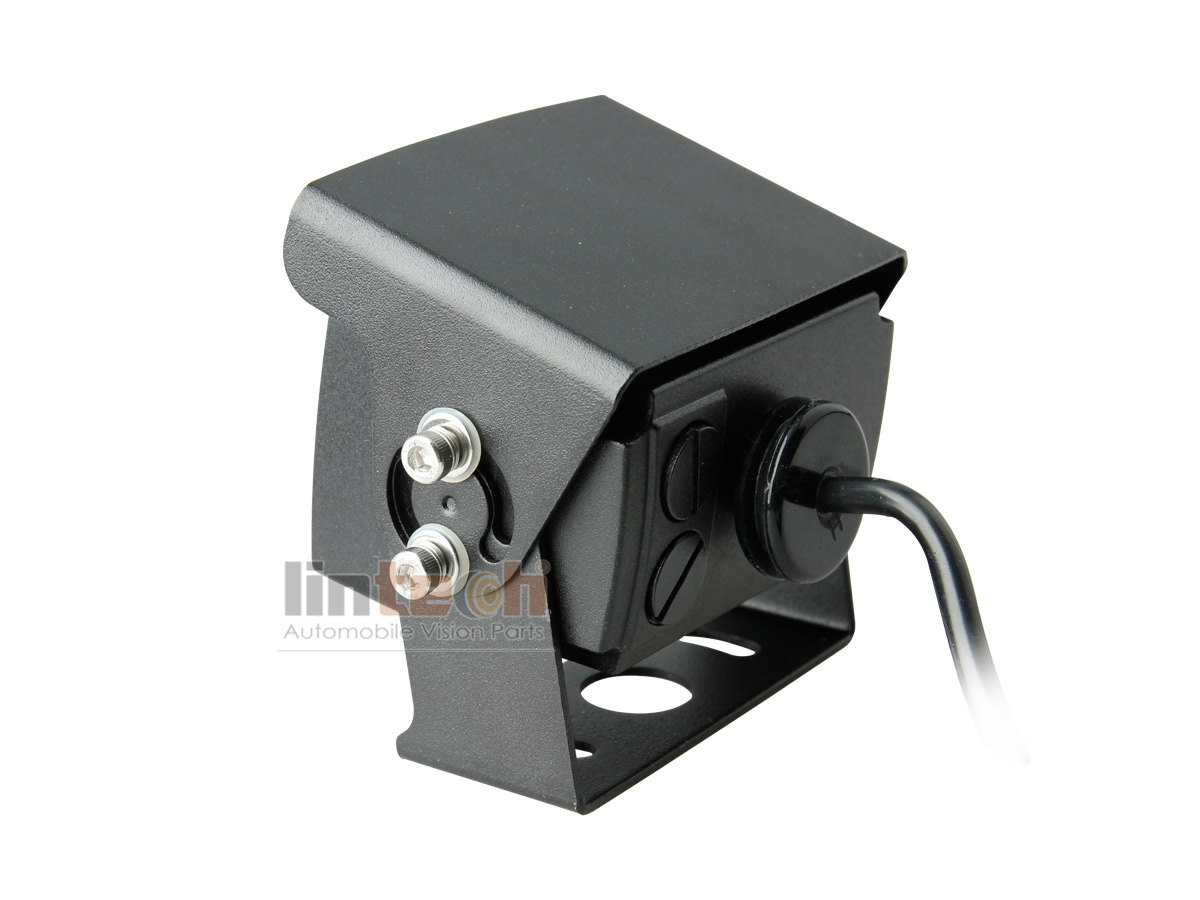

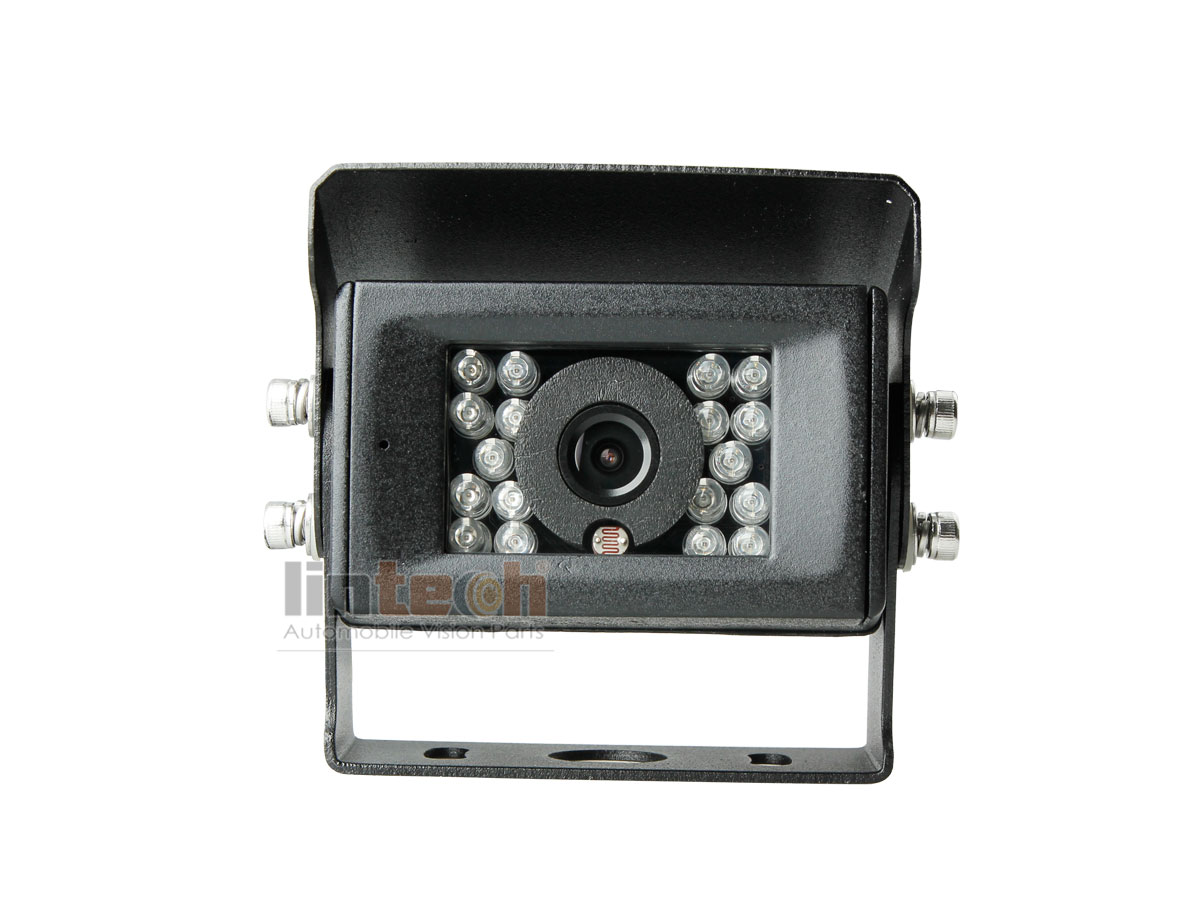

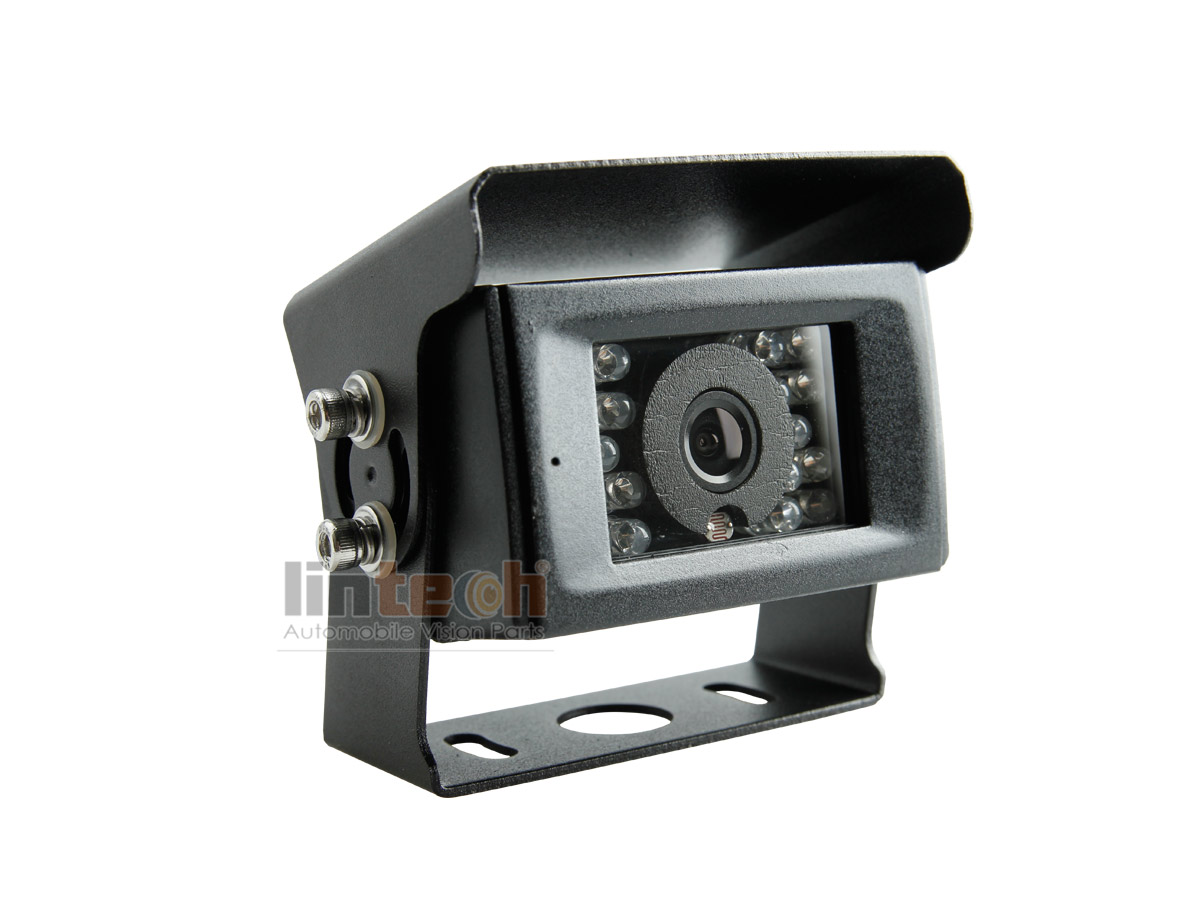

Photos

Heavy Duty LED Night Vision Rear View Camera for Buses & Trucks
Heavy Duty LED Night Vision Rear View Camera for Buses & Trucks
Heavy Duty LED Night Vision Rear View Camera for Buses & Trucks
Heavy Duty LED Night Vision Rear View Camera for Buses & Trucks
Heavy Duty LED Night Vision Rear View Camera for Buses & Trucks
Heavy Duty LED Night Vision Rear View Camera for Buses & Trucks
Heavy Duty LED Night Vision Rear View Camera for Buses & Trucks
Heavy Duty LED Night Vision Rear View Camera for Buses & Trucks
Heavy Duty LED Night Vision Rear View Camera for Buses & Trucks
Heavy Duty LED Night Vision Rear View Camera for Buses & Trucks
Heavy Duty LED Night Vision Rear View Camera for Buses & Trucks
Heavy Duty LED Night Vision Rear View Camera for Buses & Trucks
