Model No.: LC-009C3

  • Sensor: 1/3″ Sony CCD Sensor 580TVL
  • View angle: 170°
  • Night vision: 6pcs IR LED
  • IP rating: IP68 (Waterproof)
  • Voltage: 12V (+/- 10%)/ 1,5 Watt
  • Certificates: CE/FCC/E-mark
  • Warranty: 1-3 Years
  • For Mercedes Sprinter 2006-2016Year / VW Crafter
FacebookTwitterGoogle PlusPinterest

Descriptions

LintechCo: Leading Chinese B2B Sprinter Backup Camera Supplier.

FEATURES:

-Break light Reversing Camera for Mercedes Benz Sprinter

-Wide View Angle 170 Degree

-100% copy original third brake light, suit for OEM installation

-Different sensor optional for various demands



SubjectStandard ParameterOptional Parameter
Image sensor1/3" SONY CCD1/3" CMOS PC3089
ResolutionN: 752x494pixels
P: 752x582pixels
N: 728x488pixels
P: 720x480pixels
Horizontal Resolution580TVL420TVL
Lens1.7mm
View angle170 degree (105 Horizotal,85 Vertical)
Min illumination0 Lux (LED ON) Night Vision
IR LED7pcs (Night vision distance 5-7m)
TV SystemNTSC/PAL
Power supplier12VDC
Current consumption150mA130mA
Power consumption1.8W @ 12VDC1.5W @ 12VDC
Waterproof ratingIP68
Packing Weight1.3kg
Dimension(WxHxD)387.5mmx136.5mmx59.5mm (MAX)
Operation temperature-20 ~ +70 C-degress



Data Sheet

Photos

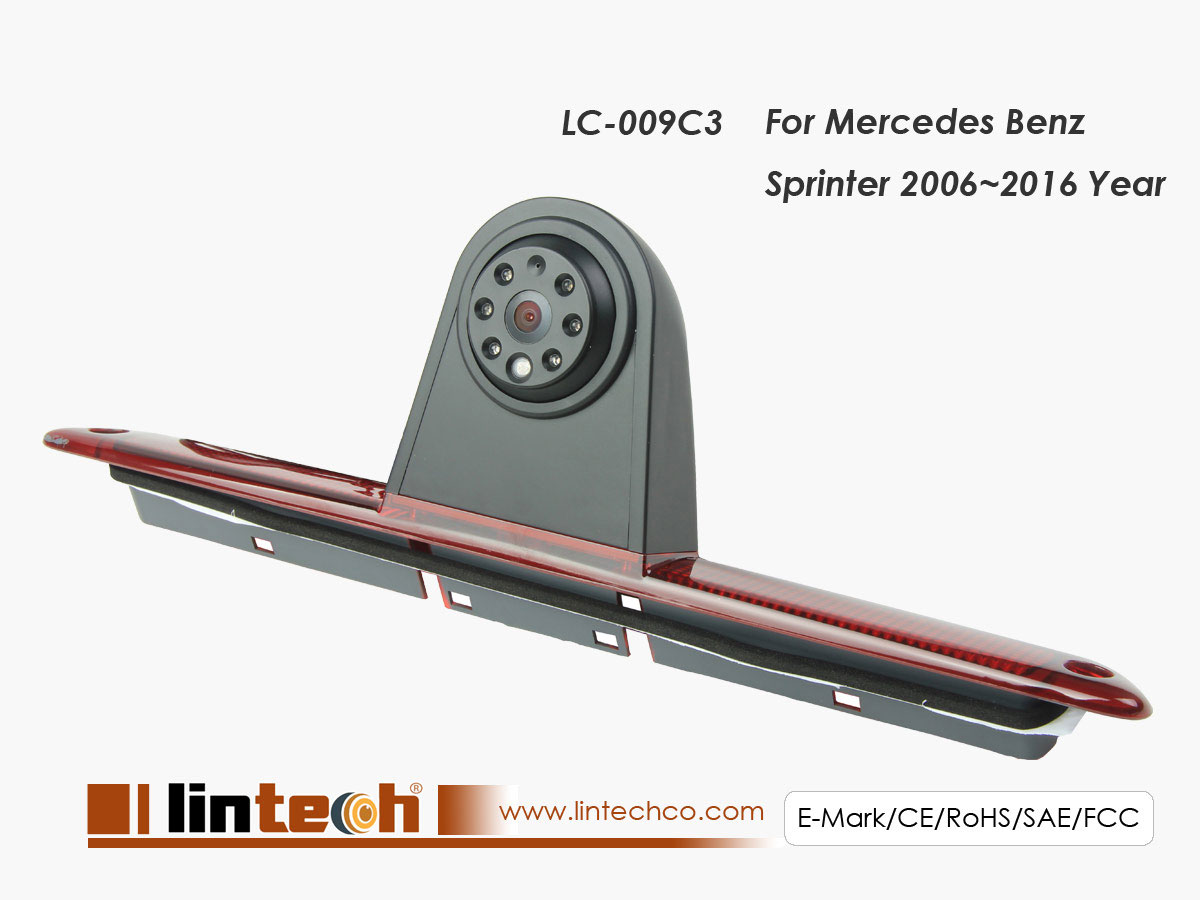

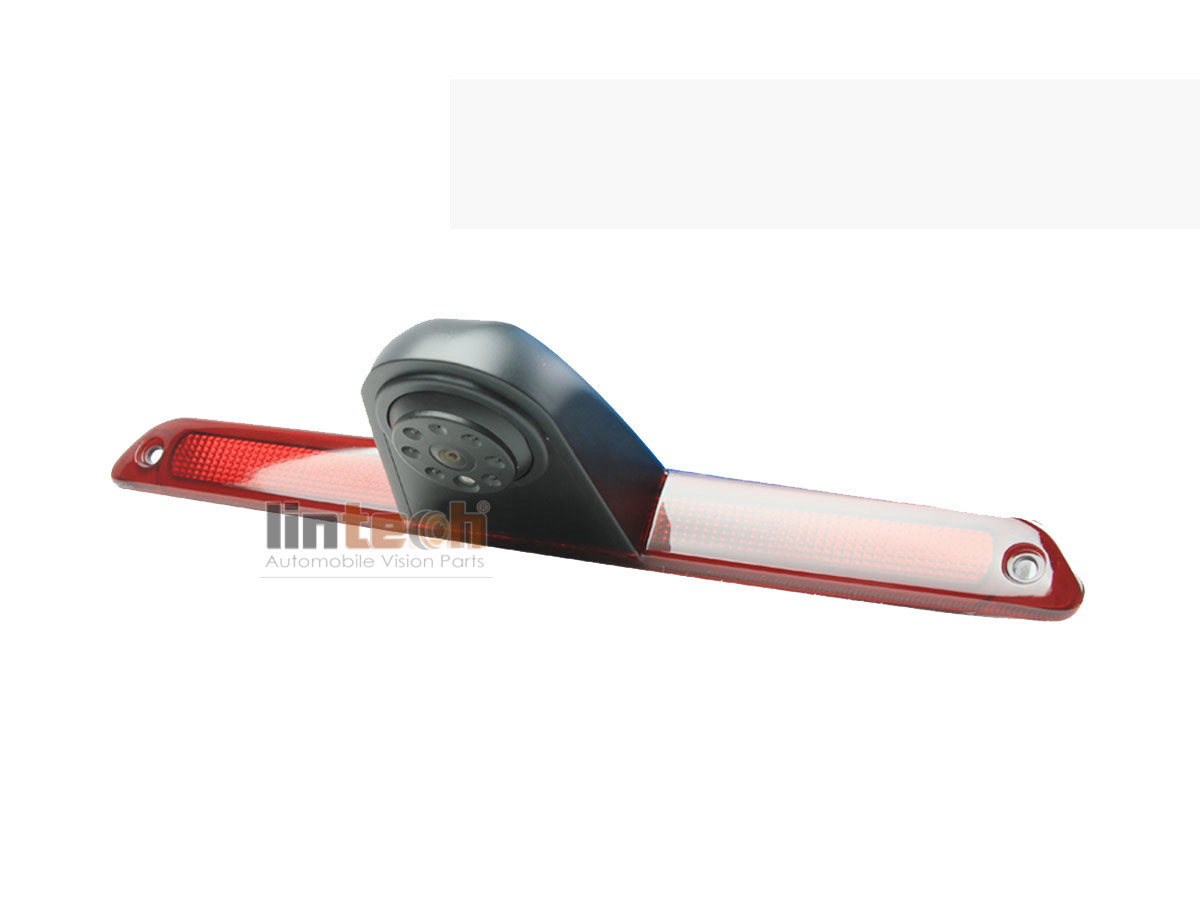

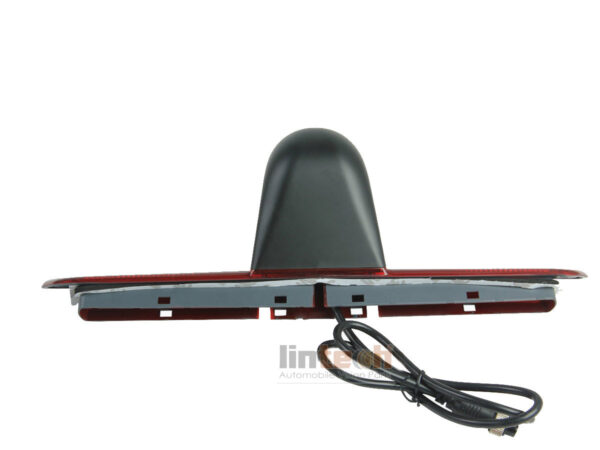

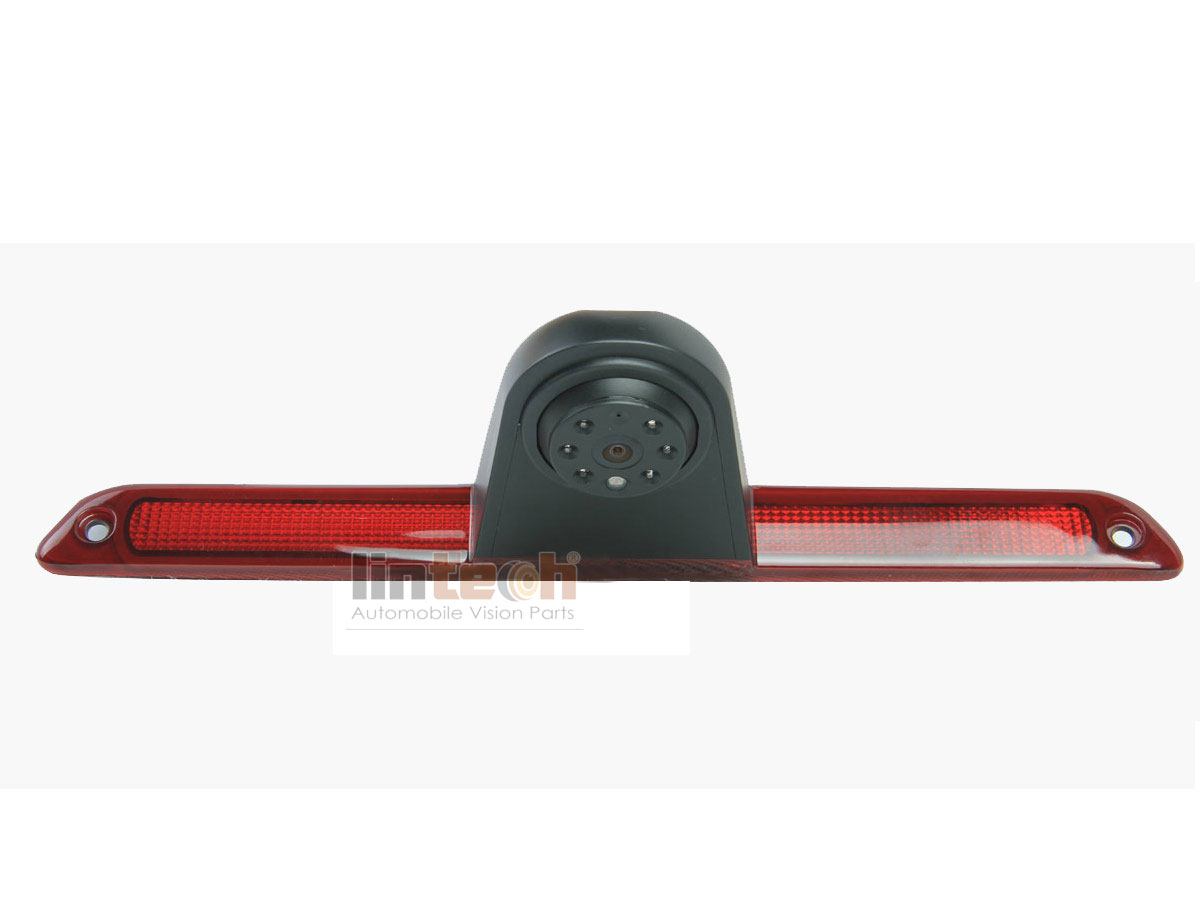

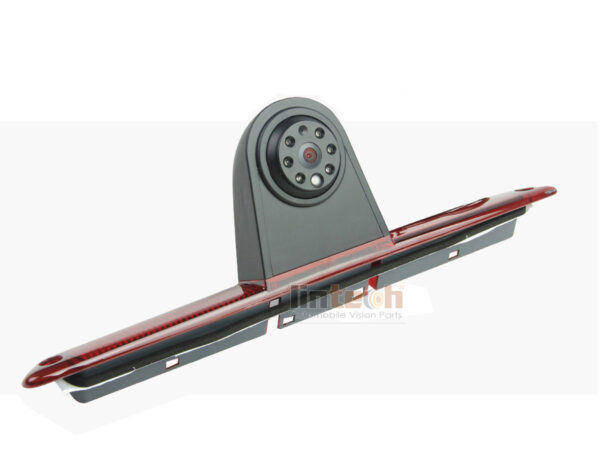

Brake Light Reversing Camera for Mercedes Benz Sprinter, LC-009C3
Brake Light Reversing Camera for Mercedes Benz Sprinter, LC-009C3
Brake Light Reversing Camera for Mercedes Benz Sprinter, LC-009C3
Brake Light Reversing Camera for Mercedes Benz Sprinter, LC-009C3
Brake Light Reversing Camera for Mercedes Benz Sprinter, LC-009C3
Brake Light Reversing Camera for Mercedes Benz Sprinter, LC-009C3
Brake Light Reversing Camera for Mercedes Benz Sprinter, LC-009C3
Brake Light Reversing Camera for Mercedes Benz Sprinter, LC-009C3
Brake Light Reversing Camera for Mercedes Benz Sprinter, LC-009C3
