Solving a 320-Meter Video Signal Challenge in a Railway Camera System
Case Study: How Lintech helped a Chile railway project solve long-distance AHD/CVBS signal loss using video amplifier engineering and system optimization.
1. Background: A Real Railway Monitoring Project from Chile
This case comes from a real installation project in Chile. Our customer Nicolas was building a railway monitoring system using multiple TPE7-2D cameras connected in series with 10-meter cables between each unit.
The system was designed to transmit live video from multiple train cars back to the locomotive display. In theory, the concept is simple — but in real engineering, the total cable distance exceeded 300 meters.
This is far beyond the normal working range of standard AHD / CVBS analog video systems.
2. The Problem: Image Loss Beyond 100m → Complete Failure at 300m+
The customer initially reported:
- With 6 connected units (~111 meters), image was still visible
- With 17 units (~300+ meters), no image at all
Later symptoms included:
- 720P image turning black & white
- Severe signal instability
- Complete video loss at full extension
This is a classic case of cumulative analog video signal attenuation.
3. Technical Analysis: Why the Signal Failed

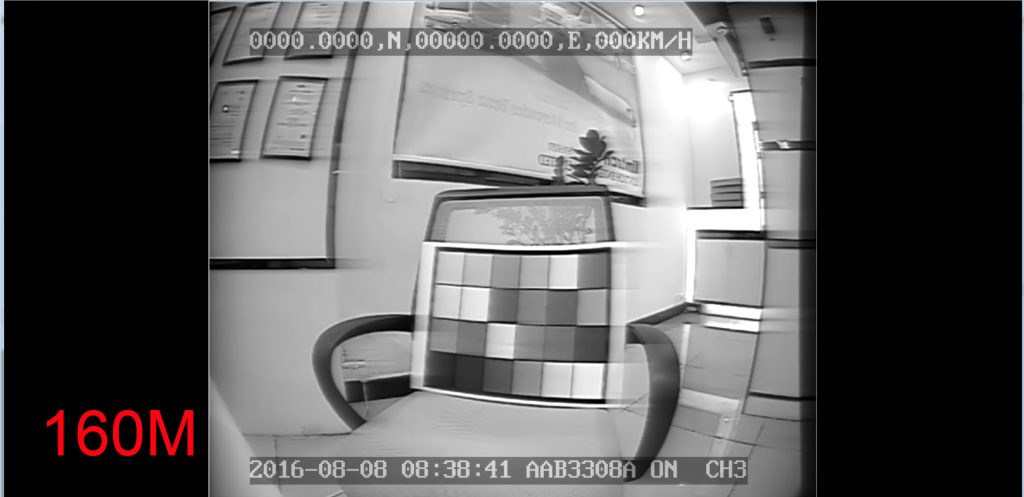

3.1 Long-distance signal attenuation
AHD and CVBS signals lose high-frequency components over distance first, which leads to:
- Loss of image detail
- Color degradation (black & white image)
- Eventually complete signal loss
3.2 Multiple connectors and joints
Every 10-meter extension adds resistance, reflection, and signal degradation.
3.3 Non-coaxial cable structure

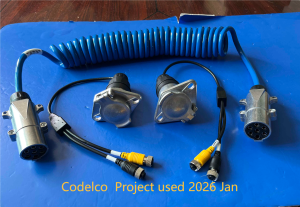

Unlike 75Ω coaxial systems, this project used multi-segment 4-pin aviation cables with multiple adapters, which significantly increases signal loss.

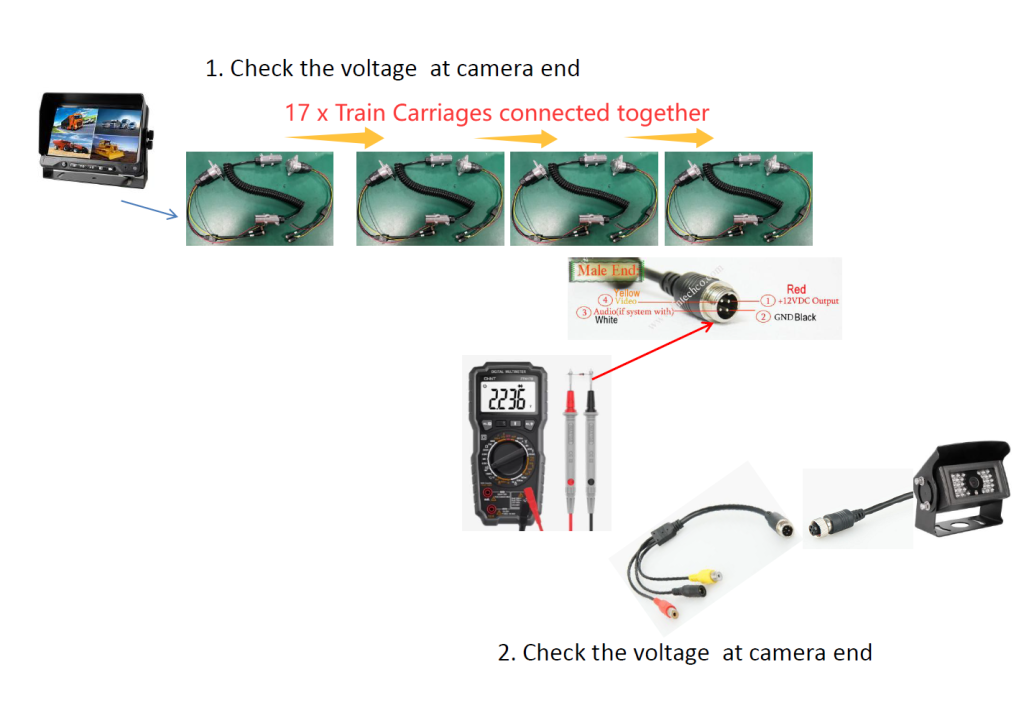

4. Initial Investigation: Power vs Signal Problem
At the beginning, we also suspected a power issue due to long cable voltage drop.
- Recommended checking camera-side voltage (>10V required)
- Suggested separate power supply for camera
However, testing confirmed that the main issue was signal attenuation rather than power instability.
5. Engineering Solution: Video Signal Amplifier Testing

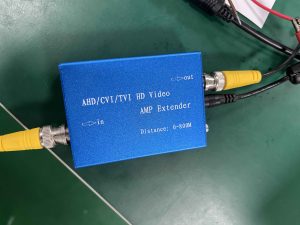

We introduced a video signal amplifier (AMP extender) solution and conducted real-world testing.
Test Results:
- AHD 1080P stable up to ~220 meters
- AHD 720P stable up to ~320 meters
This matched the customer’s real-world requirement.
However, we also confirmed that amplifier performance depends heavily on cable structure and installation quality.
6. Key Engineering Insight: One Amplifier Is Better Than Multiple
During evaluation, the customer proposed installing amplifiers every 50 meters.
Our engineering conclusion:
Multiple amplifiers in series are not recommended.
Because they may:
- Amplify noise instead of signal
- Cause waveform distortion
- Introduce synchronization instability
Best practice:
- Use only one amplifier near the monitor side
- Keep system architecture simple and linear

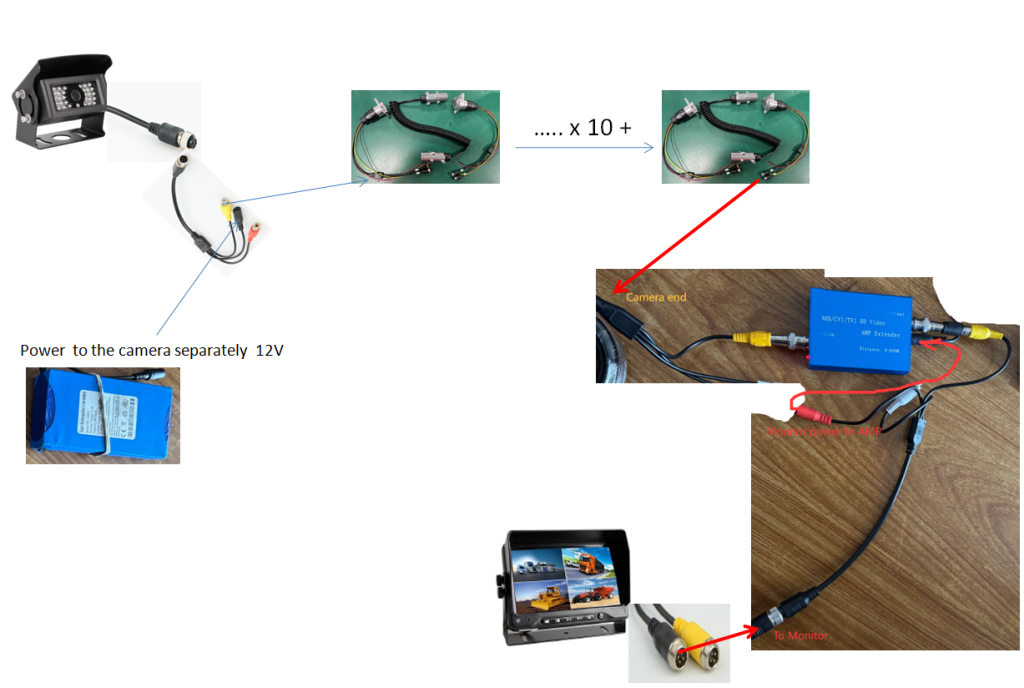

7. Final Optimization Steps
We guided the customer through the following final adjustments:
- Install amplifier at monitor side only
- Use separate power supply for camera to avoid voltage drop
- Test system step-by-step using 20m standard cables first
- Then extend gradually to full system length
8. Final Result: Stable Image at 320 Meters
After optimization, the system achieved stable video transmission over ~320 meters in AHD 720P mode.
Customer feedback:
“We finally solved this issue, got clear image now!”
9. Key Engineering Takeaways
- 300m+ analog video transmission is already extreme for AHD/CVBS systems
- One properly placed amplifier is more effective than multiple boosters
- Power stability and signal stability must be treated separately
- Step-by-step installation testing is critical for long-distance systems
10. Conclusion
This case demonstrates how real engineering support can solve complex long-distance video transmission problems in field conditions.
At Lintech, we don’t just supply products — we help customers analyze system-level problems, diagnose signal issues, and deliver practical engineering solutions.
If you are working on railway, truck, or long-distance vehicle camera systems, feel free to contact us for technical support.
