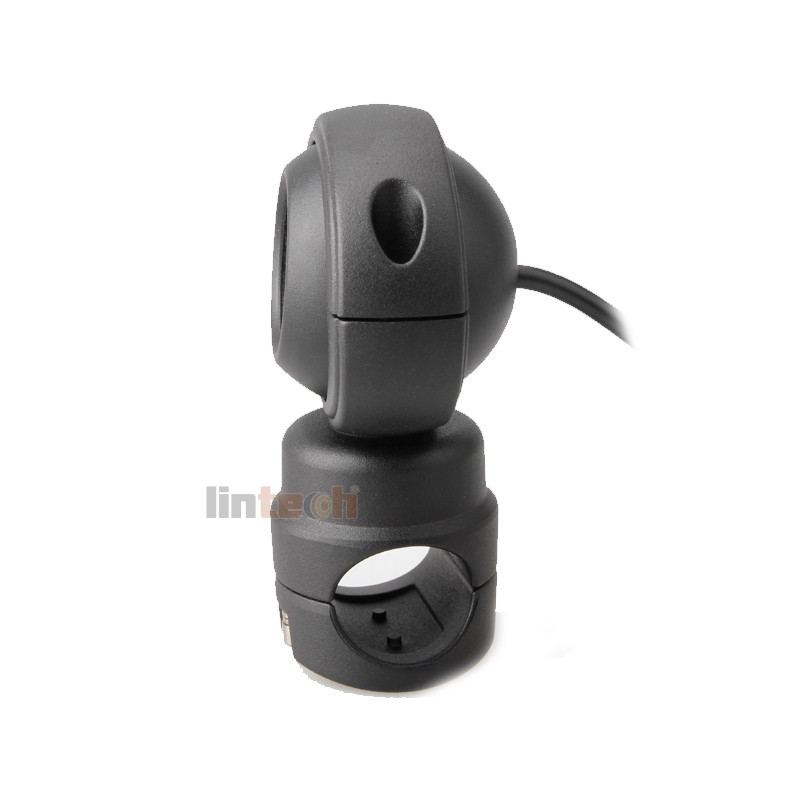

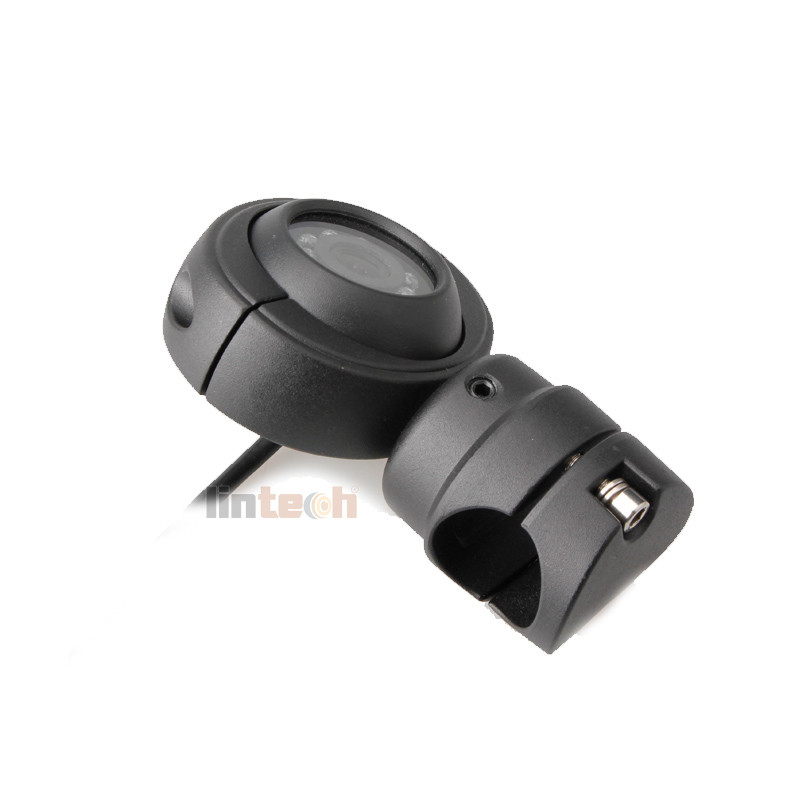

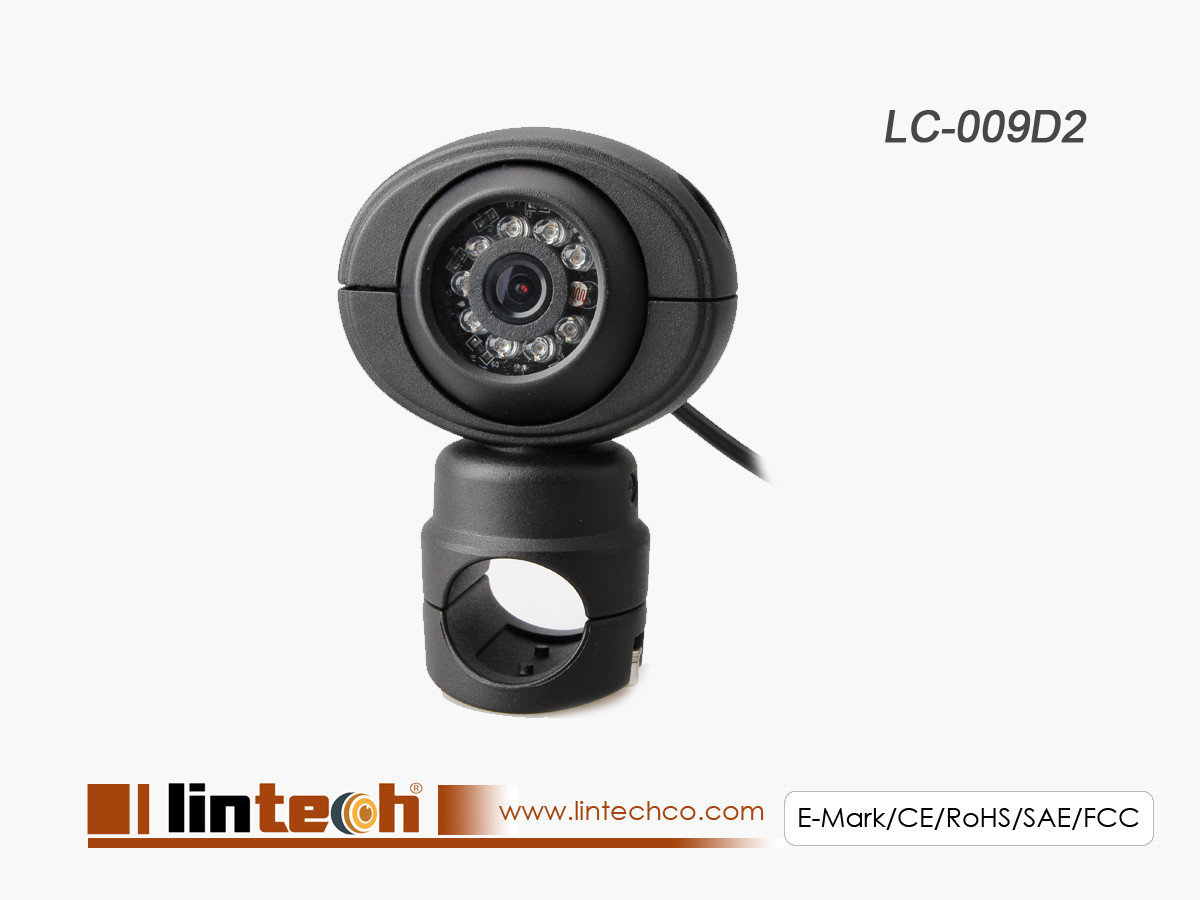

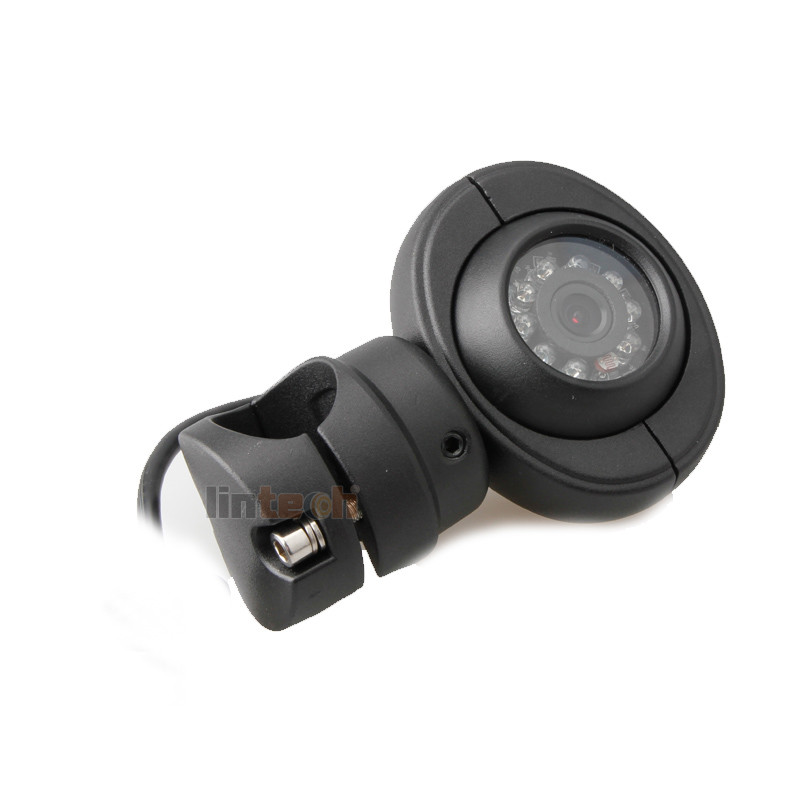

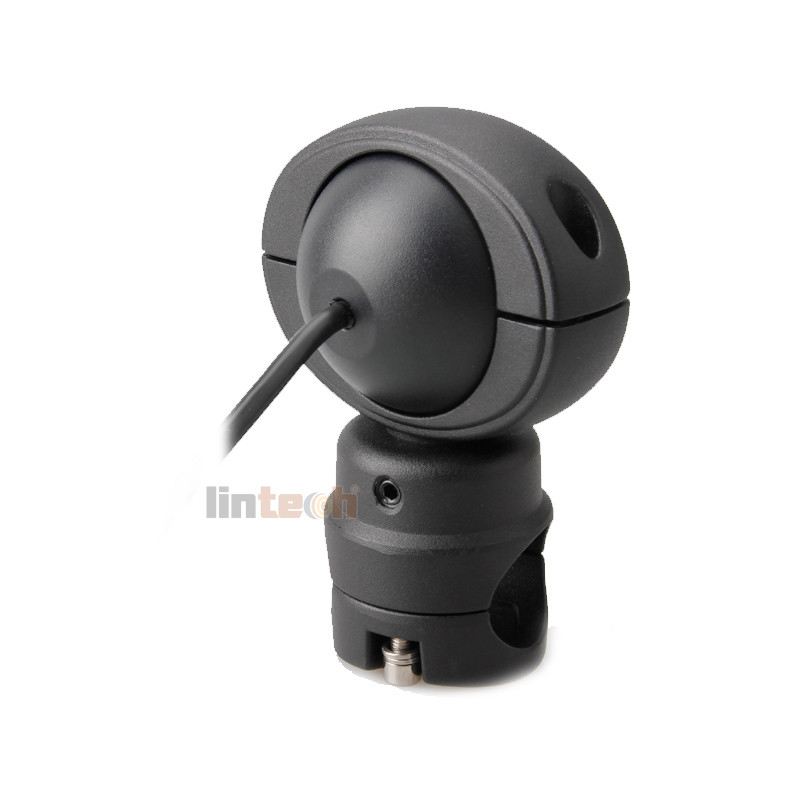

New Type Side/Rear view Camera with Clamp Holder for Side Mirror bracket installation
Model No.:LC-009D2
- Sensor: 1/3″ SHARP CCD / AHD 1080P / AHD 960P
- View angle: 120°
- Night vision: 9pcs IR LED
- IP rating: IP68 (Waterproof)
- Voltage: 12V (+/- 10%)/ 1,5 Watt
- Certificates: CE/FCC/E-mark
- Warranty: 1-3 Years
FEATURES:

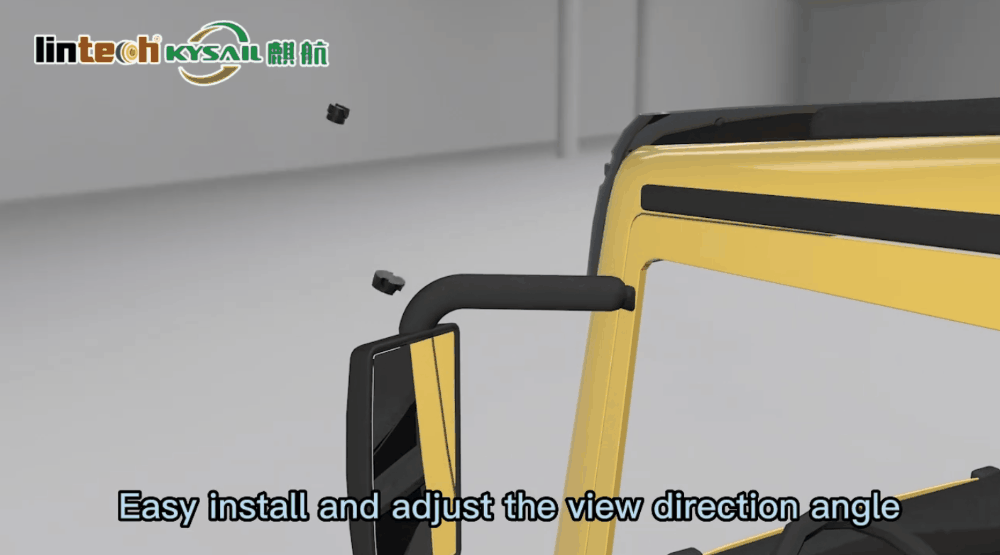

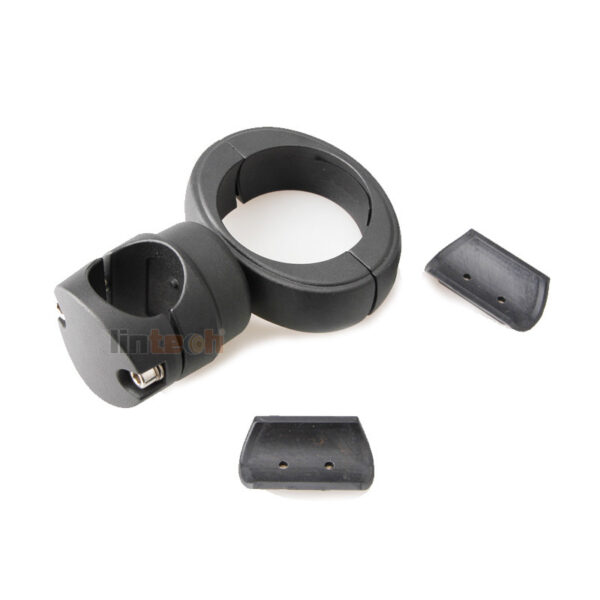

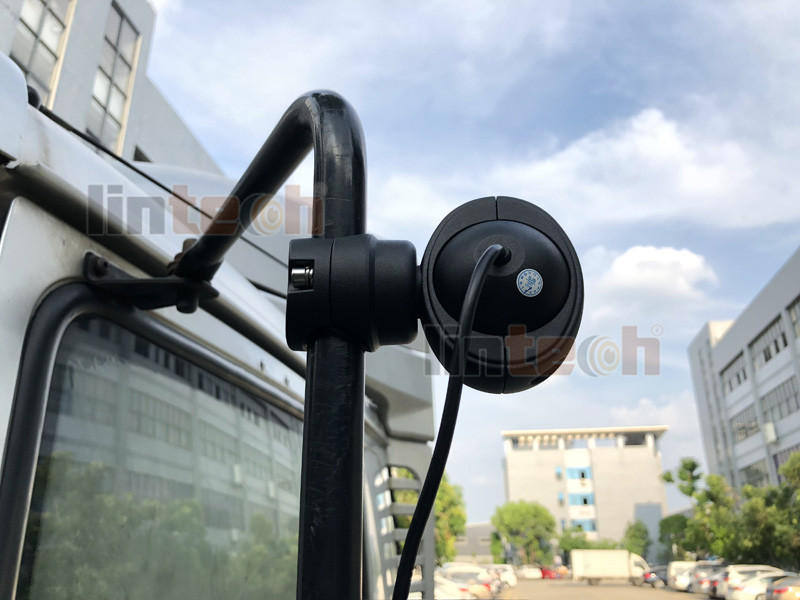

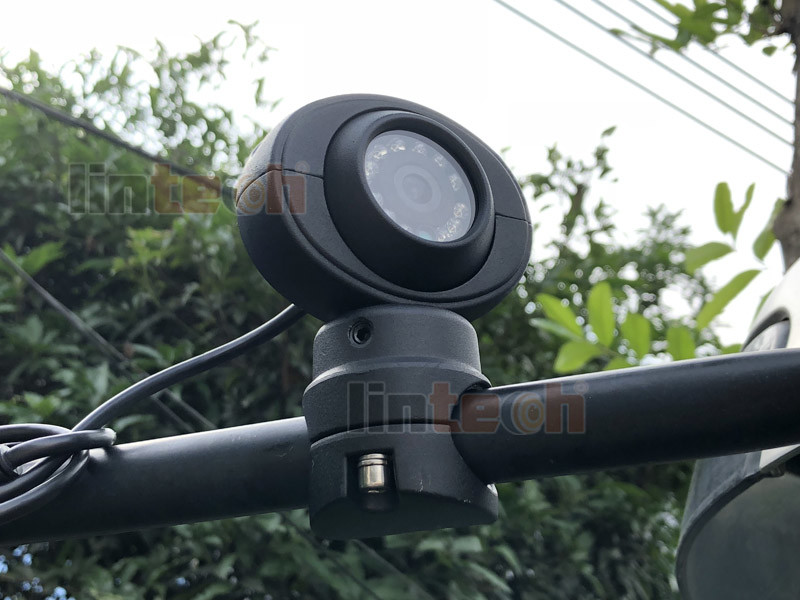

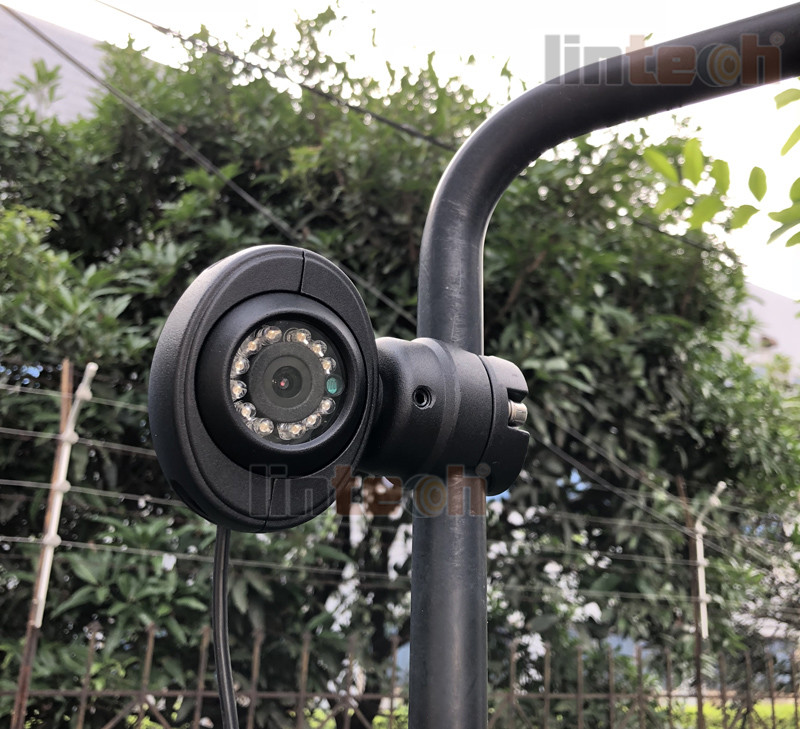

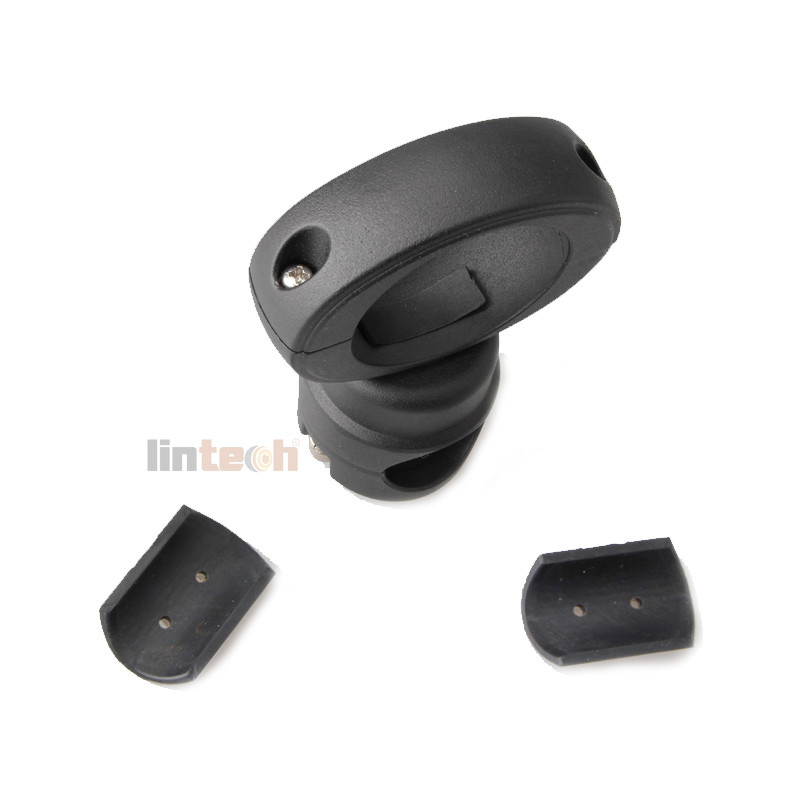

- New Bracket for Truck / Bus Side Mirror pipe clamp holder install
- Wide view angle up to 120 degree
- 9pcs Built-in Infra-red night vision IR LEDs
- Heavy duty and strong full alloy housing
- Optional Mirror/normal view switch
- Optional Heating function for extremely cold condition
| Subject | Standard Parameter | Optional Parameter | Optional Parameter | Optional Parameter |
|---|---|---|---|---|
| Image sensor | 1/4″ SHARP CCD | 1/3″ SONY CCD | 1/3” CMOS AR0130 | NVP2441H + IMX323 CMOS |
| Resolution | N:510×492 pixels P: 500×582 pixels |
N:976×494 pixels P: 1020×508 pixels |
1280*960 (1.2M Pixels) |
1280*960 (1.2M Pixels) |
| Horizontal Resolution | 420TVL | 700TVL | 960P | 1080P |
| TV System | NTSC/PAL | |||
| Lens | 2.5mm | 2.8mm | 2.8mm | 2.8mm |
| View angle | 120 degree (90 Horizotal,75 Vertical) | 120 degree (90 Horizotal,75 Vertical) | Horizontal 90 , Vertical 50, Diagonal 102 | Horizontal 105 , Vertical 53, Diagonal 122 |
| Power supplier | 12VDC | |||
| Current consumption | 150mA | |||
| Power consumption | 1.8W @ 12VDC | |||
| Min illumination | 0 Lux (LED ON) Night Vision | |||
| IR LED | 9 pcs (Night vision distance 5m) | |||
| Waterproof rating | IP68 | |||
| Packing weight | 0.4KG | |||
| Dimension(WxHxD) | 77mm x 62mm x 90mm (MAX) | |||
| Operation temperature | -20 ~ +70 C-degress |
