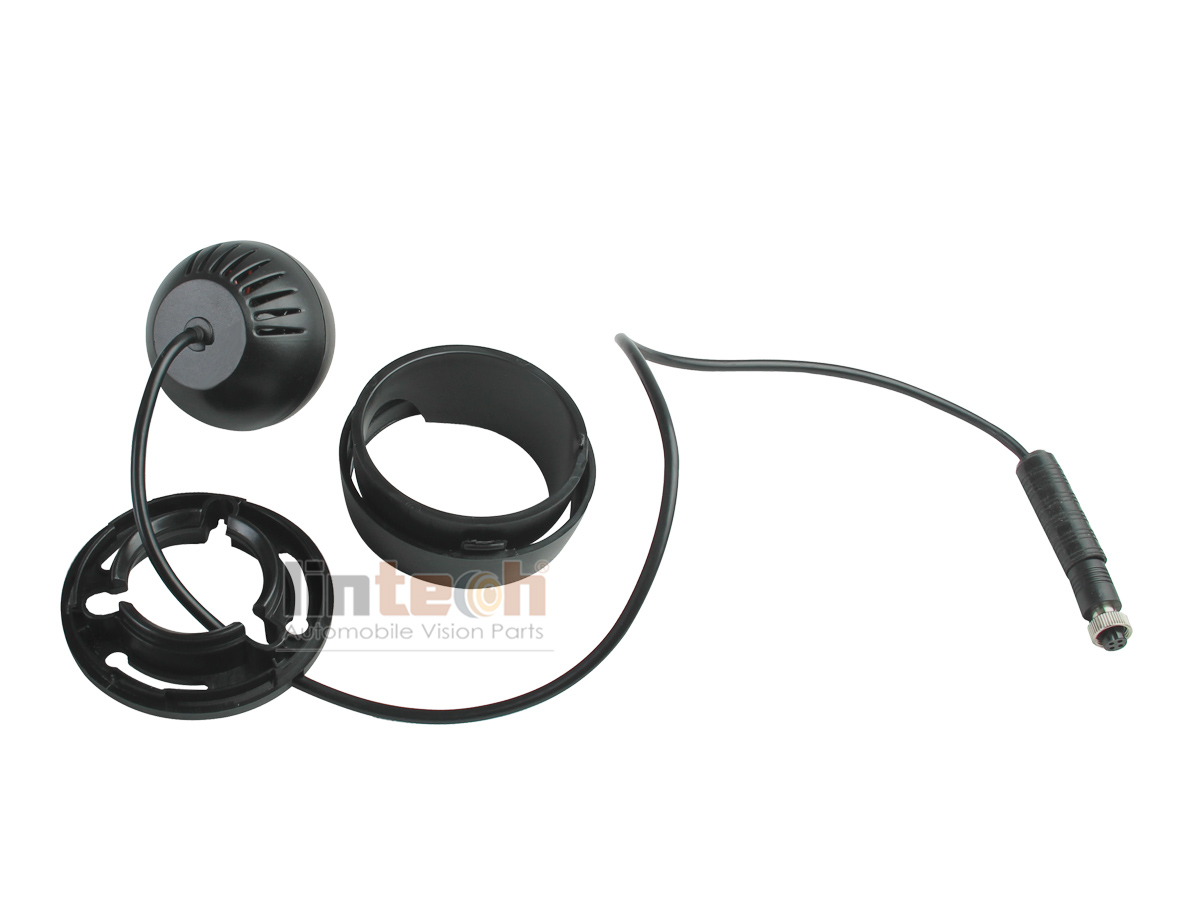

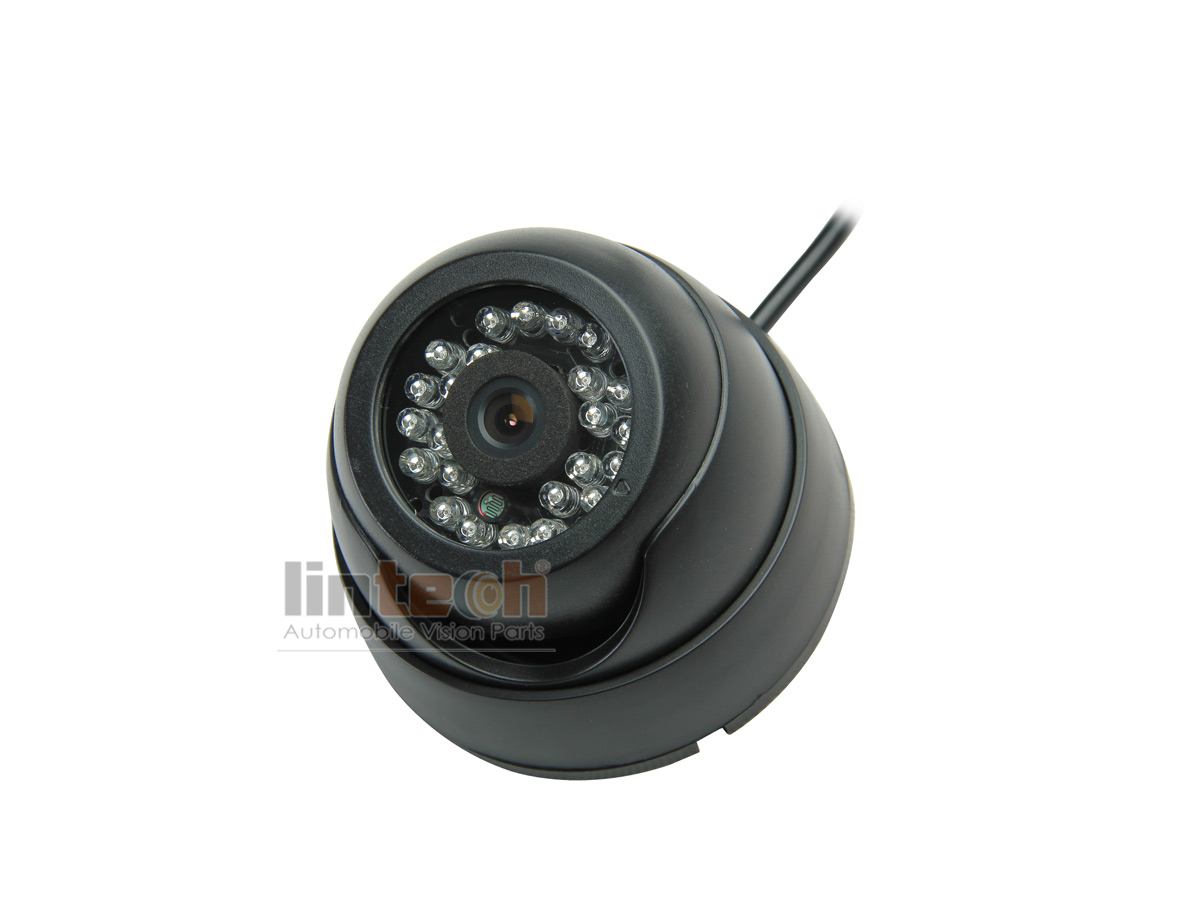

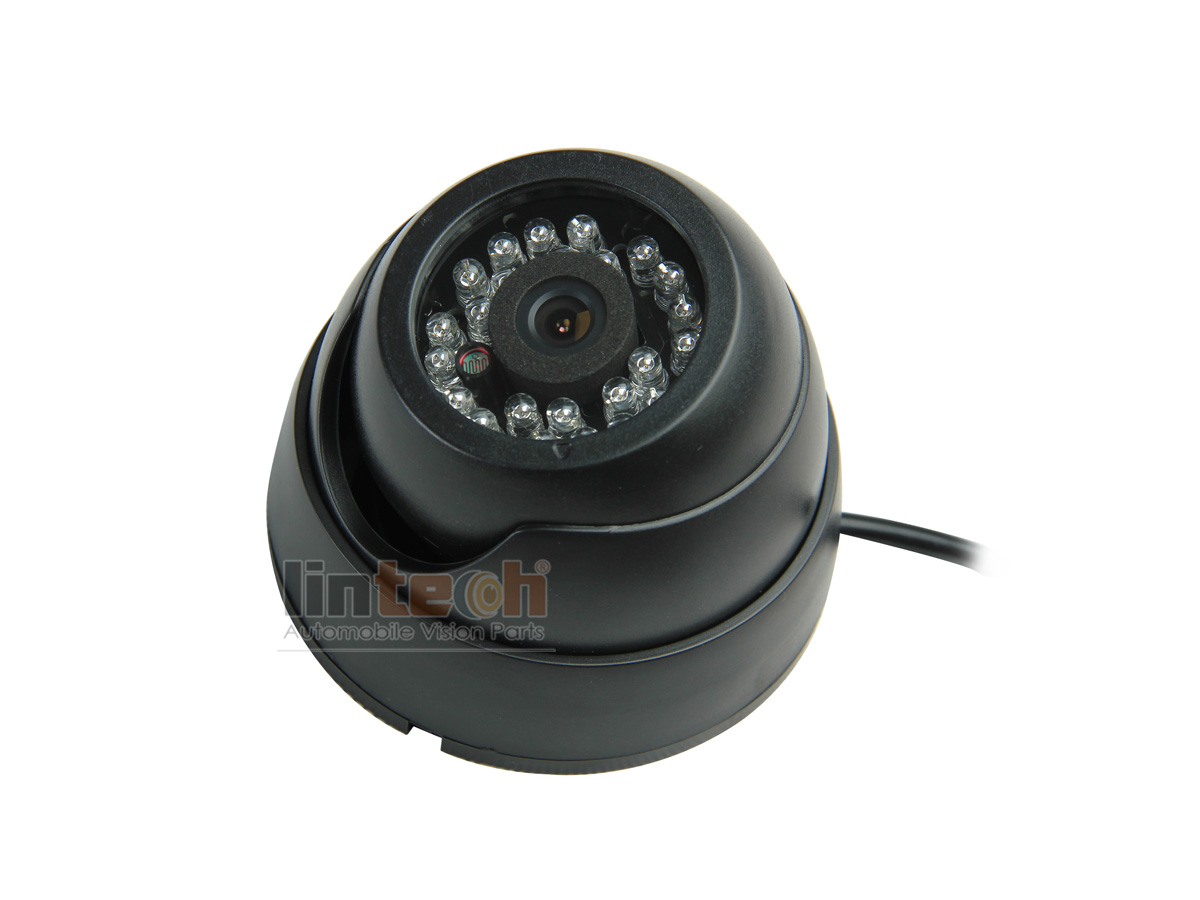

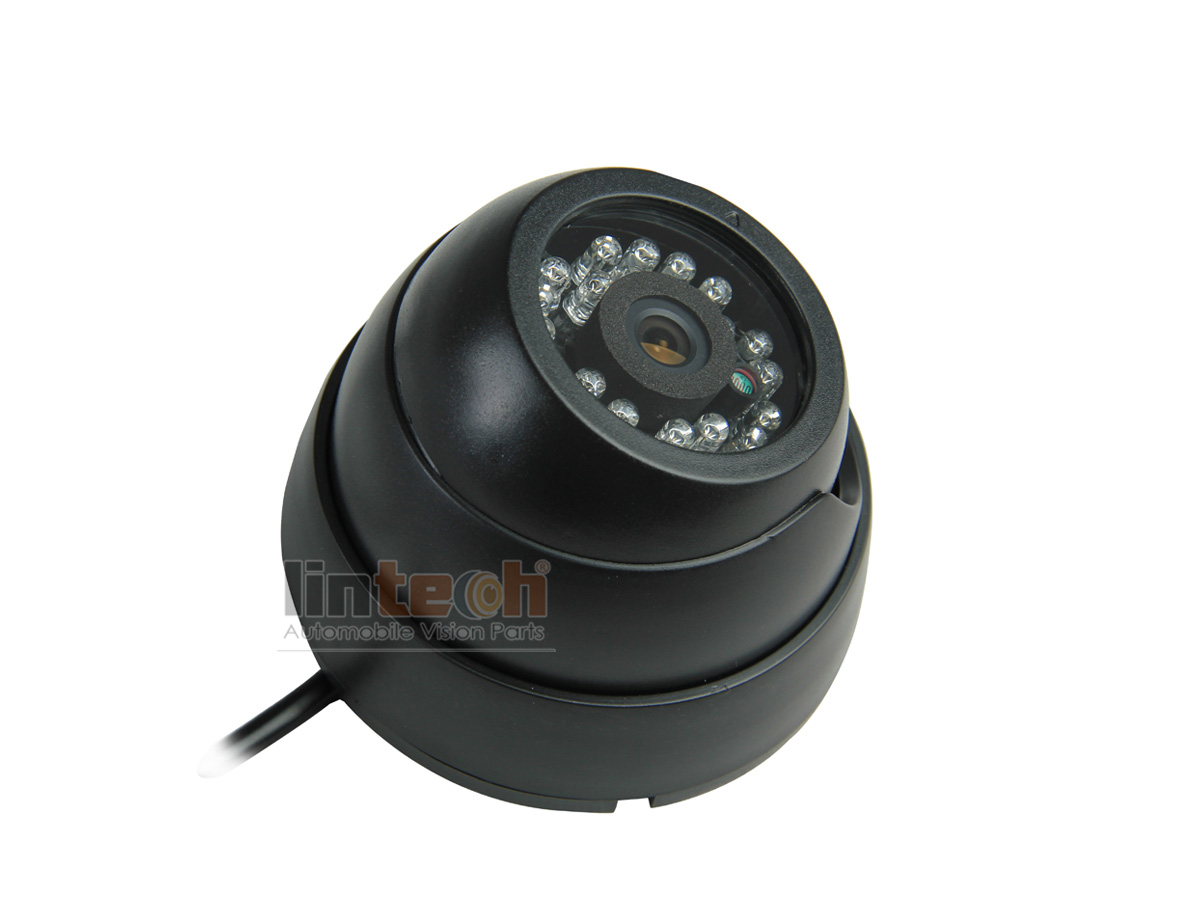

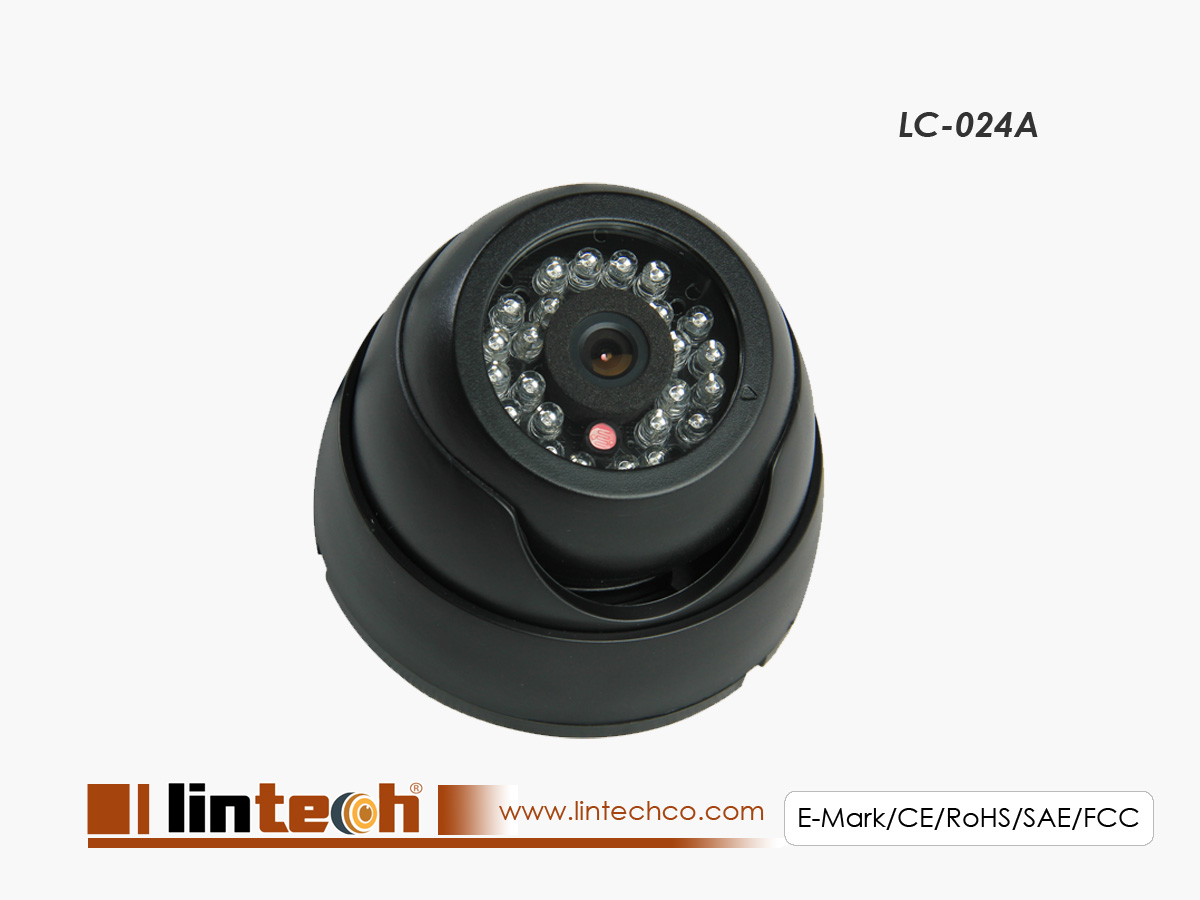

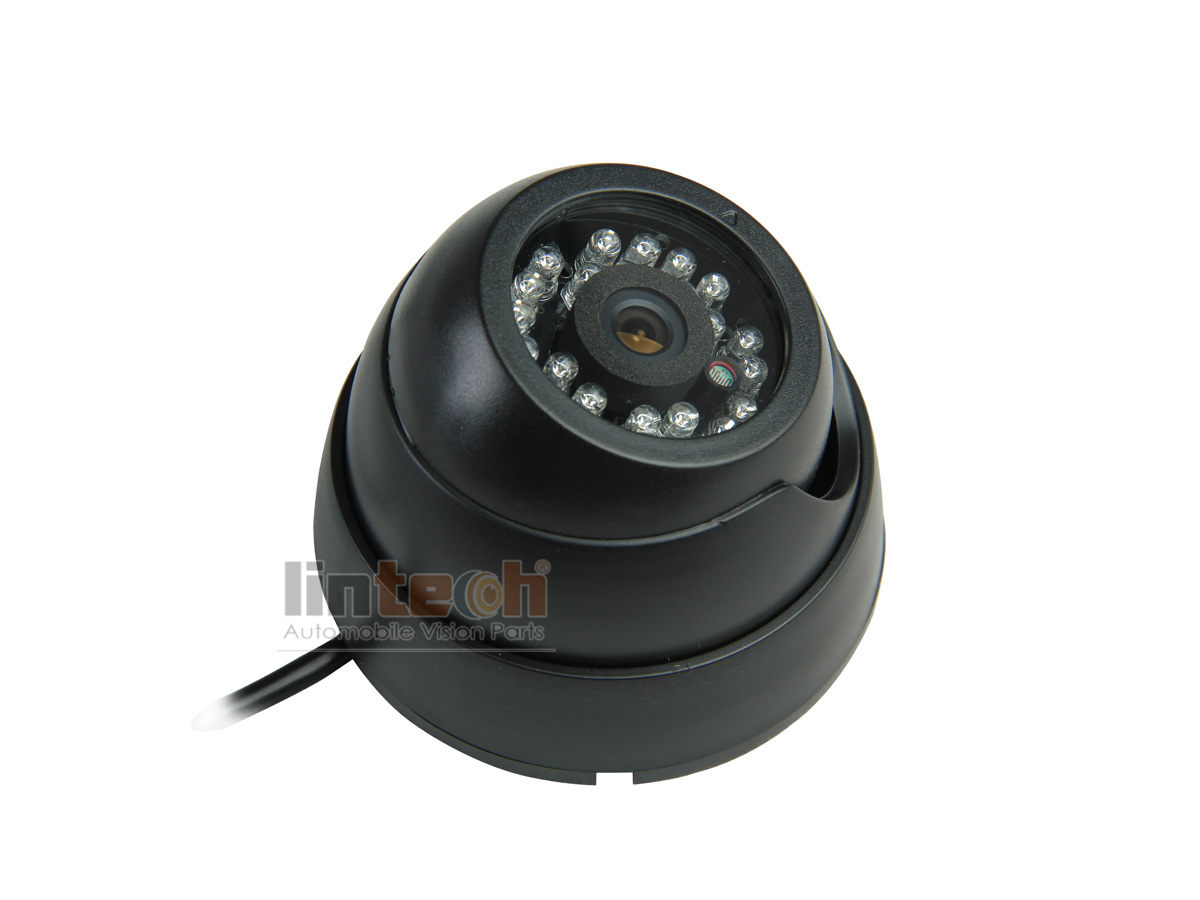

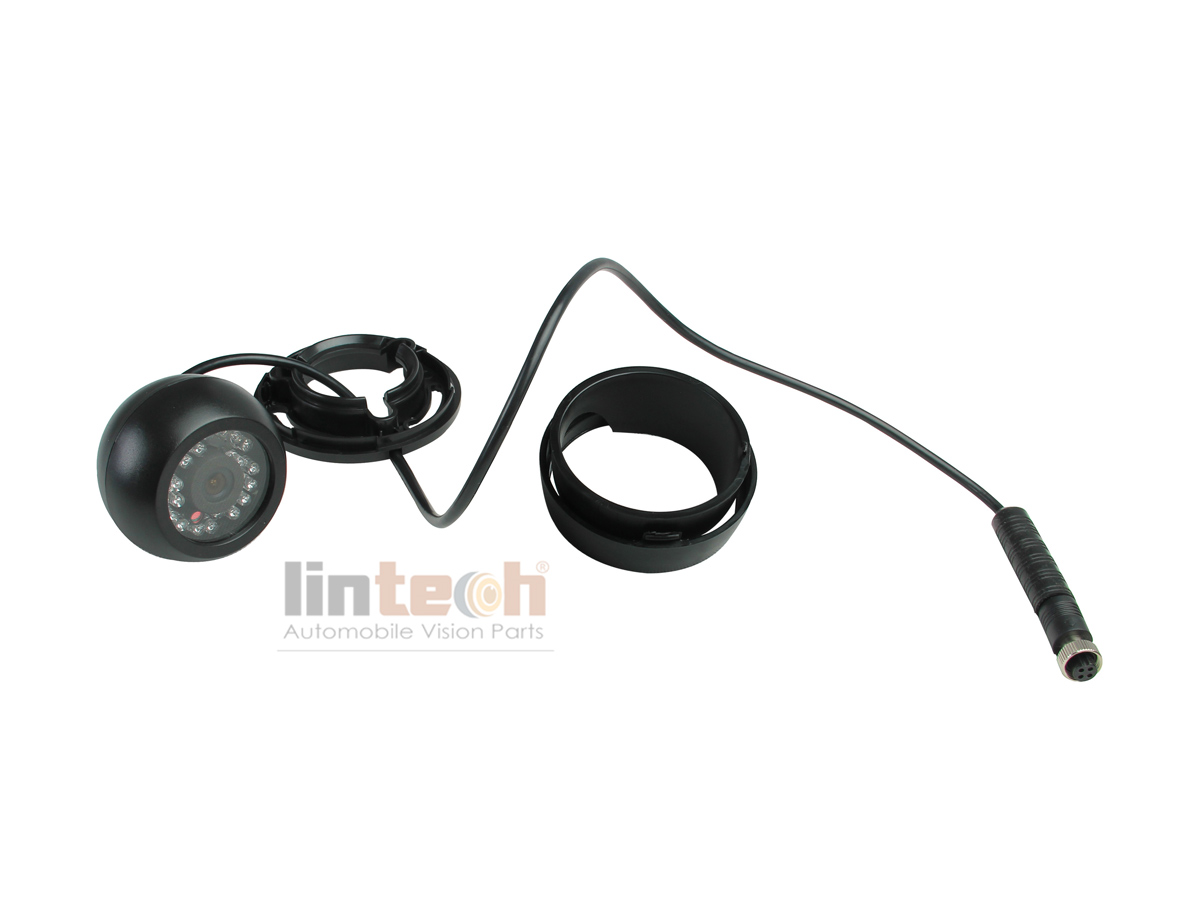

User Manual DownloadColor CCD Sensor Dome Camera for Bus Inside Security System
FEATURES:
-Plastic/Aluminum house available (different cost)
-With 24pcs IR LED, good performance even at night
-Easy adjust view angle
-Easy installed
-Different sensor chip and lens matching optional for image quality and cost balance
| Subject | Standard Parameter | Optional Parameter |
|---|---|---|
| Image sensor | 1/4″ SHARP CCD | 1/3″ SONY CCD |
| Resolution | N:510×492 pixels P: 500×582 pixels |
N:976×494 pixels P: 1020×508 pixels |
| Horizontal Resolution | 420TVL | 700TVL |
| TV System | NTSC/PAL | |
| Lens | 2.5mm | 2.8mm |
| View angle | 120 degree (90 Horizotal,75 Vertical) | |
| Power supplier | 12VDC | |
| Current consumption | 180mA | 180mA |
| Power consumption | 2.1W @ 12VDC | 2.1W @ 12VDC |
| Min illumination | 0 Lux (LED ON) Night Vision | |
| IR LED | 24 pcs (Night vision distance 7m) |
|
| Waterproof rating | IP30/IP67 | |
| Packing weight | 0.5KG | |
| Dimension(WxHxD) | 92mm x 72mm x 92mm (MAX) | |
| Operation temperature | -20 ~ +70 C-degress |
