Model No.:LC-007A



  • Sensor: 1/4″ SHARP CCD Sensor 420TVL
  • View angle: 120°
  • Night vision: 7pcs IR LED
  • IP rating: IP69K (Waterproof)
  • Voltage: 12V (+/- 10%)/ 1,5 Watt
  • Certificates: CE/FCC/E-mark
  • Warranty: 1-3 Years



FacebookTwitterGoogle PlusPinterest

Descriptions

LintechCo: Leading Chinese B2B Side Mirror Camera Supplier.

FEATURES:

-Special design for side mirror view camera

-Heavy duty, strong alloy housing

-Wide view angle up to 120 degree

-High level waterproof reta IP69K

-7pcs Built-in Infra-red for night vision purpose

-Optional Heating function for extremely cold condition



SubjectStandard ParameterOptional Parameter
Image sensor1/4" SHARP CCD1/3" SONY CCD
ResolutionN:510×492 pixels
P: 500×582 pixels
N:976×494 pixels
P: 1020×508 pixels
Horizontal Resolution420TVL700TVL
TV SystemNTSC/PAL
Lens2.5mm2.8mm
View angle120 degree (90 Horizotal,75 Vertical)
Power supplier12VDC
Current consumption150mA150mA
Power consumption1.8W @ 12VDC1.8W @ 12VDC
Min illumination0 Lux (LED ON) Night Vision
IR LED7 pcs (Night vision distance 5m)
Waterproof ratingIP69K
Packing weight0.45KG
Dimension(WxHxD)79mm x 57mm x 87mm (MAX)
Operation temperature-20 ~ +70 C-degress



Data Sheet

Photos

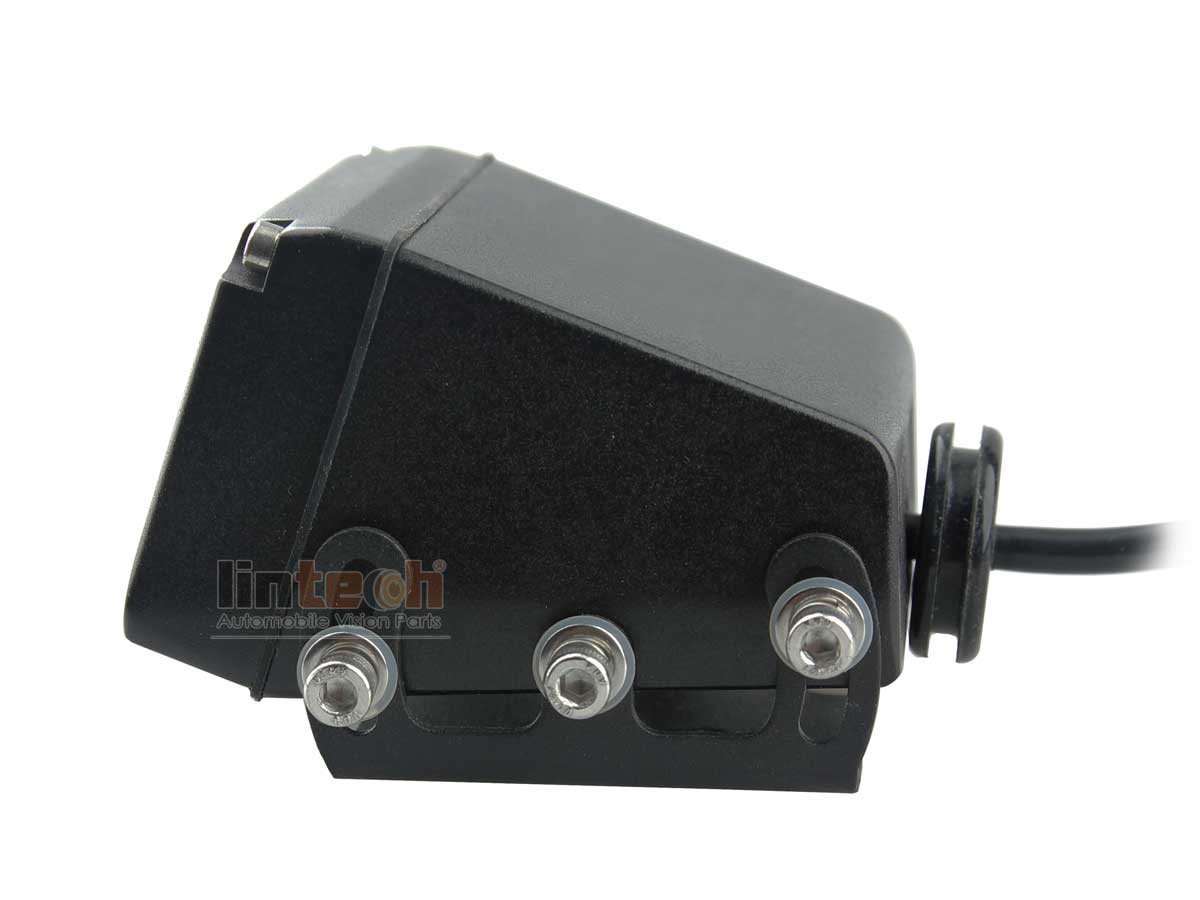

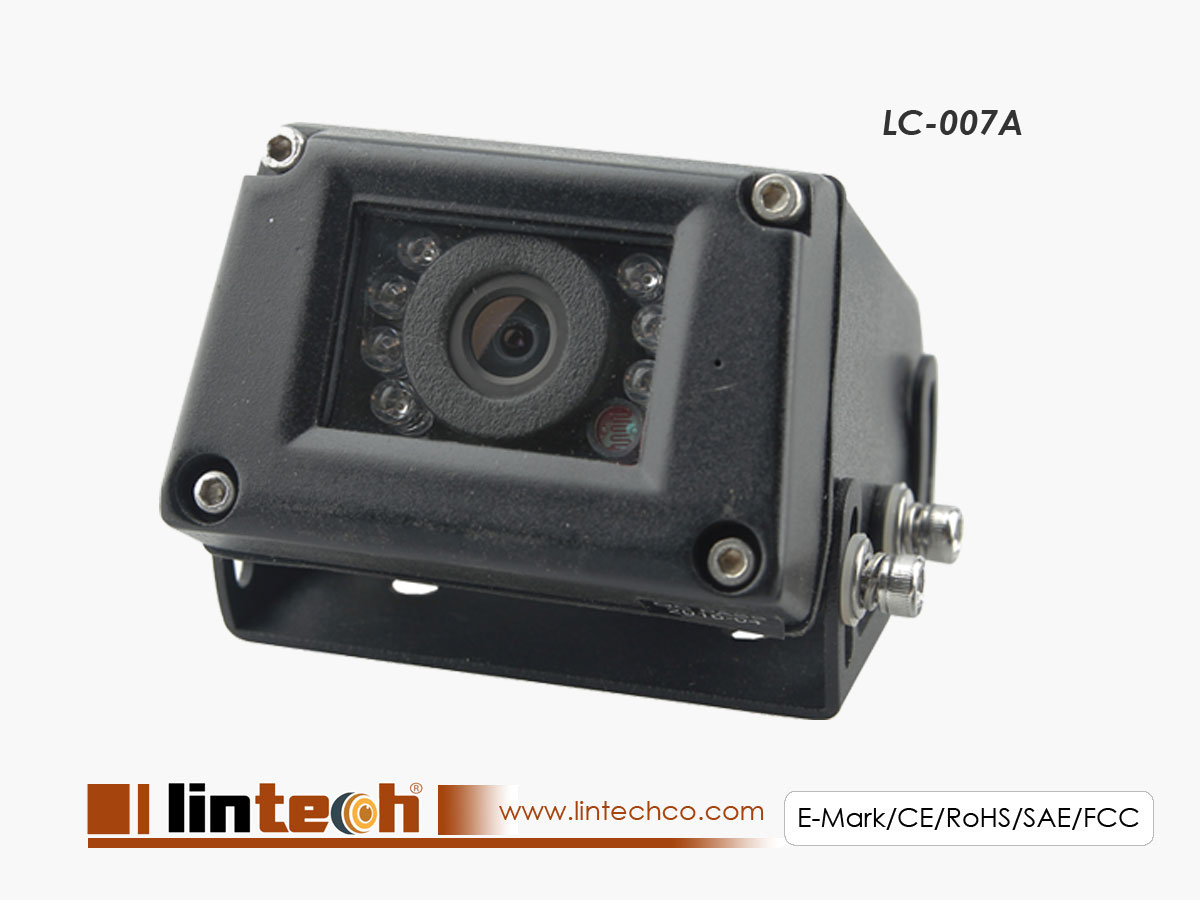

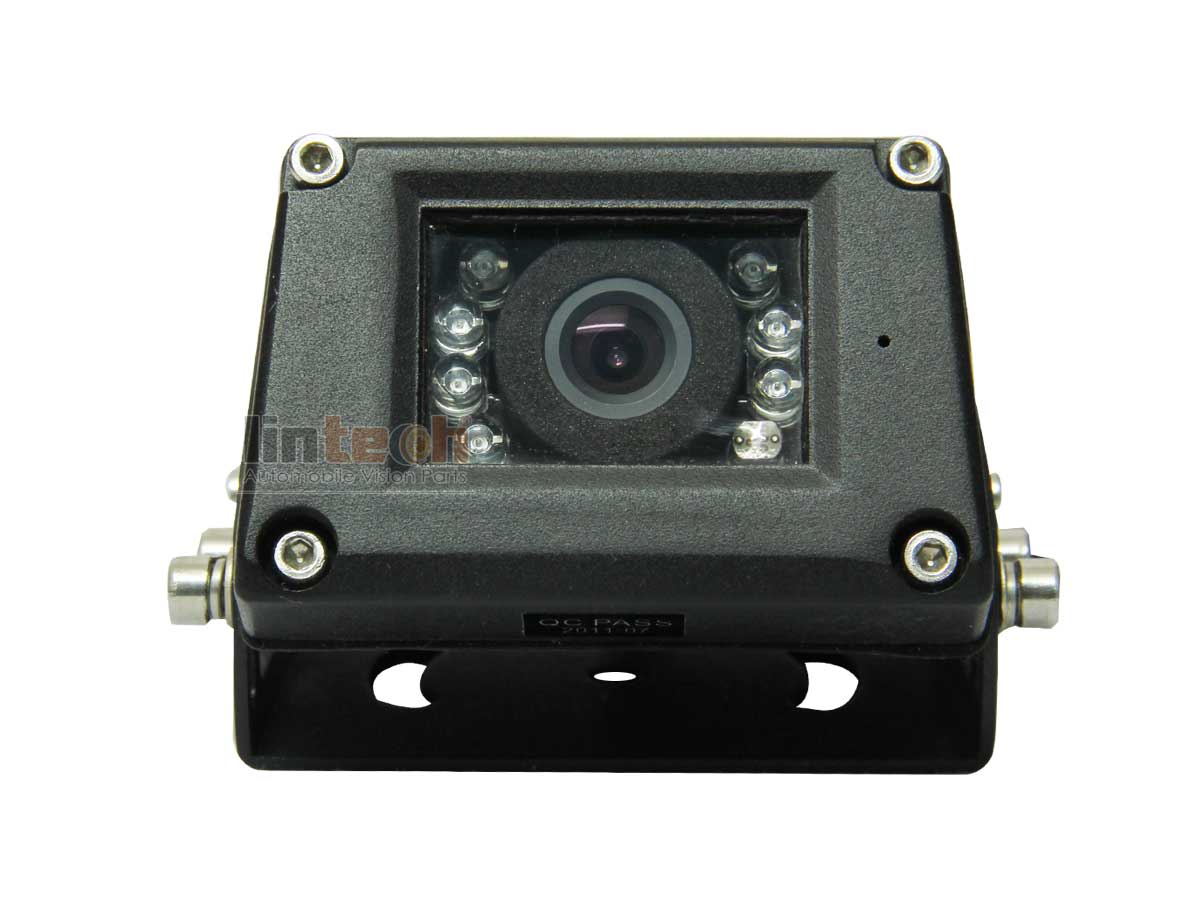

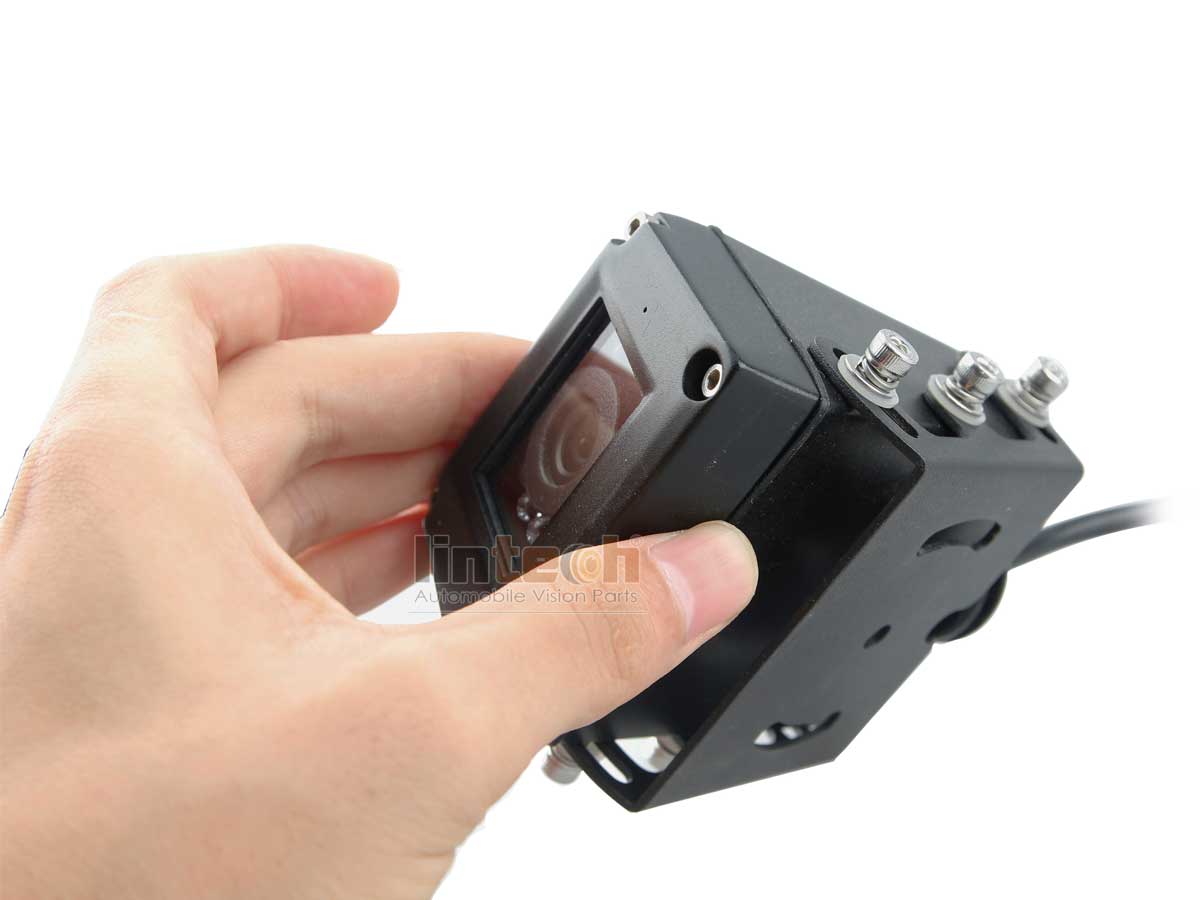

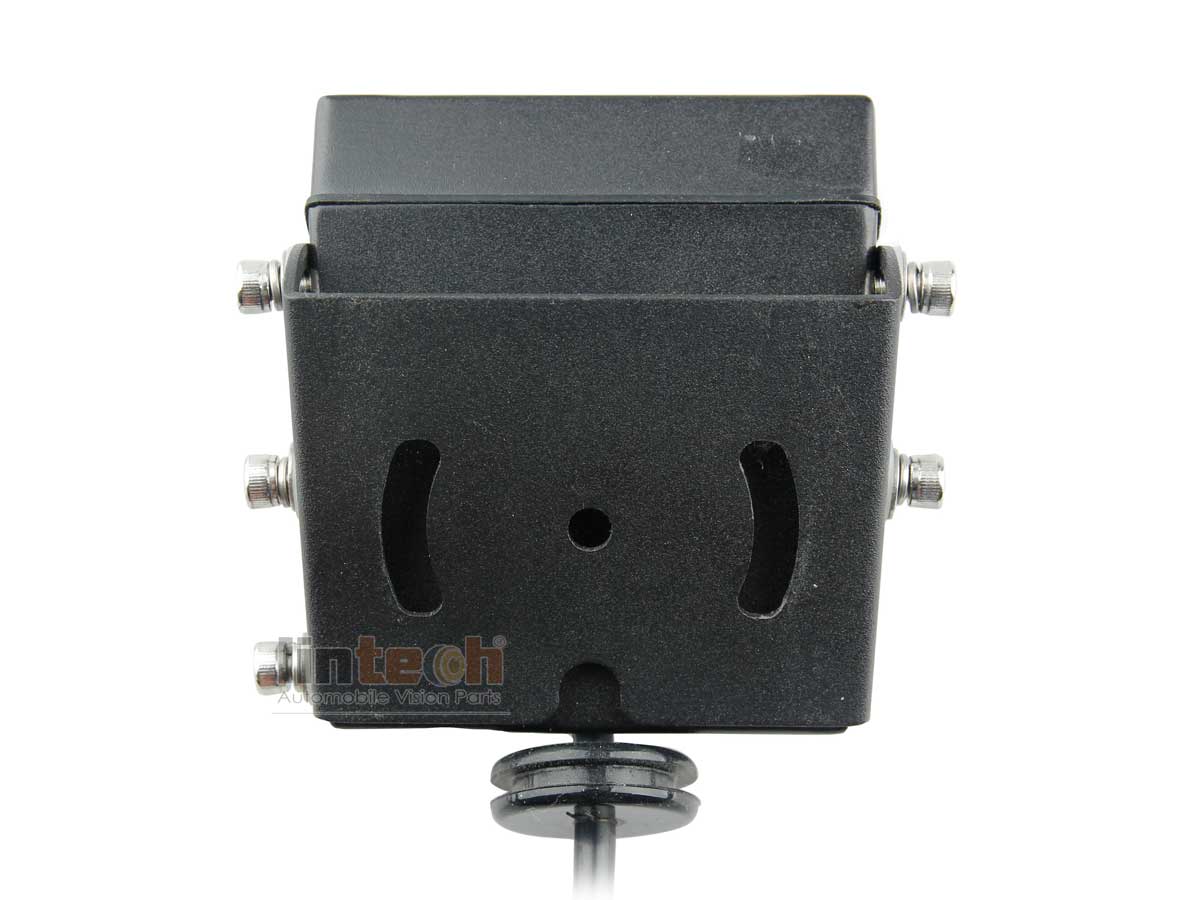

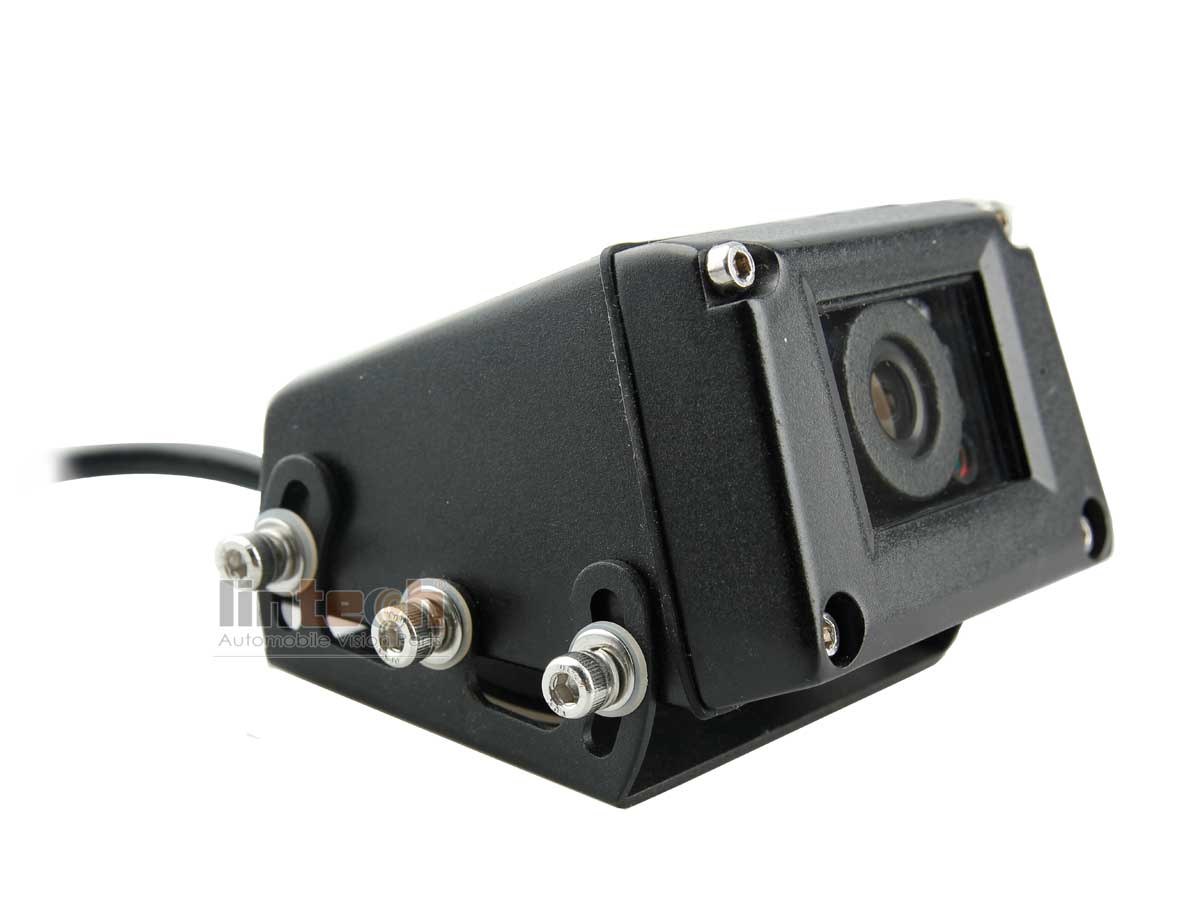

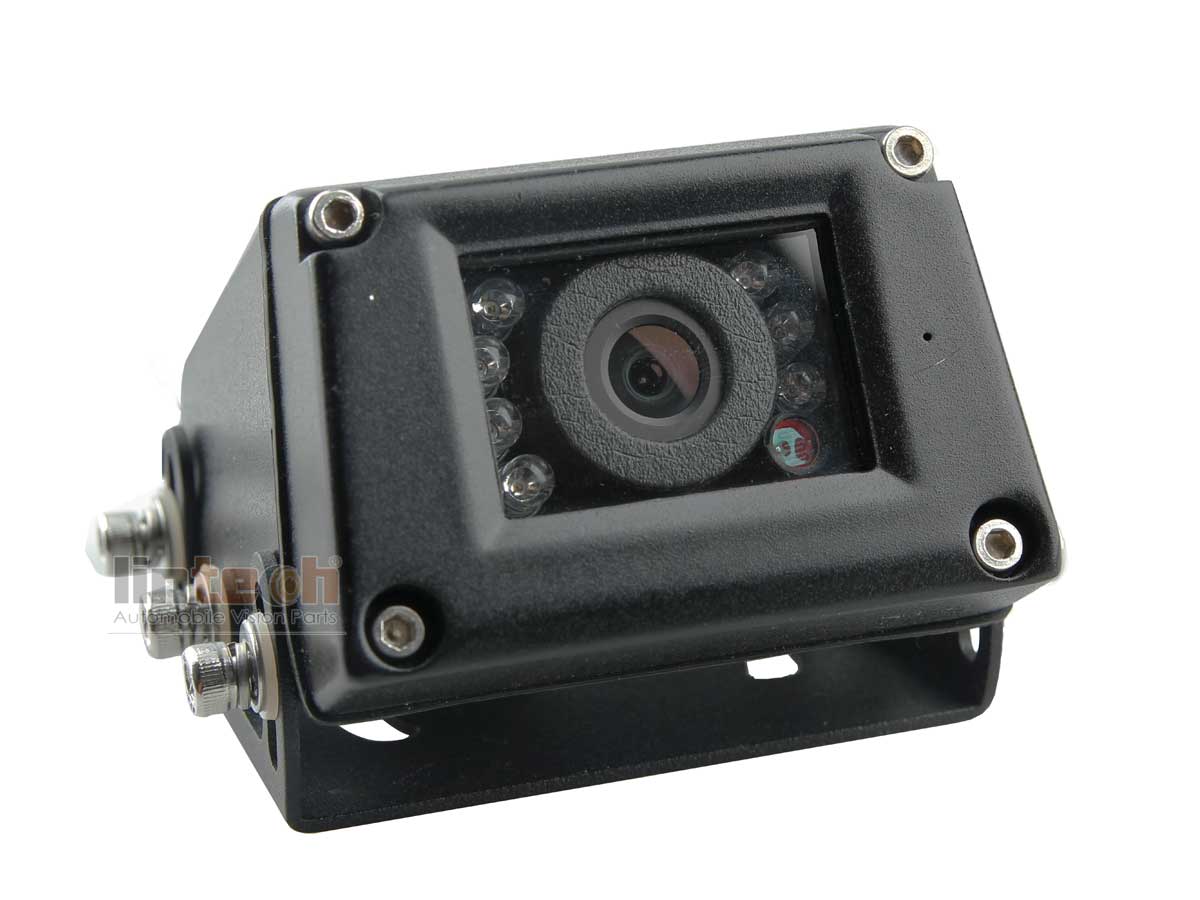

Side Mirror Camera: Night Vision Waterproof IP69K, LC-007A
Side Mirror Camera: Night Vision Waterproof IP69K, LC-007A
Side Mirror Camera: Night Vision Waterproof IP69K, LC-007A
Side Mirror Camera: Night Vision Waterproof IP69K, LC-007A
Side Mirror Camera: Night Vision Waterproof IP69K, LC-007A
Side Mirror Camera: Night Vision Waterproof IP69K, LC-007A
Side Mirror Camera: Night Vision Waterproof IP69K, LC-007A
Side Mirror Camera: Night Vision Waterproof IP69K, LC-007A
Side Mirror Camera: Night Vision Waterproof IP69K, LC-007A
