How to Install Semi-Truck Camera Systems for Better Safety and Efficiency

Installing semi-truck camera systems helps make roads safer and better. Big trucks are important for moving goods but can be dangerous. In 2021, 5,700 big trucks were in deadly crashes. About 63% of these crashes happened because of other cars or objects. Cameras that record in real-time can lower these risks. They help drivers stay safe and record accidents. Studies say AI dash cams can reduce crashes by 60%. This saves money and makes roads safer. The proper semi-truck camera systems installation ensures they work effectively for safety.

Key Takeaways

Adding cameras to semi-trucks helps make roads safer by cutting blind spots and recording crashes.
Pick the correct tools and supplies to make sure the cameras work well and last a long time.
Put cameras in the right places to see the road and area clearly for better safety.
Teach drivers how to use the cameras to drive safer and avoid accidents.
Clean the lenses and check the wires often to keep the cameras working and lasting longer.

Tools and Materials for Semi-Truck Camera Systems Installation

Tools You Need for Installation

To install dash cams in your truck, you need good tools. Using strong tools makes the job easier and ensures the system works well. Below is a table showing the key features and standards for these tools:

Feature/Standard	What It Means
Strong Build	Made with tough materials to handle heat and vibrations.
Supercapacitor	Works well in extreme conditions without losing performance.
Secure Mounting	Keeps the camera firmly in place during rough rides.
Smart Wiring & Power Use	Connects directly to the truck’s power and saves energy.

Choose tools that meet these standards. For example, a sturdy drill can handle the truck’s vibrations. You’ll also need screwdrivers, wire cutters, and crimping tools for setup.

Materials for Wiring and Mounting

Good wiring and mounting materials are just as important as tools. These materials keep the cameras steady and working properly. The table below lists some materials you might need:

Item	What It Does

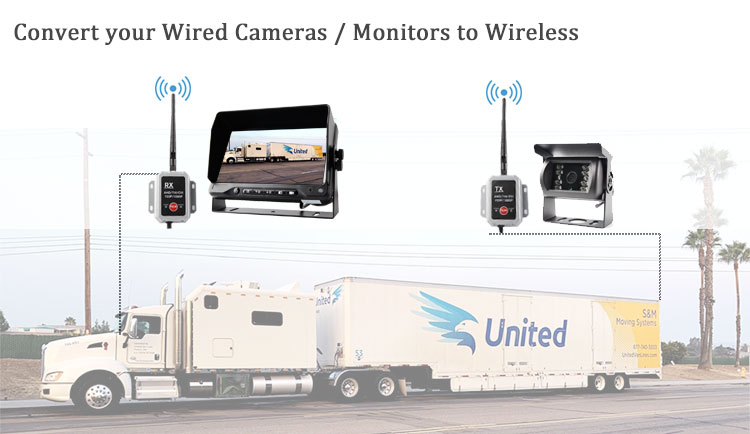

Wireless Receiver (PX-1420WR)	Waterproof, can go outside or inside, needs clear signal paths.
Wireless Battery Camera (PC-1420WC)	Sticks to the truck with magnets, needs proper aiming and antenna setup.
Wireless Camera (PC-1450WC)	Connects to a +10-32VDC power source, follow the guide for setup.

These materials are made for tough truck conditions. Waterproof receivers work well in bad weather, and magnetic cameras are easy to adjust. Always read the instructions to get the best results.

Getting the Semi-Truck Ready for Installation

Picking the Best Spot

Finding the right spot for your camera is important. Look for areas on your truck that give a clear view of the road and surroundings. Good spots include the windshield, side mirrors, and the back of the trailer. These places help the cameras see blind spots and improve visibility.

Think about what the camera needs to see. A front camera should show the whole road ahead. Side cameras should watch lanes and blind spots. Rear cameras work best high up on the trailer to see behind the truck. Make sure the spots are clean and free from dirt or anything blocking the lens.

Also, check the manufacturer’s advice for where to put the cameras. They often suggest the best places for the cameras to work well. Putting them in the right spots makes driving safer and follows industry rules.

Staying Safe Before You Start

Before installing, focus on safety to avoid accidents or damage. Use a checklist to make sure the truck is ready. Here’s a table with key things to check:

Checklist Item	What to Do
Truck Check	Look over the truck’s inside, outside, and mechanical parts.
Digital Tools	Use mobile checklists for quick and accurate inspections.
Semi-Truck Focus	Check parts like the trailer and coupling systems.

Follow Federal Motor Carrier Safety Administration (FMCSA) rules too. Keep track of driving hours, inspect the truck regularly, and follow speed and weight limits. These steps help your truck stay legal and safe.

For the installation, use original parts like OEM harnesses and alarms. Adding safety lights can also help you see better while working. By being careful, you lower risks and make the job safer.

Mounting the Semi-Truck Camera System

Types of Camera Mounting Options

When setting up a semi-truck camera system, there are different ways to mount it. Each method has its own advantages based on your truck’s design and needs. Here are three popular options:

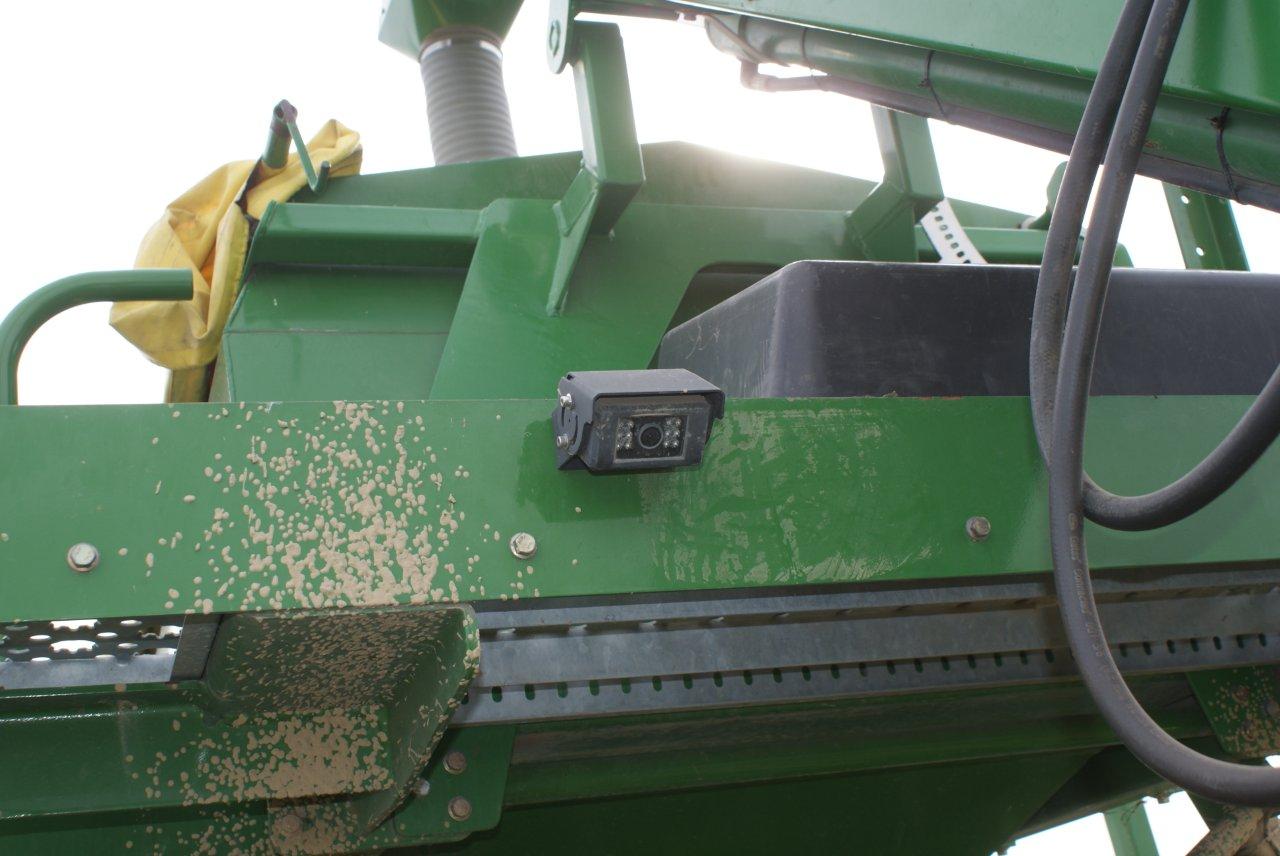

Flush Mounted: This type places the camera flat against the truck’s surface. It looks neat and protects the camera from bad weather, making it last longer.
License Plate Frame: This method attaches the camera near the license plate. It’s simple and works well for rear cameras, giving a clear view behind the truck.
Bracket Mounted: This option uses a bracket to hold the camera in place. The bracket is drilled into the truck, allowing flexible positioning for better coverage.

A report from the National Safety Council shows why proper installation matters. In 2021, large trucks were in 5,700 deadly crashes, an 18% rise from 2020. Picking the right mounting method can improve safety by reducing blind spots and increasing visibility.

Here are some real-world examples of how companies use these systems:

Company	Camera Type	Outcome
FedEx	Front and rear dash cameras	Improved safety by tracking driver behavior and recording accidents.
J. B. Hunt	Inward-facing dash cameras	Fewer preventable crashes, aiming for full use by August 2024.

These examples show how different mounting methods can make semi-trucks safer and more efficient.

Step-by-Step Guide to Mounting

Installing a semi-truck camera system takes careful planning. Follow these steps to do it right:

Gather the tools: Get tools like screwdrivers, a drill, wire strippers, and tape. Having everything ready will save time and make the job easier.
Prepare the area of installation: Pick a spot based on what the camera needs to see. Clean the area and disconnect the truck’s battery to stay safe.
Mount the camera: Place the camera where you want it. Mark the spot for wiring, then drill a hole for the wires. Make sure it doesn’t block other parts.
Finish the wiring process: Connect the camera to the truck’s power, usually through the fuse box. Use zip ties to keep the wires neat and secure.
Prepare the reverse signal wire: If the camera turns on when reversing, find the reverse signal wire. Connect it so the camera works automatically.
Check the camera connection: Reconnect the battery and test the camera. Look at the video feed and adjust the angle if needed for the best view.

By following these steps, you can install the camera system properly. This ensures it works well and helps keep the road safer.

Tip: Always check the manufacturer’s instructions. They include important details about mounting and wiring for the best results.

Wiring and Connecting the Semi-Truck Camera System

Setting up the wires correctly is key for your semi-truck camera system to work well. This section explains how to find power terminals, link the camera to the fuse box, and arrange wires neatly for a clean look.

Finding Power Terminals

Before wiring the camera, locate the truck’s power terminals. Each wire has a job, and connecting them right ensures everything works. Here’s a simple guide to the usual wiring setup:

Black wire – ground: Connect this to a metal part of the truck or an existing ground wire. This keeps the system stable.
Red wire – continuous power: Attach this to a 12-volt battery wire. Make sure it can handle at least 5 amps for the camera.
White wire – ignition power: Link this to a wire that turns on with the truck’s ignition. This makes the camera start and stop with the truck.

Check the wiring diagram from the camera maker carefully. If you’re unsure where to find these terminals, look in your truck’s manual or ask an expert.

Tip: Use a multimeter to check the voltage of each terminal. This helps avoid mistakes that could harm the system.

Hooking Up the Camera to the Fuse Box

After finding the power terminals, connect the camera to the fuse box. This gives the camera a steady power source. Follow these steps:

Find the fuse box: Look under the dashboard or near the driver’s seat.
Pick the right fuse slot: Choose a slot that matches the camera’s power needs. Use an add-a-fuse adapter to connect the red wire.
Ground the black wire: Attach the black wire to a metal bolt or screw near the fuse box.
Connect the ignition wire: Link the white wire to a fuse slot that powers on with the ignition. This ensures the camera only works when the truck is running.
Check the connections: Make sure all wires are tight and secure. Loose wires can cause problems.

Note: Always use fuses with the correct amperage. Using the wrong fuse can cause electrical issues or fires.

Keeping Wires Neat and Safe

Organized wires look better and last longer. Follow these tips to keep your wiring tidy and safe:

Tip	What to Do
Use fish tape	Help guide wires through tight spaces or along walls.
Secure with zip ties	Keep wires from hanging loose or getting tangled.

Run the wires along the truck’s existing wiring paths to avoid interference. Use fish tape to pull wires through hard-to-reach spots like behind panels. Once the wires are in place, secure them with zip ties or clips.

Keep wires away from moving parts or hot areas to prevent damage. Bundle extra wire neatly and tie it with a zip tie. This stops wires from becoming a hazard or getting caught while driving.

Pro Tip: Label each wire with a tag. This makes fixing or checking them later much easier.

By following these steps, you’ll have a safe and well-organized wiring setup for your semi-truck camera system.

Testing and Troubleshooting the Semi-Truck Camera System

Reconnecting Battery Terminals

Once the wiring is done, reconnect the battery to restore power. First, connect the positive terminal, then the negative one. Make sure both are tight to avoid power problems. Wear insulated gloves to stay safe from electric shocks. After reconnecting, check that all wires are secure and covered.

Tip: Turn off the ignition before reconnecting the battery. This helps prevent short circuits.

Testing Camera Functionality

Testing ensures the cameras work correctly. Turn on the ignition to power the system. Look at the monitor to check each camera’s video feed. Adjust the camera angles if needed for better views. Use these metrics to check performance:

Performance Metric	What to Check
Image Quality	Look for clear colors, brightness, sharpness, and no distortion.
Time Behavior	Check how fast images load and if there’s any delay.
Artifacts	Watch for flickering, lens glare, or other visual problems.
Durability and Ergonomics	Test for strong build and minimal screen glare.

If something isn’t right, read the manual for fixes. A working system makes driving safer and more efficient.

Common Issues and Solutions

Even with good setup, problems can happen. Here are some common ones and how to fix them:

Problem	How to Fix
Blurry or unclear video	Clean the lens to remove dirt or moisture.
No video showing	Check the wires and make sure the camera has power.
Slow or delayed system	Reduce other devices using the truck’s power.

Fixing issues quickly is important. Studies show most crashes happen due to driver mistakes. Video systems can help prevent many accidents. Regular maintenance and driver training also improve safety.

Note: Check your camera system often to find and fix problems early. This keeps it reliable and safe for a long time.

Teaching Drivers to Improve Safety and Efficiency

Why Driver Training Matters

Teaching drivers is key to using your semi-truck camera system well. Cameras alone won’t make driving safer unless drivers know how to use them. Training shows drivers how the system works and how it keeps roads safer. Confident drivers are more likely to trust and use the cameras when needed.

Research shows that combining coaching with monitoring reduces risky actions. These include sudden braking or sharp turns. Drivers who know they’re being watched tend to drive more carefully. This leads to fewer crashes and safer driving overall. Training also helps drivers understand video footage. They can learn from mistakes and improve their driving skills.

Simple Tips for Using the System

To get the best from your semi-truck camera system, try these tips:

Learn the Features: Understand what the system can do, like spotting blind spots or sending alerts. Knowing its abilities helps you use it better.
Fix Camera Angles: Make sure cameras are aimed to see blind spots and key areas. Check and adjust them often for clear views.
Watch Videos Often: Review recorded footage to spot driving habits. This helps find ways to improve and encourages safer driving.
Stay Focused: The camera system helps, but it doesn’t replace your attention. Always keep your eyes on the road and use the system as a helper.
Report Problems Fast: If the system isn’t working, tell someone right away. A broken camera system can hurt safety and performance.

By following these tips, you’ll use your camera system better and help make roads safer for everyone.

Adding a semi-truck camera system has many advantages. It helps with safety and makes work more efficient. These cameras record events, give live updates, and make fleets safer. They also keep customers happy and lower repair costs. The table below shows the main benefits:

Benefit	What It Does
Clear Event Records	Keeps accurate videos for insurance and legal purposes.
Live Updates and Warnings	Alerts drivers about dangers to keep them safe.
Better Fleet Safety	Reduces crashes and improves responsibility using video evidence.

If you’re not sure how to install it, ask an expert. Also, train drivers regularly to get the most out of these systems.

FAQ

What are the benefits of installing a semi-truck camera system?

A semi-truck camera system makes driving safer. It reduces blind spots and records accidents. You can watch driver behavior and lower crash risks. It also helps with insurance claims. These systems improve fleet work by tracking routes and cutting costs.

Can I install a semi-truck camera system myself?

Yes, you can install it by following the instructions. If you’re unsure about wiring or mounting, get help from a professional. This ensures the system works well and avoids mistakes. Bad installation can cause problems with how it works.

How do I maintain my semi-truck camera system?

Keep the camera lenses clean for clear videos. Check wires often for damage or wear. Fix loose cables to avoid issues. Test the system regularly to make sure it works. Doing these things keeps the system working longer.

Are semi-truck camera systems legal?

Yes, they are legal in most places. But check local rules about cameras inside the truck. Some areas have privacy laws for inward-facing cameras. Always follow the rules to avoid trouble.

What should I do if my camera system stops working?

Check the wires and connections for damage or looseness. Restart the system and make sure it has power. If it still doesn’t work, read the manual or call the company for help. Regular care can stop problems before they happen.
