You might wonder how 360° bird’s eye camera systems in vehicles actually work. These systems do not use aerial cameras. Instead, you see a synthetic birds-eye view created by multiple wide-angle cameras around your vehicle. Research shows that a bird’s eye view car camera improves awareness and lowers accident risk, especially during nighttime vehicle overview.
Key Takeaways
360° bird’s eye camera systems use multiple wide-angle cameras placed around the vehicle to create a clear, top-down view that helps drivers see all surroundings and avoid blind spots.
Advanced image stitching and automatic calibration keep the view sharp and accurate, improving safety and making parking and maneuvering easier.
These systems reduce accidents by improving awareness, support driver assistance features, and offer options like recording, upgrades, and easy management for better control and protection.
How 360° Bird’s Eye Camera Systems in Vehicles Work
Camera Placement and Coverage
When you use 360° bird’s eye camera systems in vehicles, you rely on several wide-angle cameras placed around your vehicle. These cameras sit at key points, such as the front grille, rear bumper, and both side mirrors. This setup helps you see your entire vehicle surroundings, even in areas that are hard to check with mirrors alone.
Researchers have found that the best way to cover every angle is to use overlapping fields of view. This means each camera’s view covers part of the next camera’s area. You get a seamless look at your vehicle from above, which helps you spot obstacles and avoid blind spots. For example, police vehicles use back seat and side cameras with wide fields of view to capture everything happening around them. These cameras can record automatically when something important happens, so you never miss a critical moment.
Here is a table showing the types of cameras and their coverage:
Camera Type | Horizontal Field of View | Vertical Field of View | Key Features |
|---|---|---|---|
Back Seat Camera | 150° | 93° | Infrared lighting, low-light, auto wide dynamic range |
Side Camera | 180° | 120° | Wide-angle, day/night, auto wide dynamic range |
Wide-angle lenses help you see more of your vehicle surroundings.
Overlapping camera views reduce blind spots.
You get better awareness and can make safer choices.
Researchers also use special computer programs to find the best places for each camera. These programs make sure you get full coverage with as few cameras as possible. This approach saves money and keeps the system simple. In real-world tests, placing cameras at the right spots, like parking lot entrances and perimeters, gives you the best surround view.
Image Stitching Technology
Once your cameras capture images from all sides, the surround view camera system uses image stitching to create a single, smooth top-down view. This process combines pictures from each camera into one seamless image. You see your vehicle and everything around it as if you are looking from above.
Modern image stitching uses advanced computer algorithms. These programs match up features from each camera’s view, like lines on the road or curbs. New technology, such as self-supervised feature detection and graph neural networks, helps the system find more matching points. This means the final stitched image looks clearer and has fewer errors. The SuperGlue algorithm, for example, removes mismatches and makes the top-down view more accurate.
Here is a table showing how new stitching methods improve image quality:
Metric | Traditional Methods | New Unsupervised Method |
|---|---|---|
Mean Squared Error (MSE) | Higher | Lower |
Peak Signal-to-Noise Ratio (PSNR) | Lower | Higher |
Structural Similarity Index (SSIM) | Lower | Higher |

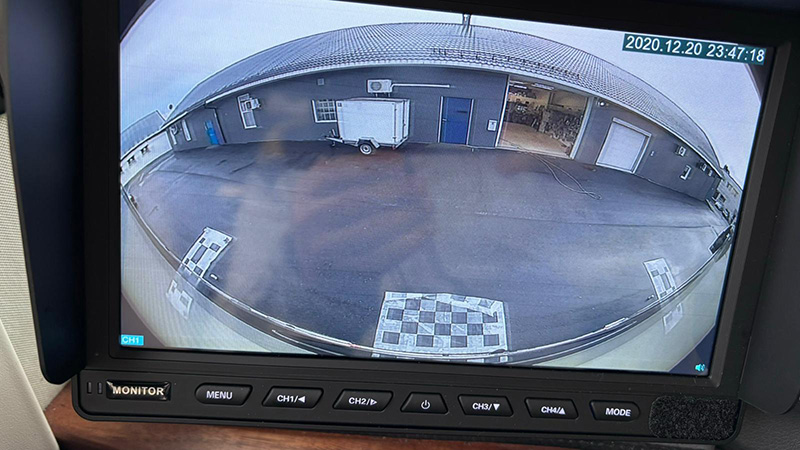

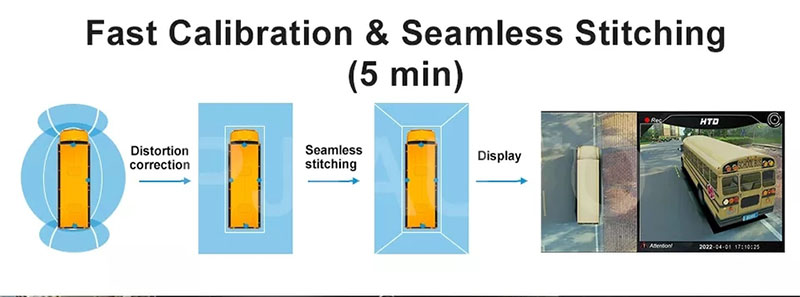

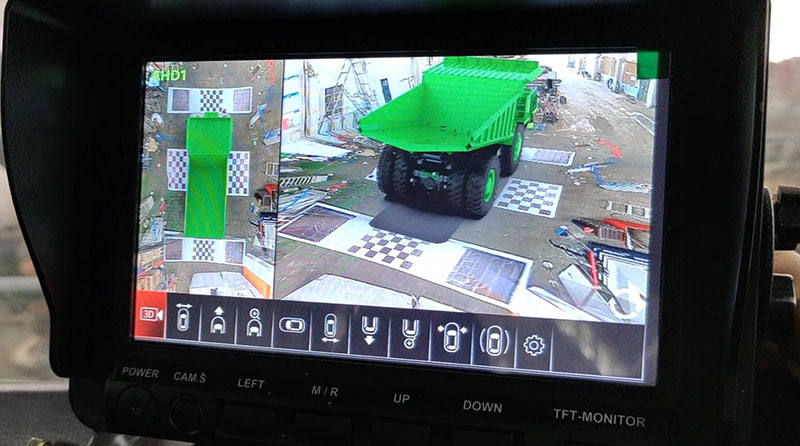

You benefit from these improvements because the view you see on your screen is sharper and more reliable. The system also uses calibration to make sure each camera lines up perfectly. Calibration means the system checks and corrects for lens distortion and camera position. Some systems use artificial intelligence to adjust calibration automatically, even while you drive. This helps keep the synthetic top-down view accurate, even if your vehicle moves or the cameras shift.
Tip: Fast and easy calibration means you can set up your 360 degree view car camera system without special tools or expert help.
Research shows that using both real and synthetic data for calibration improves accuracy and precision. For example, systems that use synthetic data reach a precision of over 82%, compared to 77% for systems using only real data. This means your surround view camera system gives you a more trustworthy view, which is especially important for autonomous vehicles and large commercial trucks.
With a 360 degree view car camera, you get a clear, real-time view of your vehicle and its surroundings. This technology helps you park, avoid obstacles, and drive with more confidence. The surround view camera system works quietly in the background, giving you a bird’s eye view car camera experience every time you get behind the wheel.
Surround View Camera System Benefits
Blind Spot Reduction
You often face challenges with blind zones, especially when you drive large vehicles. A surround view camera system gives you a perfect vehicle overview by showing every angle around your vehicle. This system uses multiple cameras to create a single, clear view. You can spot obstacles and other cars that you might miss with mirrors alone. Many commercial vehicles, like step vans and delivery trucks, use these systems to improve safety.
A pilot study with 37 commercial vehicles showed a 60% drop in incidents and an 86% decrease in crash costs after adding in-vehicle monitoring systems with cameras. You also see fewer risky driving behaviors, such as improper lane changes or distracted driving. Some companies saw a 37% to 52% reduction in these behaviors. These numbers show how a surround view camera system can make your driving safer and help you avoid accidents.
Tip: Surround view camera systems work well with ADAS features, such as lane departure warnings and collision alerts. You get even more protection on the road.
Parking and Maneuvering Aid
You can park and maneuver with confidence when you use a surround view camera system. The system gives you a real-time view of your surroundings, so you can see curbs, lines, and other vehicles. This helps you avoid bumps and scrapes. Many systems let you customize the view or add extra sensors for even better coverage.
You can use ADAS tools, like parking guides and obstacle detection, to make tight spaces easier to handle. The surround view camera system updates quickly, so you always have the latest view. You get help from advanced driver assistance systems, which work together with the cameras to give you a complete picture. This makes every parking job smoother and safer.
Note: You can upgrade your surround view camera system with more sensors or new ADAS features as technology improves.
360 Degree View Car Camera Features
Recording and Non-Recording Options
When you choose a 360 degree view car camera, you can pick from recording and non-recording options. Recording systems let you save video clips from every angle. You can review these clips if you need to check what happened during a drive or after an incident. Some systems record automatically when they detect movement or a sudden impact. This feature helps you keep a record for insurance or safety reviews.
Non-recording options give you a live, real-time view without saving footage. These systems focus on helping you park, avoid obstacles, and see blind spots. You get the same wide coverage, but you do not store any video. This choice works well if you want privacy or do not need to keep records.
Many 360 degree view car camera systems offer fast calibration. You can set up your cameras quickly, and the system adjusts itself for the best view. Prices vary based on features, such as recording, night vision, and the number of camera sensors included.
Tip: Always check if your system supports easy upgrades, so you can add new features later.
System Updates and Customization
You can improve your 360 degree view car camera system with regular updates and custom options. Many systems let you manage all your cameras from one dashboard. You can change settings, update policies, or adjust recording triggers for your whole fleet at once. This makes your system flexible and easy to control.
Centralized management lets you handle all cameras together, saving time.
You can keep using older camera sensors while adding new features, so you do not need to replace everything at once.
Automated updates and security controls protect your data and keep your system running smoothly.
Some systems let you customize reports, add new fields, or change how you search for video clips. You get mobile app support and automated workflows, which make your daily tasks easier. System-wide updates happen on a schedule, so you always have the latest features without extra work.
Note: Customization and updates help your 360 degree view car camera system stay reliable and ready for new technology.
You see how 360° bird’s eye camera systems use advanced technology to create a synthetic top-down view of your vehicle. These systems help you follow safety-related guidelines and use adas features. You improve safety and make your vehicle easier to handle. Adas tools support you in every driving situation.
FAQ
How do you calibrate a 360° bird’s eye camera system?
You follow on-screen prompts. The system guides you step by step. You do not need special tools or expert help.
Tip: Park on a flat surface for best results.
Can you add extra cameras or sensors to your system?
Yes, many systems let you add more cameras or sensors. You can upgrade for better coverage or new features.
Does a 360° camera system work at night?
Most systems use infrared or low-light cameras. You see clear images even in dark parking lots or at night.
Night vision helps you avoid obstacles after sunset.
