‌Enhance Your Driving Experience: LR-003W11 Wireless Reverse Sensor for Trucks

Wireless Obstacle Detection Sensor Systems Enhance Safety for Commercial Vehicles

In the bustling world of logistics and transportation, safety is paramount. Especially when it comes to maneuvering large trucks in tight spaces, the stakes are high. That’s why we’re thrilled to introduce the LR-003W11, an innovative 11Ghz Truck Wireless Reverse Sensor designed to elevate reversing safety for both passenger and freight vehicles. Whether you’re in Europe or the United States, this state-of-the-art sensor is here to revolutionize your driving experience.

Key Features and Benefits

High Sensitivity with Low False Alarm Rate

Equipped with a microwave sensor, the W11 boasts exceptional sensitivity, ensuring that potential obstacles are detected promptly. What’s more, its advanced technology minimizes false alarms, giving you peace of mind as you navigate through narrow spaces.

Weather-Resistant

Rain, fog, light, dust, and temperature fluctuations can significantly impact sensor performance. However, the W11 is engineered to withstand these elements, ensuring reliable performance in all weather conditions.

Active Detection with I/O Alarm Output

This sensor actively detects moving objects and obstacles within a 3-meter radius. When an object is sensed within this range, the W11 triggers an I/O buzzer sound signal, alerting the driver to potential hazards. Furthermore, this alarm output can be seamlessly connected to other sound and light alarms, enhancing overall safety protocols.

Wide Signal Angle for Comprehensive Coverage

With a horizontal angle of 160° and a vertical angle of 105°, the W11 provides comprehensive coverage, reducing blind spots and ensuring that no obstacle goes unnoticed.

11GHz-Millimeter-Wave-Radar-for-truck-Lintecj-LR-003-5

User-Friendly Installation

Installing the W11 is a breeze, thanks to its single-sensor design. The wide signal angle means fewer sensors are needed, simplifying the installation process and saving you time and money.

Technical Specifications

  • Rated Working Voltage‌: 12v~24vDC
  • Rated Operating Current (12V)‌: 160mA +/- 10mA
  • Sensor Band‌: 9.9~10.5GHz
  • Ranging Accuracy‌: 0.1m
  • Detection Distance‌: 3m
  • Horizontal Angle‌: 160°
  • Vertical Angle‌: 105°

How It Works

When connected to the reversing power, the W11 sensor powers on with a millisecond delay and immediately begins scanning its surroundings. If an object is detected within the 3-meter range, the sensor triggers an alarm. The buzzer warning mode varies based on the distance:

  • 2-3 meters‌: Slow, intermittent buzzing and flashing.
  • 0-2 meters‌: Continuous long buzzing, indicating an immediate threat.

11GHz-Millimeter-Wave-Radar-for-truck-Lintecj-LR-003-5

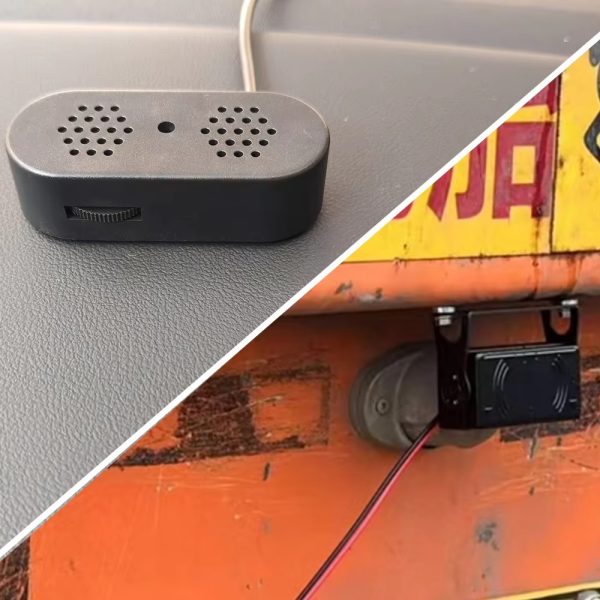

Installation Tips for Optimal Performance

For best results, follow these installation guidelines:

  • Position‌: Mount the sensor 70cm~100cm from the ground in a horizontal position.
  • Environment‌: Avoid installing near frequently started high-power electrical equipment or motors that may cause magnetic interference.
  • Testing‌: Ensure there are no obstructions within the sensor’s beam range during testing, and conduct tests in an open environment to avoid skewed measurement results.

User Evaluations

Truck Driver from Germany

“The LR-003W11 has been a lifesaver for me. The sensor’s high sensitivity and wide angle detection have significantly reduced the number of close calls I’ve had while reversing. Plus, the weather resistance is a huge plus, especially with the unpredictable weather we have in Germany.”

Fleet Manager from the USA

“Installing the LR-003W11 in our fleet has been one of the best decisions we’ve made. It’s easy to install, and the peace of mind it provides our drivers is invaluable. The low false alarm rate is particularly impressive, and it has improved our overall safety record.”

Logistic Company Owner from the UK

“We operate in some tight urban areas, and maneuvering our trucks can be challenging. The LR-003W11 has made a noticeable difference, reducing blind spots and making reversing operations much safer. Our drivers love it, and so do we!”

Conclusion

The LR-003W11 11Ghz Truck Wireless Reverse Sensor is a game-changer in truck reversing safety. With its high sensitivity, weather resistance, active detection capabilities, and user-friendly installation, it sets a new standard in the industry. Whether you’re operating in the dense urban landscapes of Europe, the vast highways of the United States, or elsewhere, the W11 is your ultimate ally in ensuring safe and efficient reversing operations.

Upgrade your truck’s safety today with the LR-003W11. Experience the future of reversing technology and drive with confidence.
