The Forklift Wireless Camera System with Front and Rear cameras  is an excellent tool to give the operator a variety of different views around the forklift / lift truck and is extremely easy to install and operate. The Safe-View system has wireless cameras (mounted with a rechargeable battery pack) that can be placed on the carriage to view the fork position when the mast is extended or mounted anywhere else on the lift that has lead or steel via magnets that hold up to 30~40kg.



The system uses an SD card (not included) to record all activity that occurs when the system is turned on.   The optional Magnetic Mount Camera Bracket equipped with impact bumper can easily be installed on the mast to protect the camera for front view applications. The Safe-View Wireless Camera System includes the 7” or 9” LCD Display, Rechargeable Battery is hard to ship by air will need you buy from local.


Forklift Safe-View Wireless Camera Features and Benefits:

  • 7” or 9” LCD Monitor with 120 degree view angle camera
  • Exceptionally clear picture
  • Digital wireless system with built-in transmitters in the camera and display
  • Automatic pairing capability with no interference from any other cameras
  • Night Vision technology so you can see clearly in low light conditions
  • Recording capability with the use of an SD card
  • 7” or 9” display accommodates up to 4 cameras
  • Built with water and impact resistant housing
  • Can be mounted anywhere on the forklift
  • Easy installation and operation
  • Camera view can be rotated in 90 degree intervals on each monitor
  • Battery life is 12-15 hours depending on weather conditions

Forklift Wireless Camera System Specifications:

  • LCD Monitor Size: 7” or 9”
  • Power Supply: 12V
  • Power Consumption: Maximum 6W
  • Transmitting Distance: Approximately 100’
  • Operating Temperature: -4F to 155 F RH 90%
  • Warranty: 12 months – covers manufacturer’s defects. Does not cover abuse or operator error.

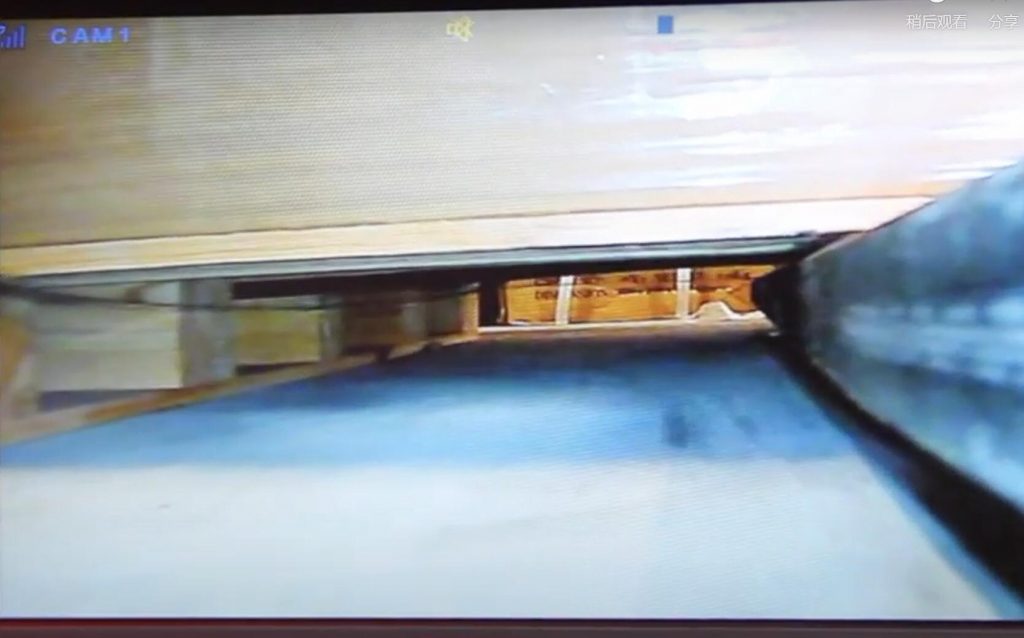

Front frok lift Camera install 3
Front frok lift Camera install 3
Forklift rear view camera
Forklift rear view camera

Estimated Recording Based on Video Quality & SD Card Size:
System overwrites oldest footage once SD card capacity is reached

16 GB card

  • Medium quality stream: 20 hours
  • HD quality stream: 9.5 hours

32 GB

  • Medium quality stream: 40 hours
  • HD quality stream: 19 hours

64 GB

  • Medium quality stream: 80 hours
  • HD quality stream: 38 hours

128 GB

  • Medium quality stream: 160 hours
  • HD quality stream: 76 hours
