How a Wireless 30X Zoom Crane Camera System Improves Safety and Efficiency on Construction Sites
Modern construction sites rely heavily on cranes for lifting and transporting heavy materials. However, crane operators often face a major challenge: limited visibility of the crane hook and load position, especially when working at high altitudes or in complex environments.
A wireless crane camera system is becoming an increasingly important tool to improve safety and operational efficiency. In this article, we introduce how a 30X Zoom Wireless Crane Camera System can help construction companies monitor lifting operations more effectively.
The Visibility Challenge in Crane Operations
During lifting operations, crane operators typically rely on ground personnel or signalers to guide them. This traditional method can lead to several problems:
-
Blind spots when the crane boom blocks the operator’s view
-
Difficulty seeing the exact position of the crane hook
-
Poor visibility during night operations or bad weather
-
Communication delays between operators and ground workers
These challenges can reduce efficiency and increase the risk of accidents.

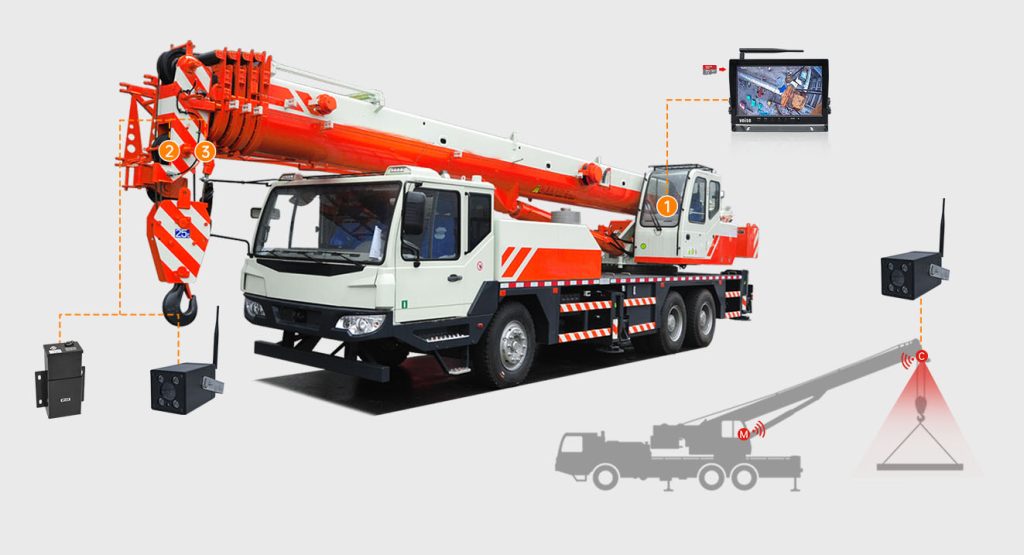

Installing a wireless crane monitoring camera directly near the crane hook allows operators to see the lifting area in real time, greatly improving control and safety.
30X Optical Zoom for Precise Hook Monitoring
One of the key features of the system is the 30X optical zoom camera.
With a powerful zoom capability, operators can clearly observe:
-
Crane hooks
-
Lifting cables
-
Load positioning
-
Ground personnel near the lifting area

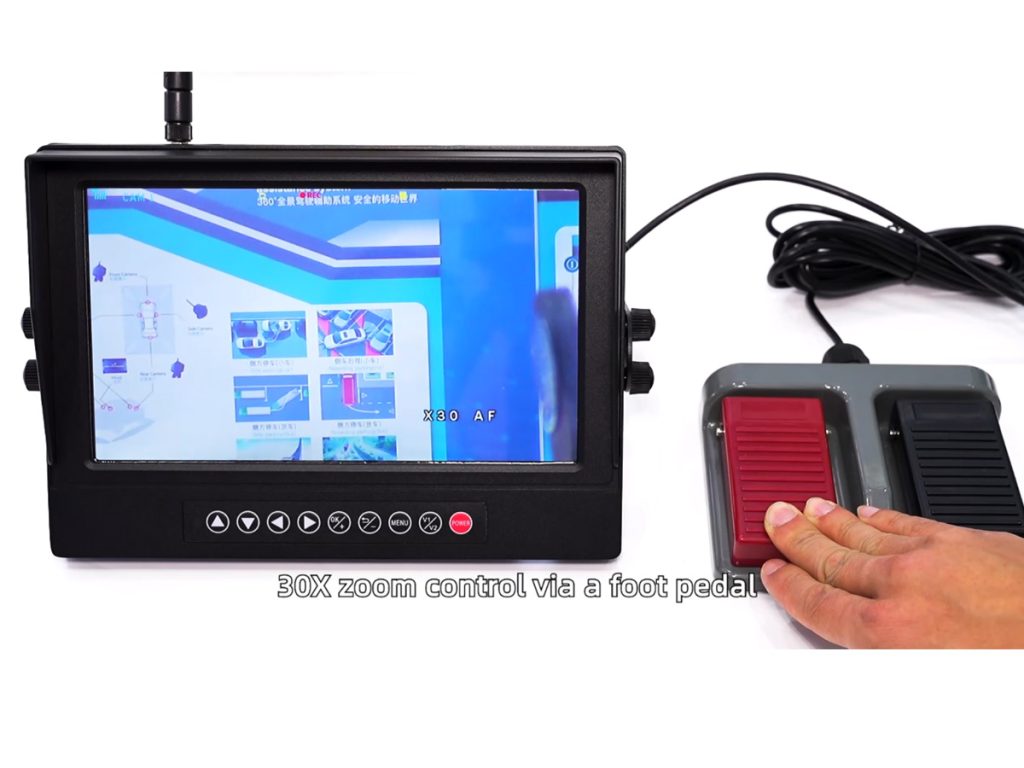

The camera supports foot pedal zoom control, allowing operators to adjust the zoom level quickly without interrupting crane operation. This design significantly improves working efficiency, especially during precise lifting tasks.
Stable Wireless Transmission for High-Altitude Operations
Cranes often operate at significant heights, which makes wired camera installation difficult.
This system supports wireless transmission up to 200 meters, providing a stable video signal between the crane camera and the monitor in the operator cabin.
Wireless transmission offers several advantages:
-
No complex cable installation
-
Faster setup on construction sites
-
Flexible installation on different cranes
This makes the system particularly suitable for tower cranes, mobile cranes, and lifting equipment used in construction projects.
Reliable Performance in Harsh Outdoor Environments
Construction sites expose equipment to rain, wind, dust, and extreme temperatures.
The wireless crane camera is designed with industrial-grade protection to handle these conditions.
Key durability features include:
-
IP68 waterproof camera for full outdoor protection
-
IP67 waterproof magnetic power bank
-
Wind-resistant damping mechanism to reduce shaking at high altitudes
The built-in damping system is particularly important for crane cameras, as strong wind at high altitudes can cause vibration. By minimizing shaking, the system ensures a stable and clear video image.
Night Vision for 24-Hour Construction Operations
Many construction projects operate around the clock to meet tight deadlines.
The crane camera provides night vision up to 30 meters, allowing operators to clearly monitor lifting operations even in low-light environments.
This improves safety during:
-
Night construction work
-
Early morning operations
-
Indoor or poorly lit areas
Portable Power with Magnetic Battery Installation
Another important feature is the magnetic battery power bank, which simplifies installation.
The battery pack provides:
-
20000mAh capacity
-
Magnetic base mounting for quick installation
-
Up to several hours of continuous operation
Because the power bank attaches magnetically to metal structures, the camera system can be installed without drilling or complex wiring.
This makes the system ideal for temporary crane setups or rental equipment.

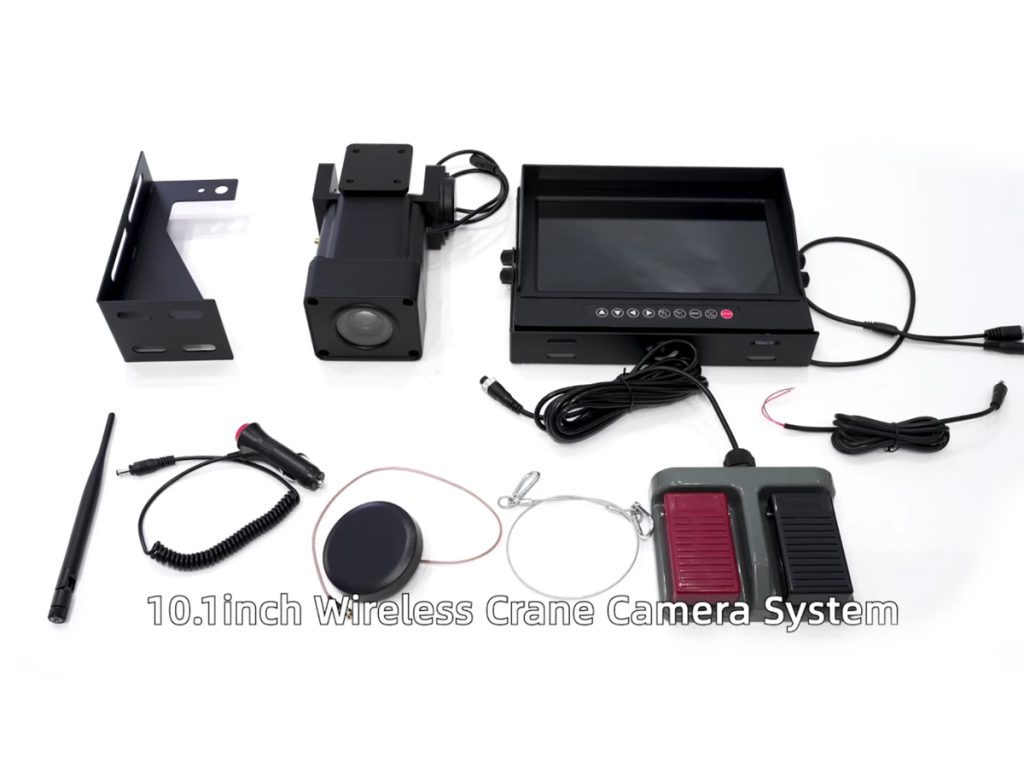

Real-Time Monitoring with a 10.1 Inch HD Display
The system includes a 10.1-inch HD monitor designed for clear visibility inside crane cabins.
Key monitor specifications include:
-
Resolution: 1024 × 600
-
Brightness: 500 cd/m²
-
Wide viewing angle: 85° in all directions
-
Wide voltage input: DC 8V–32V
The high brightness ensures the display remains visible even in bright outdoor environments.
Video Recording for Safety and Project Documentation
The system also supports video recording with up to 128GB storage.
Recording capabilities provide several benefits:
-
Documentation of lifting operations
-
Evidence for accident investigation
-
Training material for crane operators
-
Improved project safety management
Many construction companies now require video recording systems as part of their safety compliance procedures.
A Practical Solution for Safer Crane Operations
As construction projects become larger and more complex, improving crane visibility is essential for safety and efficiency.
A wireless 30X zoom crane camera system provides operators with a clear real-time view of lifting operations, helping to:
-
Reduce blind spots
-
Improve lifting accuracy
-
Enhance worker safety
-
Increase operational efficiency
With long-range wireless transmission, powerful optical zoom, night vision capability, and rugged outdoor design, this type of monitoring system is becoming an essential tool for modern construction sites.
If you are interested in learning more about crane monitoring camera solutions for construction equipment, feel free to contact us for additional product information and technical support.
