Introduction
Safety is a major concern for operators of heavy-duty vehicles such as mining trucks, construction machinery, and industrial transport vehicles.
Large vehicle size, blind spots, poor visibility, and complex working environments can all increase the risk of accidents.
Traditional camera systems help drivers monitor their surroundings, but cameras alone cannot always provide reliable detection in challenging conditions such as dust, rain, fog, or darkness.
This is why many fleets and equipment manufacturers are now turning to radar camera fusion systems to improve vehicle safety.
By combining millimeter wave radar sensors with HD cameras, this technology provides more accurate object detection and more reliable collision warnings.
What Is a Radar Camera Fusion System?
A radar camera fusion system combines two complementary technologies:
HD Cameras
Cameras provide real-time visual information that allows drivers to see the vehicle’s surroundings.
Millimeter Wave Radar
Radar sensors detect objects and measure their distance and speed, even in low visibility conditions.
When these two technologies work together, the system can provide more accurate environmental awareness and intelligent safety alerts.
360° Blind Spot Detection for Large Vehicles

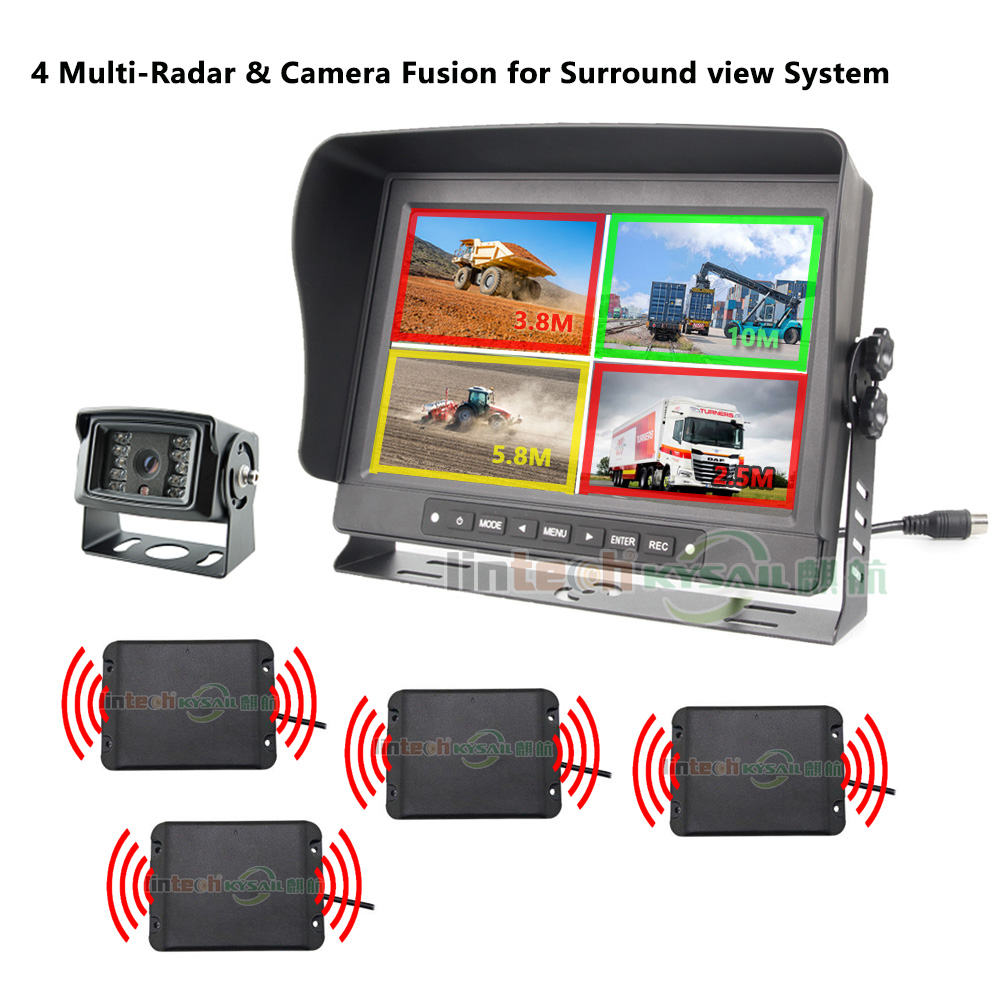

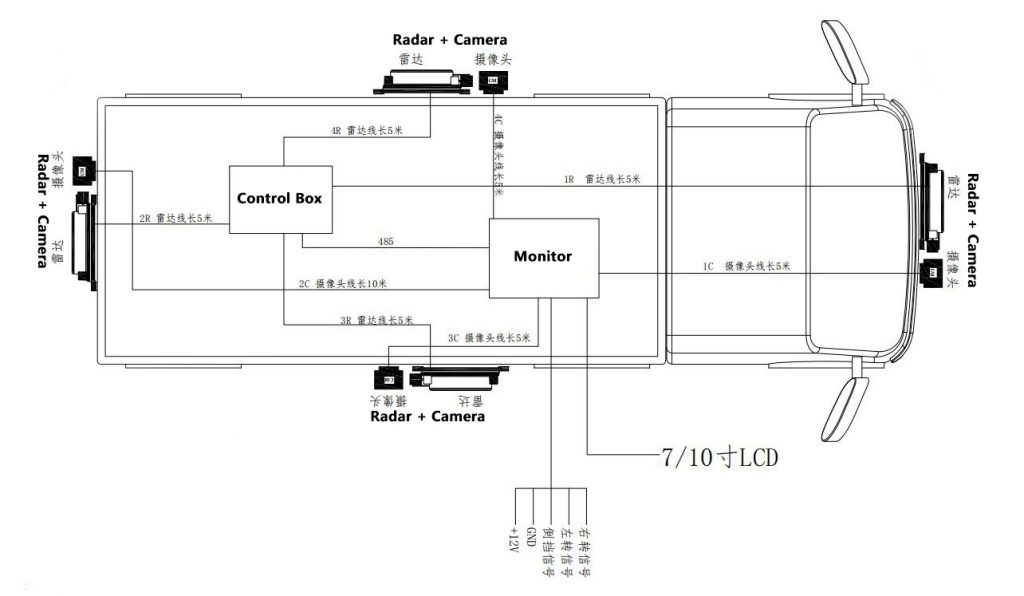

Our radar camera fusion system uses four millimeter wave radar sensors and four HD cameras installed around the vehicle.
This configuration creates a 360-degree blind spot detection system that continuously monitors the vehicle’s surroundings.
Each radar monitors one direction and can be configured independently.
The detection area can be adjusted depending on the vehicle type and application.
Typical configuration includes:
-
Detection distance up to 40 meters
-
Detection width 4 meters on each side
-
Independent warning zone configuration for each radar
This flexible setup allows the system to adapt to different vehicle sizes and working environments.

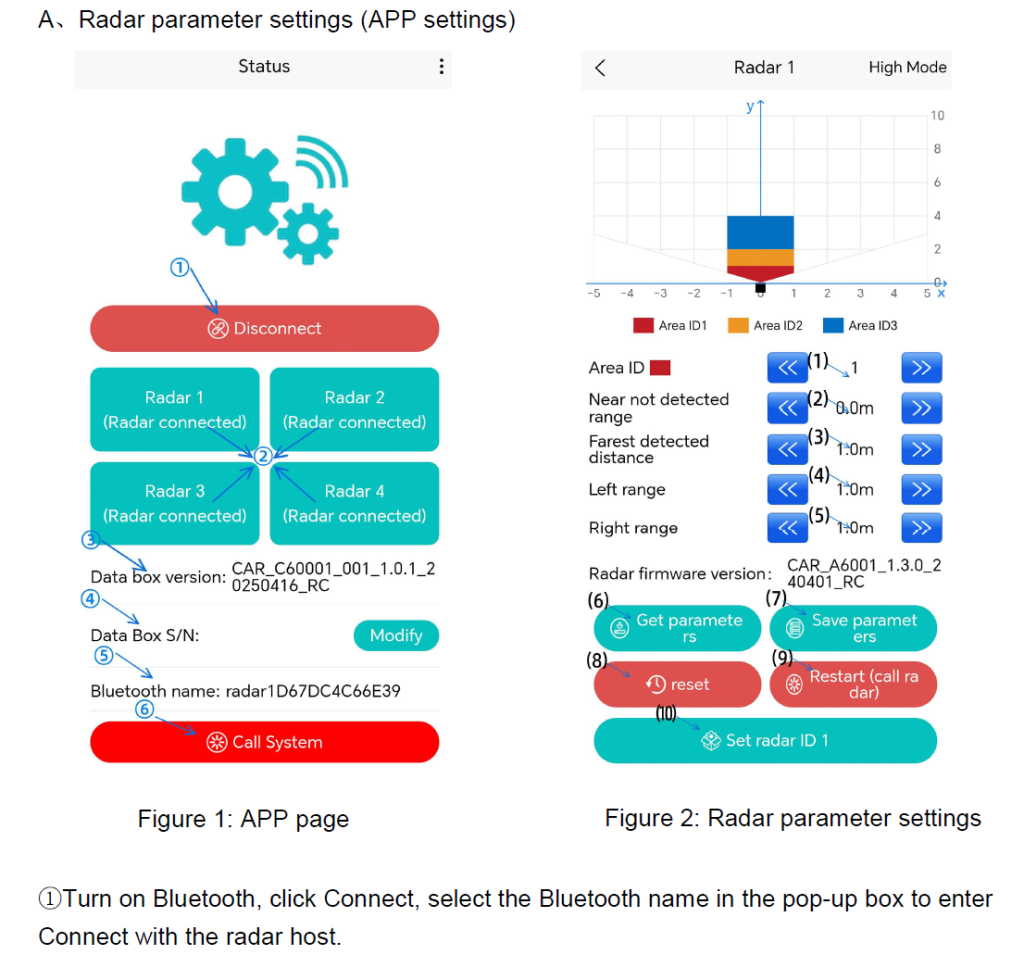

Smart Warning Zones Configured by Mobile APP
To make installation and configuration easier, the system includes a mobile application for system setup.
Through the APP, users can:
-
Adjust radar detection zones
-
Configure warning distances
-
Customize safety zones for different vehicles
-
Optimize settings based on operating environments
This allows installers and fleet operators to quickly adapt the system for different use cases.
Real-Time Collision Warning with Visual Alerts
When the radar detects an object entering the configured warning zone, the system immediately triggers an alert.
Instead of only providing an audio alarm, the system overlays a visual warning box directly on the camera image.
This allows the driver to immediately identify the location of the risk.
Compared with traditional warning systems, visual alerts improve driver reaction time and situational awareness.
Video Recording with Radar Detection Data
The system also supports video recording with radar event data.
All camera footage can be recorded, and radar warning information is synchronized with the video.
This recorded data can be useful for:
-
Accident investigation
-
Safety analysis
-
Driver training
-
Fleet management
For companies operating large vehicles, this information provides valuable insight into safety incidents and near misses.
Reliable Detection in Harsh Environments
One major advantage of millimeter wave radar technology is its reliability in harsh environments.
Unlike cameras, radar performance is not affected by:
-
Dust
-
Rain
-
Fog
-
Low light conditions
-
Night operation
This makes radar particularly suitable for mining trucks, construction vehicles, and industrial equipment.
Even in difficult environments where visibility is poor, radar can still detect obstacles and provide early warnings.
Ideal Applications for Radar Camera Fusion Systems
Radar camera fusion safety systems are widely used in industries such as:
-
Mining trucks
-
Construction machinery
-
Quarry vehicles
-
Agricultural equipment
-
Industrial transport vehicles
-
Heavy-duty trucks and buses
In these industries, improving driver awareness and reducing blind spot accidents is essential.
Conclusion
As heavy vehicles continue to grow larger and job sites become more complex, traditional safety solutions are no longer enough.
Radar camera fusion technology provides a smarter approach to vehicle safety by combining visual monitoring with precise object detection.
With features such as 360-degree blind spot detection, adjustable warning zones, visual collision alerts, and video recording, this system helps drivers detect potential risks earlier and operate heavy vehicles more safely.
For fleet operators, equipment manufacturers, and system integrators, adopting radar camera fusion technology can significantly improve operational safety and reduce accident risks.
