7 inches Auto-shutter Rear view Camera system for refuse & waste Trucks

To keep the camera lens clean, here we designed a auto-shutter rear view camera special for refuse & waste Trucks / mixed trucks and other construction heavy duty vehicles.
Working in special environment is easily to get something dirty to cover in front of the lens, that cause driver can not see clear video from backup camera.

This auto-shutter camera will be automatic open-up when driver switch to R-gear, when put to other gear, the shutter will automatic close down to protect the lens and keep it clean.

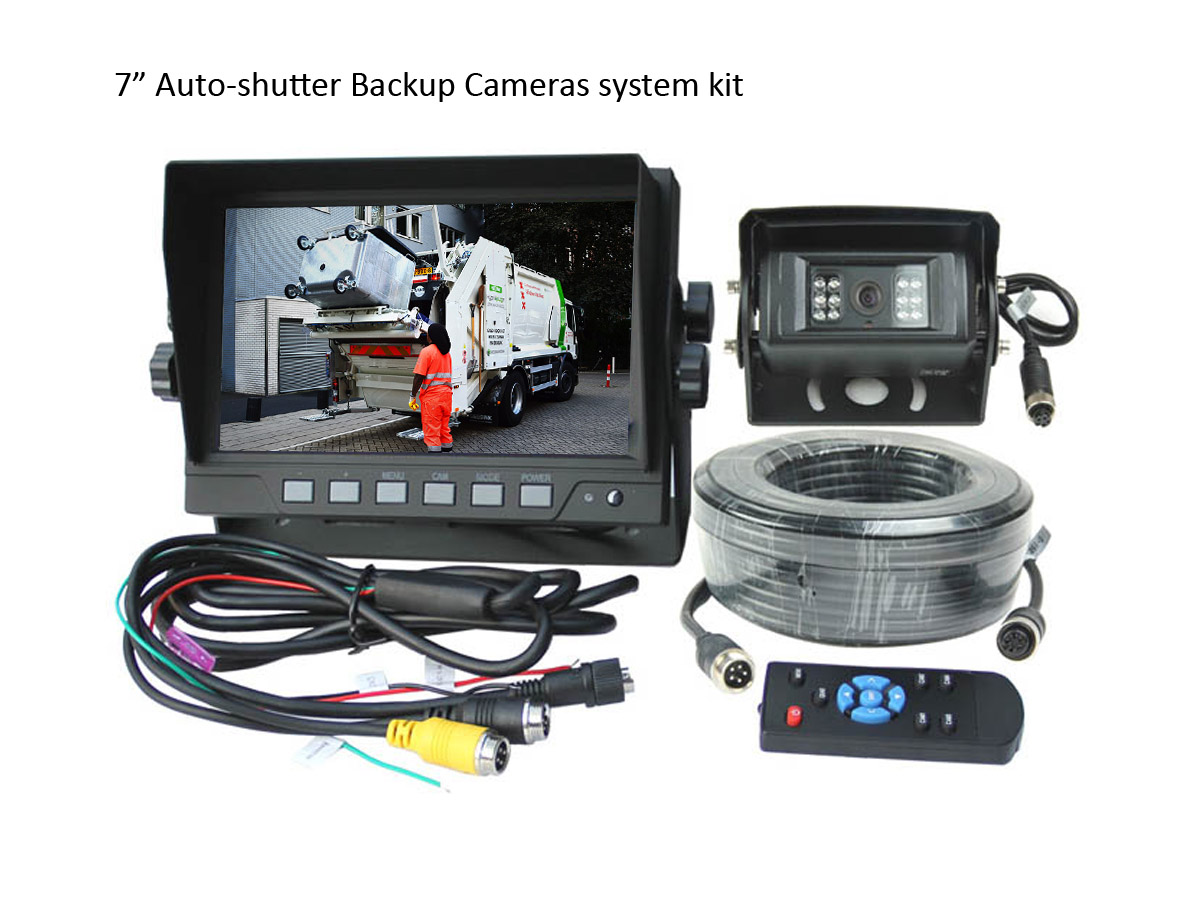

7 inch Auto-shutter Cameras Rear view system kit

System Includes:
• Auto-shutter Backup camera (LC-12AT2);
• Monitor: 7” Resolution 800 x 480 R.G.B;
• Distribution harness for power & A/V
• Heavy-duty (20M + 10M) extension cable with weatherproof screw-lock 4-pin aviation connectors;
• Accessories
• Installation/user manual
• Power supply: 12~24Vdc
• Camera dust/water rating: IP68

Other Features:
• Auto-shutter camera with heater built-in (for antifreezing).
• Optional on-screen distance scale
• Low-glare screen
• Buttons illuminate at night (4CHs version)
• 1.5-year warranty (Contact us for further information.)

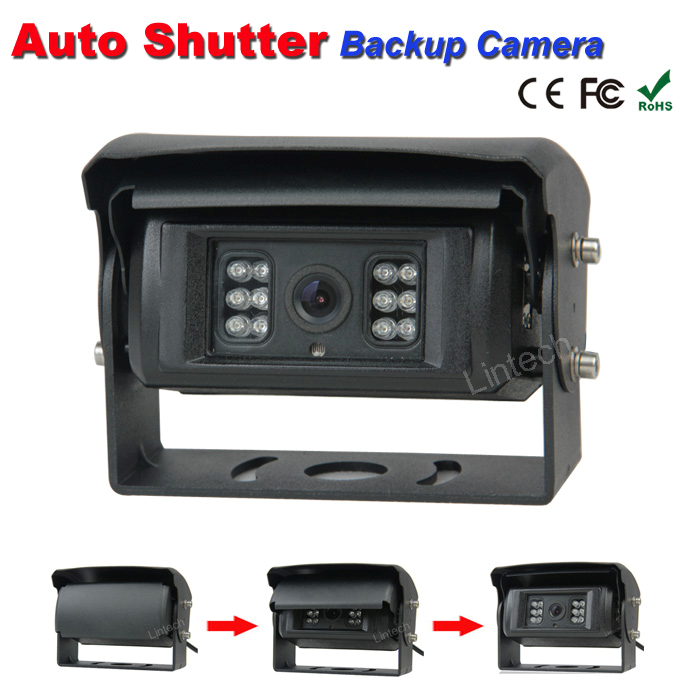

Auto-shutter backup camera for refuse waste Trucks

Auto-shutter camera for refuse waste Trucks

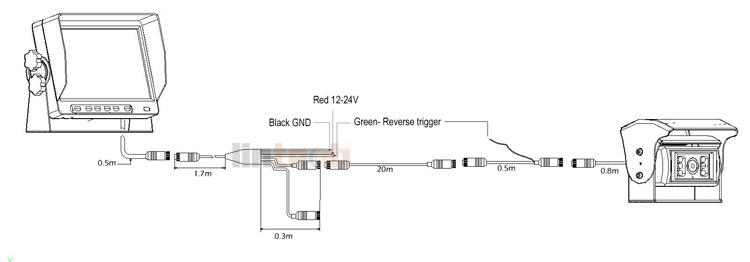

Auto-shutter rear camera for refuse waste Trucks wiring

Auto-shutter rear camera for refuse waste Trucks
